Every time you think you will remember, you don't - What is this bolt?

Xylene

Active Member
Joined
January 7, 2010
Messages
66
Reaction score
5
Year, Model & Trim Level
1998 XLT V8

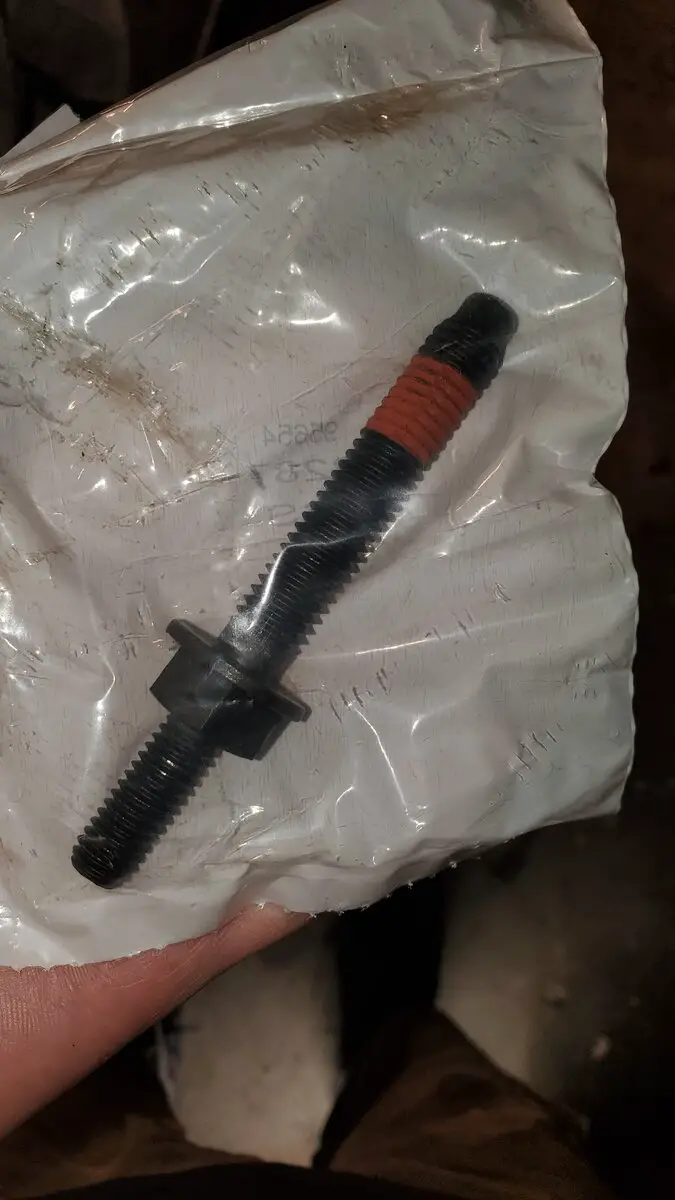

1998 Ford 5.0L - I have this bolt sitting around during my engine rebuild, so I know it came off the car. The new bolt came with my head bolts, but I honestly cannot remember where it is supposed to go, nor do I see a place for it to go.


<

Join the Elite Explorers $20 Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




<



Xylene

Active Member
Joined
January 7, 2010
Messages
66
Reaction score
5
Year, Model & Trim Level
1998 XLT V8
looks like an accesory bracket bolt.
That is what I am hoping and as the build goes along its location will become apparent. I have no idea why it came with each set of my new head bolts, its about the same size.

<



Turdle

Lowrider
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
29,723
Reaction score
1,209
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty
there is at least 2 accesory bolts which penetrate into a coolant passage. Corrosion renders them unusable. LIke the water pump timing cover bolts---

Remember this as there will be the same hole on the rear sides of the heads which need to be sealed with threaded plugs.

<



BKennedy

Elite Loser
Staff member
Moderator
Elite Explorer
Joined
November 29, 2000
Messages
8,442
Reaction score
1,763
Location
USA
City, State
San Diego, PRofK
Year, Model & Trim Level
1994 XLT
That looks to me like a exhaust manifold bolt with a accessory stud. You might not have needed it for your rebuild.

<



CDW6212R

Hauls the mail.
Elite Explorer
Joined
June 17, 2004
Messages
22,246
Reaction score
2,620
City, State
Knoxville, TN
Year, Model & Trim Level
98 Limited AWD
Obviously you don't need it now, so can I have it?

That could be one of the lower timing cover bolts, or one of the corner intake bolts, it's a bit long for a manifold bolt.

<



fastpakr

Elite Explorer
Joined
February 18, 2005
Messages
694
Reaction score
153
City, State
Roanoke, VA
Year, Model & Trim Level
99 4wd - 5.0/4R70W/BW4406
Lower timing cover (for the starter wiring harness) is what it -looks- like to me, but why would it be included in a set of head bolts?

<



<



<



Xylene

Active Member
Joined
January 7, 2010
Messages
66
Reaction score
5
Year, Model & Trim Level
1998 XLT V8
On the driver sides head there is an accessory bracket. This bolt is one that should be used for the head. It looks like I will be removing one of the bolts from that sides head and replacing it with the one meant for this accessory.


<



fastpakr

Elite Explorer
Joined
February 18, 2005
Messages
694
Reaction score
153
City, State
Roanoke, VA
Year, Model & Trim Level
99 4wd - 5.0/4R70W/BW4406
What goes on that bracket? I don't have it installed on mine.

<



Xylene

Active Member
Joined
January 7, 2010
Messages
66
Reaction score
5
Year, Model & Trim Level
1998 XLT V8
What goes on that bracket? I don't have it installed on mine.
If I remember its a single plastic bracket that holds the ignition wire to the spark plug, its a whole lot of metal and brackets for a single wire. Ether that or its a bracket for the O2 sensor wire

<



<



Joined
September 3, 2021
Messages
1
Reaction score
0
City, State
Florianópolis, SC
Year, Model & Trim Level
Explorer 2001 Limited V8
Well, the good news: It a external component. Imagine if was internal? But it clear be a component support like other guys wrote. You need to compare with diagrams manual . Maybe it not necessary to change it if you place the component in other support or position...

<



MakinJeepsWeep!

Elite Explorer
Joined
October 1, 2020
Messages
425
Reaction score
128
City, State
Polk County Texas
Year, Model & Trim Level
96 Explorer 5.0L AWD
Callsign
Big Red
At first glance i was thinking exhaust manifold bolt with the tab for the dipstick.

<



Sgfoster57

New Member
Joined
August 10, 2021
Messages
3
Reaction score
0
City, State
houston
Year, Model & Trim Level
Explorer sport XLT
1998 Ford 5.0L - I have this bolt sitting around during my engine rebuild, so I know it came off the car. The new bolt came with my head bolts, but I honestly cannot remember where it is supposed to go, nor do I see a place for it to go.

View attachment 342549
It looks like a front cover bolt to me there's several of them actually

<



leodisalvio

Member
Joined
November 24, 2014
Messages
10
Reaction score
1
Location
BRAZIL
City, State
São Paulo - SP
Year, Model & Trim Level
1993 Explorer XLT V6 2WD
1998 Ford 5.0L - I have this bolt sitting around during my engine rebuild, so I know it came off the car. The new bolt came with my head bolts, but I honestly cannot remember where it is supposed to go, nor do I see a place for it to go.

View attachment 342549
This looks like the starter assembly bolt.

<



MakinJeepsWeep!

Elite Explorer
Joined
October 1, 2020
Messages
425
Reaction score
128
City, State
Polk County Texas
Year, Model & Trim Level
96 Explorer 5.0L AWD
Callsign
Big Red
Its times like this that make it nice to know people on here really do work on things and are not google warriors. From a picture on a computer we all can narrow down where a bolt goes. Congrats to everyone on here!!!

<
