Exhaust Manifold Studs - Dorman 03411

BonesDT

Elite Explorer
Joined
July 12, 2002
Messages
1,074
Reaction score
8
City, State
Westchester, NY
Year, Model & Trim Level
Red '99 Sport SOHC 4x4
Thought I'd throw this out there, since no company lists replacement studs specifically for our 4.0L (and to remind me when I need them again).

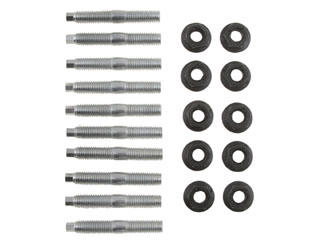

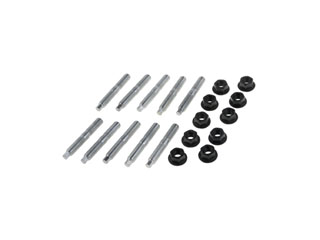

Dorman 03411, which are only marketed for Ford 4.6L/5.4L/6.8L, are exact replacements for our 4.0L.

Pairs well with Permatex Nickel Anti-Seize.


Attachments

  • 03411-001.JPG
    27.1 KB · Views: 1,243
  • 03411-003.JPG
    38.4 KB · Views: 1,552
  • 03411-007.JPG
    23.9 KB · Views: 1,138



Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





Might as well post some pics of one of my projects while I'm at it. My Dual Flowmaster 40's Rusted out & fell apart. They were too loud on the highway anyway.

I used VHT FlameProof Flat Grey spray can paint (SP104) without primer. That's a Flowmaster 50-SUV 2.25" dual-in, dual-out 524554. I used flex pipe to finish out the back. No welding was required. I didn't mess with the driver's side manifold, since that pipe that goes into it was seized in pretty bad - didn't want to fix what wasn't broken.

I already had the muffler so the whole thing cost me couch change and it felt like I was installing a brand new aftermarket kit! I did this a few months ago, the paint on the header is still perfect. I followed the instructions for the on-vehicle baking.


Attachments

  • IMG_0336.jpg
    59.2 KB · Views: 1,148
  • IMG_0337.jpg
    63.4 KB · Views: 1,316
  • IMG_0338.jpg
    51 KB · Views: 1,194






Nice looking exhaust system. Those SS clamps are
better than sliced bread. They hold well yet allow
for easy muffler and pipe changes.

Will SOHC headers fit an OHV head?

Good to know about the header studs. Thanks
for posting that.







4.0 ohv exhaust manifold studs

I found studs @ ALLEN FASTENERS. allensfasteners.com/detail.asp?Product_ID=23016
8MM THREADED STUDS
Product ID: 23016
Description: 8MM THREADED STUDS,CYLINDER HEAD AND MANIFOLD STUDS.GRADE 8 MEDIUM CARBON HEAT TREATED STEEL.

8MM THREADED STUDS - Metric
Price: $1.10
Volume Discounts Available!

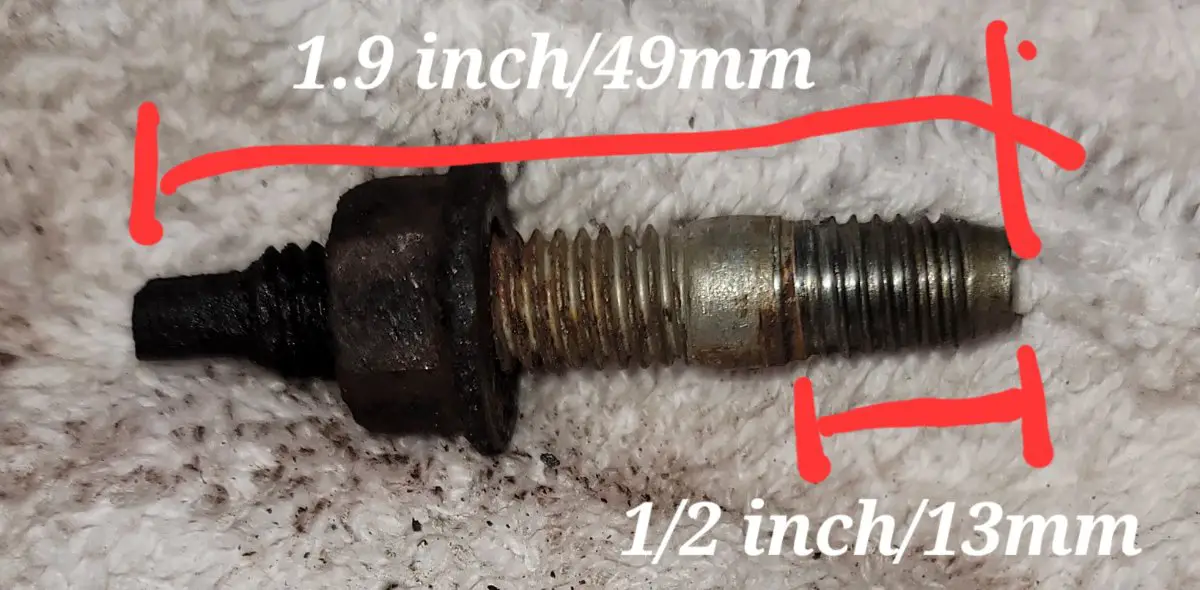

LENGTH M8-1.25 X 22 -- M8-1.25 X 10 =40M OVERALL(A11982)







I have yet to find any with that Zinc coating on them. I think its zinc.







Thought I'd throw this out there, since no company lists replacement studs specifically for our 4.0L (and to remind me when I need them again).

Dorman 03411, which are only marketed for Ford 4.6L/5.4L/6.8L, are exact replacements for our 4.0L.

Pairs well with Permatex Nickel Anti-Seize.

Is “our 4.0L” the SOHC or the OHV? Or is there no difference in the manifold studs?







I used them on my sohc installation
