exoskeleton vs INternal Roll Bars

DuffyT

Member
Joined
June 19, 2007
Messages
32
Reaction score
0
City, State
Rochester, NY
Year, Model & Trim Level
'94 Limited
Hello all!

Was sitting and browsing you tube videos of trucks and i found my self following the trail of rollover videos. So a thought came to mind..

What are peoples thoughts on external frames vs internal ones? Is there a benefit? Does anyone have a story or reasoning to support one more then the other?

I can see how an external one would 'preserve' the general shape of the truck if a roll over happened.. however i feel like you could get/make a larger, thinker, and perhaps 'safer' one if it was internal..

Just a thought... I know that some of the rigs on here have some pretty bad ass looking 'guards' around the bottom edges.. but nothing that wraps all the way around ( correct me if i am wrong, did a fair amount of searching but i know i have missed stuff in the past, hehe )

-Tim




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





Exo cages are much weaker as you cannot get the proper triangulation needed by going around the body. Also, they'll put your over-all width about 4-5" wider, which is a huge amount on some types of terrain.







they are also heavier
when you do crunch the sheetmetal underneath the exo cage its impossible to fix.
INternal cage can be tied into or up against the interior cab, keeping the sheet metal in shape even when bashed against rocks/trees







Diff Wack Daddy has good exterior support bars that I have personally seen save his fenders and windows, but he also has a full cage inside. RangerX also has sweet use of a cage that goes in and out. Smart use of your space is great

I used to think exo cages are bad ass, but my opinion they just keep getting uglier.
I mean what would you rather have? Body damage or this jungle gym on your rig getting caught on boulders and trees?


Attachments

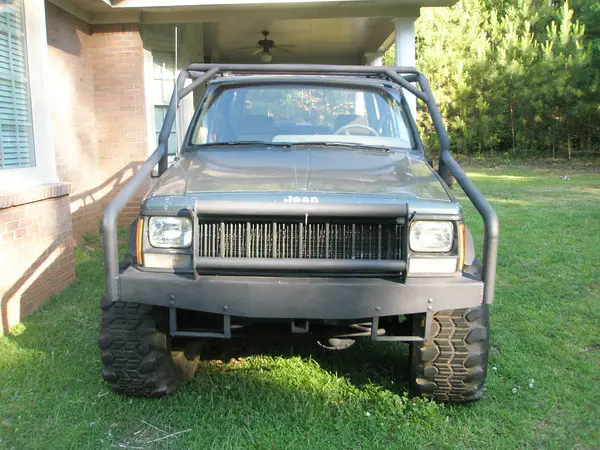

  • 302609876_5LxoA-M.jpg
