exploder exploaded bearings (or why to check bearings often) not 56k friendly

hoss_hanna

Well-Known Member
Joined
July 31, 2009
Messages
238
Reaction score
1
City, State
ft. smith, ar
Year, Model & Trim Level
91 4x4, 93 XL, 01 mountie
Here is the carnage from a bearing blowout, a friend borrowed my truck for a bit and when she brought it back she said the brakes were locking up.... wonder why?

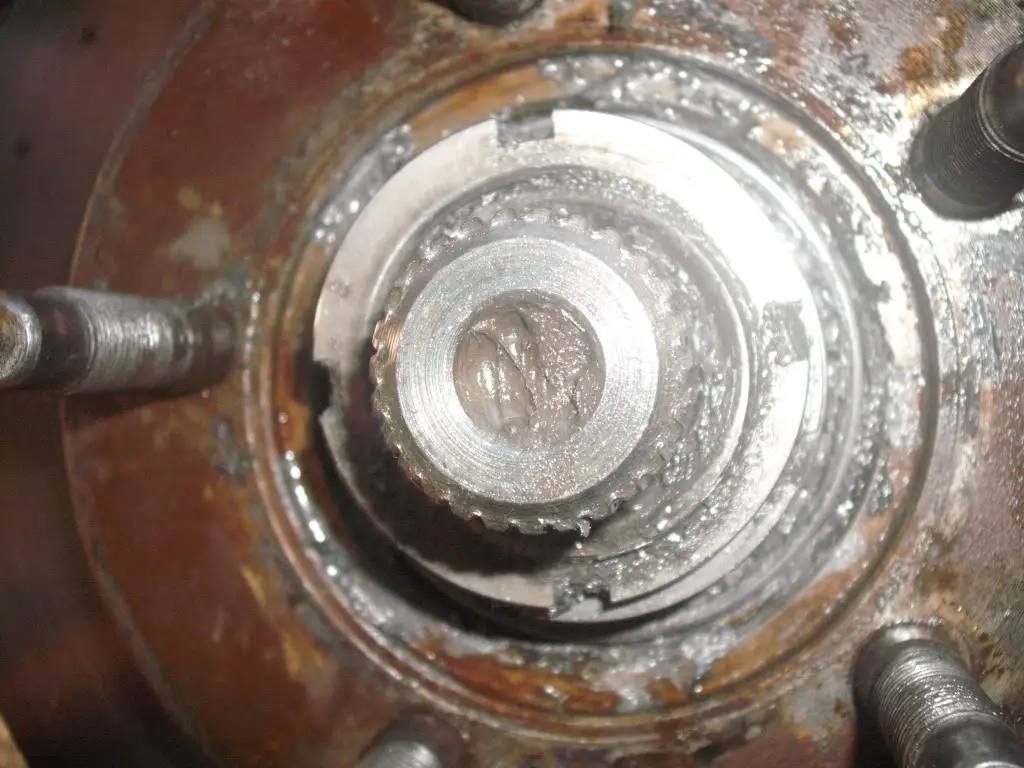

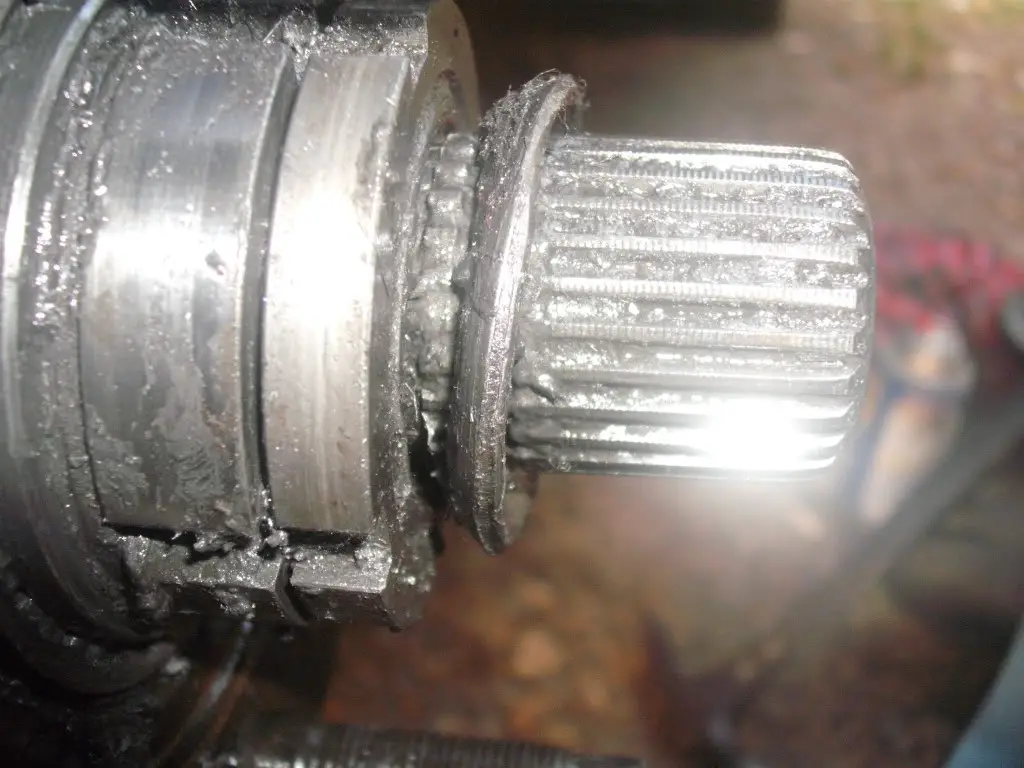

a few shots of the carnage after removing wheel

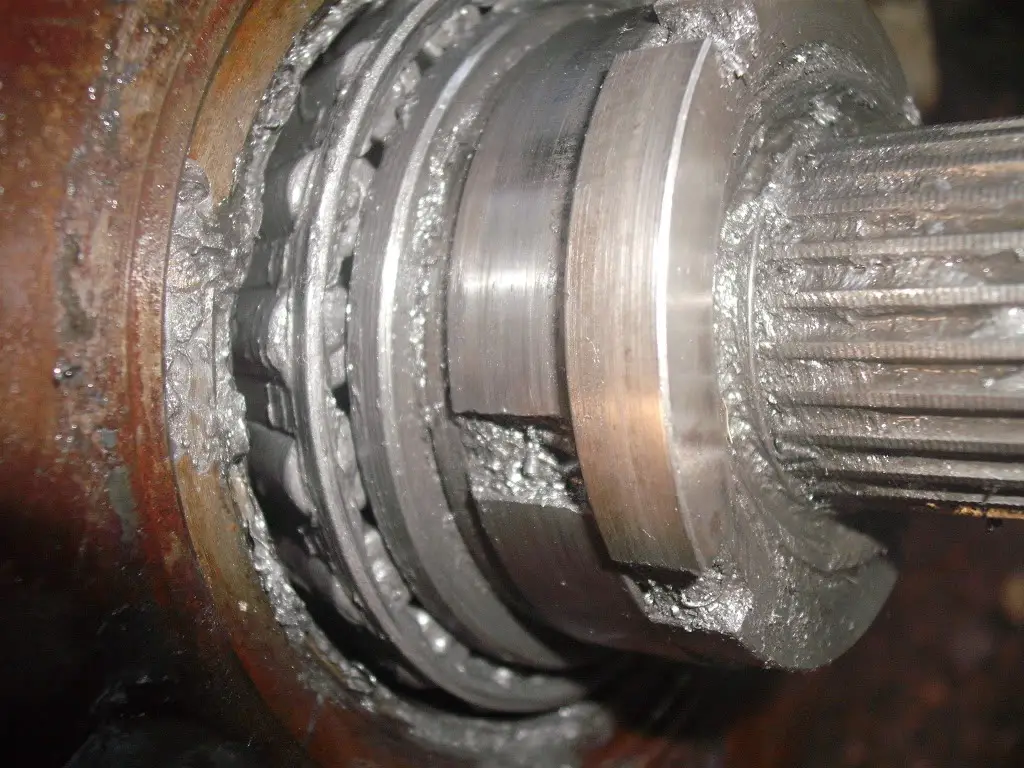

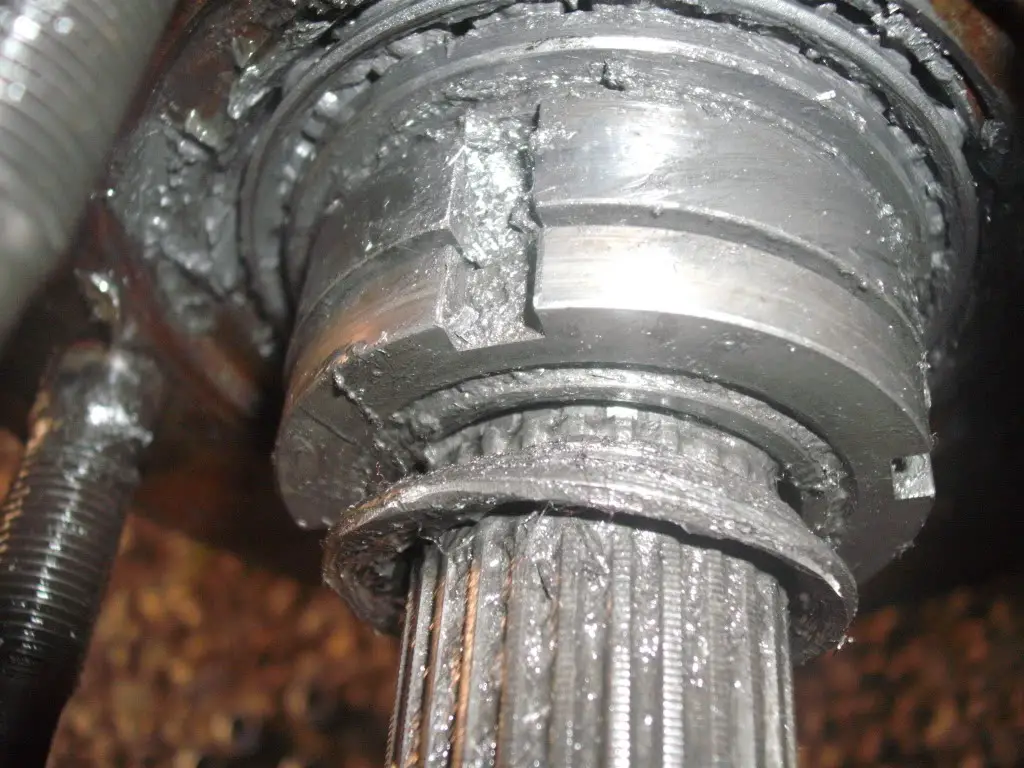

This shows how the entire assembly was riding on the ring

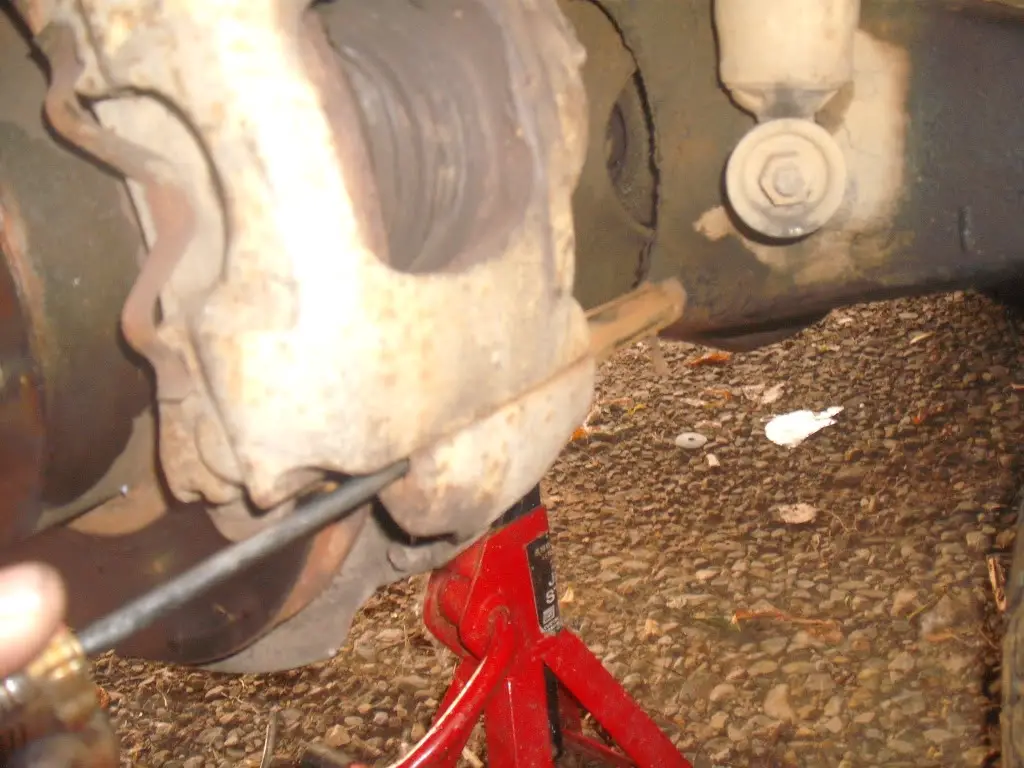

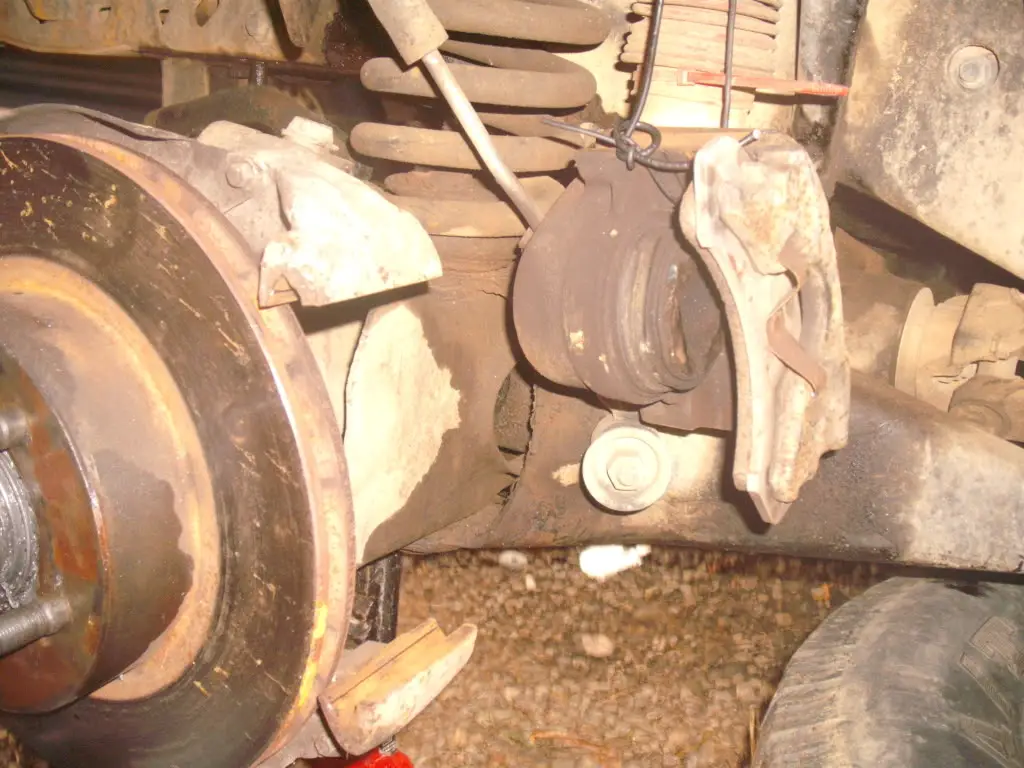

notice something missing here?


the inner brake pad was gone, totally MIA.... wonder why the brakes were sticking?

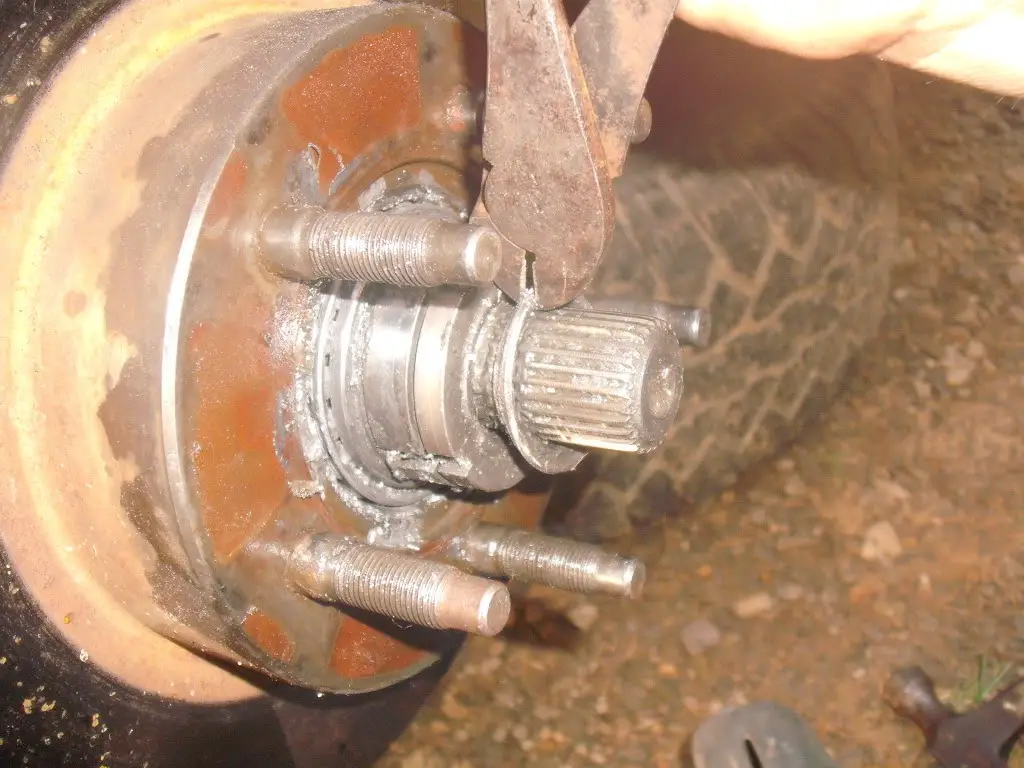

had to cut the spline ring off

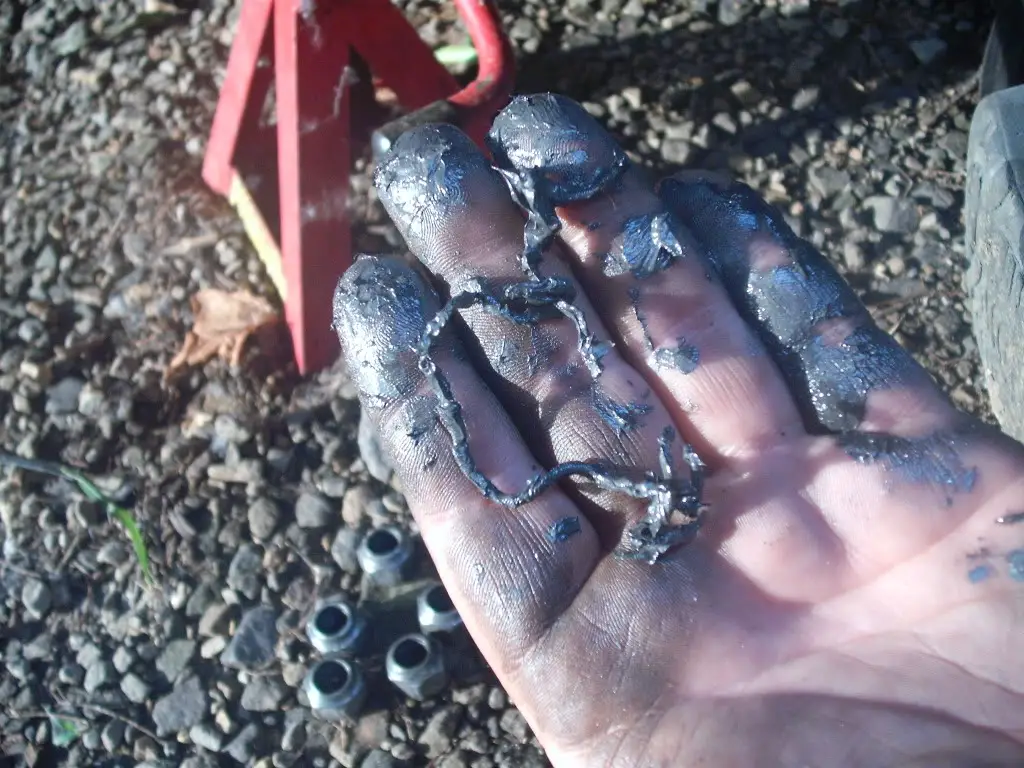

shavings that were once the seal and a fine glittering of metal dust that was part of the bearings, spindle and other semi-important parts

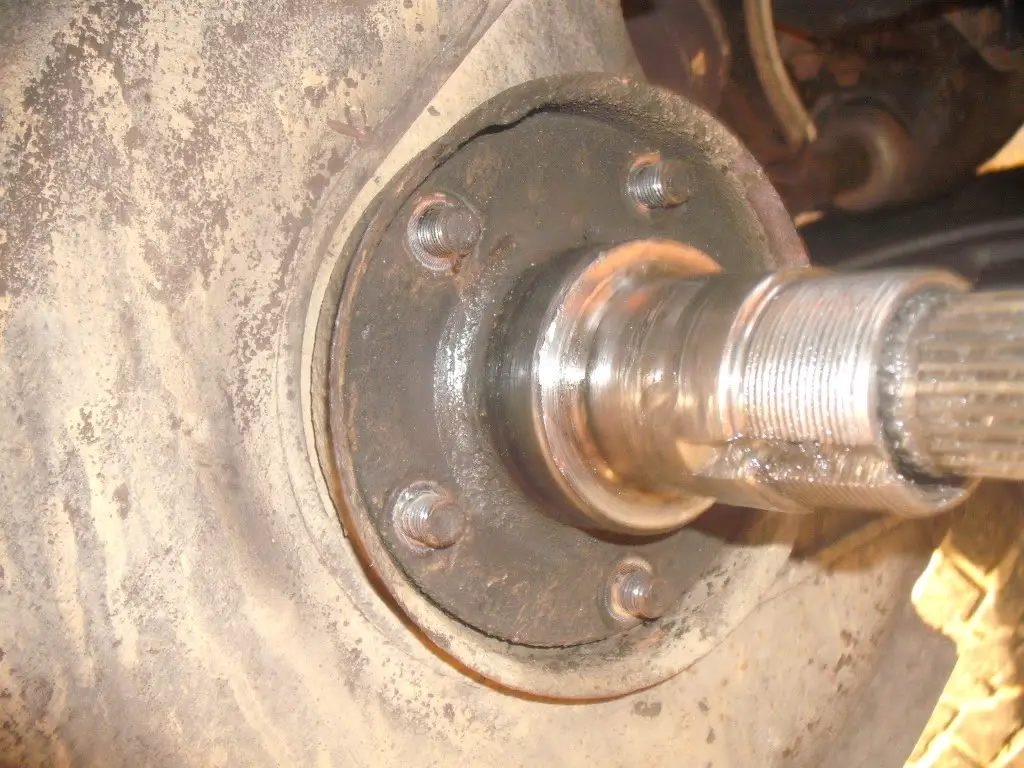

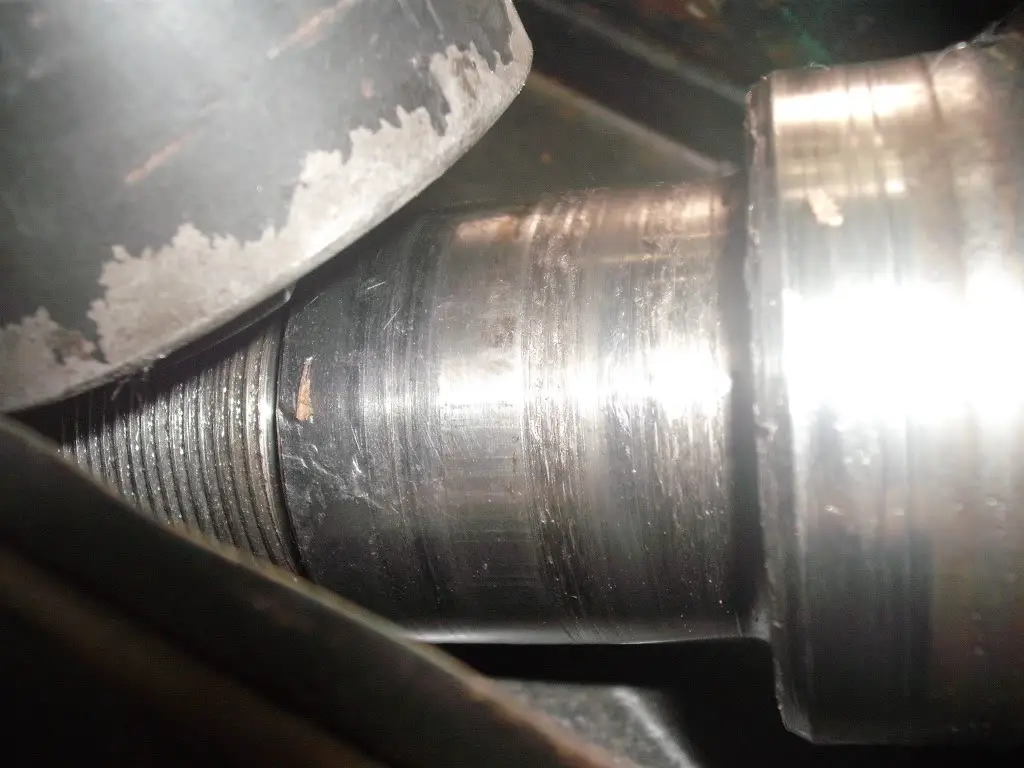

Spindle Damage

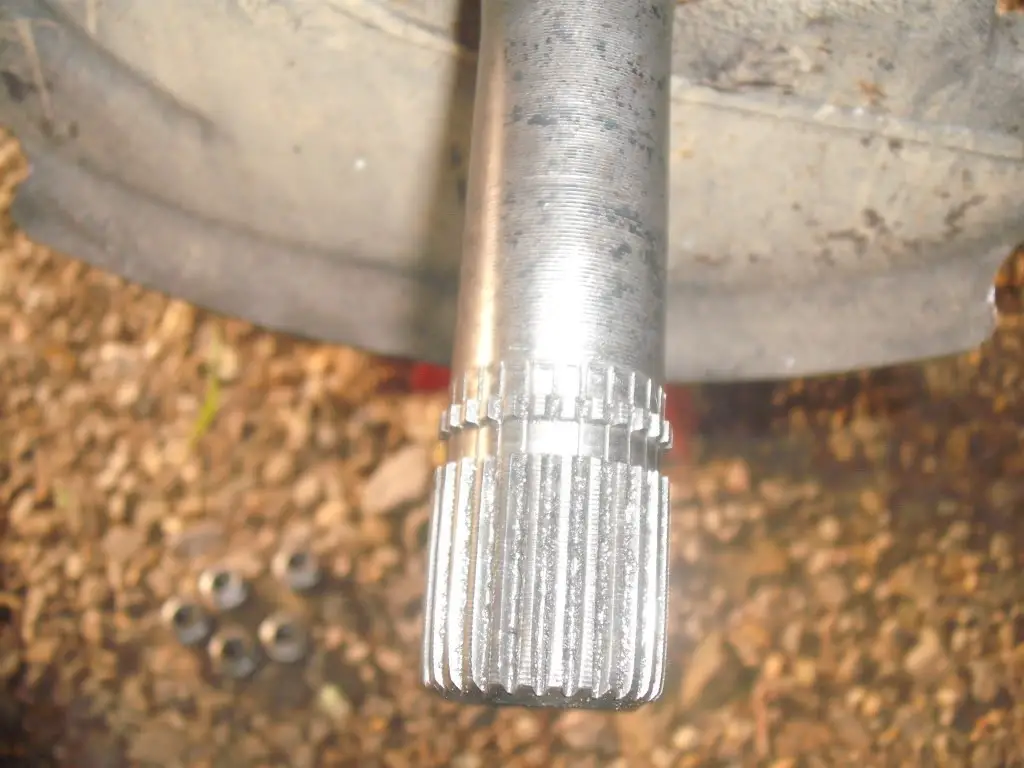

spline damage




All of this happened due to the spindle nuts backing off, a common problem with the first gen 4x4 explorers. the tiny pin on the inner nut shears off and looks as if it was never there allowing the outer nut to back off and causes everything to move out. One heck of a mess! be sure to check these every time u have the wheel off for any reason.







Paul Gagnon

Poseur SUV
Moderator Emeritus
Joined
February 7, 1999
Messages
2,394
Reaction score
11
City, State
Sherwood Park, Alberta eh?
Year, Model & Trim Level
1992 XLT
All of this happened due to the spindle nuts backing off, a common problem with the first gen 4x4 explorers. the tiny pin on the inner nut shears off and looks as if it was never there allowing the outer nut to back off and causes everything to move out. One heck of a mess! be sure to check these every time u have the wheel off for any reason.

I have had this happen more than once. It is NOT caused by the little locating pin shearing off. The reason that it happens is because the lock ring key is too small and doesn't engage the keyway correctly. It digs into the threads of the spindle, allowing the spindle nut assembly to rock back and forth. Once this happens the outer spindle nut starts to work itself loose and if not caught in time eventually leads to the catastrophic failure you had.

As a side note, your spindle is installed 20 degrees out. The keyway should be at the top.







hoss_hanna

Well-Known Member
Joined
July 31, 2009
Messages
238
Reaction score
1
City, State
ft. smith, ar
Year, Model & Trim Level
91 4x4, 93 XL, 01 mountie
maby it should have been at the top, it is now but ford put it where it was at the 20 deg out, i just put it up for ease of looking at things... and even if the lock ring key filled the full width of the keyway (which it does not, thanks ford) it still couldn't keep the nut from loosing without the stop pin, simple mechanics.... but either way as long as this post gets ppl to keep an eye on them im happy. u say tomato i say watermelon :)
