Explorer brake controller?

Post number 2 has been selected as best answered.

peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
31,999
Reaction score
2,527
City, State
Russell, Ontario (Ottawa area)
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3
^^ Welcome to the Forum. :wave:
Just remember that the max you can tow with an aftermarket hitch is 3000 lb. Not sure if anyone has the wiring diagrams for a 2021 but I'm guess a 2020 might be the same.

Peter

<

Join the Elite Explorers $20 Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




Catishi23

New Member
Joined
March 3, 2021
Messages
7
Reaction score
1
City, State
North Grafton, MA
Year, Model & Trim Level
2021 Explorer Platinum

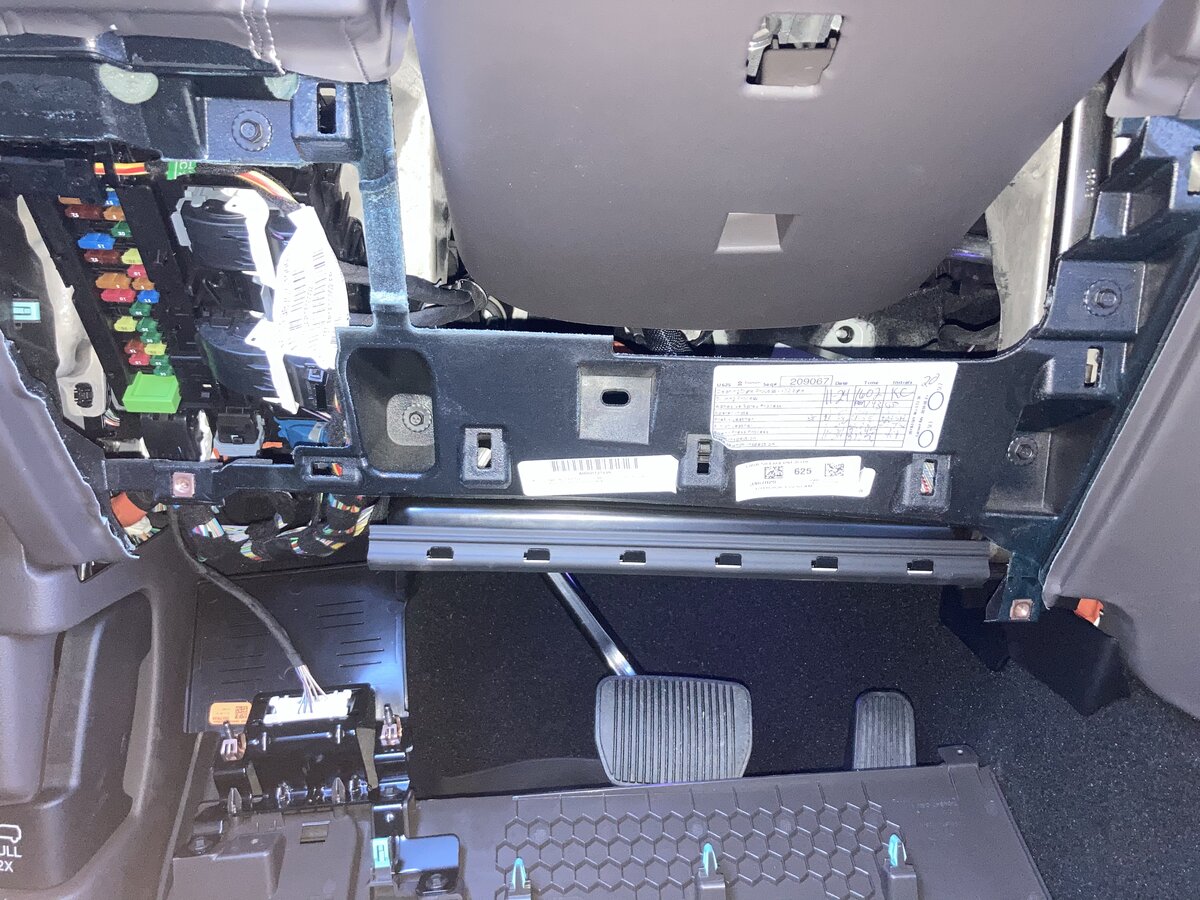

I know this is the 2020 explorer thread, but I confirmed the wiring harness is in the same location on my 2021 Platinum (above the lower airbag and below the steering column). I was able to attach the brake control cable with only removing the plastic cover under the steering wheel. I remove four screws to do so- two are easy to spot toward the seat, but there is another one behind the pedals and a fourth to the right of the accelerator going into the center console. The picture attached is only showing the plastic cover I removed; refer to previous photos for the plug itself- it was in the same location described as the 2020 and pointing towards the center console


<



<



Sj explorer

New Member
Joined
February 20, 2021
Messages
6
Reaction score
1
City, State
Mantua nj
Year, Model & Trim Level
2021 explorer xlt

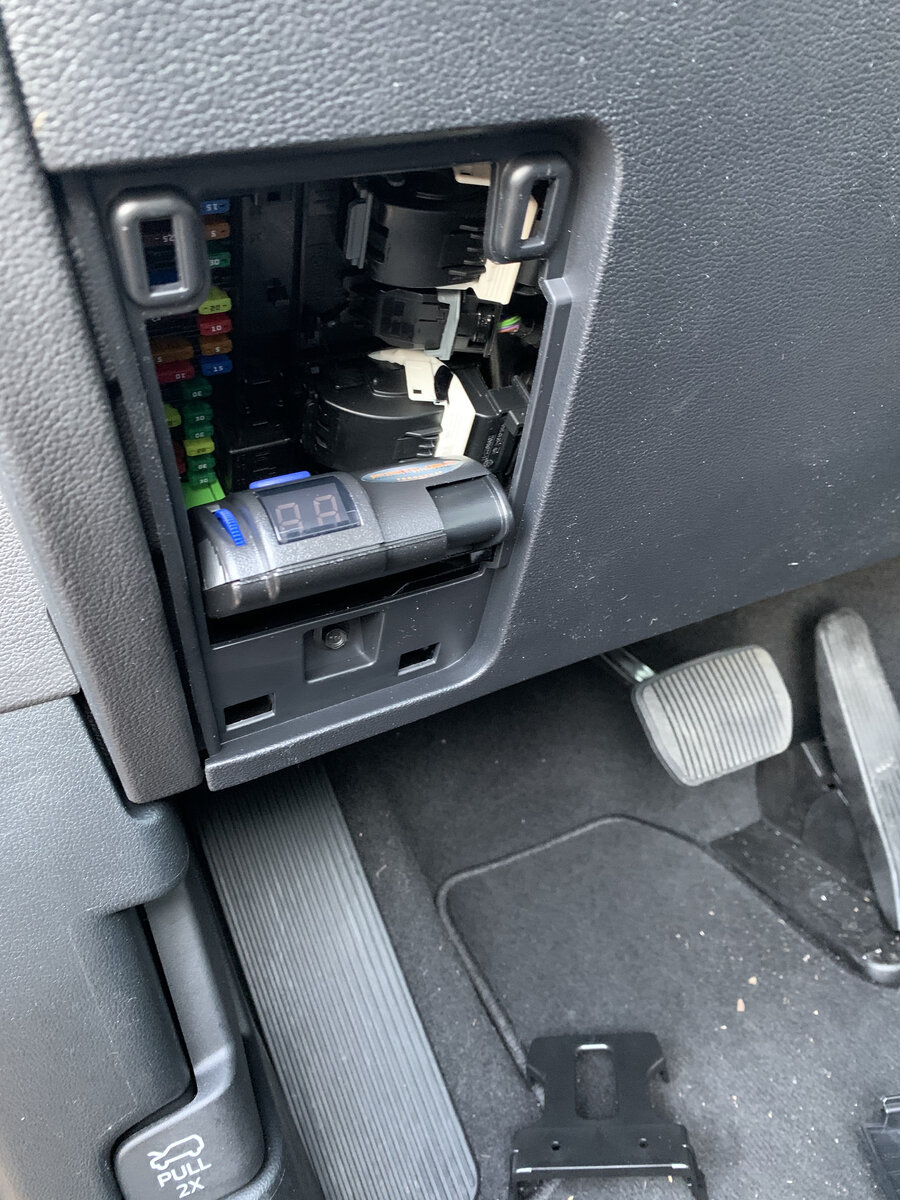

The brake controller fits nicely in the fuse compartment and don’t have to drill any holes in the dash 👍🏻

<



peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
31,999
Reaction score
2,527
City, State
Russell, Ontario (Ottawa area)
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3
A little off-topic but has anyone found the brake controller plug on the Aviator?

Peter

<



northvibe

Elite Explorer
Joined
February 10, 2020
Messages
296
Reaction score
48
Year, Model & Trim Level
2020 Ford Explorer XLT
A little off-topic but has anyone found the brake controller plug on the Aviator?

Peter
It isn't in this explorer location?

I could see them moving it but I wouldn't think far from that location.....

<



peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
31,999
Reaction score
2,527
City, State
Russell, Ontario (Ottawa area)
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3
It isn't in this explorer location?

I could see them moving it but I wouldn't think far from that location.....
It doesn't seem to be. I've revived my membership in a Lincoln forum and there is a thread on the controller plug but it doesn't appear as though the Aviator has one that anyone has been able to find. BTW, I'm not looking for it for my use.

Peter

<



Dale5403

Well-Known Member
Joined
February 18, 2020
Messages
590
Reaction score
137
City, State
Mondovi, WI
Year, Model & Trim Level
2020 Explorer ST
It doesn't seem to be. I've revived my membership in a Lincoln forum and there is a thread on the controller plug but it doesn't appear as though the Aviator has one that anyone has been able to find. BTW, I'm not looking for it for my use.

Peter

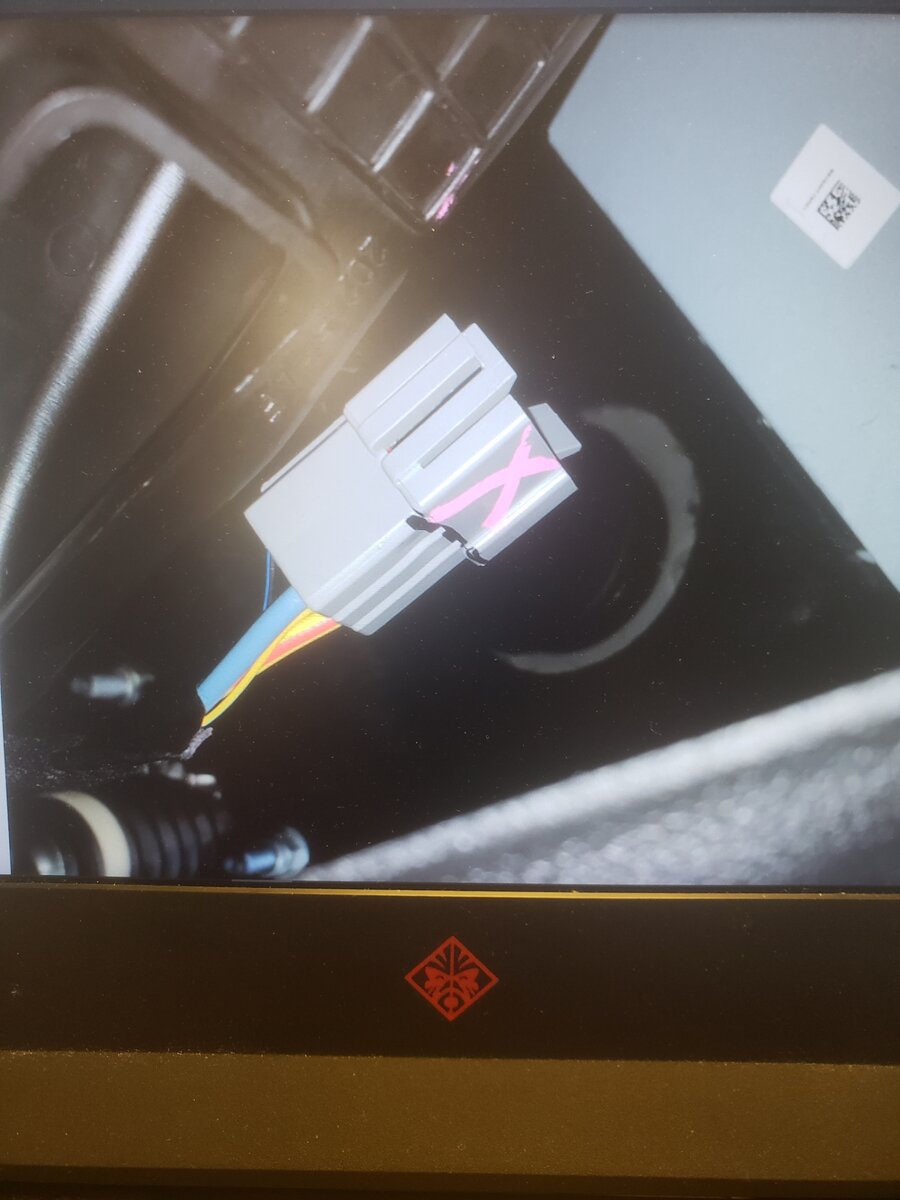

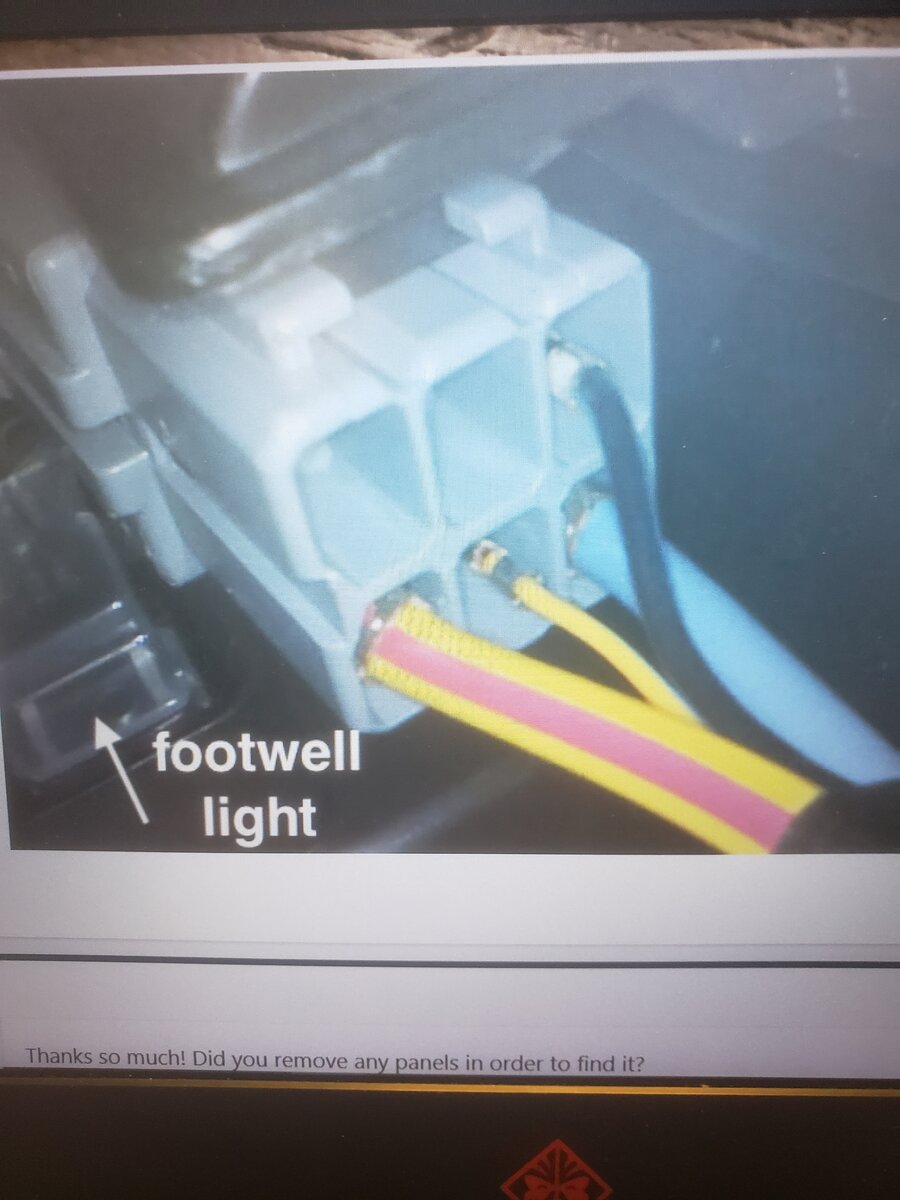

Peter, I found some info that it should be in the same location as the Explorer. It sounds like there is an extra panel that might be blocking it from
sight. Here are a couple of pictures that were posted. Let me know if you to know where I found this.

20211022_143440.jpg 20211022_143500.jpg


Attachments

  • 20211022_143440.jpg
    95.3 KB · Views: 5
<



explree

New Member
Joined
October 15, 2021
Messages
9
Reaction score
3
City, State
Castlegar, B.C.
Year, Model & Trim Level
2021 XLT, trailer tow pkg
I have a 2021 Explorer with factory tow package. When I went to the Curt site I found the harness pigtail that fits the 2020 does not fit the 2021. Is Curt wrong, did Ford change the plug on the 2021? I find it hard to believe that they would do that, but still???

<



explree

New Member
Joined
October 15, 2021
Messages
9
Reaction score
3
City, State
Castlegar, B.C.
Year, Model & Trim Level
2021 XLT, trailer tow pkg
3035-p, yep that is the one
Heads up for the 2021. I went to Amazon and they say it will NOT fit a 2021. Did Ford change the plug in the 2021?

<



explree

New Member
Joined
October 15, 2021
Messages
9
Reaction score
3
City, State
Castlegar, B.C.
Year, Model & Trim Level
2021 XLT, trailer tow pkg
Thank you Catishi for the photo and the explanation. I have removed four screws as you mentioned but the plastic panel will not budge. Are there some clips holding the panel in place as well? I have a 2021 XLT, but I would think the panels would be the same.

<



explree

New Member
Joined
October 15, 2021
Messages
9
Reaction score
3
City, State
Castlegar, B.C.
Year, Model & Trim Level
2021 XLT, trailer tow pkg
OK, I got it. Thanks everyone for all the posts. I found that on the 2021 XLT all you need to do to access the plug is to remove the bottom rubber panel. I did not remove the panel immediately under the steering wheel. The one I eventually removed was the one that has the heater vents in it and is bolted to the firewall and the console. The panel itself is bolted with two screws to the little tabs that also house the OBD reader. The next was a nut I removed that fastened the same panel to the firewall and then there was a bolt that fastened the panel to the consle. There was also a tab that snapped in at the top. When this was removed the plug was very clearly visible and as posted is attached via a tab just above the steering column. So if I have read the previous posts right (and I may not have) then the panels on the 2021 XLT are a bit different from all the others. In any case, thanks all for the posts, now I have confirmed that the 3035 wiring harness sold on Amazon will indeed fit.

At least I hope it does. I have ordered it and will post later when it arrives to confirm.

<



explree

New Member
Joined
October 15, 2021
Messages
9
Reaction score
3
City, State
Castlegar, B.C.
Year, Model & Trim Level
2021 XLT, trailer tow pkg
Final update from me on this topic. I installed the 3035-P harness that I got through Amazon and it fits. The factory plug is the female part and the harness has the male bit. However, the factory female plug has a dummy male plug in it that needs to be removed first. I guess they stuck it in there to cover the leads??? In any case it all works great. I took it out for a test pull today to confirm that the brakes and lights work as they should and they do. Then I put the trailer away for the winter.:(

<
