Extended RA with ballistic joints on a 92

I decided its time to work on the extended arms.. its a small enough project and the kind I can do without taking the X down for a long time...

I got these from an EF member a while ago (came with a 5.5" lift and other parts)..

They currently have Heim joints which I don't think would last very long in our dusty climate.. Also, they were female heim joints instead of the normal male ones which means its harder to find good joints...

I already cut the ends off, and removed the extra support material that was in the tube..


I'm looking to use a set of Ballastic Joints (http://www.ballisticfabrication.com/Forged-Chromoly-263quot-Ballistic-Joint_p_1636.html).

This means I'll need to make new hangers for the joints since the ones for the heim will be too narrow..

I do have two somewhat stupid questions...

Bolt on or Weld on the joint mount to the frame?

Will it really matter if I get get left or right handed threads for the Joints/tube adapters? For my use I can't think of a reason to have either, other than lefty loosy, righty tighty :).

~Mark



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




DB_1

Elite Ranger
Elite Explorer
Joined
October 23, 2001
Messages
3,798
Reaction score
42
City, State
La Quinta, Ca.
Year, Model & Trim Level
97 SC Ranger xlt
Rod ends work fine in my experience for the desert, all of my steering and most of my links are rod ends. Those rod ends in your pic don't look to be of the greatest quality, I've hade good luck with the FK brand.

In your case you don't need left hand thread, just stick with right hand threaded stuff for simplicity sake. The only reason you would need left hand threads is if you used them in conjunction with right hand thread joints on a linked set up. That would allow you to adjust the length of your links in or out with out unbolting the link itself.

Those Ballistic joints would work great, i'd run them in a heartbeat.

As for the mounts, you could do it either way, I like stuff to bolt on just so it's easy to remove if i ever need to.

I'm using brackets from Polyperformance, I bolted them to the frame with 2 bolts on the underside and one on the side:http://www.polyperformance.com/shop/Chassis-Mount-Link-Bracket-p-374.html

I'll be rebuilding my set up soon with brackets from K.O.R.E. which are a little bit bigger to fit the joints i'm using plus they are 1/4" thick steel...beef:http://kore4x4customs.com/asccustom...=1&categoryID=2&productID=90&cartID=356980905

Both brackets are the right width for those Ballistic joints so it'll slip right in.





Maniak

Moderator-Stock 91-94
Elite Explorer
Moderator Emeritus
Joined
February 9, 1999
Messages
12,095
Reaction score
116
City, State
Vail, Arizona
Year, Model & Trim Level
1992 XLT 4x4
Another question...

The ID of the tube is 1.25" with 3/8" wall. Do I want more material on the tube adapter or more material on the threaded shaft of the Joint?

For example...
Which is better to use? Tube adapter threaded for 1" or a Tube adapter threaded for 7/8"?

The 7/8" one is a smaller threaded shaft but there would be more material around it. If I went with a 3/4" threaded tube adapter the threaded point on the joint would be even smaller but the material around the threaded area as its in the tube would be thicker...

~Mark





tdavis

Linux Guru, Jack of All Trades
Staff member
Admin
Elite Explorer
Joined
January 17, 2000
Messages
6,462
Reaction score
70
City, State
Pinole, CA
Year, Model & Trim Level
2001 F250/XLT Superduty
Callsign
KG6MAX
You want as big of shank as possible on the joint.. That's where the stress is at IMO.

Go all right hand..

Build/Buy brackets of at least 1/4", maybe 3/8" thick material. They will get beat to death.

I prefer to do bolt on where possible, but it may mean you have to sleeve the bolt holes in the frame.





Maniak

Moderator-Stock 91-94
Elite Explorer
Moderator Emeritus
Joined
February 9, 1999
Messages
12,095
Reaction score
116
City, State
Vail, Arizona
Year, Model & Trim Level
1992 XLT 4x4
I really like those KORE brackets.. the Ballastic ones would require me to weld on a plate so it could grab the side of the frame..

Ballastic bracket.
thumbnail.asp


the KORE ones already have the extra side piece..


And.. to get a bigger shank.. that means I should get the 1" shank on the Ballastic Joint and then get the 1.25 ID/1.5 OD tube adapter with 1" threading.. The OD is a little bigger than the OD of my tube but that really shouldn't matter (at least I can't see why it would matter)..

~Mark





rookieshooter

Moderator Emeritus
Joined
March 13, 2005
Messages
7,293
Reaction score
1
City, State
Martinsburg WV
Year, Model & Trim Level
84 BII "Li'l Samson"

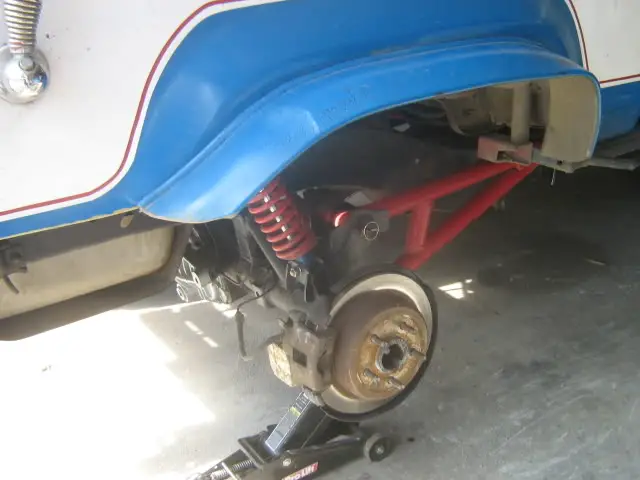

This is the frame bolted mount I made for my rear axle Ballistic tip. I've done a few trail rides since then plus riding on the road everyday and have had no problem.
