Extending the Stock Roof Rack

Blown

Well-Known Member
Joined
December 6, 2007
Messages
789
Reaction score
524
Year, Model & Trim Level
2000 X-Edge
I used U-Pull parts matched to my rig, got the mounting rails/slides, center supports/skid/spars, the square, slide nuts that fit in the rails, and a couple extra rail/slide mounting bolts. The extra bolts were needed as the heads stripped a bit on a couple of them when I removed them. I used three screws with a rubber washer under them to mount the slides and mounted the spars with 3/16" aluminum rivets.

I did not extend the rack with the intension of hauling anything more than some camping gear or extension ladder. I wanted additional security so I made and added tie downs, aluminum angle, rivetted to the body, so they are separate from the rack and help held down the rack and everything in it. I have used the set-up for several years. It has allowed me to make a bed in the back and be able to hit the road with all camping gear on top.

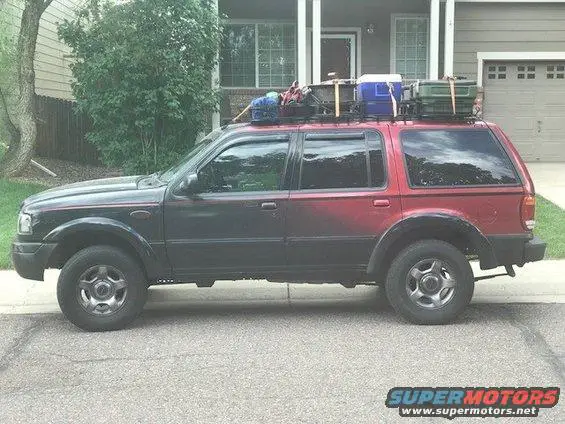

Early use ,before I got the rocket box and made the front air diverter:

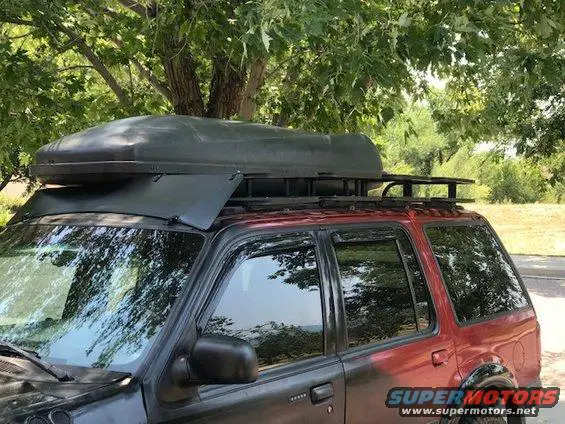

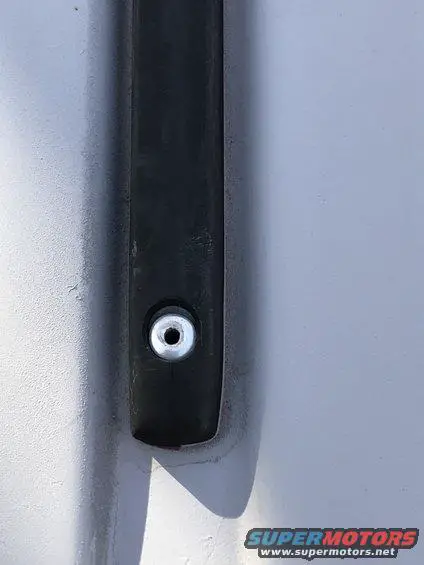

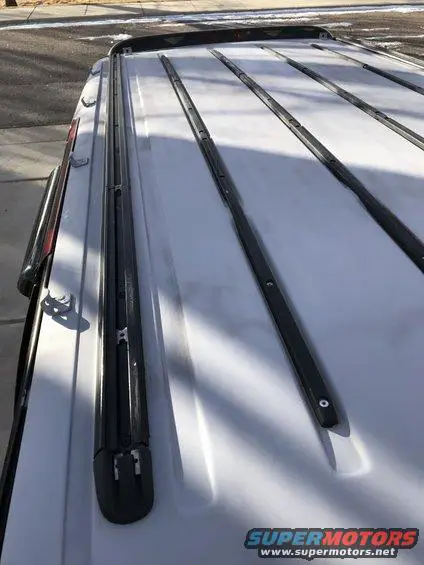

Here is the latest set-up, though I have painted my truck since this pic:

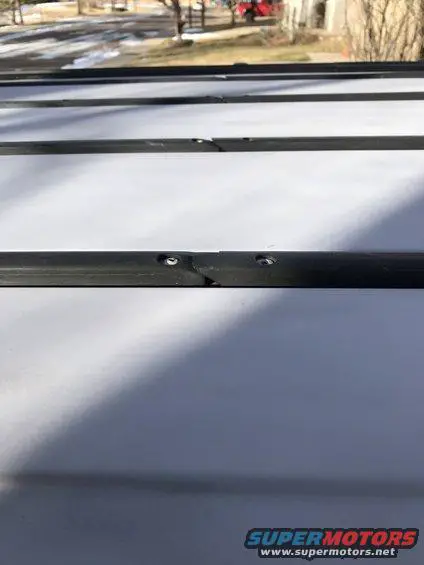

I cut-in the ends of the spars to the end of the existing spars:

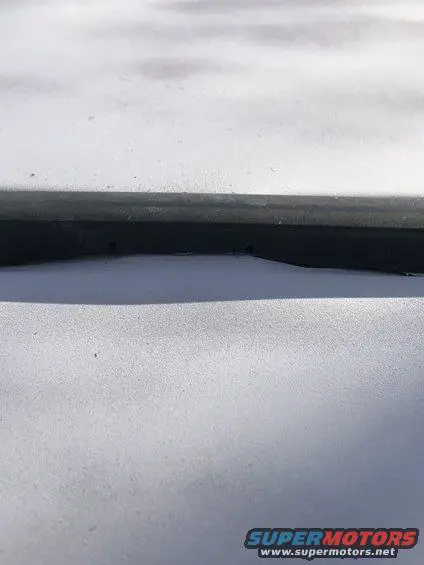

There was a section of channel the spars fit down into that had a lump so I cut in the spars to fit:
