Fog Light Installation OEM

I am in the process of purchasing fog lights for my 02 XLT to install. It did not have fog lights installed from the factory. I have ordered the Fog light bezels and am going to order the OEM fog lights. I do not know what wiring kit I will need to buy that includes all the harnesses etc.

This is the closest I come to finding something that looks like what I need..
http://www.summitracing.com/search/...ke/ford/model/explorer/submodel/xlt/year/2002
And then I am not even sure which one..

Would these fit?
http://www.ebay.com/itm/01-03-Ford-...ts-Lamp-Switch-Bulbs-Wiring-Set-/181077384477
or these?
http://www.ebay.com/itm/FORD-EXPLOR...02|Model:Explorer&hash=item20cd733e24&vxp=mtr

If someone could shoot me a link on ebay or Amazon or something with a wiring kit, I would really appreciate it!

Thank you

<



DjDom

Moderator Emeritus
Joined
September 11, 2011
Messages
2,612
Reaction score
5
City, State
Toronto, Ontario
Year, Model & Trim Level
97 XL(imited)
Why not get a harness at the scrap yard?

And, I'm not sure about 3rd gens, but a proper pair of aftermarket fogs would work much better than the stock ones, and you could run it off the stock switch.

also, check in your dash, you may already have the fog lights harness in there.

<



iamdestruktor

Member
Joined
May 3, 2013
Messages
31
Reaction score
0
City, State
QUEENS, NY
Year, Model & Trim Level
2004 Explorer XLS Limited
It seems the aftermarket wiring is much easier. Mine is an XLS that doesn't have daytime lamps or fog lights and i'm looking to install and it seems incredibly easy.

<



BigRondo

USMC 1371
Elite Explorer
Moderator Emeritus
Joined
February 15, 2010
Messages
7,858
Reaction score
14
City, State
Worcester, MA
Year, Model & Trim Level
2002 XLT V6 4x4
My Ex didn't have factory fogs so I put them in myself. I have an '02 and I did new wiring, switches, etc. I got the fog light bezels (thanks Kazer :thumbsup:) and use factory compatible fog lights.

Have you checked out this sticky?: How to: Auxilary/offroad lites

Here's how I did mine:

I would highly recommend using a relay! I have my lights wired so that they can only come on with the parking lights and I have a switch also so I can shut them off when the parking lights are on. I picked up the relay and the switch at Radio Shack.

This is the diagram I used for wiring my lights. The relay is triggered by the parking lights, turning on my aux lights, and the switch allows me to turn off the lights:



I found a great path for running wires through the firewall on my '02 XLT:

This is the view from the engine compartment. The access is behind the brake booster. Look behind the brake booster and down and you will see it.

picture.php


This is the view from inside the Ex. Follow the brake pedal up to the firewall and look to the left. The red arrow points to the piece that you peel back and the black arrow points to the grommet:

picture.php


I tapped the parking lights at the driver's side parking light itself, not a big deal since you have to route wires in that area anyway. The picture is from my how to for installing signal mirrors, the link is in my signature. There is some good info there for routing the wires.

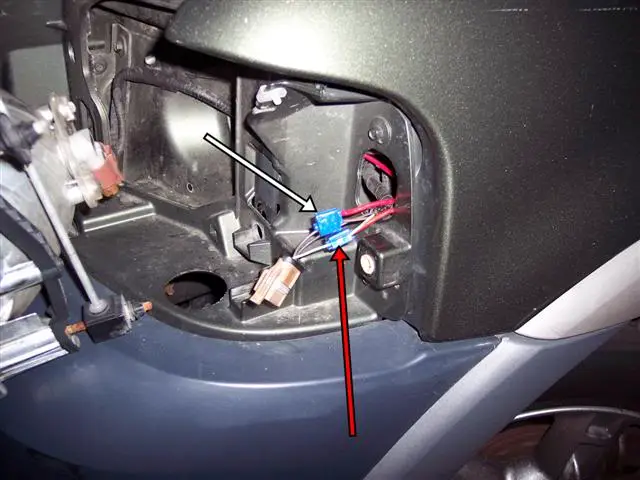

Peel back and remove a portion of the plastic wrap - The red arrow indicates the quick splice connector connected to the Green w/White Stripe wire for the signal mirror - The white arrow indicates the quick splice connector connected to the Brown wire for my fog light relay.



Here is the pic of the grounding points. The red arrow indicates the grounding point for the lights, the white arrow indicates the grounding point for the relay & the switch, the yellow arrow indicates where I mounted the relay, the blue arrow points to the wire run from terminal 30 on the relay to the positive terminal on the battery (including in-line fuse):



My relay wiring is as follows:

Term #30 - wire run through in-line fuse to positive terminal on battery
Term #85 - wire run to ground point indicated by white arrow
Term #87 - wire run and connected to positive wires on fog lights
Term #86 - wire run to switch located inside vehicle

The switch shown in the link has 3 terminals (ground is required to illuminate the LED indicator light):

Line - wire run to parking light circuit at driver's parking light
Load - wire from term #86 on relay
Ground - wire run to point indicated by white arrow
If you use a switch without an indicator light then the ground wire is not required.

When wired as above, the aux lights can only come on when the parking lights & the switch are on. When the parking lights are on you can shut off the aux lights with the switch.

I hope I didn't confuse you too much. Feel free to ask any questions. :thumbsup:

<
