FORScan: Add compass heading on 2016 Interceptor?

blob19

Well-Known Member
Joined
November 19, 2016
Messages
115
Reaction score
23
City, State
Midwest
Year, Model & Trim Level
2016 Interceptor Utility
I wanted to fork a new thread off of this one, so that I don't hijack it:

BCM code to allow rear hatch entry?

stroker70 was able to add the compass display on a 2014, using: IPC 720-01-02 changed from 8E11 4C03 1931 to BE11 4CF3 194D

...but my IPC 720-01-02 is not 6 bytes long

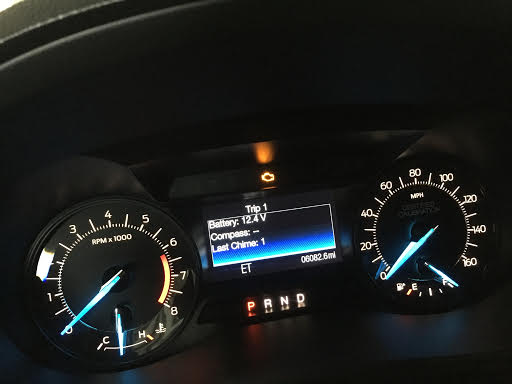

also from the IPC diagnostics mode, it looks like I might not even have the hardware compass installed:


I stumbled upon IPC 720-02-01 xxxx xxxx xFxx and found that this causes the temperature to display next to the odometer. Close but no cigar!

Does anyone know if:
a) 2016s have a compass installed
b) How to enable the display of the compass
