Front Hitch Construction

MountaineerGreen

Towing Moderator
Moderator Emeritus
Joined
February 2, 2006
Messages
7,497
Reaction score
42
City, State
North East Arkansas
Year, Model & Trim Level
2012 F150 4x4
I am preparing the ole monty for some serious use in the near future, and I want /need a tow point for the front. The front bumper does not allow for tow hooks, and being able to put a winch in a basket made for a hitch up front sounds good too. As an added benefit, the hitch will act as a cross member, adding strength to the front end.

A friend of mine had a used frame hitch from a F250 that I traded him for. I cut it up for parts and ended up using the center section of my old explorer frame hitch. It was straightforward enough, I got it done today. I used the outer rails from the F250 hitch and cut down the center section of the other hitch. The alternative is a $99 bolt in piece from e trailer, but I did this for no cost to me.

Pictures!!

Before:


Up Close:


No Bull bar:


No Bumper:


Mocked Up and tack welded:


Welded, ground and re welded for strength:


Bolted In


Bolted to the Frame: these brackets make great lower radiator protectors


Painted:


Bumper put on and notched:


Closer Shot:


Another:


This is why I put the front hitch on:

These are 97-03 F150 tow hooks that I put on some 2" square tubing, I made two one for the front and one for the rear.




Internally Braced Bolts







Holiday Special! Join the Elite Explorers $20 for 2 years! Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




MountaineerGreen

Towing Moderator
Moderator Emeritus
Joined
February 2, 2006
Messages
7,497
Reaction score
42
City, State
North East Arkansas
Year, Model & Trim Level
2012 F150 4x4
I am debating whether or not to put the "bull bar" back on. It doesn't really serve any purpose other than to hold the lights and reduces ground clearance. On the other hand I kind of like it, but the guy who helped me today said to leave it off.

What do you think?





'97 V8

Explorer Addict
Joined
April 2, 2005
Messages
3,616
Reaction score
1
City, State
ft. knox ky
Year, Model & Trim Level
'97 mounty 5.0 4x4 baby!!
Nice! Leave the bull bar off imo.





redranger4.0

Well-Known Member
Joined
April 8, 2003
Messages
735
Reaction score
0
City, State
Salem CT
Year, Model & Trim Level
2000 Ranger XLT
are those grade 8 or 5 bolts?





MountaineerGreen

Towing Moderator
Moderator Emeritus
Joined
February 2, 2006
Messages
7,497
Reaction score
42
City, State
North East Arkansas
Year, Model & Trim Level
2012 F150 4x4
The bolts that bolt the hitch to the frame are 7/16 (I think) grade 5 carriage bolts that came with the Curt hitch I cut up. I put the thick metal plates inside the frame with a magnet pickup tool, then put the bolts in the same way. There is a strip of metal at the end of the frame which wouldn't allow me to put a wrench inside the frame without cutting it. Using the carriage bolts, I didn't have to cut anything.

The bolts holding the tow rings to the tubing are also grade 5 7/16" x 3.5" I had them laying around, otherwise I would have used grade 8. I may change them out eventually.





churd69

Explorer Addict
Joined
October 12, 2005
Messages
1,252
Reaction score
0
City, State
Michigan
Year, Model & Trim Level
07 Silverado Z71
if you ditch the bull bar let me know, i am trying to find one cheap to try and get to fit on my 01 sport, when i did the bl i took out the steel reinforced bumper and would like to put something up front for a little protection. that hitch looks awesome, i was thinking about something like that, because I saw you can get a spare tire accessory for like $50.

-Rich





Brian1

Elite Explorer
Joined
February 2, 2000
Messages
5,302
Reaction score
417
City, State
Albuquerque, NM
Year, Model & Trim Level
1991 XLT
Callsign
KG5BAQ
Leave the bull bar off especially if you want to use a winch cradle. I took my brushguard off and even then I made a completly new bumper to be able to use my multimount winch. You dont want to have it sticking out much past the hitch especially for side pulls.

Hitch turned out nice, good job! The tow loop sticking out that far just looks wierd. You should get one of those d-ring shackle hitch inserts, it would tuck in there nicely. Anyway, something is better than nothing.





MountaineerGreen

Towing Moderator
Moderator Emeritus
Joined
February 2, 2006
Messages
7,497
Reaction score
42
City, State
North East Arkansas
Year, Model & Trim Level
2012 F150 4x4
Leave the bull bar off especially if you want to use a winch cradle. I took my brushguard off and even then I made a completly new bumper to be able to use my multimount winch. You dont want to have it sticking out much past the hitch especially for side pulls.

Hitch turned out nice, good job! The tow loop sticking out that far just looks wierd. You should get one of those d-ring shackle hitch inserts, it would tuck in there nicely. Anyway, something is better than nothing.


The loops do look weird, but they were Free, which my wife really likes. Id love to have some of those D ring inserts, maybe ill buy some one of these days.

I dont plan to run the loops all the time, they are just for when I anticipate to need them. I will carry them at all times though.













MountaineerGreen

Towing Moderator
Moderator Emeritus
Joined
February 2, 2006
Messages
7,497
Reaction score
42
City, State
North East Arkansas
Year, Model & Trim Level
2012 F150 4x4
I had my front bumper off today and took the opportunity to take some more pictures of the hitch in case anyone wants to build one for themselves-





You can see the bolts inside the frame in this picture, I used the plates from the hitch hardware kit, they fit perfectly and I was able to keep the bars at the end of the frame.










MountaineerGreen

Towing Moderator
Moderator Emeritus
Joined
February 2, 2006
Messages
7,497
Reaction score
42
City, State
North East Arkansas
Year, Model & Trim Level
2012 F150 4x4
I would say you could, but it would look funny to me. Why do you want it so low? You could move it outward more in the bumper gap to put racks and such on. I think the pre made ones stick out a little further.





'97 V8

Explorer Addict
Joined
April 2, 2005
Messages
3,616
Reaction score
1
City, State
ft. knox ky
Year, Model & Trim Level
'97 mounty 5.0 4x4 baby!!
Could you put that hitch lower then the bumper? I'm thinking about doing that so I can put one of those luggage racks up front and in the rear.

a luggage rack in the front would seriously stop air from gettin to the radiator.





old mechanic

Explorer Addict
Joined
November 23, 2003
Messages
1,110
Reaction score
1
City, State
R.I.
Year, Model & Trim Level
92 xlt
I hear you about blocking the air but years ago it was common to see a truck with the spare tire mounted on the front of them. Most of them were carrying camper shells but they were still DD's.









j602

resident ******
Joined
April 11, 2004
Messages
3,544
Reaction score
1
City, State
Dothan, AL
Year, Model & Trim Level
'92 XLT
Leave the bar off and make a slide-in, removable bumper guard.





MountaineerGreen

Towing Moderator
Moderator Emeritus
Joined
February 2, 2006
Messages
7,497
Reaction score
42
City, State
North East Arkansas
Year, Model & Trim Level
2012 F150 4x4
Leave the bar off and make a slide-in, removable bumper guard.

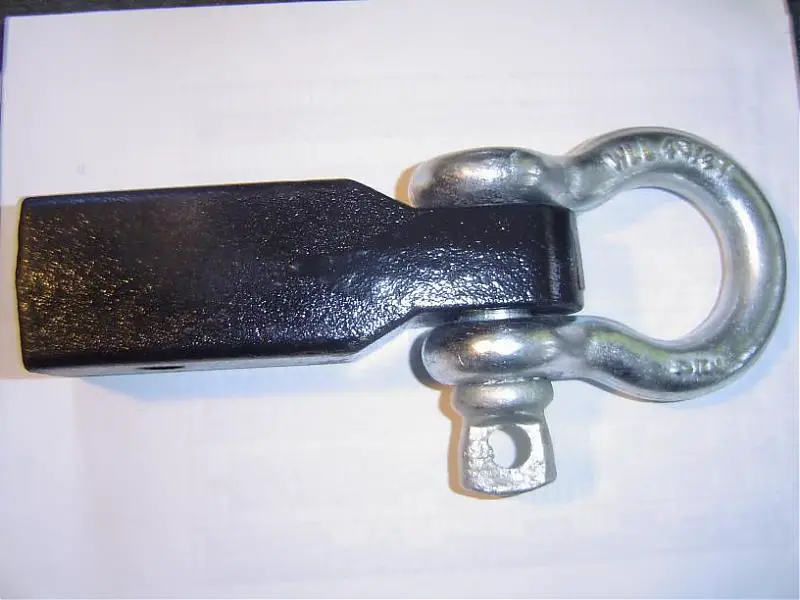

I sold the bar already, and have a hitch shackle mount in the mail :D
