Front Hitch Construction

MountaineerGreen

Towing Moderator
Moderator Emeritus
Joined
February 2, 2006
Messages
7,497
Reaction score
42
City, State
North East Arkansas
Year, Model & Trim Level
2012 F150 4x4
Update:

It rained all day today, I got bored and made a splash shield for the bottom of my radiator. When I installed the hitch, the plastic piece under the radiator had to go, leaving the radiator vulnerable.

I put a piece of 1/4" x 2 angle iron across the back corner of the hitch to help protect the radiator and give me somewhere to mount the shield to. I used the same metal to put tabs on the front. I drilled holes in the metal, then welded nuts to the back side so the shield bolts on easily.

Pictures!
















Holiday Special! Join the Elite Explorers $20 for 2 years! Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.












MountaineerGreen

Towing Moderator
Moderator Emeritus
Joined
February 2, 2006
Messages
7,497
Reaction score
42
City, State
North East Arkansas
Year, Model & Trim Level
2012 F150 4x4
Very good Evan.
Man, to have access to the tools would be nice!

All I used was an arc welder, drill and jig saw. I made the bend in the metal on the end of a table. I'm proud to say this mod only cost me $2 for a jig saw blade.

You can access what I have to use any time, its just a long drive. :)

EDIT: Oh and a Chop Saw and angle grinder. I guess I did use some tools today, I kind of take that stuff for granted I guess.













Charlie's_93EB

Cat 3 Hurricane Rated
Joined
July 2, 2003
Messages
2,968
Reaction score
0
City, State
Venice florida
Year, Model & Trim Level
1993 Eddie Bauer
I Believe it is 3 3/4"- It's an ebay special, but is very strong.

ok How does one measure a d-ring then? Top to bottom, side to side?? Or just the opening?


Thanks Charlie





MountaineerGreen

Towing Moderator
Moderator Emeritus
Joined
February 2, 2006
Messages
7,497
Reaction score
42
City, State
North East Arkansas
Year, Model & Trim Level
2012 F150 4x4
ok How does one measure a d-ring then? Top to bottom, side to side?? Or just the opening?


Thanks Charlie

I am not sure how it is measured- it is cast into the ring, that is the only way I know. I just checked and it says 4 3/4 on it.





DeRocha

NEX Vice President
Elite Explorer
Moderator Emeritus
Joined
July 5, 2003
Messages
6,671
Reaction score
41
City, State
Brockton, MA
Year, Model & Trim Level
'93 XLT 4x4

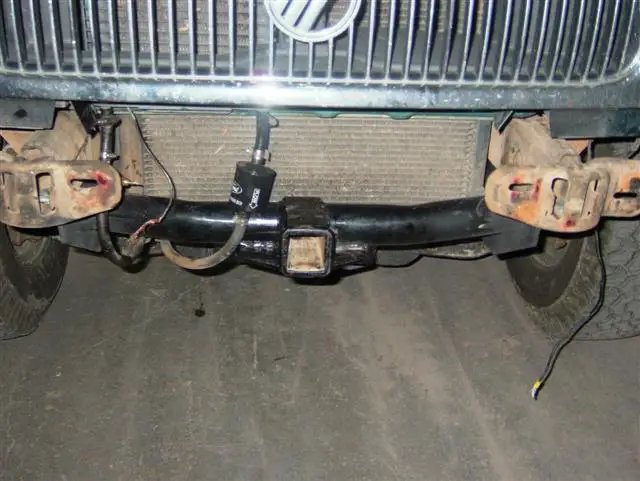

I like your mod and it came out very nice. The only part that worries me is the pic below.. I would have plumbed the tranny lines behind the hitch. If the hitch should fail then it could destroy your transmission lines and leave you stranded.





MountaineerGreen

Towing Moderator
Moderator Emeritus
Joined
February 2, 2006
Messages
7,497
Reaction score
42
City, State
North East Arkansas
Year, Model & Trim Level
2012 F150 4x4
I can move them behind the hitch no problem- will do that next time I get a chance. I appreciate your input on that.

I got to try it out today- took a couple of hard tugs with no problem.





DeRocha

NEX Vice President
Elite Explorer
Moderator Emeritus
Joined
July 5, 2003
Messages
6,671
Reaction score
41
City, State
Brockton, MA
Year, Model & Trim Level
'93 XLT 4x4
ok How does one measure a d-ring then? Top to bottom, side to side?? Or just the opening?


Thanks Charlie

It all depends on what your trying to measure... Size, or Strength.. The shackle diameter and center pin are the main determining factors in terms of strength.. Common sizes shackle diameters are 3/4" and 7/8" and I've listed the avg capacities of steel shackles below:

Diameter 3/4" pin size=7/8" working capacity=10,000 lbs, Breaking strength=48,000lbs
Diameter 7/8" pin size=1" working capacity=13,000 lbs, Breaking strenght=65,000lb





DeRocha

NEX Vice President
Elite Explorer
Moderator Emeritus
Joined
July 5, 2003
Messages
6,671
Reaction score
41
City, State
Brockton, MA
Year, Model & Trim Level
'93 XLT 4x4
I can move them behind the hitch no problem- will do that next time I get a chance. I appreciate your input on that.

I got to try it out today- took a couple of hard tugs with no problem.

I'm sure the hitch will hold up fine.. But moving them behind the hitch provides maximum safety... As an additional benefit the hitch will also protect the lines if you get into a front collision. :thumbsup:





Charlie's_93EB

Cat 3 Hurricane Rated
Joined
July 2, 2003
Messages
2,968
Reaction score
0
City, State
Venice florida
Year, Model & Trim Level
1993 Eddie Bauer
It all depends on what your trying to measure... Size, or Strength.. The shackle diameter and center pin are the main determining factors in terms of strength.. Common sizes shackle diameters are 3/4" and 7/8" and I've listed the avg capacities of steel shackles below:

Diameter 3/4" pin size=7/8" working capacity=10,000 lbs, Breaking strength=48,000lbs
Diameter 7/8" pin size=1" working capacity=13,000 lbs, Breaking strenght=65,000lb

Ok thanks Roch.













Turdle

Lowrider
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
29,723
Reaction score
1,208
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty




millerman23

Well-Known Member
Joined
February 28, 2008
Messages
200
Reaction score
0
City, State
Shawano WI
Year, Model & Trim Level
99 XLT
Red Paint A Must Ha Ha





Blue Bomber

Member
Joined
August 6, 2008
Messages
13
Reaction score
0
City, State
Memphis, TN
Year, Model & Trim Level
1974 F-100
^^^^ X2 on the red paint!!!!!!:):):):)





dllb

Well-Known Member
Joined
December 9, 2007
Messages
117
Reaction score
0
Year, Model & Trim Level
1992 XLT
Red paint yes... Im painting mine tomorrow.



Holiday Special! Join the Elite Explorers $20 for 2 years! Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




allmyEXes

Explorer Addict
Joined
February 6, 2016
Messages
1,182
Reaction score
360
Location
Lickskillet
City, State
No. Alabama USA
Year, Model & Trim Level
1997 Blue Ex 4.0 SOHC
Callsign
KAGG 3611 (CB)
I know this is very old thread but I was searching for front hitch install and came across your thread. I have a rear receiver hitch off of an F-150 that I want to modify to go on the front of my '97 MM. I noticed in your picture "Closer shot" that the condenser fins are visible. That gave me the idea of capping the back side of the receiver tube with a square piece of 1/4" plate to prevent any uh ohs when plugging in various attachments. I know the best time to do this would be during the mod/fab stage of things. just my 2 cents worth.
Very good write up and even being a post from '06 is still very useful today as many people are using and modding Gen 2s.
