Front Skid Plate

2TimingTom

Explorer Addict
Joined
October 12, 2010
Messages
2,486
Reaction score
69
Location
Littleton, CO
City, State
Littleton, Colorado
Year, Model & Trim Level
'97 XLT
RCI Skid Plate

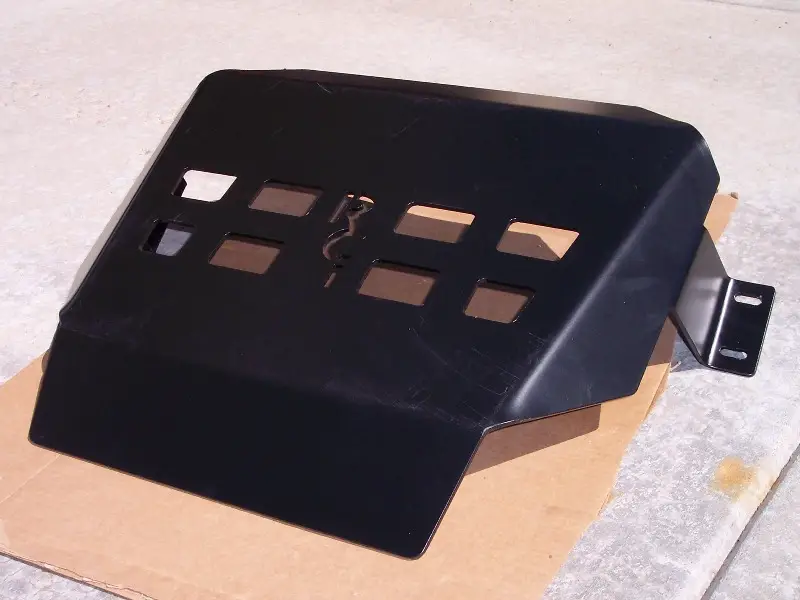

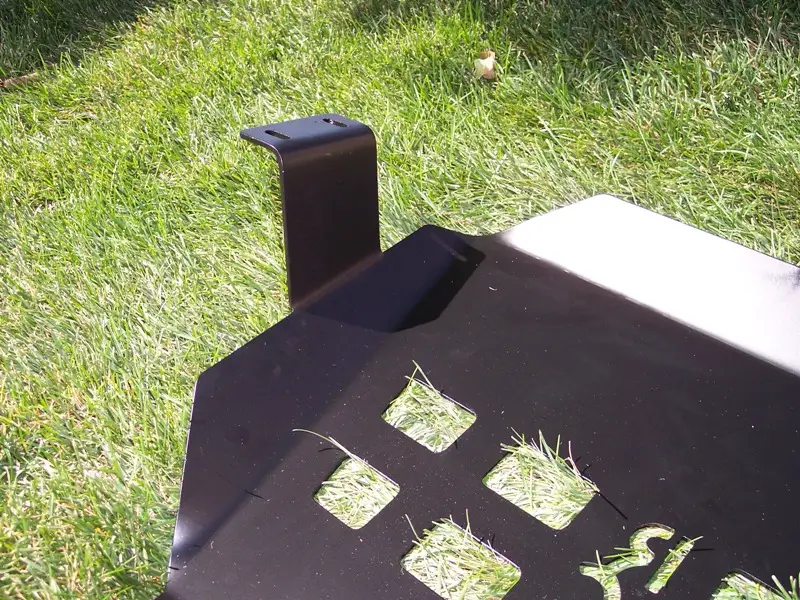

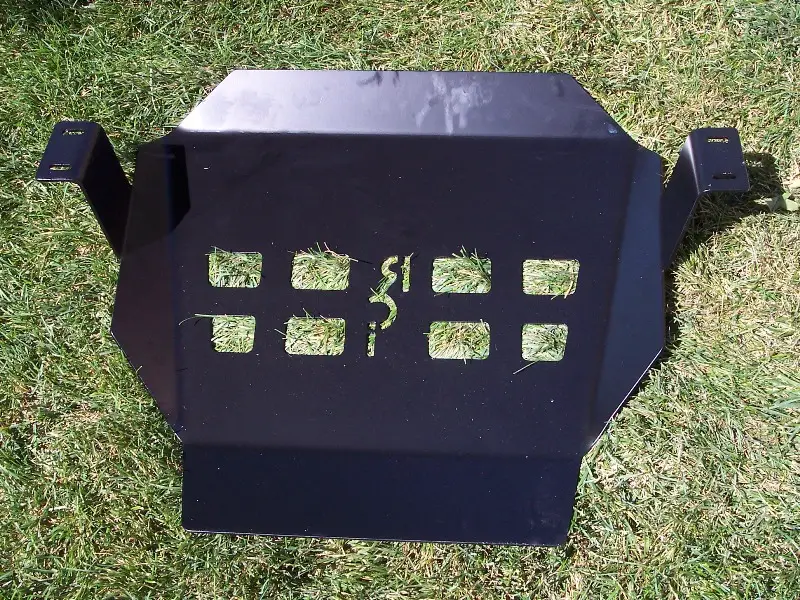

Today I picked up my RCI Front Skid Plate.

As you can see, this thing is awesome. One solid piece, water jet cut and bent steel. I almost don't want to go 4wheeling just so I won't bang any rocks off it- this thing is pretty!

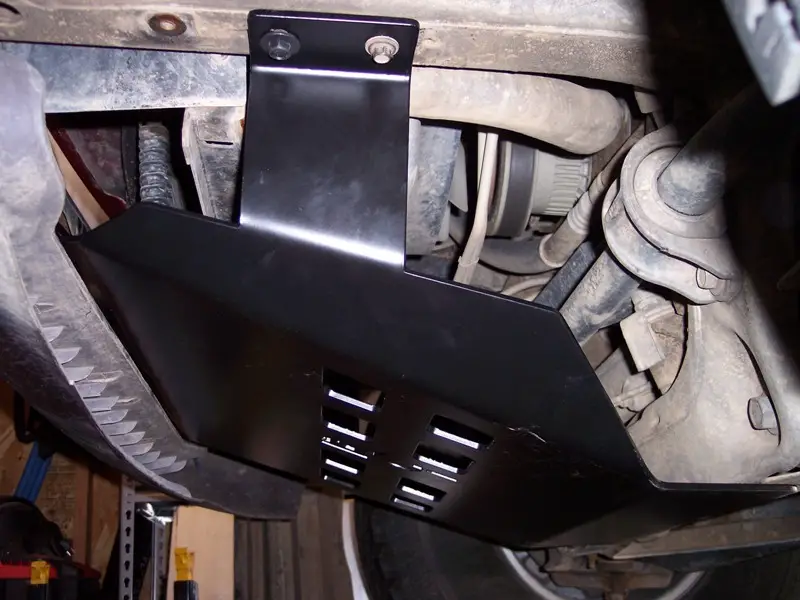

The pick up points apparently aren't the same across all frame configurations. RCI told me that I might need to drill an additional hole. The provided self tapping screws make this an easy task- once I drilled a small pilot hole.


Although I have a 2" body lift, my bumper is still at the factory height. It works really well with a stock height bumper and should work just as well with a bumper that's been raised up to match a body lift.




Holiday Special! Join the Elite Explorers $20 for 2 years! Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.












Essex4x4

Explorer Addict
Joined
January 28, 2008
Messages
1,513
Reaction score
1
City, State
Johnston Iowa
Year, Model & Trim Level
2011 Dodge Grand Caravan
that looks awesome! I wish someone made a bolt on skid plate for the 4th gen. I have seen custom made skid plates here on the forum that look outstanding. HA the thought of picking one up off the shelf would be amazing and I would probably already have it.





2TimingTom

Explorer Addict
Joined
October 12, 2010
Messages
2,486
Reaction score
69
Location
Littleton, CO
City, State
Littleton, Colorado
Year, Model & Trim Level
'97 XLT
Looks great! Any pics from the front of the vehicle showing the body of the Ex too?

Not yet. I haven't driven it since last Friday. And my garage isn't deep enough to get that kind of shot.





2TimingTom

Explorer Addict
Joined
October 12, 2010
Messages
2,486
Reaction score
69
Location
Littleton, CO
City, State
Littleton, Colorado
Year, Model & Trim Level
'97 XLT

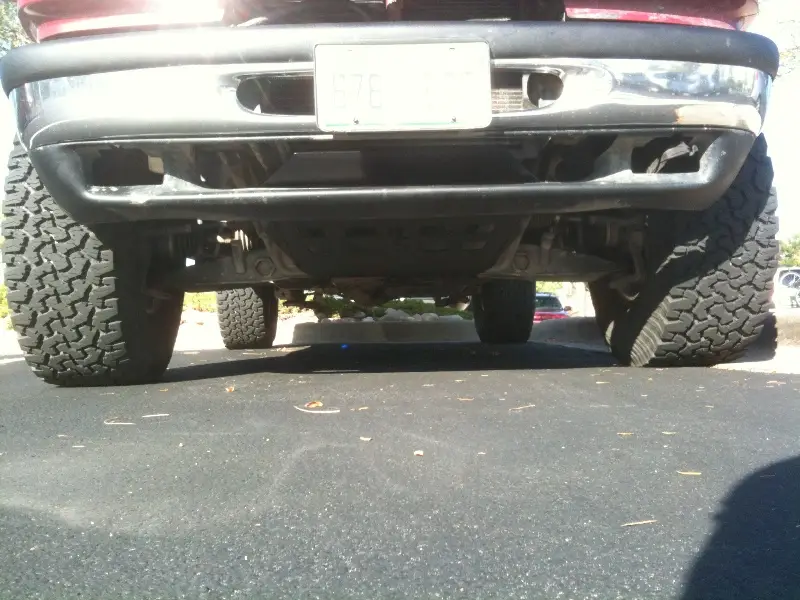

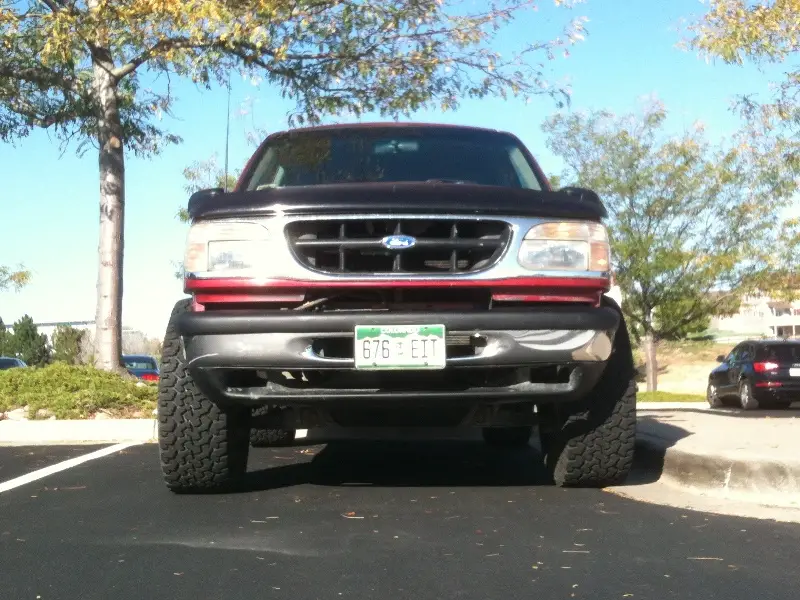

Yeah for dirty iphone lens pictures!




But basically you can see that without standing on your head, you really can't see this thing. With the bumper raised up, you would see it better.

(I really need to do something about that bumper gap.......)













GRNMACHINE

Explorer Addict
Joined
September 11, 2000
Messages
2,435
Reaction score
6
City, State
IL
Year, Model & Trim Level
95 Sport 4x4
Looks like I could keep my front valance and foglights with this one. Looks really good (and lowkey like Keeper said). May need to take some measurements to see if this will work with the front towhooks I mounted into my frame rails.





2TimingTom

Explorer Addict
Joined
October 12, 2010
Messages
2,486
Reaction score
69
Location
Littleton, CO
City, State
Littleton, Colorado
Year, Model & Trim Level
'97 XLT
If the hooks are mounted to the front of the frame, you should be fine. Let me know where they are and I can compare on mine.





AlexSport'00

Well-Known Member
Joined
December 12, 2011
Messages
620
Reaction score
1
Year, Model & Trim Level
GONE: 2000 Explorer Sport
How much was this?





GRNMACHINE

Explorer Addict
Joined
September 11, 2000
Messages
2,435
Reaction score
6
City, State
IL
Year, Model & Trim Level
95 Sport 4x4
Not Cheap. Per their website

$175 shipped

$205 powdercoated and shipped

Tom, will get those measurements, and Thanks!!





AlexSport'00

Well-Known Member
Joined
December 12, 2011
Messages
620
Reaction score
1
Year, Model & Trim Level
GONE: 2000 Explorer Sport
More than I wanna pay at the moment. Looks good quality, just don't wanna drop the $205.





GRNMACHINE

Explorer Addict
Joined
September 11, 2000
Messages
2,435
Reaction score
6
City, State
IL
Year, Model & Trim Level
95 Sport 4x4
Price was also one of the reasons I was hoping Turbo was still making em (and the fact I have never seen anything like his design before).





obie

Well-Known Member
Joined
June 13, 2012
Messages
904
Reaction score
9
City, State
Northwest Indiana
Year, Model & Trim Level
2003 Sport Trac 4x4
I like it. Wonder if it would interfere with my grill guard though. Does the top front of it come anywhere near the frame bumper mounts?





gmanpaint

It's Always Something!
Staff member
Moderator
Elite Explorer
Joined
August 1, 2008
Messages
11,549
Reaction score
1,706
City, State
MO MO
Year, Model & Trim Level
94 & 95 XLT's
If you removed that valence, lifted that bumper up for the body lift, just imagine how much more approach angle you will have off road. ;)

I really like this skid plate. I love the fact it slips under the cross member so it can slide across objects easily.

Add some cutting board material to it, and glide over stuff even easier! :D





2TimingTom

Explorer Addict
Joined
October 12, 2010
Messages
2,486
Reaction score
69
Location
Littleton, CO
City, State
Littleton, Colorado
Year, Model & Trim Level
'97 XLT
I like it. Wonder if it would interfere with my grill guard though. Does the top front of it come anywhere near the frame bumper mounts?
It doesn't go as far forward, it sits below the frame and it tapers in between the frame at the front. Not knowing what your grill guard looks like, I'd say there's a really good chance of it not interfering.









obie

Well-Known Member
Joined
June 13, 2012
Messages
904
Reaction score
9
City, State
Northwest Indiana
Year, Model & Trim Level
2003 Sport Trac 4x4
Can't really tell by looking at the pictures, but does this have to be removed to change the oil filter, or is it possible to pull it out and leave the skid plate on?



Holiday Special! Join the Elite Explorers $20 for 2 years! Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




sport97

Elite Procrastinator
Joined
September 25, 2008
Messages
2,348
Reaction score
1
City, State
connellsville pa
Year, Model & Trim Level
1997 sport SOHC 4.0
Can't really tell by looking at the pictures, but does this have to be removed to change the oil filter, or is it possible to pull it out and leave the skid plate on?

I know on a 4.0 its nowhere near the filter. The skid plate stops at the cross member so unless the 5.0's filter is on the front of the engine you should be fine. The 4.0's is on the passenger side.
