FUEL PUMP ACCESS PANEL 95 - 96 ( 97?) FOUR DOOR

EB4X

Well-Known Member
Joined
December 28, 2016
Messages
911
Reaction score
392
City, State
Orange county, Ca
Year, Model & Trim Level
95 Explorer 4X 4.0 ohv
Hey gang,
Thought I'd post this for anyone interested....I'm not sure if the 97 is in same spot (most likely since same back hatch/ setup) but sure 98 and up are a few inches further back and to the left a hair --and more troublesome due to metal contour. (The part numbers for a 95 versus a 96 gas tank are DIFFERENT...but pump falls EXACTLY at some spot ...as expected.)
Anyway, here's some pics...couple with notes...

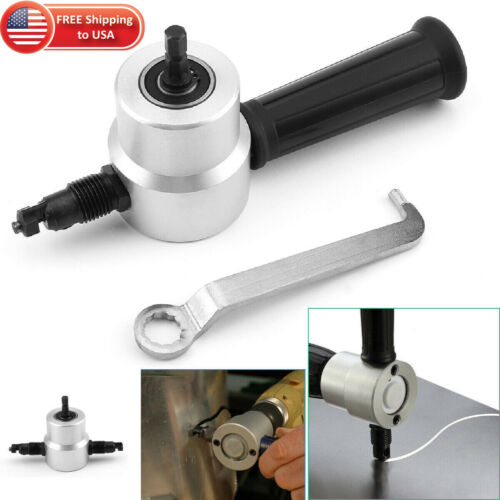

Will probably post after pics of custom cover panel once pump arrives --might clean up / file back cut too. The back area/ cut before upward slant becomes a double layer hence semi sloppy cut --- my cheapo metal nibbler couldn't handle double layer -- would recommend using beefier/thicker cut range if had to do again --though this cheapo one worked like a champ for 80% of job.... didn't go over small rib though either. (Only $11.49 on Ebay - free ship) Had to cut Sawzall / reciprocating saw blade down to about a 1 1/2" length (for safety) to tackle challenging spots. (Stupid blades wouldn't stay in jig saw...otherwise that would've been great option)

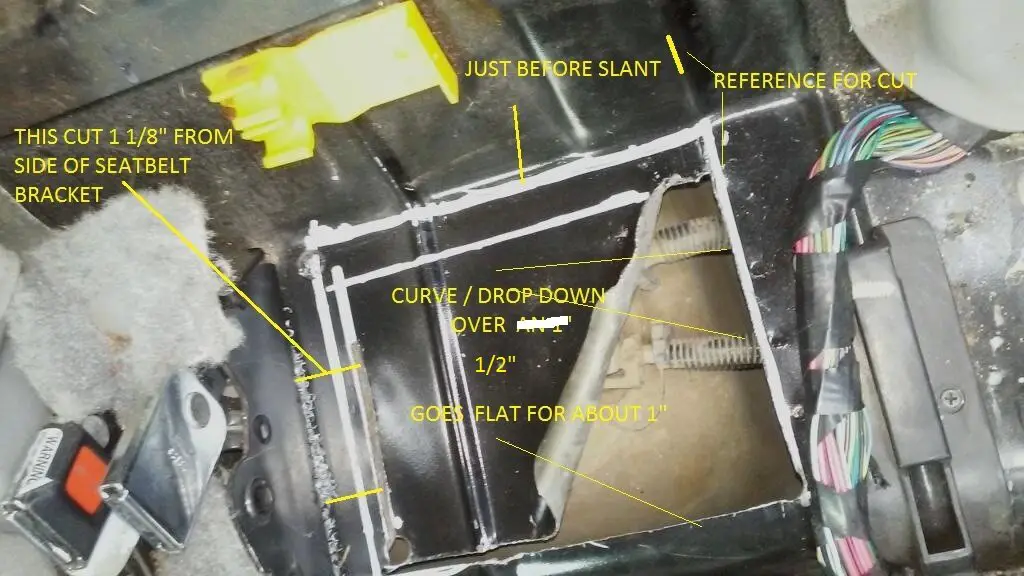

MID WAY.jpg

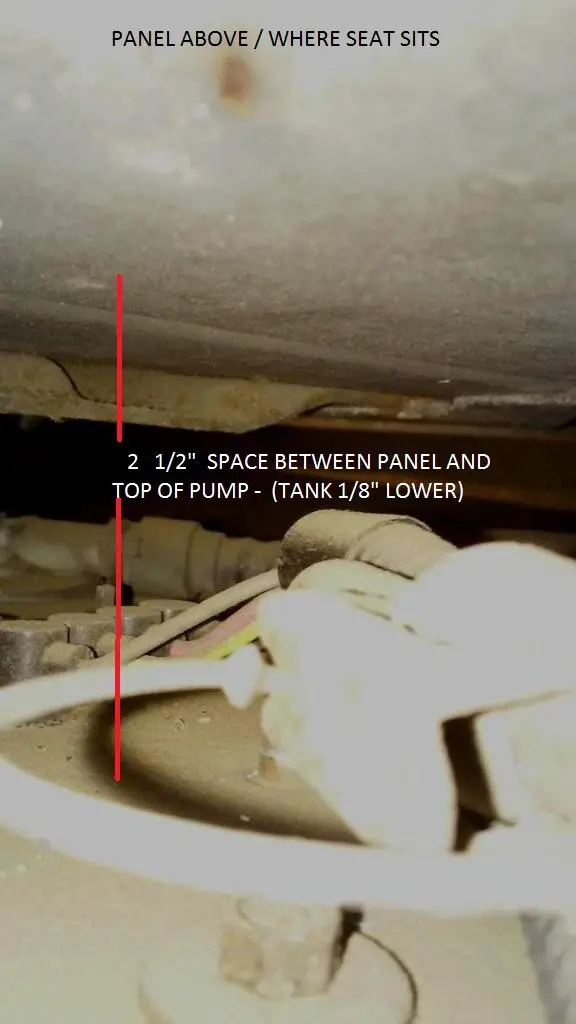

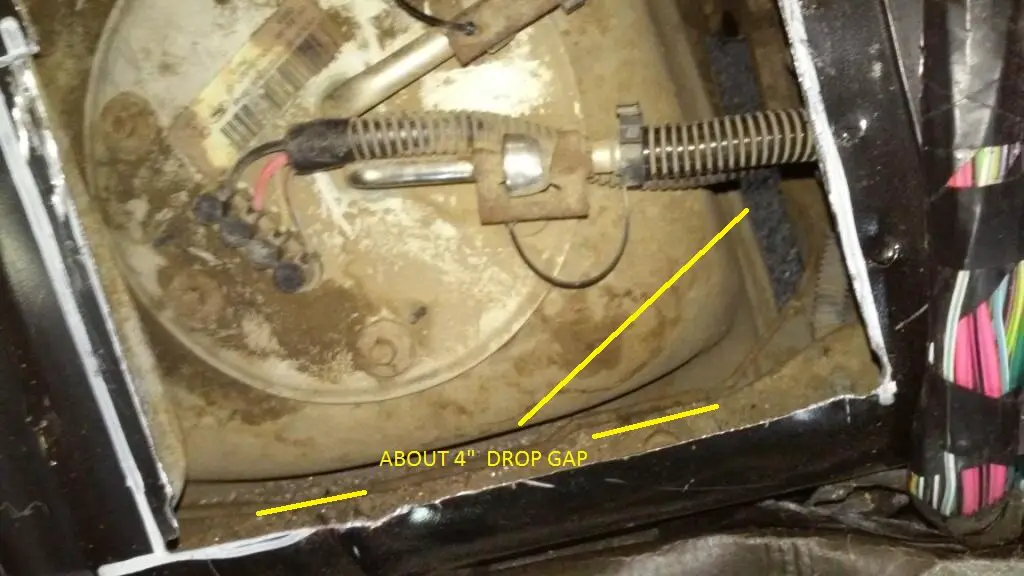

SPACING GAPS.jpg





Holiday Special! Join the Elite Explorers $20 for 2 years! Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




allmyEXes

Explorer Addict
Joined
February 6, 2016
Messages
1,182
Reaction score
360
Location
Lickskillet
City, State
No. Alabama USA
Year, Model & Trim Level
1997 Blue Ex 4.0 SOHC
Callsign
KAGG 3611 (CB)
Good job! I just did thid 3 weeks ago to access pump in an emergency. I still don't know how easy or difficult it is to unplug the wiring harness going to the pump assembly.





EB4X

Well-Known Member
Joined
December 28, 2016
Messages
911
Reaction score
392
City, State
Orange county, Ca
Year, Model & Trim Level
95 Explorer 4X 4.0 ohv
Good job! I just did thid 3 weeks ago to access pump in an emergency. I still don't know how easy or difficult it is to unplug the wiring harness going to the pump assembly.
I read some guy just cut and spliced AT PUMP... I wouldn't do that... on the 95,96 (probably most)....the plug/harness quick disconnect is just a couple inches in front of axle near wheel (drivers side of course)....just about a foot or so above the axle....

**Actually to call any Ford plugs "quick disconnect" is being generous....





EB4X

Well-Known Member
Joined
December 28, 2016
Messages
911
Reaction score
392
City, State
Orange county, Ca
Year, Model & Trim Level
95 Explorer 4X 4.0 ohv
I still don't know how easy or difficult it is to unplug the wiring harness going to the pump assembly.

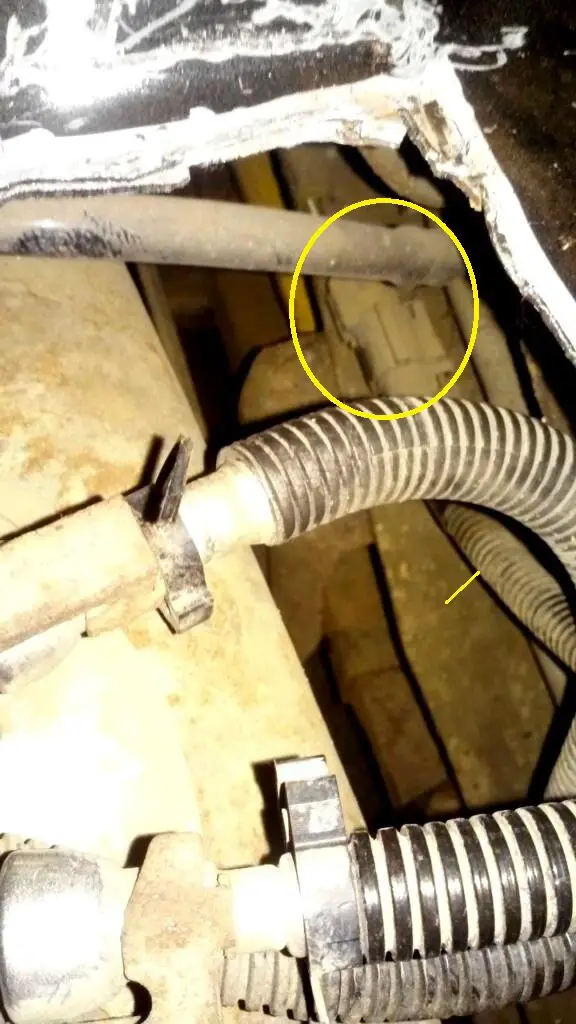

HA! My previous statement was going on what guy on video stated about location.... just went out with flashlight to trace from the top down and it's only about a 1 1/2' down... I can reach down from top and unplug! win win!.. ( Had nice weather today so had to paint cladding on Jeep GC and put swap out off till tomorrow..)






CDW6212R

Hauls the mail.
Elite Explorer
Joined
June 17, 2004
Messages
22,236
Reaction score
2,618
City, State
Knoxville, TN
Year, Model & Trim Level
98 Limited AWD
Good work, that's just about the right size hole for the task. It might help if the hole went farther to the left side for the fuel lines and the connector, with rounded corners. It looks like making it as close to the center seat belt is ideal, and to the back as far as feasible too. The corners of the hole could be a good 1" radius and work well.

Thanks for the latest pictures, those help the next person who tries to hunt pics to guess where the hole should go etc.





EB4X

Well-Known Member
Joined
December 28, 2016
Messages
911
Reaction score
392
City, State
Orange county, Ca
Year, Model & Trim Level
95 Explorer 4X 4.0 ohv
Good work, that's just about the right size hole for the task. It might help if the hole went farther to the left side for the fuel lines and the connector, with rounded corners. It looks like making it as close to the center seat belt is ideal, and to the back as far as feasible too. The corners of the hole could be a good 1" radius and work well.

Thanks for the latest pictures, those help the next person who tries to hunt pics to guess where the hole should go etc.
On the right side -- where fuel lines / wiring comes in I feel I have more than enough spacing--I wanted to have good access but at same time not cut away too much. On left next to seat belt harness as shown you can see where that's the second spot where there's another double layer of metal (like back section)- thus my nibbler tool could not cut that and didn't want to hairball it with sawzall -- being I saw video (that was cut same amount there) that revealed with just slight pivot the entire pump assembly slides right by that no prob...just the wide top circle of course needs to sneak by it....and was accomplished without banging the float in process.
** So I go out to swap out pump and tire that has slow leak is worse--plug in compressor --flattens tire--air no longer coming out hose but inside unit- have to jack up and remove address tire / do all that and second Autozone near me doesn't have fuel pressure kit combing with disconnect kit...could work around but want nice and smooth)

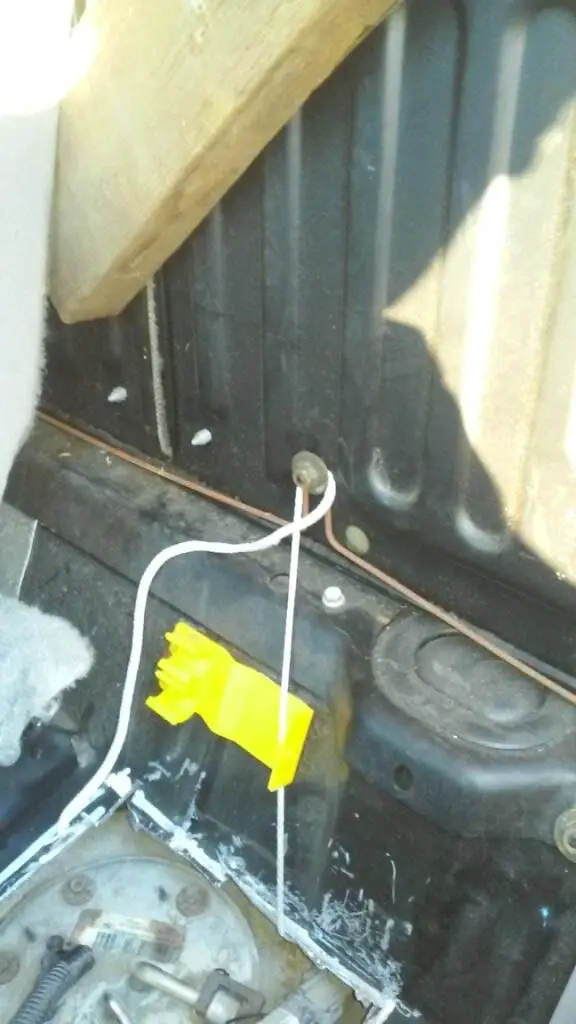

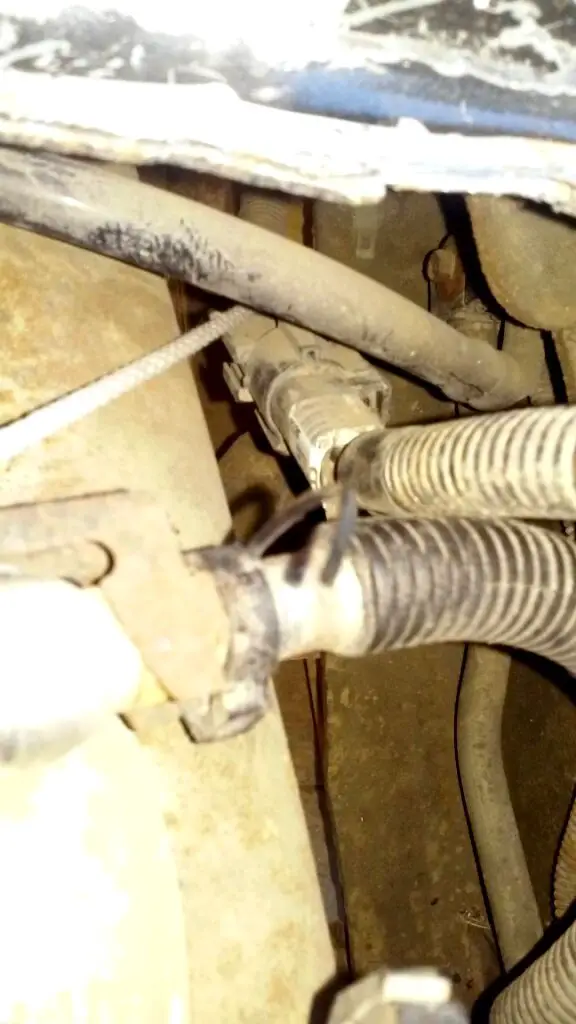

--so now doing this today is postponed....good thing it's not my daily!.. Anyway here's MORE on the plug.... PIECE OF CAKE....made slip not....guided down to rear of harness and enough slack to pull up for easy disconnect AND roped in place for re-connect... SEE PICS:
