Full width axle thoughts

DUDER 1

Elite Explorer
Joined
September 11, 2009
Messages
416
Reaction score
68
City, State
Nomad
Year, Model & Trim Level
94 XLT
Good morning all, I haven't thinking about this for a while and I want to go full width and 37" Maxxis Trepador's. I have a full width 44 and a 9 inch I can build or I can look for tons. My question is I know a lot of you guys run a 44 upfront with tires larger than 35's so how does is hold up. I am going to run chromolly or RCV axles in the front with 513's and a Detroit. Thanks for the input and if you have any photos that would be nice also.




Join the Elite Explorers $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links.
Add an avatar, upload photo attachments, and more!
.



RangerX

Elite Ranger
Staff member
Moderator
Elite Explorer
Joined
July 14, 1999
Messages
10,332
Reaction score
553
City, State
Omao, Kauai
Year, Model & Trim Level
'93 Ranger XLT 4X4
It's all I how you drive, IMO. If you're a full throttle driver off-road, go for a stronger axle. If you're drive with an awareness of your trucks limits, it should work out.

I ran 37s for 12 years on my stock D35 (!!!) and only broke a stub shaft once, maybe twice. That's with a locker, btw. Rubicon, Moab, etc.







DUDER 1

Elite Explorer
Joined
September 11, 2009
Messages
416
Reaction score
68
City, State
Nomad
Year, Model & Trim Level
94 XLT
I am a 4low go slow driver lol. Sometimes I run through mud full throttle but that is very rare. I have a 1975 1/2"x2.75" tube 44 or a 78/79 cast wedge 44 I can use. Which one do you think is stronger.







RangerX

Elite Ranger
Staff member
Moderator
Elite Explorer
Joined
July 14, 1999
Messages
10,332
Reaction score
553
City, State
Omao, Kauai
Year, Model & Trim Level
'93 Ranger XLT 4X4
I believe the 75 is low pinion, so the 78/79 is the one to use, it's the year everyone looks for.

I learned that the situations that hubs and axles break most is, when you have the wheels turned fully one way or the other, when you're off camber and all the weight is on one side, and when you are backing up uphill or pulling someone in reverse. Or any combo of these. Everything else, you're pretty good with 37s and a locker.







DUDER 1

Elite Explorer
Joined
September 11, 2009
Messages
416
Reaction score
68
City, State
Nomad
Year, Model & Trim Level
94 XLT
Thank you for the information. My 75 housing is a high pinion. The housing is pretty much the same as the 76-77 it just has the separate track bar mount and it comes with drum brakes.







RangerX

Elite Ranger
Staff member
Moderator
Elite Explorer
Joined
July 14, 1999
Messages
10,332
Reaction score
553
City, State
Omao, Kauai
Year, Model & Trim Level
'93 Ranger XLT 4X4
What kind of setup are you thinking about, radius arm and coils, 4 link, etc.?







yostyexplorer94

Yost Offroad
Staff member
Moderator
Elite Explorer
Joined
September 6, 2006
Messages
714
Reaction score
163
City, State
South Central PA
Year, Model & Trim Level
1994 Explorer
Callsign
yosty

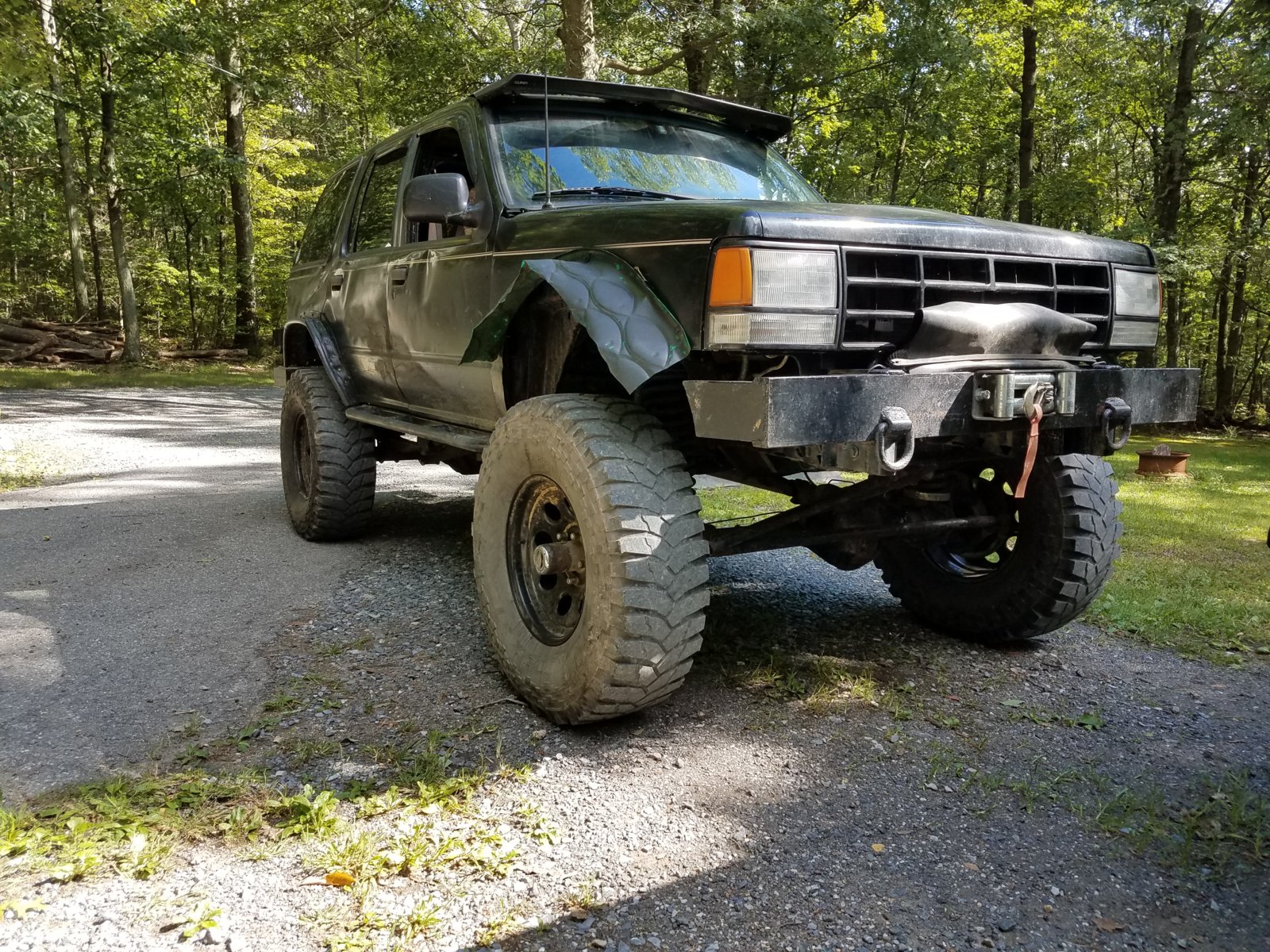

37x12.50r17 treps


I just got them well used to test out 37's on my 17" wheels

I wheeled quite a bit on my 35" ltb on stock shafts with the ujoint caps tack welded in 3 spots to prevent spinning. Never broke on that setup.

I want to upgrade to chromolys before I wheel 37's

@Four0Sport runs 38.5 sx swampers with chromoly shafts and it holds together well.

If you are going to want more than 37's down the road then half ton axles wouldn't be the choice I would make when starting from the beginning.







yostyexplorer94

Yost Offroad
Staff member
Moderator
Elite Explorer
Joined
September 6, 2006
Messages
714
Reaction score
163
City, State
South Central PA
Year, Model & Trim Level
1994 Explorer
Callsign
yosty
I am a 4low go slow driver lol. Sometimes I run through mud full throttle but that is very rare. I have a 1975 1/2"x2.75" tube 44 or a 78/79 cast wedge 44 I can use. Which one do you think is stronger.
Should be able to use 78/79 knuckles out on your 75 axle. Thicker tubes, no permanent cast wedges to deal with, and disc brakes.













DUDER 1

Elite Explorer
Joined
September 11, 2009
Messages
416
Reaction score
68
City, State
Nomad
Year, Model & Trim Level
94 XLT
37x12.50r17 treps View attachment 150821

I just got them well used to test out 37's on my 17" wheels

I wheeled quite a bit on my 35" ltb on stock shafts with the ujoint caps tack welded in 3 spots to prevent spinning. Never broke on that setup.

I want to upgrade to chromolys before I wheel 37's

@Four0Sport runs 38.5 sx swampers with chromoly shafts and it holds together well.

If you are going to want more than 37's down the road then half ton axles wouldn't be the choice I would make when starting from the beginning.


That's a nice looking set up. What backspacing do you run on those wheels. I currently run chromoly axles on my narrow 44 with no issues and 35's. I want to run RCV's because from what I have read most failures accure at lock or with a turned wheel. I am not worried so much about the 9" just the front 44. I just found another HP 44 out of a F-250 today for cheep.













yostyexplorer94

Yost Offroad
Staff member
Moderator
Elite Explorer
Joined
September 6, 2006
Messages
714
Reaction score
163
City, State
South Central PA
Year, Model & Trim Level
1994 Explorer
Callsign
yosty
That's a nice looking set up. What backspacing do you run on those wheels. I currently run chromoly axles on my narrow 44 with no issues and 35's. I want to run RCV's because from what I have read most failures accure at lock or with a turned wheel. I am not worried so much about the 9" just the front 44. I just found another HP 44 out of a F-250 today for cheep.

Thanks
The back spacing is 4" or 4.25" . I can't remember. Rcv's are too much for my wallet lol







Four0Sport

Jack Pewe
Elite Explorer
Joined
August 26, 2004
Messages
3,028
Reaction score
102
City, State
West Virginia
Year, Model & Trim Level
1993 2dr
It's all I how you drive, IMO. If you're a full throttle driver off-road, go for a stronger axle. If you're drive with an awareness of your trucks limits, it should work out.

I ran 37s for 12 years on my stock D35 (!!!) and only broke a stub shaft once, maybe twice. That's with a locker, btw. Rubicon, Moab, etc.

This is the truest statement in the history of the world. Like Yosty said I wheel 38.5 TSL SXs on heavy metal beadlocks on a stock 8.8 and a 44 with chromoly shafts. I am not exactly easy on it but I do know its limitations. Stay with that 75 hp 44 you got there and swap out the 78/9 knuckles for the disc brakes.







DUDER 1

Elite Explorer
Joined
September 11, 2009
Messages
416
Reaction score
68
City, State
Nomad
Year, Model & Trim Level
94 XLT
This is the truest statement in the history of the world. Like Yosty said I wheel 38.5 TSL SXs on heavy metal beadlocks on a stock 8.8 and a 44 with chromoly shafts. I am not exactly easy on it but I do know its limitations. Stay with that 75 hp 44 you got there and swap out the 78/9 knuckles for the disc brakes.


Thank you for all the information. I spoke with RCV last week and i am going that route for axles.







Four0Sport

Jack Pewe
Elite Explorer
Joined
August 26, 2004
Messages
3,028
Reaction score
102
City, State
West Virginia
Year, Model & Trim Level
1993 2dr
Thank you for all the information. I spoke with RCV last week and i am going that route for axles.

I have wheeled all over the east coast on white box chromos from broncograveyard and NEVER broke. And I saved mytself a bajillion dollars over RCVs in the process. Just saying.. you don't have to have RCVs. The D60 I am putting together in my garage will also have chromo shafts. Again, wheel smart and you will not have any issues.







DUDER 1

Elite Explorer
Joined
September 11, 2009
Messages
416
Reaction score
68
City, State
Nomad
Year, Model & Trim Level
94 XLT
I have wheeled all over the east coast on white box chromos from broncograveyard and NEVER broke. And I saved mytself a bajillion dollars over RCVs in the process. Just saying.. you don't have to have RCVs. The D60 I am putting together in my garage will also have chromo shafts. Again, wheel smart and you will not have any issues.


I have watched YouTube videos of your rig and I have always been impressed by it. I want to go RCV's for the peace of mind, but mainly because of the cool factor lol. What u-joints do run. I run factory Spicer with good results.







mounty71

It's green, not gray.
Elite Explorer
Joined
February 3, 2007
Messages
3,625
Reaction score
228
City, State
Oakland, CA
Year, Model & Trim Level
'00 Mountaineer
Do 44 guys clearance the shaft ears to run full circlips instead of the C-clips that come with u-joints? I did that and broke a shaft last weekend on the Rubicon on 33x10.50s, and I drive with a very light foot. It looks like aftermarket shafts come clearanced already, so maybe I just didn't do a good job of it.
















Join the Elite Explorers $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links.
Add an avatar, upload photo attachments, and more!
.



DUDER 1

Elite Explorer
Joined
September 11, 2009
Messages
416
Reaction score
68
City, State
Nomad
Year, Model & Trim Level
94 XLT
Question on the rear 9" I will be using. The 9" I currently have is out of an 80's Bronco and it has the sealed bearing instead of the tapered roller bearing which come in the 78-79 Bronco. I was reading and I found one thread saying the 78-79 tapered bearing is stronger than the sealed version. Does anyone have experience with this. Thank you.
