fuse box diagram

lila

Member
Joined
October 31, 2006
Messages
11
Reaction score
0
City, State
Langley, B.C. Canada
Year, Model & Trim Level
95 Eddie Bauer
Does anyone have a diagram or photo of the fuse box panel for a 1995 eddie bauer? I keep blowing a fuse but not sure which one to replace it with or even what it's for?




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





Hope this helps ....


Attachments

  • 78246324.gif
    17.7 KB · Views: 59,256
  • 78246325.gif
    20.6 KB · Views: 54,806






you are a life saver!! Thanks so much!

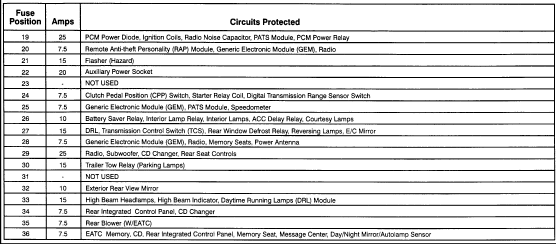

Here is the other ....


Attachments

  • 78246326.gif
    19.9 KB · Views: 31,043












fuse panel diagram.

I have a 2001 ford explorer sport, i need a fuse diagram. I have seen one of the for the other ford explorer. i was just wondering if that diagram is the same as mine.



















Owners manual download site

Owners manuals 1996 and newer-

Dead Link Removed



Dean
