Gear Pattern

rangermidtn

Well-Known Member
Joined
February 26, 2011
Messages
424
Reaction score
7
City, State
Smyrna TN
Year, Model & Trim Level
2004 Explorer XLT 4x4
Can someone look at these and tell me what you think of the pattern?
I have a .030 pinion shim and .010 backlash.

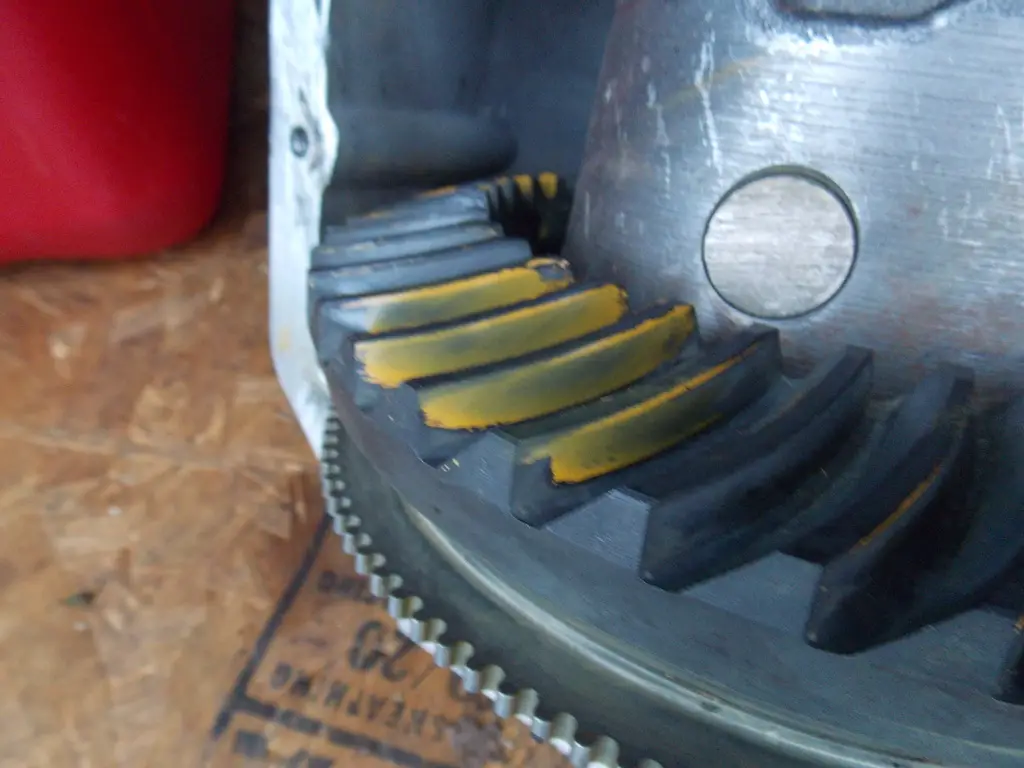

Coast side

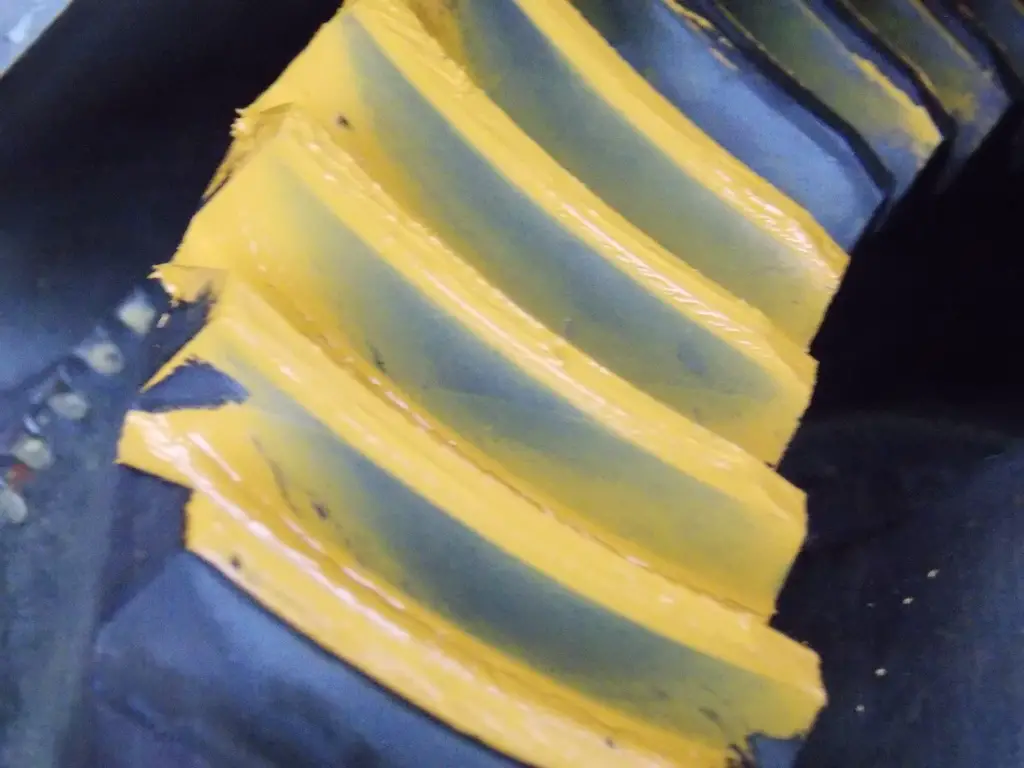

Drive side

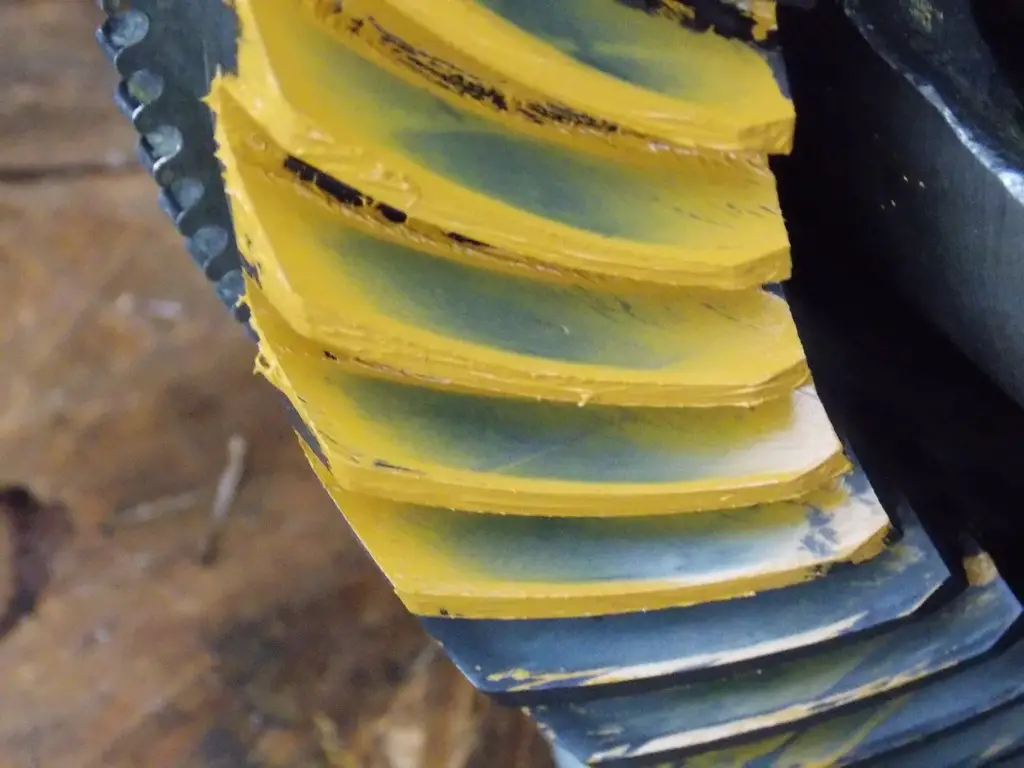

Coast side pattern left on gear

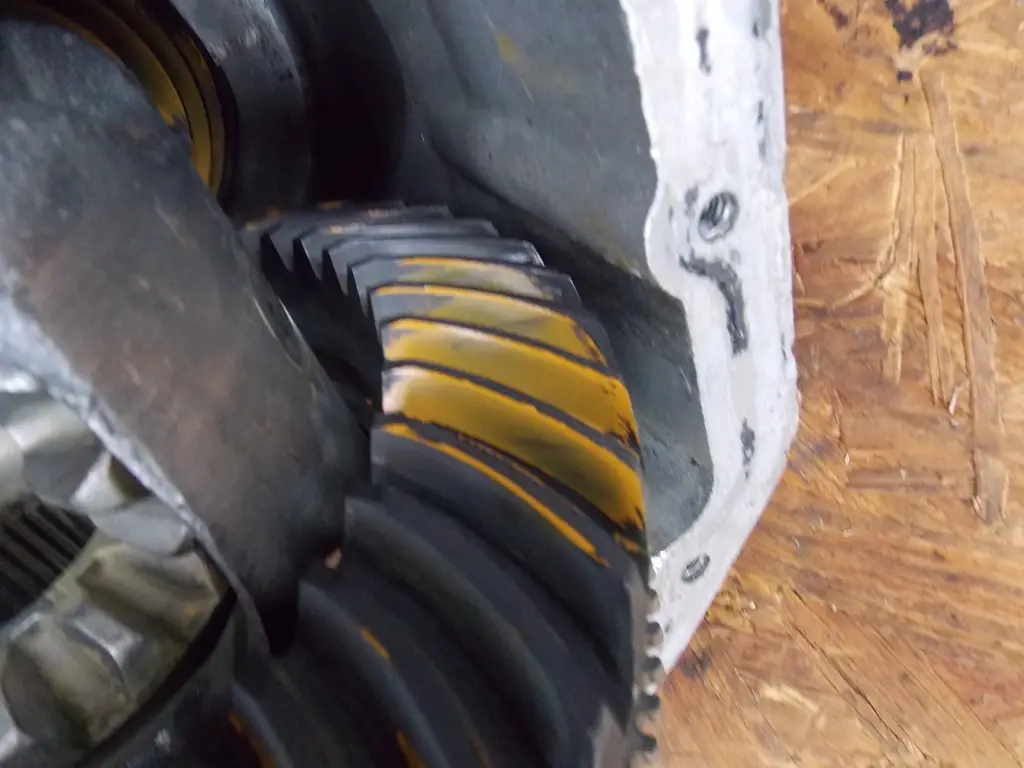

Drive side pattern left on gear





turboexplorer

Elite Explorer
Joined
August 23, 2008
Messages
1,955
Reaction score
34
City, State
Eagle Mountain, UT
Year, Model & Trim Level
98' XLT 5.0L 4X4
Callsign
Turbo
Looks good you have a nice pattern that feathers out towards the heal and toe and does not have a sharp edge near the face or the flank. :D





FR-425

Used to be a road here.
Elite Explorer
Joined
November 21, 2013
Messages
2,661
Reaction score
109
City, State
Phoenix, AZ.
Year, Model & Trim Level
1994 Explorer Limited
Looks good, not too deep and on center.

The open diff has got to go though. .. ..





boominXplorer

Elite Ranger
Elite Explorer
Joined
September 16, 2002
Messages
9,267
Reaction score
706
City, State
Virginia Beach, Va
Year, Model & Trim Level
00 4x4 Mounty
Looks good but run it around a few times more with putting pressure on the ring gear as is spins to help smush out a clean pattern. Then you can check the pattern in a few spots around the ring.
