Gen 4 "Dana 30 " axle boots,bearings and seals replace

Bazz270

Elite Explorer
Joined
April 14, 2020
Messages
219
Reaction score
44
City, State
Haifa,Israel
Year, Model & Trim Level
Ford Explorer 2007 XLT
Hi all

i am trying to fix front axle-shaft leaks. Ordered both sides shaft seals and bearings.
according to workshop manual, axle shaft outer shaft to diff circlips (one for each side ) should be replaced as well...

Cant find any evidence of this circlips...please help! thanks



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




imp

Explorer Addict
Joined
November 12, 2009
Messages
4,724
Reaction score
677
Location
West-Central AZ along the Colorado River
Year, Model & Trim Level
59 Ranchero F250 D'Line
Hi all

i am trying to fix front axle-shaft leaks. Ordered both sides shaft seals and bearings.
according to workshop manual, axle shaft outer shaft to diff circlips (one for each side ) should be replaced as well...

Cant find any evidence of this circlips...please help! thanks
The circlip fits in a groove at the end of the axle shaft spline which enters the differential. It looks like this:



Made of spring steel, they engage an internal groove in the differential female spline. They "click" in or out when the axle is inserted or removed. It is best to replace them, though if not damaged, they often serve adequately if re-used. Important thing if replacing them is that they be sized correctly.





Bazz270

Elite Explorer
Joined
April 14, 2020
Messages
219
Reaction score
44
City, State
Haifa,Israel
Year, Model & Trim Level
Ford Explorer 2007 XLT
Thank you

Just found c-clip for Dana 35 axle on rock auto.

According to Dana Spicer site:

Dana 30 and Dana 35 axles both have the same half shaft diameter and splines count.

Am i missing something or Dana 35 c-clip can fit?

Ford part number unfortunatly discontinued...

Update:

One of the halfshaft bearings discontinued too.according to Russian Gen4 forum ,Gen 3 both needle axle shaft bearings(instead of plastic gen 4 bushings)fits perfectly.

Also,found that cherokee liberty 07 have the same Dana 30 axle with 27 halfshaft splines.

Ordered two cherokee snap rings from summit:





Blackhawkxx

Well-Known Member
Joined
February 11, 2019
Messages
156
Reaction score
50
City, State
S.W. Pa
Year, Model & Trim Level
2008 Explorer XLT 4.0
It is best to replace them, though if not damaged, they often serve adequately if re-used. Important thing if replacing them is that they be sized correctly.
I guess that it is always best to replace things but I never have and most people I know don't bother unless they see something amiss.





Bazz270

Elite Explorer
Joined
April 14, 2020
Messages
219
Reaction score
44
City, State
Haifa,Israel
Year, Model & Trim Level
Ford Explorer 2007 XLT
According to my experience and this forum threads


In many cases of reusing axle bushings or bearings and axle inner snap rings, seal leaks once again.

By the way,leaks appeared during front suspension rebuild,possibly after plastic bushings damaged (these half shaft have to be supported during suspension job)
It is really a lot of boring job to take half shafts out of the car twice :)

Plan B: If cherokee axle snap ring wont fit i will reuse the old ones too but i have to try cause they costs really cheap





Bazz270

Elite Explorer
Joined
April 14, 2020
Messages
219
Reaction score
44
City, State
Haifa,Israel
Year, Model & Trim Level
Ford Explorer 2007 XLT
Update:

Not necessary to reuse or purchase separately C-clips since Oem TS211 boot kit containing all the hardware needed per one single CV boot side.

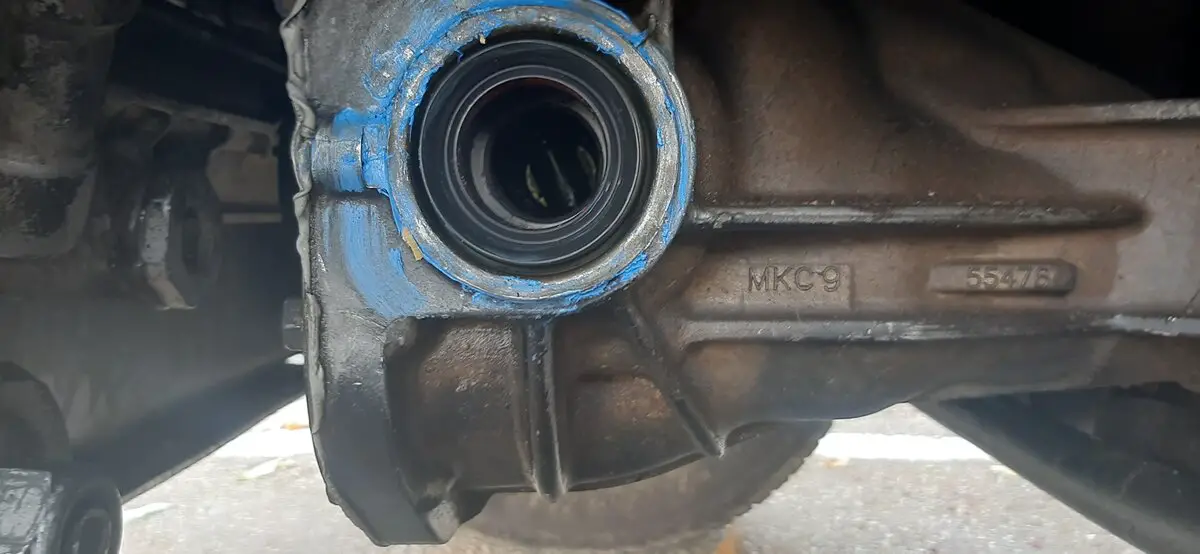

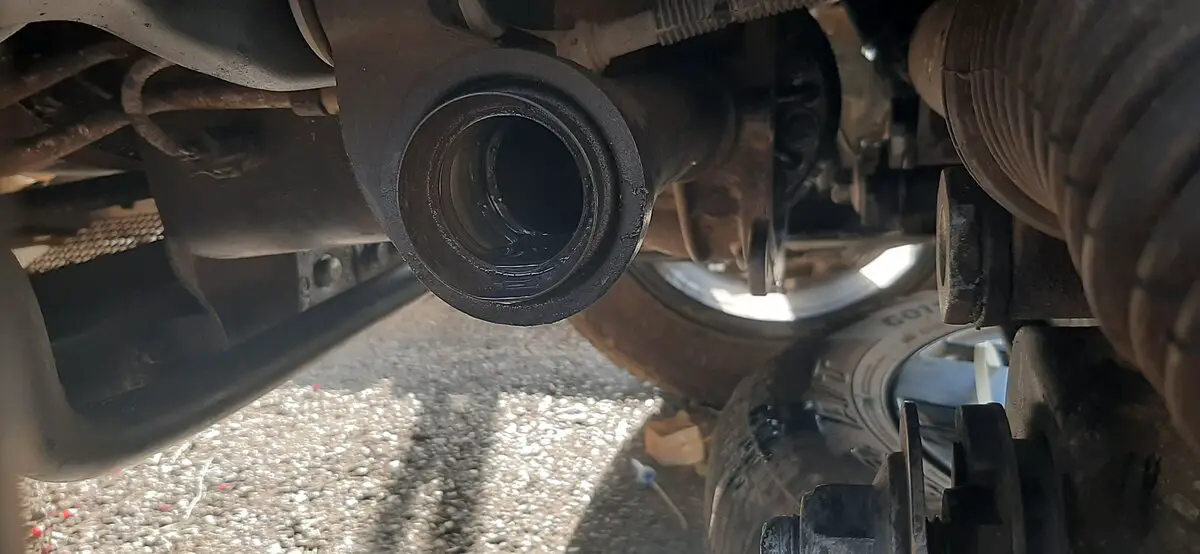

Driver side halfshaft bearing and seal replaced:





Bazz270

Elite Explorer
Joined
April 14, 2020
Messages
219
Reaction score
44
City, State
Haifa,Israel
Year, Model & Trim Level
Ford Explorer 2007 XLT
Driver side CV halfshaft needs to be adjusted to L=685mm total .inner Y joint snap ring needs to be replaced as well.

OTC tool used to tighten boot clamps.actually bolt-tight style tool better be used but this plier style should be ok too.




After halfshaft installed back,tighten new axle nut to 200Nm without wheel installed





Bazz270

Elite Explorer
Joined
April 14, 2020
Messages
219
Reaction score
44
City, State
Haifa,Israel
Year, Model & Trim Level
Ford Explorer 2007 XLT
Update:

Passenger side CV axle bearing and seal replace:

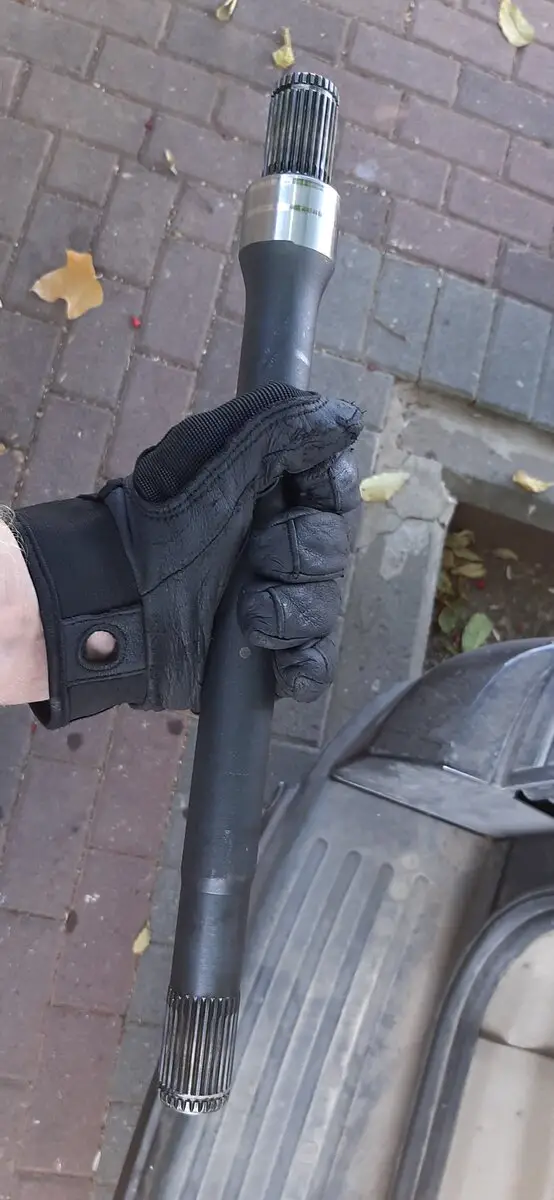

Remove halfshaft and axle shaft ,using prybar :

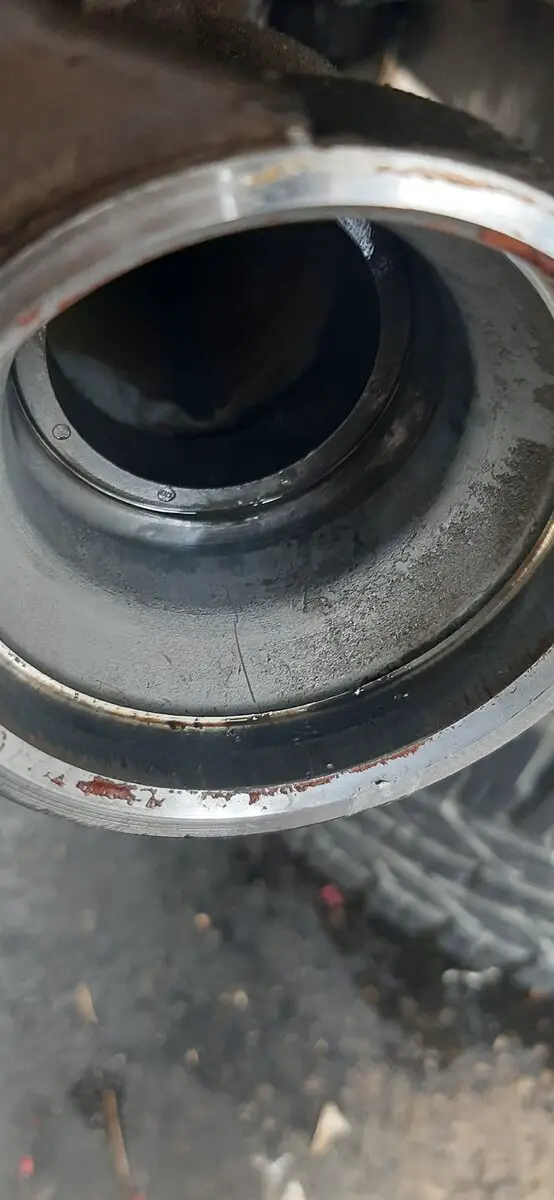

Remove axle shaft seal and plastic bushing using slide hammer:


Since plastic passenger bushing discontinued ,ive replaced em with Ranger or Gen 3 needle bearing (the same dimensions as the plastic one) using regular balljoint installer sleeves.

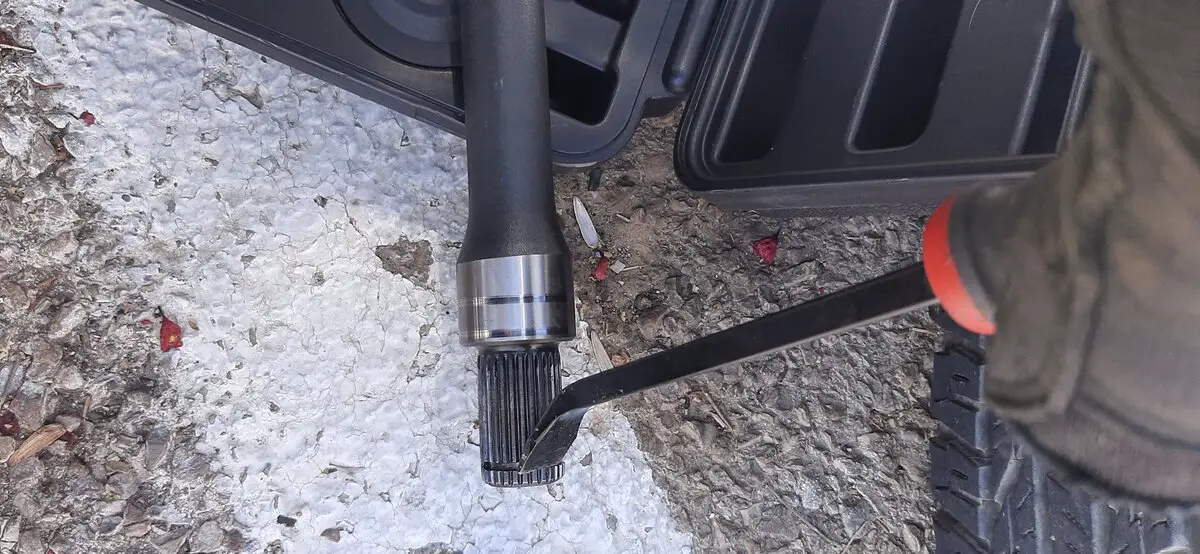

Replace axle shaft c-clip.check bearing race surfaces for wear:

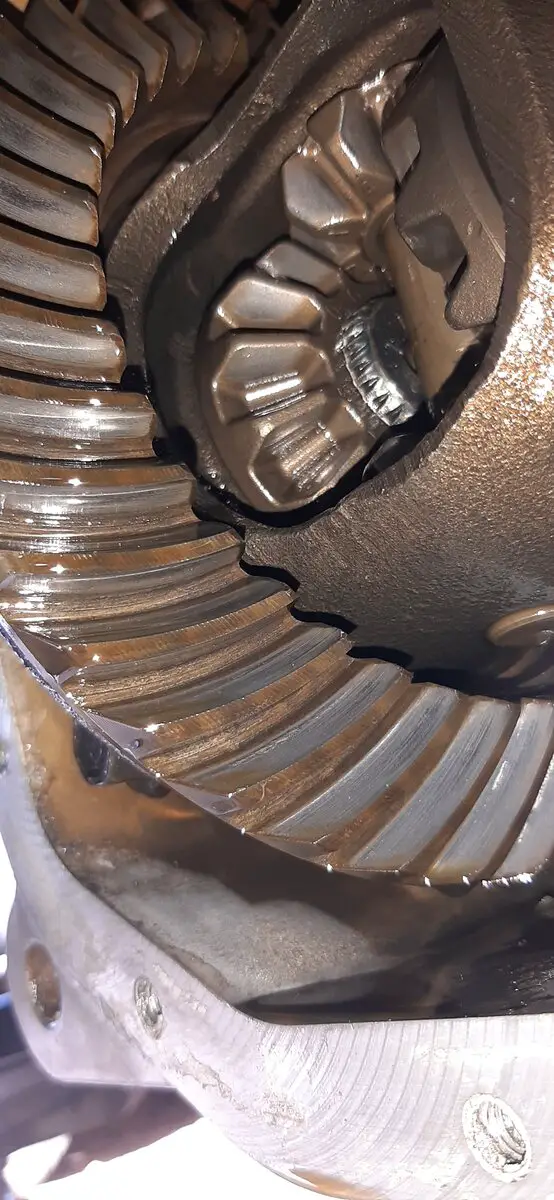

Use wood piece and 1kg hammer to lock this halfshaft in differential:double check it thru opened diff cover

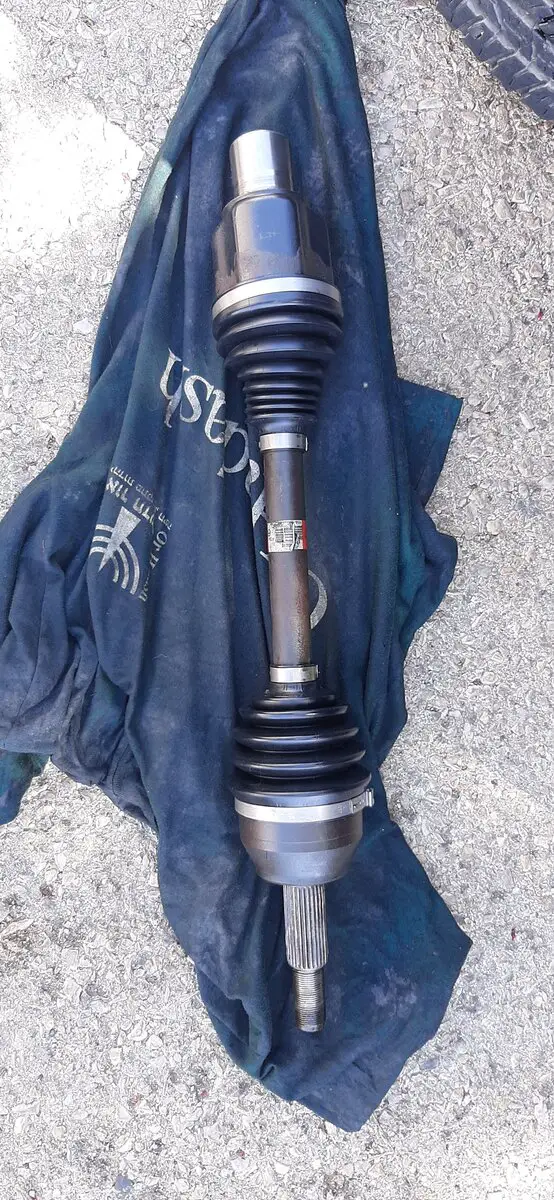

Replace halfshaft boots and inner c-clip using ford TS211 kit:

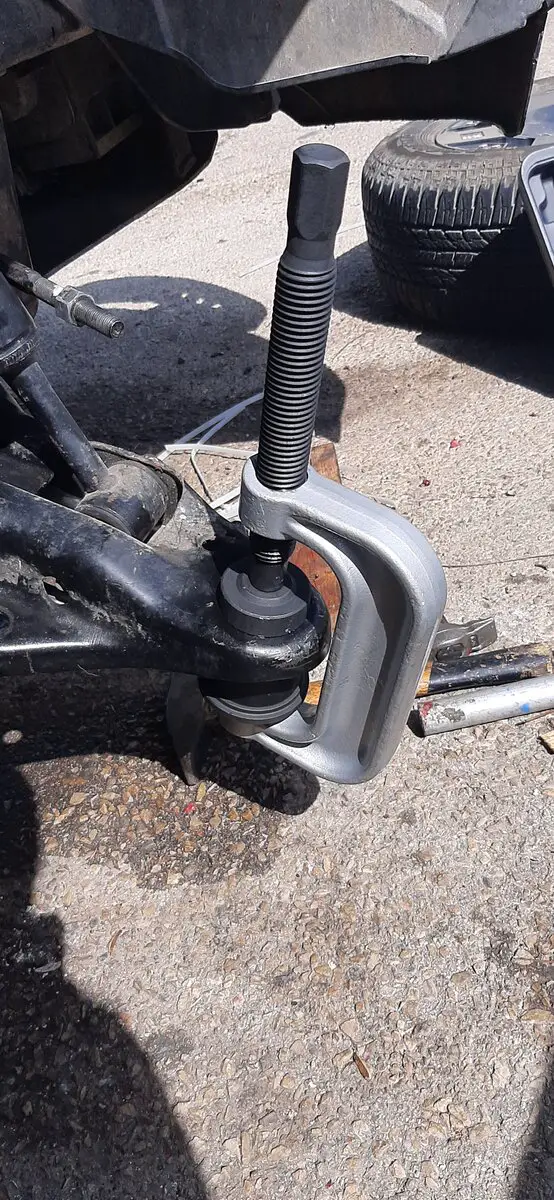

Replace lower balljoint if needed and reinstall all the suspension components acc workshop manual.dont forget loctite 638 for balljoint sleeve surfaces :






Bazz270

Elite Explorer
Joined
April 14, 2020
Messages
219
Reaction score
44
City, State
Haifa,Israel
Year, Model & Trim Level
Ford Explorer 2007 XLT
Final step.axle cover rtv gasket replace.


After waiting a couple of hours (one hour acc. to workshop manual) for silicone axle cover gasket to cure,

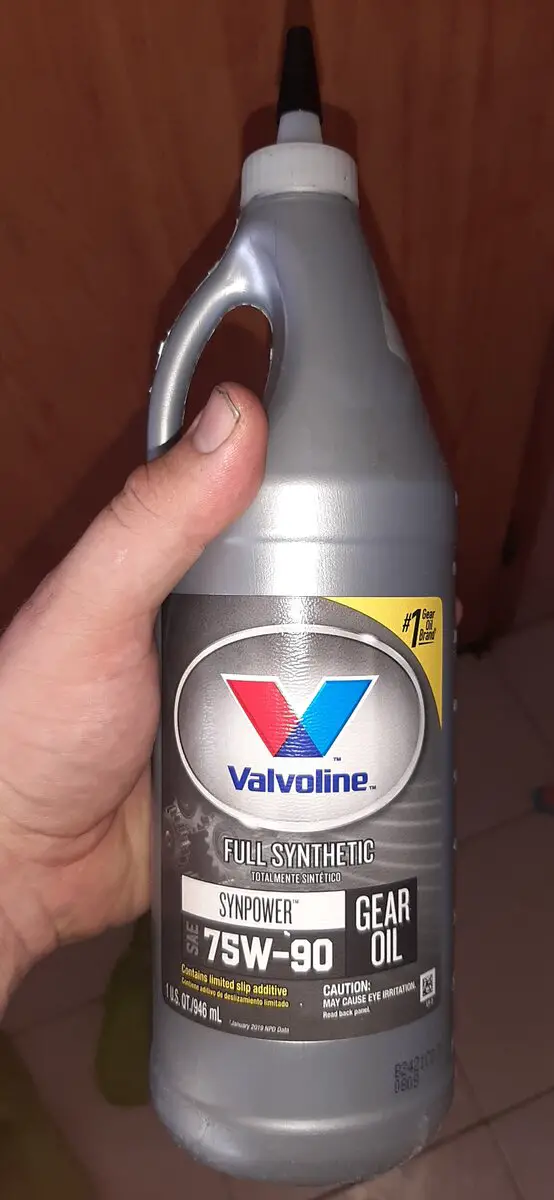

Refill with fresh 80w90 liquid (ive purchased 75w90 by mistake bit it is not really matters)

Qty: approx 1.3L MAX or until u can feel axle liquid with your finger thru refill plug hole.

Do not overfill or axle seal leaks will be experienced once again.
