Gen II Snorkel Install Pix

JDraper

Somewhat Functional
Moderator Emeritus
Joined
January 11, 2001
Messages
15,304
Reaction score
14
City, State
McVeytown, PA
Year, Model & Trim Level
'18 XLT

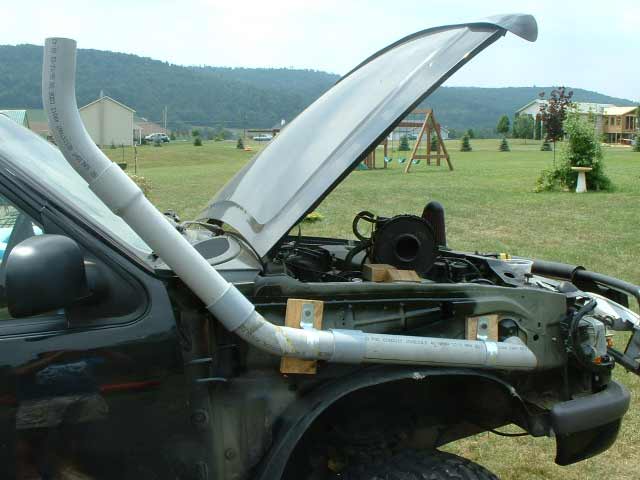

Well, I'm now in the middle of installing a snorkel on ExplorerEB96's X. Here are a couple of pix. The snorkel is modeled after DasFrem's install except I stuck with the factory conical intake housing instead of converting to the square box. The tubing is 2.5" I.D. PVC electrical conduit. I had to cut away a section of the reinforcement for the front right fender to do it, but it fits pretty well. Next up is trimming the fender to fit over it.

Pix #1


Attachments

  • snorkel1.jpg
    32.2 KB · Views: 4,982


Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




JDraper

Somewhat Functional
Moderator Emeritus
Joined
January 11, 2001
Messages
15,304
Reaction score
14
City, State
McVeytown, PA
Year, Model & Trim Level
'18 XLT

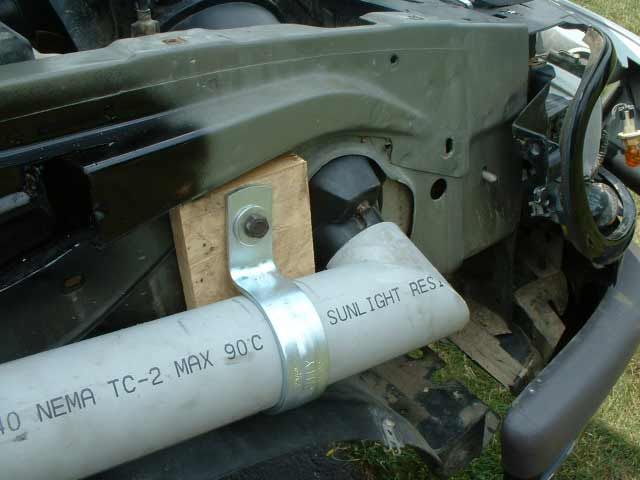

Pix #2. Note the mitred angle is slightly more than 90° so the tube stays along the inner fender. I mitred one side at 45° and the other at about 50°


Attachments

  • snorkel2.jpg
    27.7 KB · Views: 2,454




JDraper

Somewhat Functional
Moderator Emeritus
Joined
January 11, 2001
Messages
15,304
Reaction score
14
City, State
McVeytown, PA
Year, Model & Trim Level
'18 XLT

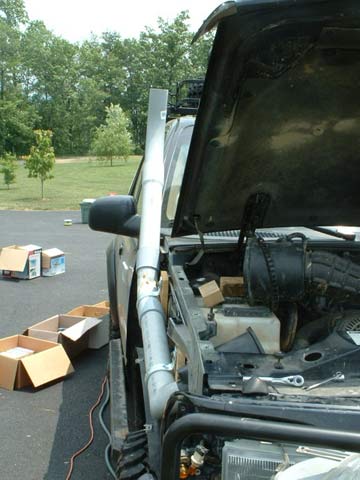

Pix #3


Attachments

  • snorkel3.jpg
    29.3 KB · Views: 2,239




JDraper

Somewhat Functional
Moderator Emeritus
Joined
January 11, 2001
Messages
15,304
Reaction score
14
City, State
McVeytown, PA
Year, Model & Trim Level
'18 XLT

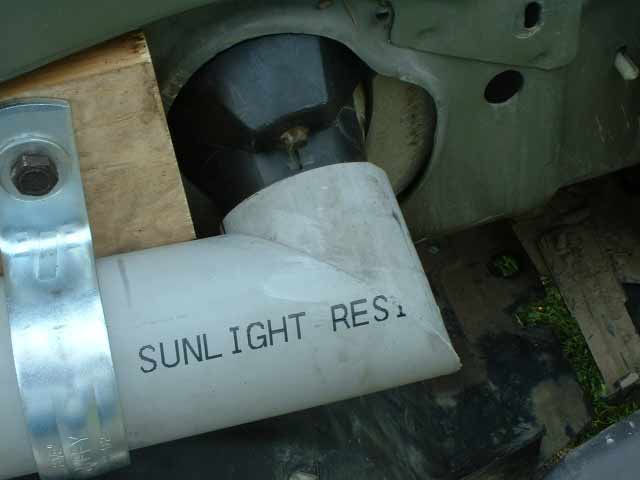

Pix #4


Attachments

  • snorkel4.jpg
    17.5 KB · Views: 2,203




ExplorerEB96

Elite Explorer<br>Explorer Babe
Joined
February 24, 2000
Messages
922
Reaction score
2
City, State
Spring Hill Florida (Weeki Wachee) from Bucks County PA
Year, Model & Trim Level
96 EB-gone 13 Honda Pilot
lookin good Jeff!!!

Didn't think you were going to work of July 4th weekend!! Take a break!!! Will ya!! nah you know now that I am happy!!! Will be sending Doug's $$ as soon as he emails me his addy!!!

Thanks again Jeff!!

Karol





JDraper

Somewhat Functional
Moderator Emeritus
Joined
January 11, 2001
Messages
15,304
Reaction score
14
City, State
McVeytown, PA
Year, Model & Trim Level
'18 XLT
Here are a couple more shots with the fender re-installed. It's basically finished. I've got a couple of fasteners left to install on the fender. I siliconed the crap out of all the joints after gluing them together to make sure they didn't leak. Fender trimming was a PITA, but it came out pretty good. There's no tip on the Snorkel yet because it's on backorder with the shop.


Attachments

  • snorkel 7.jpg
    snorkel 7.jpg
    31.2 KB · Views: 3,105




JDraper

Somewhat Functional
Moderator Emeritus
Joined
January 11, 2001
Messages
15,304
Reaction score
14
City, State
McVeytown, PA
Year, Model & Trim Level
'18 XLT

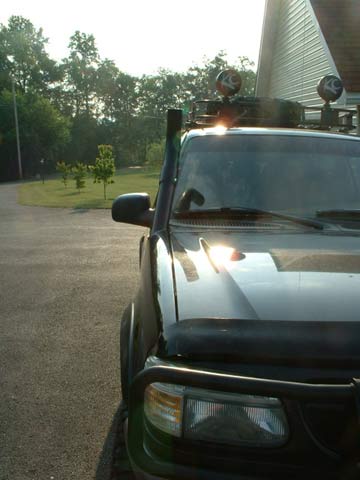

Karol, if you hydrolock this motor now, you're on your own!!! :p :D


Attachments

  • snorkel8.jpg
    23.2 KB · Views: 2,105




jssong

Explorer Addict
Joined
September 19, 2001
Messages
2,347
Reaction score
0
City, State
.
Year, Model & Trim Level
09
that looks great.. nice install





ExplorerEB96

Elite Explorer<br>Explorer Babe
Joined
February 24, 2000
Messages
922
Reaction score
2
City, State
Spring Hill Florida (Weeki Wachee) from Bucks County PA
Year, Model & Trim Level
96 EB-gone 13 Honda Pilot
Originally posted by JDraper
Karol, if you hydrolock this motor now, you're on your own!!! :p :D

I'm pretty sure that hydrolocking won't be a problem now :D .....with everyting relocated and stuff....nothing should be a problem.....I have to call JD's tomorrow to find out about when that sarfari snorkel tip is coming in...

oh Jeff forgot to say!!! That looks awesome....I am so glad you could do the angling that I wanted.... I hate when the snorkels go straight up...I know it's functional that way..but I just think the smoke stack look is yuck:D

Karol





bobby walter

Member
Joined
October 26, 2002
Messages
43
Reaction score
0
City, State
Houghton lake mi.
Year, Model & Trim Level
88 ranger ext cab 4x4
is there a reason for using two inch other then ease of installation?

i have found the three inch is a bit restrictive with less overall tube lengththen you are running....i have been wondering if you guys have had that problem or not cause i have noticed there are a few others with similar setups around here.......so i am guessin its workin out good.

i was also wondering how much the arb end is and how to get one.

i just run a k&n on the end of mine with a lil metel hood...it used to have those "moon equipped " eyeballs on it...and always draws the same silly ass questions constantly...rolleyes: but this motor is so old it dont matter to me much....but it seems the k&n lets too much dirt in when it rains.... so i would like to have a lil better filtration on the new engine, that arb type hood may allow that...





JDraper

Somewhat Functional
Moderator Emeritus
Joined
January 11, 2001
Messages
15,304
Reaction score
14
City, State
McVeytown, PA
Year, Model & Trim Level
'18 XLT
2.5" ID tubing is used because it will fit in the fender and the O.D. is 3", which is perfect for mounting the ARB Snorkel. 2.5" shouldn't be any worse than stock, since the air inlet hole in the airbox is about 2.25". Also, the 2.5" ID tubing slips over the end of the airbox intake perfectly.





cdsl227

Elite Explorer
Joined
June 25, 2001
Messages
1,121
Reaction score
0
City, State
Brooklyn, NY
Year, Model & Trim Level
2001 Explorer XLT
Very sweet! I've got the snorkel head in the back of my truck and the PVC conduit sitting in my place just waiting for a hot minute to install. :D

I'm just deciding if I want to make a drip box out of a PVC electrical box and keep the Ractive cone filter or put my old air box back in and work it that way...





cdsl227

Elite Explorer
Joined
June 25, 2001
Messages
1,121
Reaction score
0
City, State
Brooklyn, NY
Year, Model & Trim Level
2001 Explorer XLT
By the way do you have any closeup pics of how you handled the hole in the fender to extend it up?

Thanks.





ExplorerEB96

Elite Explorer<br>Explorer Babe
Joined
February 24, 2000
Messages
922
Reaction score
2
City, State
Spring Hill Florida (Weeki Wachee) from Bucks County PA
Year, Model & Trim Level
96 EB-gone 13 Honda Pilot
Jeff is out of town until Weds.

So he probably won't be replying for at least 2 days... just wanted to let you know..

Karol





cdsl227

Elite Explorer
Joined
June 25, 2001
Messages
1,121
Reaction score
0
City, State
Brooklyn, NY
Year, Model & Trim Level
2001 Explorer XLT
Thanks...but seeing another 2nd Gen snorkel- the fiend is coming out! :D

I've got the head sitting in the back of my truck and the 45 degree PVC conduit angles along with a length of PVC in my yard...and the class I was teaching tonight got cancelled because the AC went out! :D :D

Hi, ho, hi, ho- it's off to chop I go! :D









JDraper

Somewhat Functional
Moderator Emeritus
Joined
January 11, 2001
Messages
15,304
Reaction score
14
City, State
McVeytown, PA
Year, Model & Trim Level
'18 XLT
Originally posted by cdsl227
By the way do you have any closeup pics of how you handled the hole in the fender to extend it up?

Thanks.

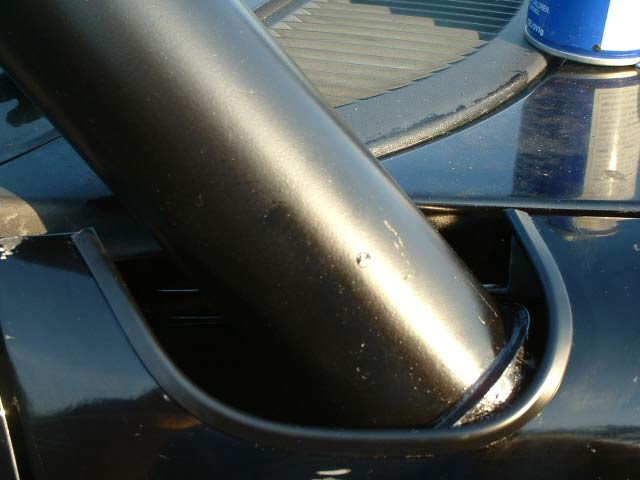

Ask and ye shall receive :D Here are a couple of shots. I trimmed it out with some Door Edge Guards I got at Wal-Mart. Worked nicely.


Attachments

  • fender1.jpg
    29.6 KB · Views: 1,972




JDraper

Somewhat Functional
Moderator Emeritus
Joined
January 11, 2001
Messages
15,304
Reaction score
14
City, State
McVeytown, PA
Year, Model & Trim Level
'18 XLT

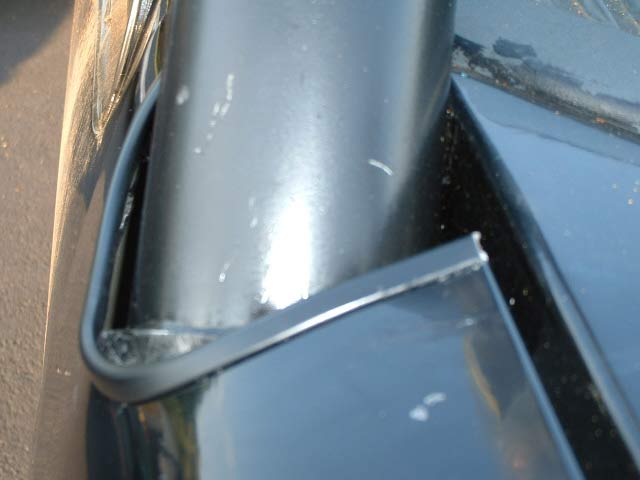

Next pix.


Attachments

  • fender2.jpg
    24.4 KB · Views: 1,977




JDraper

Somewhat Functional
Moderator Emeritus
Joined
January 11, 2001
Messages
15,304
Reaction score
14
City, State
McVeytown, PA
Year, Model & Trim Level
'18 XLT

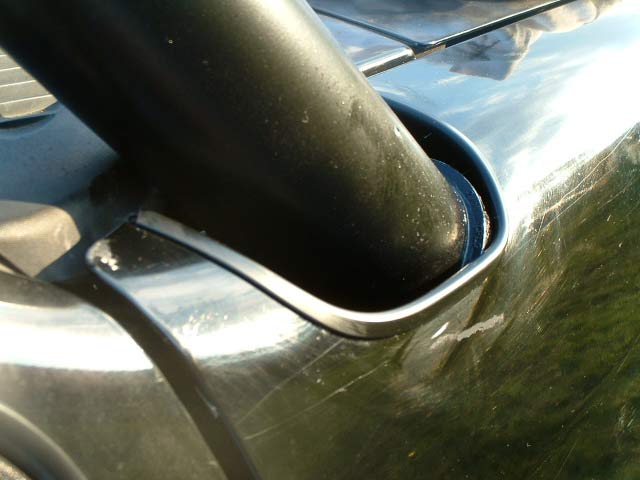

Third Pix. Karol, you're gonna have to let me know what you wanna do about the radio antenna. It had to be removed to install the Snorkel. Right now, there just isn't one, and the antenna wire is laying on the passenger's side front floor boards.
