Help; What is this connector for?

ronsdeal

Well-Known Member
Joined
November 13, 2008
Messages
102
Reaction score
0
City, State
Taylor, WI
Year, Model & Trim Level
98 XLT
I have searched...and searched.....and searched.

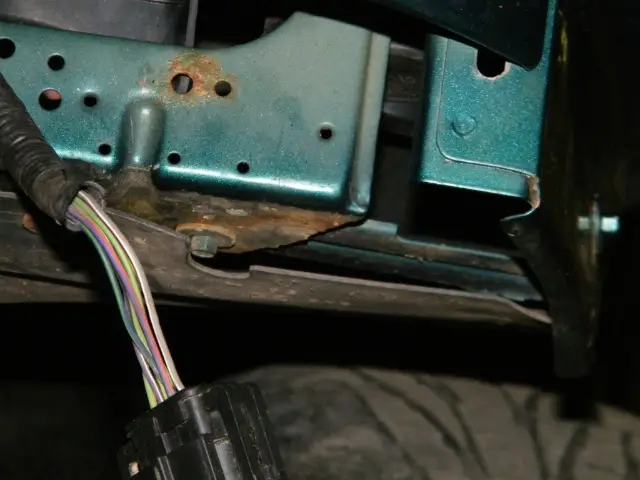

This is from my 98 XLT 5.0, below the drivers headlight, behind the bumper and on the frame.
It is a 8 pin connector, with 7 wires going to it.

Getting ready to install a EATC and a message center. [Totally with great thanks to this community]
Was wondering where these wires go, and what they are for.

Thanks


Attachments

  • explorerfrontend030.jpg
    121.4 KB · Views: 217
  • explorerfrontend029.jpg
    113.7 KB · Views: 219






DRL module connector?

According to my 2000 wiring diagrams the connector to the daytime running lamps module (DRL) is located there but only has 6 pins. On earlier years it was an 8 pin connector. wire colors: 1-gry/wht, 2-ppl/org, 3-ppl/wht, 4-lt grn/yel, 6-lt blu/blk, 7-red/blk, 8-lt grn/blk.







Thanks, 2000. Maybe that's it. The #5 and 6 pins are a different color combo on my 98. I will try to figure out where the go from there.
