Here we go again.

What a pain in the arse!

I feel so empty inside.




Wanna buy a tranny?


Out with the old and in with the rebuilt


What is the best method of sliding the new one in?



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.








chriswells78

Explorer Addict
Joined
November 4, 2005
Messages
2,452
Reaction score
4
Location
Central Ohio
City, State
Powell(Columbus), OH
Year, Model & Trim Level
2013 Limited
LOL, We almost hit the drywall getting this one out. My buddy and I stood in the engine bay and picked it up manually to get the bottom over the core support while another buddy pulled back on the hoist.





Spdrcer34

Explorer Addict
Joined
March 14, 2002
Messages
3,899
Reaction score
7
City, State
Bremerton, WA
Year, Model & Trim Level
1992 Explorer XL
Jack the X up, take the front wheels off, and lower JUST the front, until the bumper almost touches the ground. And unbolt the hood latch mechanism. And just pull it out of the way.

Ryan





chriswells78

Explorer Addict
Joined
November 4, 2005
Messages
2,452
Reaction score
4
Location
Central Ohio
City, State
Powell(Columbus), OH
Year, Model & Trim Level
2013 Limited
Hood is already off and out of the way. The engine and tranny go in as one lump easy that way? I'm not looking forward to lining up the tranny to the block while it is in the vehicle.





Spdrcer34

Explorer Addict
Joined
March 14, 2002
Messages
3,899
Reaction score
7
City, State
Bremerton, WA
Year, Model & Trim Level
1992 Explorer XL
I said pull the hood LATCH mechanism off...not just the hood...

The latch mechanism will save you about 2" of clearance over the core support.

Raising the rear by itself lowers the front. But taking the front wheels off, and lowering the front even more makes that much more of an impact. I have a VERY LOW ceiling in my garage, and I have done all the work you guys are talking about in there. And that is how it was done.

Ryan





Turdle

Lowrider
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
29,586
Reaction score
1,117
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty
^^^^^good advice-

My trans and engine went in separately, trans first. Leave the trans mount loose-but have it supported.
I installed my motor mounts and plates, then lowered the engine onto the plates,
Don't tighten the mounts up until the trans and torque converter are bolted tight.

My engine was almost on end,(at least 30 degrees) flexplate end down, skewed a bit to the left, and lowered in slowly while straightening it into position.





Xan

Well-Known Member
Joined
May 2, 2007
Messages
788
Reaction score
8
City, State
Lincoln, NE
Year, Model & Trim Level
01, mountaneer
i've done trans and engine together and seperate, but i find that together is easier. That is if you got 2 people... i'd just take off the wheels up front and jack up the back like Spdrcer34 said then have one person man the hoist and the other lift up on the trans and help guide it in. Then when you get it in the transmission tunnel have the other person get under and push up on the trans. Then get a nice floor jack under the trans (use wood between the two) to keep it level and if you keep the wheels lined up with the wheels of the car it should slide back as you push in on the hoist. Then drop it down on the mounts then put the trans crossmember on then tighten up all the mounts.


BTW!
if you do trans and engine seperate put a jack stand under the front or buy a new transmount.... if you let it sag you will ruin it and i give it a 80% chance of breaking eventaly





chriswells78

Explorer Addict
Joined
November 4, 2005
Messages
2,452
Reaction score
4
Location
Central Ohio
City, State
Powell(Columbus), OH
Year, Model & Trim Level
2013 Limited

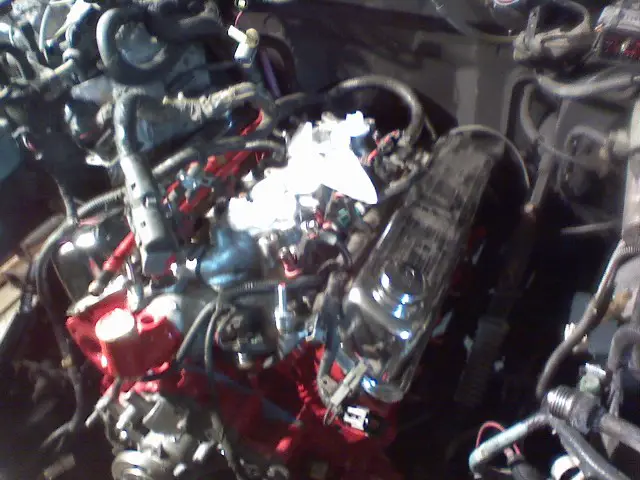

The rebuilt is now in...










chriswells78

Explorer Addict
Joined
November 4, 2005
Messages
2,452
Reaction score
4
Location
Central Ohio
City, State
Powell(Columbus), OH
Year, Model & Trim Level
2013 Limited
You bet.





chriswells78

Explorer Addict
Joined
November 4, 2005
Messages
2,452
Reaction score
4
Location
Central Ohio
City, State
Powell(Columbus), OH
Year, Model & Trim Level
2013 Limited

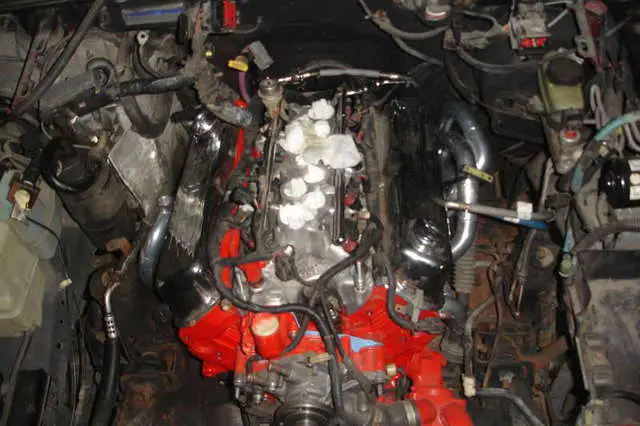

Fuel rails and fuel lines are in, TM headers are almost in.

Now it's off to the in-laws for eating turkey.






chriswells78

Explorer Addict
Joined
November 4, 2005
Messages
2,452
Reaction score
4
Location
Central Ohio
City, State
Powell(Columbus), OH
Year, Model & Trim Level
2013 Limited
continued progress

Here is where I am now.


I still need to fab up the intake, hook up the AC lines, put the fan/shroud/belt on, tighten the tranny lines and tune it. I'll hook the exhaust up after that.

I also will be having a 4406 enroute very soon, should be here first part of next week.

I also have a few other issues to fab around...

Aparently with tension of the pedal on the throttle cable, it is a little tighter than I expected. The cable pulls the TB arm out slightly over the idle screw. I just have to drill some new holes and adjust it to fit.

I also need to drill some holes in the bracket to fit a zip tie through to hold the cruise control cable out of the way.

Also notice, the bracket sticks up kinda high. I'm thinking I'm going to need a hood cowl to get over it.





Turdle

Lowrider
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
29,586
Reaction score
1,117
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty
It looks close, but I bet you clear.
Oh, my what a lovely intake-you finished the plaque nicely-:thumbsup:





chriswells78

Explorer Addict
Joined
November 4, 2005
Messages
2,452
Reaction score
4
Location
Central Ohio
City, State
Powell(Columbus), OH
Year, Model & Trim Level
2013 Limited
It looks close, but I bet you clear.
Oh, my what a lovely intake-you finished the plaque nicely-:thumbsup:

When you look across the fenders, you can tell that it sticks up 1"-1.5" above the fenders.

Thanks, Thank you for the nice PC job :thumbsup:! I took my dremel with sanding disks to smooth the script down, then jewlers rouge with a buffing head to shine it up. Then Plasticote Engine Enamel clear coat to keep it shiney.





chriswells78

Explorer Addict
Joined
November 4, 2005
Messages
2,452
Reaction score
4
Location
Central Ohio
City, State
Powell(Columbus), OH
Year, Model & Trim Level
2013 Limited
I'm so close I can taste it. I didn't make my goal of firing it this weekend, but it will be soon.

Last night I had a minor set back. Aparently when I put the coolant elbow on, the thermostat slipped a little bit and wouldn't allow the dang thing to seal. When I put coolant in it, it pee'd out all over the place. I figured it out and fixed it.

Today I put a drain plug in my tranny pan to make future changes easier. Filled the tranny, realized that without a TC on it, when you put more than 5 quarts of fluid in, it pee's all over the place. I loaded the tune in the PCM. I tried to crank it, but the battery was too weak. I need to get my buddy's jump box.

I need to go to Jegs tomorrow and get a K&N filter with an 4" mouth to go with my lightning MAF and get a 3" OD x 8" piece of aluminum tube to complete the intake.

My 4406 should be here Tuesday (WOOHOO!!!!!!) Then, time to install that.









justin146

Explorer Addict
Joined
April 8, 2001
Messages
2,213
Reaction score
0
City, State
Oxford, MS-- home of the Ole Miss Rebels
Year, Model & Trim Level
2000 XLT Sport 5.0 Turbo
What is with the huge (4"?) 90 after the MAF? Why so large?





chriswells78

Explorer Addict
Joined
November 4, 2005
Messages
2,452
Reaction score
4
Location
Central Ohio
City, State
Powell(Columbus), OH
Year, Model & Trim Level
2013 Limited
Upsized cam, upsized injectors, roller rockers, headers, exhaust, needs more input to make use of all the outputs. I have ported the upper and lower intakes and added a 75mm Edelbrock TB, after that elbow it will reduce to 3" to match the TB (TB is actually 3.15 but good luck finding tubing that size.) I have a 90mm lightning MAF which = 4" and the tube matches it. It gets reduced to 3" after the elbow. The coupler also houses the IATS.



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




justin146

Explorer Addict
Joined
April 8, 2001
Messages
2,213
Reaction score
0
City, State
Oxford, MS-- home of the Ole Miss Rebels
Year, Model & Trim Level
2000 XLT Sport 5.0 Turbo
Upsized cam, upsized injectors, roller rockers, headers, exhaust, needs more input to make use of all the outputs. I have ported the upper and lower intakes and added a 75mm Edelbrock TB, after that elbow it will reduce to 3" to match the TB (TB is actually 3.15 but good luck finding tubing that size.) I have a 90mm lightning MAF which = 4" and the tube matches it. It gets reduced to 3" after the elbow. The coupler also houses the IATS.

The 90mm MAF will work fine I guess, but it is really overkill for your engine. I'd be worried about resolution issues.
