Center support pipe would only work with extreme length shackles though. Would recomend latteral support for all longer shackles.




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





glfredrick

Explorer Addict
Joined
January 25, 2003
Messages
2,432
Reaction score
10
City, State
Louisville, Kentucky
Year, Model & Trim Level
86-98 Ranger STX
The .250 material will be plenty strong for shackles. A center bolt or cross bar is not needed. In fact, it will slightly hinder flex on off-road trucks, as it forces the twist to occur within the leaf spring instead of letting the shackles do the work.

FYI, I've seen cars and trucks with leaf springs run without shackles at all when the areas have rusted out and the back of the springs poke through the trunk floor. Most of you guys are over-designing -- not a bad idea -- but it just doesn't take that much work to make a pair of shackles. Save your fabrication for something more important like rock sliders. :D







zonianbrat

Well-Known Member
Joined
June 7, 2008
Messages
136
Reaction score
1
City, State
Ft. Collins, Colorado
Year, Model & Trim Level
98 XLT V-6 SOHC
I just finished mine up yesterday and am putting the second coat of flat black on today. I used 2"X 1/2 flat bar since we had some laying around on the rack outside the shop. They are 10.25"long with the holes 8.25" center to center. Nothing too special since I am getting a set of 31's. For now I am just going to run the 31's with the small shackle lift and TT
up front until I have more time/cash flow to go bigger








tootall_54

Member
Joined
April 30, 2009
Messages
35
Reaction score
0
City, State
Worthington,IN
Year, Model & Trim Level
92' XLT






DB_1

Elite Ranger
Elite Explorer
Joined
October 23, 2001
Messages
3,766
Reaction score
42
City, State
La Quinta, Ca.
Year, Model & Trim Level
97 SC Ranger xlt
will this give the 2" lift

the springs are 2.5 wide...figure an extra 1/4 inch for bushings on eash side...(3 inch)and figure on 3/8 plate times two....3/4 so a 4 or a 4and 1/4 bolt with like 1 inch of thread should be good....the stock shackles are 6 inches bolt to bolt....if you want 2 inches of lift out of them they need to be 10 inches...with shackles your actual ride height is 50%of the differnce from stock that you choose...







soon2bsick

Well-Known Member
Joined
December 19, 2009
Messages
292
Reaction score
0
City, State
florida
Year, Model & Trim Level
2000 mountaineer
Wow so I figured I would check into this instead of buying the warrior shackles... I didn't want to pay $70 - $80 for shackles that would only give me 1.5" even if they were heavy duty. Called my local metal shop and got a 3/8x2"x4ft piece for 6 bucks!







IZwack

Moderator Emeritus
Joined
February 5, 2003
Messages
21,711
Reaction score
34
City, State
Germantown, MD
Year, Model & Trim Level
1998 Ford Explorer
I didn't want to pay $70 - $80 for shackles that would only give me 1.5" even if they were heavy duty.
If lift height correlates to lift cost, then trophy trucks must be a danger to jet liners :).







slaughterrt

Well-Known Member
Joined
April 11, 2008
Messages
279
Reaction score
1
City, State
Old Bridge, NJ
Year, Model & Trim Level
2011 Explorer XLT
Definitely subscribing to this thread. I am going to make some shackles for my 99 XLT this week at work. Also doing the TT. Should have pics eventually.







glfredrick

Explorer Addict
Joined
January 25, 2003
Messages
2,432
Reaction score
10
City, State
Louisville, Kentucky
Year, Model & Trim Level
86-98 Ranger STX
Just realize that there is a point of diminishing returns when using JUST shackle lifts. After the size shackles shown here, you start to get a LOT of leverage and you also start tipping your pinion upward quite a bit. A couple inches of lift is no biggie, but more than that and you need to figure out a different lift system such as springing over the rear axle (cost to do that is minimal -- if you can weld, you could probably get it done for under $30 not counting the new shocks) which will give you about 5.5 inches of lift without some of the problems inherent in just boosting up the stock pieces.













steelo1

Well-Known Member
Joined
December 5, 2006
Messages
296
Reaction score
1
City, State
Hervey Bay, Queensland
Year, Model & Trim Level
1999 XLT 4.0L

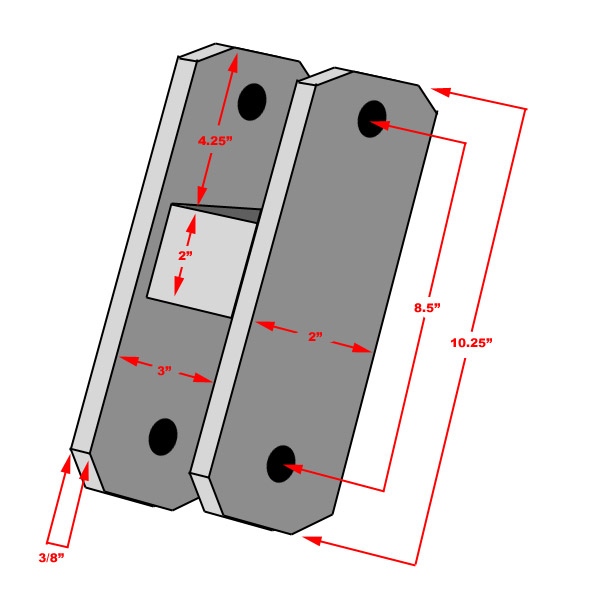

Make a copy from the pictures/drawings earlier & take them to an Engineers or Metal Working/Welding shop, thats all I did, they are only mild steel. :D







fishnhunt18

Active Member
Joined
February 18, 2011
Messages
69
Reaction score
0
City, State
pearl city, hi
Year, Model & Trim Level
92 Eddie Bauer 4X$






Brian1

Elite Explorer
Joined
February 2, 2000
Messages
5,351
Reaction score
519
City, State
Albuquerque, NM
Year, Model & Trim Level
1991 XLT
Callsign
KG5BAQ
I will add mine to this thread. I didnt need as much lift as the warriors since I have an add-a-leaf but it has sagged over the years. Made my shackles for a 1" lift so they are about 1" shorter than the warriors.

Cut out of 3/8" plate and then a square tube welded between them

picture.php


picture.php







steelo1

Well-Known Member
Joined
December 5, 2006
Messages
296
Reaction score
1
City, State
Hervey Bay, Queensland
Year, Model & Trim Level
1999 XLT 4.0L
Looking good :thumbsup::australia







lounge lizard

Well-Known Member
Joined
December 13, 2010
Messages
811
Reaction score
2
City, State
Eastern PA
Year, Model & Trim Level
1997 xlt awd
I didn't even see this till now. I made mine out of 1/4" plate. and I just did a copy of the stock shackles, but made them longer. exact length I never measured. but I can check it easy enough.






they are longer than stock. although my stock ones are rusty and the paint is falling off. they are in good shape.

just wanted an upgrade I guess. and I had the metal to do it.

excellent thread!







brs256

Member
Joined
April 29, 2011
Messages
16
Reaction score
0
City, State
lorain
Year, Model & Trim Level
1994 xlt 4x4

I got some Auto Zone shackles and drilled them out large enough to fit the factory bolts. Then took the smaller bolt that came with the kit and used them as a center brace.

how much lift did the autozone shackles provide you with??







baphomet666

Well-Known Member
Joined
November 24, 2010
Messages
409
Reaction score
1
City, State
Bordeaux,FRANCE
Year, Model & Trim Level
Explorer.1994. 4WD
Lift 1,5 or 2"

Lift 1,5 or 2"

Hello everyone,

After much reflection and research.
I decided to make the lift on my EXPLORER.
I have the desire to make things simple.
while trying to have efficient.
My intention and gave a little one more cool image of my X. with this tires mounts and rims 16"
http://www.allopneus.com/BRIDGESTONE-DUELER-AT694-265-75r16-112-s-10386.html#performances

http://www.jante-alu.fr/jantes-dotz-hammada-dark-special-suv-4x4-d29482.htm

Do you think I need to install.
of sprockets of rear differential very strong to compensate for assembling the new tires and rims

What do you think of my choice of the following parts to mount a small lift 1.5 or 2 " on my 94 Explorer .
I need something more?, this is sufficient?
All your opinions are appreciated


Do you think I need to install.
of sprockets of rear differential very strong to compensate for assembling the new tires and rims


What do you think of my choice of the following parts to mount a small lift 1.5 or 2 " on my 94 Explorer .
I need something more?, this is sufficient?
All your opinions are appreciated [/B][/COLOR]

This:

Lift Shakles 1.25 Invh Rear 66$

I wonder if these http://www.tellico4x4.com/product_info.php/products_id/6362 were well ok for my project




Skyjacker Short Add-A-Leafs 104$



Rear Rancho RS 5000 94$



Skyjacker Front Suspension Coil Springs 132X 151$



Front Rancho RS 5000 88$


If you think I made ​​some mistakes .
It is with great interest. I'll follow your advice
Thank you very much


Or do you think I can do better







skullver

Member
Joined
May 23, 2011
Messages
23
Reaction score
0
City, State
Ventura, CA
Year, Model & Trim Level
91 xlt 4x4
Here is a set I made a while ago, before finish welding of course.







Jake100146

Active Member
Joined
April 9, 2016
Messages
55
Reaction score
0
City, State
Australia
Year, Model & Trim Level
1996 Ford Explorer
Would 6mm thick flat bar X 300mm X 75mm wide be strong enough for shackles without a brace in the middle?




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





lounge lizard

Well-Known Member
Joined
December 13, 2010
Messages
811
Reaction score
2
City, State
Eastern PA
Year, Model & Trim Level
1997 xlt awd
6 mm (15/64) x 300 mm (11 13/16) x 75 mm (2 61/64)

should be more than thick, wide and long enough to do what you want to do. Just remember you need four equal length pieces. you need to make sure all the hole are centered to each other.

And it is nice on the longer length shackles a center spacer of some kind, preferably welded to keep the side plates frpm bowing under load.
