hooking up a 7 pin connector for trailer haulings

damnford

Well-Known Member
Joined
March 26, 2018
Messages
284
Reaction score
49
Location
pine city washington
City, State
pine city washington
Year, Model & Trim Level
94 explorer eddibouere
right now i have the reciever hitch for the trailer hitch but no wires is it possible or even prudent to hook up a 7 pin connector and how is that done?




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





Mr. Alligator

Elite Explorer
Joined
November 30, 2014
Messages
1,177
Reaction score
862
City, State
Tampa, Florida
Year, Model & Trim Level
1997 XLT Explorer
A milti-pin connector is just a connection for wires, and requires wires with existing OEM pins on the end. Nothing more than a fancy semi quick-release connector.

If you do not have a wiring harness for a trailer, you will need to tap into the factory tail light wiring. Solder your connections, and protect them with heat shrink insulation would be good. But the pin connector would only be available between the factory wire connection and the trailer connector. That is, you can not use a pin connector, except in the middle of the system.

Example: Factory wiring>> (additional wiring)>>>>PIN CONNECTOR>>>(additional wiring)>>>trailer wiring harness.

Hard to explain, but this pin connector is not necessary for you, and not really helpful either. Hook your OEM wires to the standard trailer harness that fits the connector on your trailer.

Example: Factory wiring>>>>>trailer wiring harness. (No quick release in the middle). The standard trailer wiring harnesses are already designed for quick release between your truck andyour trailer.

Hope that helps. Good luck.







MrQ

Smokey the clutch is; Missed shift you did
Elite Explorer
Moderator Emeritus
Joined
October 5, 2008
Messages
3,192
Reaction score
398
Location
Humid, Damp, and Hot
City, State
Houston, TX
Year, Model & Trim Level
'98 EB, '93 Limited






Mr. Alligator

Elite Explorer
Joined
November 30, 2014
Messages
1,177
Reaction score
862
City, State
Tampa, Florida
Year, Model & Trim Level
1997 XLT Explorer
Are you needing a brake controller as well?

1991 Ford Explorer Custom Fit Vehicle Wiring - Curt

That gets you a flat 4 and you can use a converter to get it to work for a 7 pin. HOWEVER, this will not get you trailer brakes. You will need a trailer brake controller and run those wires separately.

This allows you to use the harness above and add in a brake controller:

Adapter 4 Pole to 7 Pole Vehicle End Trailer Connector Tow Ready Wiring 30717

Do you have trailer brakes? Either way, my understanding is that you have NO harness or connection at all behind your truck, and that you will be connecting directly to OEM wiring.

I would match the existing harness on your trailer, (if it is the trailer has the female connector, get the male connector; if the trailer has the male connector, get the female connector). Then direct connect the wires, as indicated: ground, left turn, right turn, brakes and running lights.

I still see no advantage to a harness connection at the trailer, and a second harness or pin connection under the back of the truck. You would still need to splice into OEM wiring, and a second connection is just another set of possible problems.

If this makes any sense....

Good luck.







damnford

Well-Known Member
Joined
March 26, 2018
Messages
284
Reaction score
49
Location
pine city washington
City, State
pine city washington
Year, Model & Trim Level
94 explorer eddibouere
i don't have any wires for trailer hookup but i wanted to get the 7 pin hookup just in case







Mr. Alligator

Elite Explorer
Joined
November 30, 2014
Messages
1,177
Reaction score
862
City, State
Tampa, Florida
Year, Model & Trim Level
1997 XLT Explorer
Do you plan to use the seven pin connector to attach to your trailer?







roscoe 0202

Well-Known Member
Joined
February 3, 2014
Messages
340
Reaction score
76
City, State
salt lake city utah
Year, Model & Trim Level
1999 explorer sport
you can get a harness that will plug into your harness middle of back if you need brakes or batt chargr that would be separate
roscoe
ps go to a rv store and they can wire all or part







damnford

Well-Known Member
Joined
March 26, 2018
Messages
284
Reaction score
49
Location
pine city washington
City, State
pine city washington
Year, Model & Trim Level
94 explorer eddibouere
yes, Mr alligator i plan on using the 7 pin connector. i was at Walmart last night and found the connector i need it has both the 7 pin and the 4 pins and i have plenty of wire just need the adapter that plugs into the harness.







Mr. Alligator

Elite Explorer
Joined
November 30, 2014
Messages
1,177
Reaction score
862
City, State
Tampa, Florida
Year, Model & Trim Level
1997 XLT Explorer
Do you have a harness connection on your truck?







Mr. Alligator

Elite Explorer
Joined
November 30, 2014
Messages
1,177
Reaction score
862
City, State
Tampa, Florida
Year, Model & Trim Level
1997 XLT Explorer
Sounds like you are making progress! Can you find a plastic connector behind your rear bumper with four pins in it?







Centaurious

Well-Known Member
Joined
April 28, 2015
Messages
433
Reaction score
127
City, State
Pensacola FL
Year, Model & Trim Level
1994 Explorer Sport
On my 94 the trailer connector was located in the jack compartment, rear drivers side near the top. My 4 wire adapter only brought the wire to below the tail light, I needed a flat 4 extension cable to reach the hitch.







kmack

Well-Known Member
Joined
December 28, 2000
Messages
189
Reaction score
111
City, State
San Antonio, TX
Year, Model & Trim Level
1993 Ford Explorer

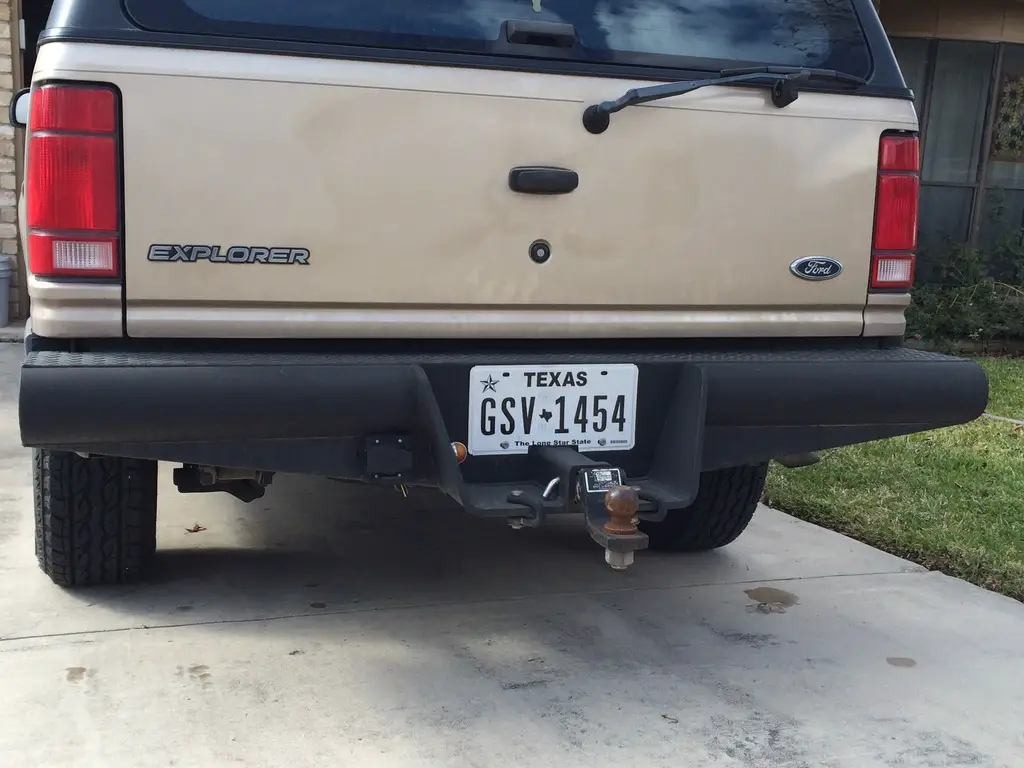

I have the same setup as MrQ noted above...














damnford

Well-Known Member
Joined
March 26, 2018
Messages
284
Reaction score
49
Location
pine city washington
City, State
pine city washington
Year, Model & Trim Level
94 explorer eddibouere
nop no wires in the back except where someone twisted and taped the wires together, very bad. it is only three miles from my house to the car i am towing it home no lights.
