HOW-TO: 1st Gen Ball Joints / U Joints / Spindle Bearings
This was done on a '94 Sport 4X4 w/ 4 Wheel ABS

___________________________________________________________________
Disclaimer: I cannot be responsible for any damage to you or your property that comes from following this guide. Use common sense and safety equipment (when necessary) to prevent injuring yourself or your truck. I cannot guarantee that this procedure is error-free. You have been warned.

Step 0: Preparation

You will need these specialty tools:

12pt, 6mm 1/4 Drive Socket (really hard to find, get out the phone book and start calling)
C-Frame Press (can be gotten from loan-a-tool or buy the Harbor Freight one)
Seal installer kit (you can make do without it, but its easier with it)
2-3/8in Wheel bearing locknut (with appropriate socket adapter if it has a huge drive size)
Snap ring pliers

You will also need: (not necessarily a complete list)
Jack and jackstands
Set of both metric and standard 1/2 drive sockets, impact is preferable
Set of both metric and standard 1/4 drive sockets
BFH of at least 2lb :hammer:
Large rubber mallet
Smaller sized ball-peen hammer
1/2 Drive torque wrench
1/2 Drive breaker bar
1/2 Drive ratchet
1/4 Drive ratchet
1/4 Drive asstd. extensions
Set of small wrenches
Set of various picks
Flathead screwdriver (a crappy one for pounding/prying)
Vise
Kroil or PB Blaster
At least 2 cans of brake parts cleaner
Can of bearing grease
Box of latex gloves
Mechanic's Gloves
At least 2 rolls of paper towels
Shop rag
Scotch-brite pad
Grease gun

Air tools are optional but save a lot of work, I used:
Die grinder with wire brush
1/2 Impact
Air chisel with regular straight chisel

Parts I used:
Moog Ball joints
Timken bearings and spindle rebuild kit
U-Joints (I forget the brand, use spicer if you can)
Spicer Adjustable camber bushings
Valvoline Premium grease (in the black can)
Motorcraft pads and rotors

Step 1: Getting to the spindle

Since Glacier made such a great 1st gen brake tutorial, I don't see the reason for me to repeat him. Follow his instructions for getting the rotor off, then go to Step 2.

http://explorerforum.com/forums/showthread.php?t=122696

A big s-hook over the shock tower holds the caliper well and out of the way. If you have ABS, remove the sensor wire from the clips attaching it to the brake hose.

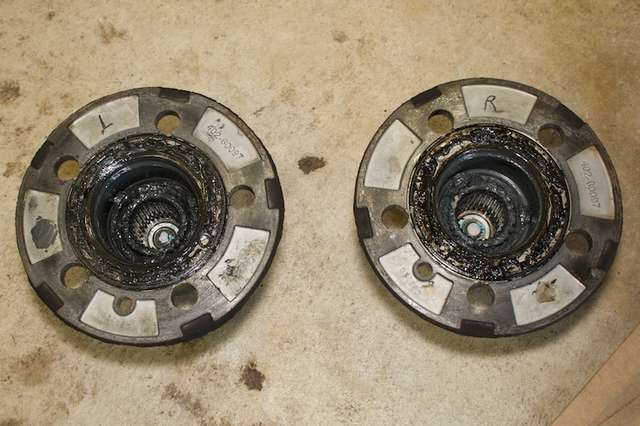

Step 1.5 Clean the Auto hubs

Yours may or may not be as bad as mine, but my auto hubs were seriously nasty when I took them off



FIrst they were soaked in stale gas, then I used a whole can of brake parts cleaner flushing gunk out of them. Then they were filled with ATF and left to sit for the remainder of the project. If yours aren't very bad, you can just soak them in ATF and skip the other steps. Drain off all of the goo into a jug, don't pour it on the ground. Once you get near the end, during the brake installation, dump them out and let them drip out, then they'll be ready to go once you're done with the brakes.



Step 2: Remove dust shield and tie rod end

Take the three screws holding the dust shield on out and remove the dust shield. Then, on the tie rod end, take out the cotter pin and loosen the castellated nut. Remove the nut until it is just past the end of the threads and smack it with the BFH. It should pop out of its taper and become free. Remove the nut, then use a peice of rope to tie it up to the sway bar to keep it out of the way. Now is also a good time to hose down everything you will be removing with penetrating oil.



Step 3: Removing the ABS sensor

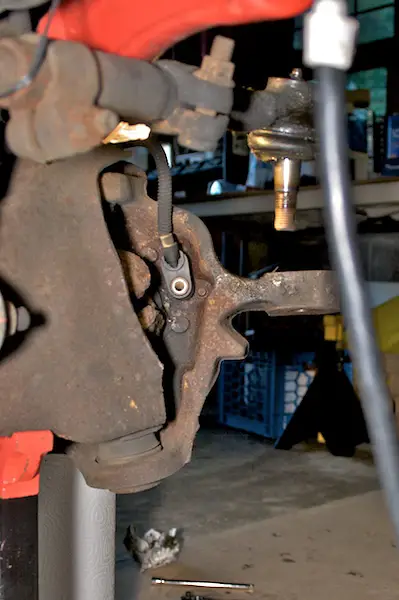

Sticking through the face of the spindle is a silver tube inside a metal block, which is the ABS sensor. In the next picture, you can see the bolts you have to remove, including that wacko 12-pt 6mm. Also remove the bolt at the top of the knuckle that secures the wiring to it.



Once you have removed the bolts, you can take off the block surrounding the sensor itself. In theory, now you should be able to push the sensor through the hole to remove it and then put it out of the way, but mine (and yours too, probably) is rusted and seized into the hole. If yours is like this, then go to Option #2

ABS Sensor Option #2 Using the BFH on it will destroy the sensor, so if it is stuck you will have to leave it in. Unclip the wiring clamp on the frame and unplug the connector that is up and attached to the radiator support. The sensor will stay as part of the knuckle, and be a pain in the ass the whole time. Its better than spending $60+ on a new one.

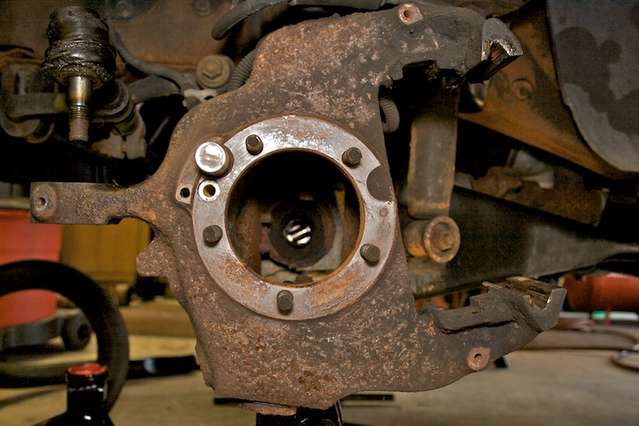

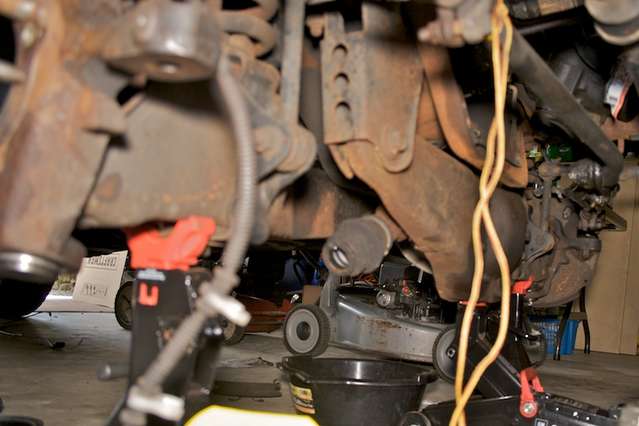

Step 4: Remove spindle and driveshaft

Remove the nuts around the perimeter of the spindle that hold it onto the knuckle. Then take the large rubber mallet and whack around the sides of the spindle, you might have to assist with the flathead screwdriver. Once it comes loose, pull the spindle off of the end of the axle.

Now if you are on the driver's side, you can just slide the axle out. Put your hand inside the radius arm and support the axle so it doesn't get dragged through the crap inside or damage the seal on the differential.



If you are on the passenger side, then you need to cut off the metal band on the slip joint boot, then you can do the same as on the driver's side and just pull the axle out. Hold onto the axle at the slip joint so it does not tear the boot when it separates from the slip joint and drops down.



Now put the driveshaft and spindle on the side for later, we will deal with rebuilding them after reinstalling the knuckle.

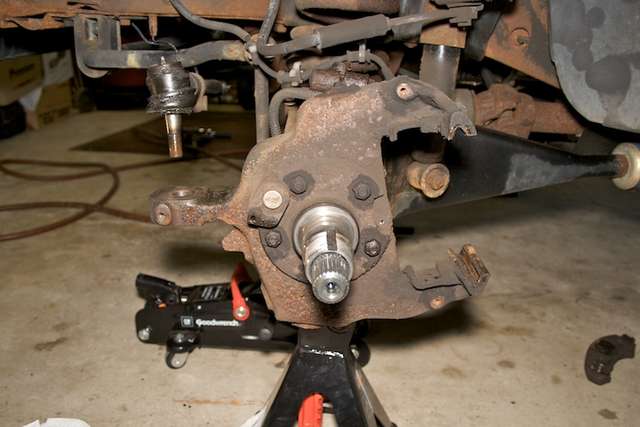

Step 5: Removing the knuckle

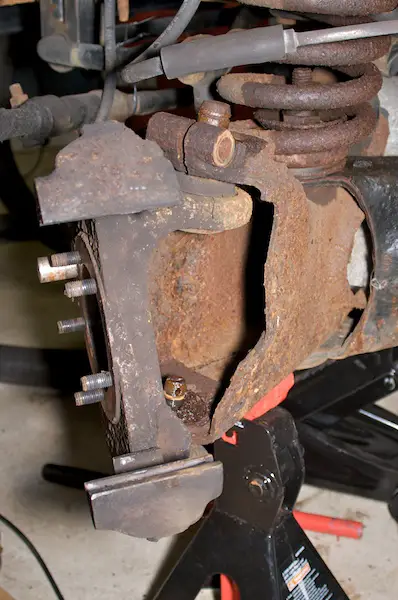

Remove the pinch bolt and snap ring from the upper ball joint. Then remove the cotter pin and nut from the lower ball joint. You will need a large breaker bar for this. Now you have to remove the bushing from the upper ball joint.

If you are reusing the same adjuster, then mark its position so you can put it back where it was. I used a air chisel to drive it out, but you could also use a hammer. Whatever method you use, just get it out.

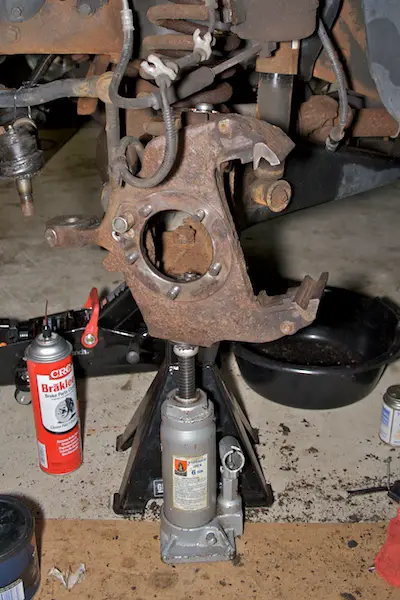

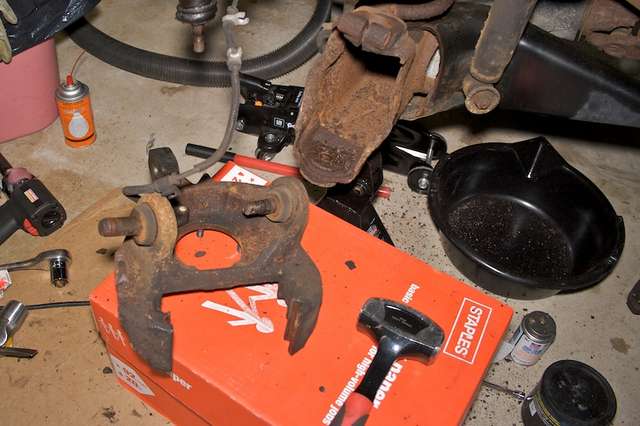

Now for the fun part. Put something under the knuckle so when it pops loose it doesn't fall on your foot or the floor, turn the knuckle all the way for access to the lower ball joint stud, and smash the crap out of it with the BFH. :hammer: Now is the time to be angry. It will suddenly pop loose and fall off, probably surprising you.



Go take a break, you probably need it by now...

Step 6: Pressing out the ball joints

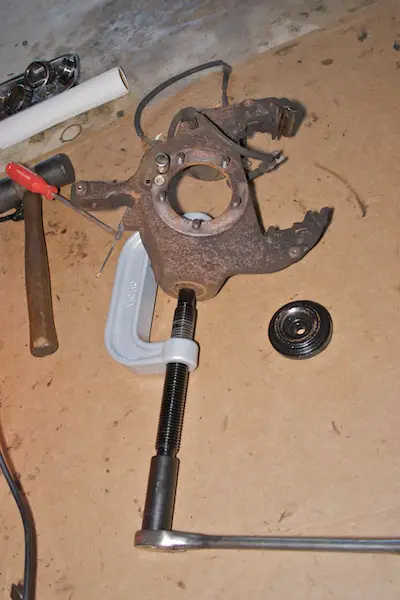

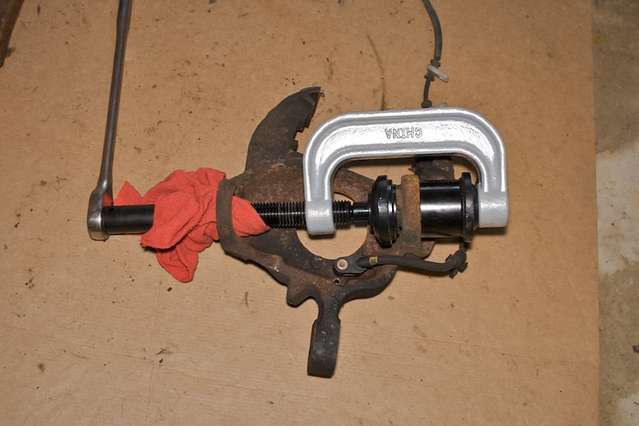

You will need to use the C frame press for this step. Some people say to put the knuckle in a vise, but it was much easier for me to do it on the floor, so I could stand with one foot on the knuckle and one on the breaker bar. If you have someone to hold the cups and adapters while you tighten the press, its a lot easer to get it set up.

First remove the snap ring on the bottom, then you can take out the lower joint,



Then the upper, put a rag in the hole for the lower so the press doesn't mess it up.



Step 7: Clean up the knuckle

Before you start installing the new ball joints, now is a good time to clean up some of the rust in important areas. A die grinder with a wire brush is good for this. Clean the caliper slides and the pad slides, the mating surface for the spindle, and the areas around where the ball joints go. Just DO NOT do anything to the actual bores where the ball joints are installed, except for lightly rubbing off any surface rust with a scotch-brite pad.

Step 8: Install new ball joints (finally, putting something back together)

The instructions for the ball joints say to install the lower first, and so I did.... which prevented me from installing the upper ball joint. (and I had to take it back out again) If you are using the Harbor Freight press, you must install the upper one first, its the only way it works.

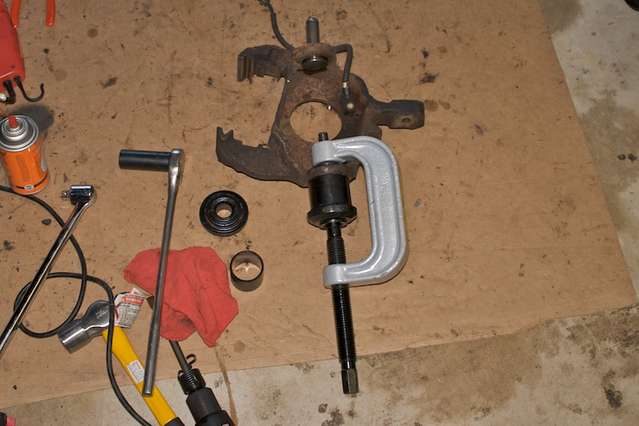

Press in the upper joint now



Then you can press in the lower joint and put on the snap ring



Step 9: Install knuckle

Hold the knuckle on and finger tighten the nut on the lower ball joint. Now take a jack and put it directly under the lower joint, make sure you have it turned all the way to one side so you can put the torque wrench in. Jack it up a little bit to put some pressure on the stud, this keeps the stud from spinning while it is tightened. Torque it to spec and install the cotter pin, if the holes do not align, tighten it more, do not loosen it.



Now either re-install the old camber bushing or install a new two-peice adjustable one. Put the snap ring on and install and tighten the pinch bolt just until the stud stops turning with the knuckle when you move it, then back off slightly so it moves again. You must torque it once the vehicle is back together and on the ground.

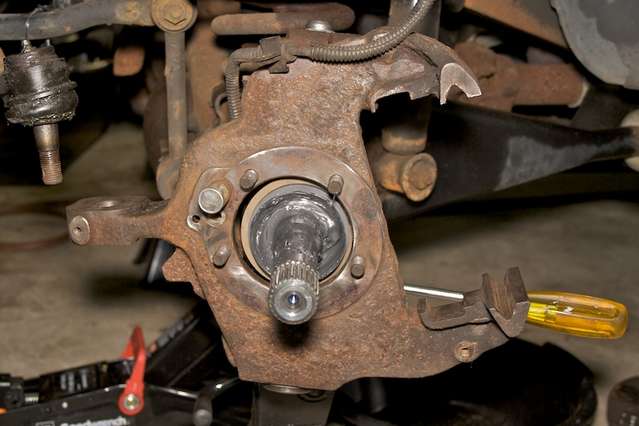

Step 10: Rebuild and install the driveshaft

You will need your vise and the press for this. Wrap a rag around the long part of the shaft and insert it in the vise. Take a screwdriver and a hammer and knock off the retaining clips that hold the u-joint in. If they are rusted to heck, use the wire brush on the die grinder to get rid of some of the rust. If you can only get one clip off, that's ok, you can press it first toward the side with the clip removed, and the stuck clip will then free up and can be removed.

When doing the pressing, I tightened up the press as hard as I could but the joint would not do anything. The trick is to whack it with a hammer while the press is tight. Wear safety glasses and hold onto the press in case it pops off. When it decides to pop, there will be a loud bang and rust flakes will fly everywhere.

Press the joint though, remove the cup, then push it back through the way it came and remove the second cup. Then it can be removed from the stub axle shaft.

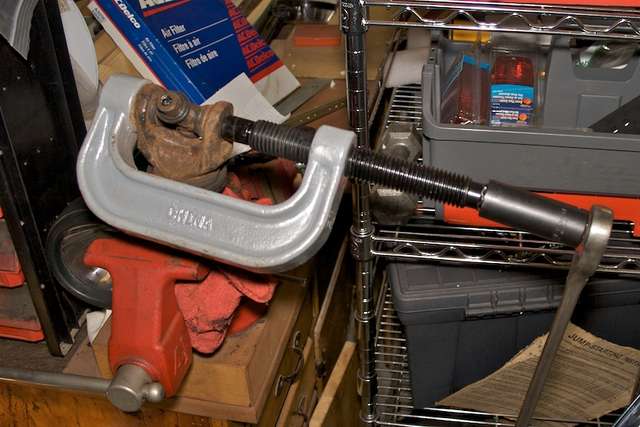

First remove the joint from the longer part of the shaft



Then carefully put the short part into the vise (don't smash the bearing surface or the splines) and remove the joint from it.



Now take the wire brush on the die grinder and clean off as much rust as you can, but DO NOT touch the inside of the bores where the cups go. Just take a scotch-brite pad and clean off any surface rust.

Now reverse the removal process and install a new u-joint and c-clips.



Now you need to install a new seal on the end. Use a screwdriver and knock off the old seal, and clean any rust off of the step where the seal goes. I used a Timken kit, which comes with a metal plate and a new gasket. You must heat the plate on a stove until it glows red, then run out to the garage and toss it on, and whack it down. Don't burn yourself, I accidentally touched part of it and it melted right through my glove. (singed my finger)



Once it's cool, put the rubber part of the gasket on, and put some grease on the seal and the lower step of the shaft. Then reinstall it into the differential.

On the driver's side, just make sure the end is clean, and carefully slide it into the differential, don't stick it into any of the gunk on its way in.

On the passenger's side, clean and grease the splines, and then grease the inside of the slip joint. Slide it together, and replace the metal band with a zip tie or another metal ring if you have the tool to do so.

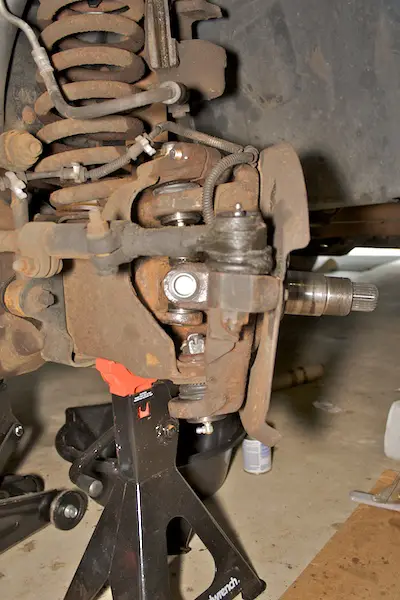

Step 11: Rebuild and reinstall the spindle

A note: The new rebuild kit I used had a different seal arrangement compared to the original, your truck / kit may be different, originally my truck had, in order, bearing - press in seal - plastic plate - small seal on driveshaft. The kit is bearing - rubber v shaped seal - plastic plate - large seal and metal plate on driveshaft.

Put the spindle in the vise with a rag on the 2nd step, remove the plastic piece and pry out the seal with a screwdriver. Then flip it over in the vise, clamp onto the ridge that is on the back (with the rag) and use a long rod or screwdriver and a hammer to pound out the spindle bearing. Push it out evenly by constantly switching which side you are hitting it on.

Clean up the spindle with brake parts cleaner and use the wire wheel on the die grinder to clean off rust and crud on the back part of the spindle, don't do anything to the machined surfaces.

Now take the new spindle bearing, pack it with grease, and use the seal installer, with the correct size driving plate to push the bearing in. Install the new seal, and then stick on the plastic plate with the bevel showing.

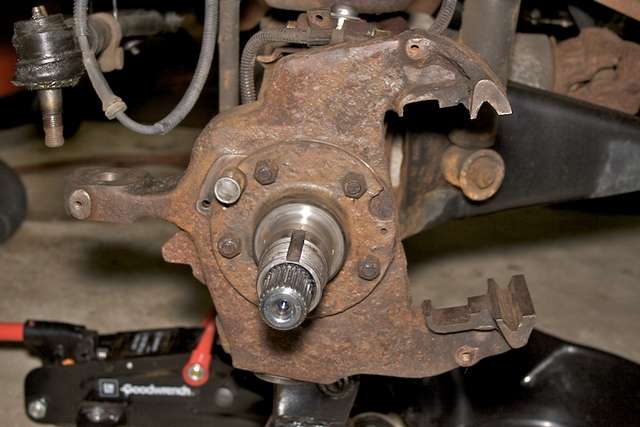

Step 12: Install the spindle

Put a coating of grease on the surfaces where the spindle meets the knuckle, then slip it on, and torque the nuts to spec.



Step 13: Close up the odds & ends

Reinstall the ABS sensor, the block that goes around the sensor, and the two bolts that hold it together. Then install the grease fittings and grease up all the new joints, pump em full until grease squeezes out or the boot begins to expand.

Reinstall the tie rod end, torque the castellated nut to spec, and install a new cotter pin. Install the dust shield with the three shorter bolts, then use the one longer one to reattach the abs wiring to the top of the spindle.

If you followed Option #2 for dealing with the ABS sensor, run the wiring back into the clamp and reconnect the plug.

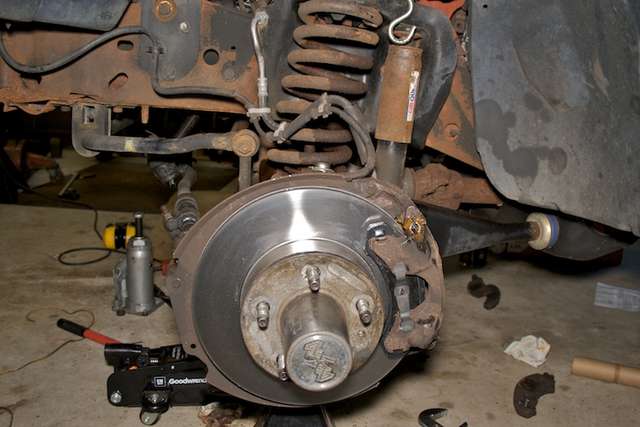

Step 14: Install the wheel bearings, brakes, and hubs

Once again, refer to Glacier's brake tutorial for installing the rotors and calipers. Don't forget to clean the slides on the caliper and grease all of them. Install anti-rattle clips on the inner pad.



Step 15: Torque the pinch bolt <--- DON'T FORGET!!

Once you have the truck with the tires on and lowered to the ground, turn the tires slightly for clearance and use an extension to tighten the pinch bolt to spec. Having the right length extension makes a big difference, I didn't have one so I used a swivel, which you shouldn't when torquing anything, but it needed to be aligned so it was close enough for the ~3 mile trip to the shop.

Unless you put the adjusters back the way they were, and the truck was not aligned with the bad ball joints, then you will probably need a wheel alignment.

I'm open for recommendations on anything I can do to improve this tutorial, if you think I screwed up, missed anything, or forgot something let me know and I will fix it. Feedback is appreciated, and before anyone thanks me for doing this, I would like to thank everyone at EF for making this possible.

___________________________________________________________________
Copyright Ted Jarosinski - No part of this tutorial may be copied outside of Explorerforum without my permission. All photos taken with Canon Digital Rebel XTi, with 18-55 kit lens and Gary Fong Puffer flash diffuser. Editing done in Aperture.



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




Four0Sport

Jack Pewe
Elite Explorer
Joined
August 26, 2004
Messages
3,029
Reaction score
97
City, State
West Virginia
Year, Model & Trim Level
1993 2dr
we have the same jackstands. fyi.

great write up, lots of useful information. i dont know how many times ive had to remind people to buy the $10 spindle bearing kit when they come in and buy wheel bearings for an explorer. you have all the 'hard to remove' stuff off of the vehicle, imo, its the perfect time to maintain your spindle/bearings.

those were some nasty axle u-joints. it makes me wanna go look at mine but scares me at the same time.





TedJ

Well-Known Member
Joined
December 4, 2006
Messages
882
Reaction score
18
City, State
Fair Lawn, NJ
Year, Model & Trim Level
'94 Sport
Oh yea, they were scary.. some of the cups were full of nothing but rust... and the passenger side spindle gasket was totally blown out... water was getting in, I was lucky it looked like it was going to start rusting soon.

LMAO about the jackstands, I love using GM Goodwrench tools on a FORD.





Four0Sport

Jack Pewe
Elite Explorer
Joined
August 26, 2004
Messages
3,029
Reaction score
97
City, State
West Virginia
Year, Model & Trim Level
1993 2dr
my sister bought me the set of jackstands for christmas.. and we both drive explorers. i thought about putting delco plugs in my 4.0 next time i change them just to see what happens. worlds might collide, idk.





TedJ

Well-Known Member
Joined
December 4, 2006
Messages
882
Reaction score
18
City, State
Fair Lawn, NJ
Year, Model & Trim Level
'94 Sport
LOL yea... I bought them cause my big monster ones were too big, and they were cheap at wal-mart. They work good. The jack, though, is really weak. It wouldn't lift my front end, I had to resort to my huge floor jack (which doubles as a bar stool if you want to stand there pumping long enough to get it that high)

Wow this went off topic, really quick....





Four0Sport

Jack Pewe
Elite Explorer
Joined
August 26, 2004
Messages
3,029
Reaction score
97
City, State
West Virginia
Year, Model & Trim Level
1993 2dr
we're just off on a tangent. not off topic. a bar stool is just something for me to fall off of, even if im not drinking.

when you were putting your passenger side caliper back on did the surfaces of the caliper where it meets the spindle line up perfectly? i ask bc i have factry calipers and the pass side seems to be off a little when i put everything back together. i brushed out the slides for the pins and the brake pads i removed were not worn unevenly. just something i thought i would ask. i really dont want to replace the calipers if i dont have to since they are factory with 149000 miles on them, rotors too.





TedJ

Well-Known Member
Joined
December 4, 2006
Messages
882
Reaction score
18
City, State
Fair Lawn, NJ
Year, Model & Trim Level
'94 Sport
If you mean the the outer face of the caliper is not flush with the side of the spindle, then that is normal. As long as the slide grooves are aligned its fine. Main thing is that the pads are wearing evenly... I wouldn't worry about it. I don't see a way that it could become misaligned in the first place... it would be very difficult to bend the caliper or spindle.





Four0Sport

Jack Pewe
Elite Explorer
Joined
August 26, 2004
Messages
3,029
Reaction score
97
City, State
West Virginia
Year, Model & Trim Level
1993 2dr
yeah.. i was looking at the spindle when i had the caliper, spring, shock, endlink off and everything looked fine and yes, the caliper lines up with the guide pins. ill hafta take a picture and let some 'experts' glance at it.





Fordmandan87

Well-Known Member
Joined
February 24, 2007
Messages
328
Reaction score
1
City, State
Royston, G.A.
Year, Model & Trim Level
in process of purchase
this should be a sticky





Maniak

Moderator-Stock 91-94
Elite Explorer
Moderator Emeritus
Joined
February 9, 1999
Messages
12,085
Reaction score
121
City, State
Vail, Arizona
Year, Model & Trim Level
1992 XLT 4x4
Its already listed in the useful thread forum...

~Mark





jawlessemu

New Member
Joined
January 16, 2008
Messages
7
Reaction score
0
City, State
buffalo, new york
Year, Model & Trim Level
91 sport
alright im getting ready to do my ball joints and rebuild the axles but were do i find the spindle bearing rebuild kit i cant find it at any parts stroe. they all act like it doesnt exist. anyone know were to get it?









XxxMonoxideChild

Well-Known Member
Joined
April 6, 2008
Messages
175
Reaction score
0
City, State
Rockford, IL
Year, Model & Trim Level
92 pile
great thread!

kinda on topic. anyone every been able to locate a part # or anything for the rubber O ring on the back of the center cap that keeps the grease from possibly flinging out? mine got messed up, and ford tare down didnt even show such a part, and every part store around has zero listing for it. i ended up having to hit up a junkyard, and replaced it with a used one off another truck.





TedJ

Well-Known Member
Joined
December 4, 2006
Messages
882
Reaction score
18
City, State
Fair Lawn, NJ
Year, Model & Trim Level
'94 Sport
Just get the Timken P/N SBK4 kit, its around $10, (you need two, one for each side) and has that seal as well as the bearing and everything else that is needed. If the seal is bad, the bearing should be replaced too, it's probably contaminated from the seal being bad, just replace it all, its cheap insurance, and its already apart.

(at least I think thats the seal you're talking about, the one between the axle and spindle?)





XxxMonoxideChild

Well-Known Member
Joined
April 6, 2008
Messages
175
Reaction score
0
City, State
Rockford, IL
Year, Model & Trim Level
92 pile
wrong one, im talking the all rubber O ring thats on the back side of the center cap. exactly as i said. if you pop ur wheel off, and pop the center cap off, its recessed in the center cap itself.

i allready had to buy the metal ones your talking about when i did the brakes that are on the back side. i reused my bearings though, cause they were good, just cleaned them out, and re-greased them.









manousos

Well-Known Member
Joined
April 24, 2006
Messages
101
Reaction score
2
City, State
Kelowna, BC
Year, Model & Trim Level
'993, Sport
Step 5: Removing the knuckle

Remove the pinch bolt and snap ring from the upper ball joint. Then remove the cotter pin and nut from the lower ball joint. You will need a large breaker bar for this. Now you have to remove the bushing from the upper ball joint.

Can anyone confirm what size the lower ball joint castle nut is?

Also, I was taking a look at mine and discovered that rust had completely eaten away at the lower ball joint's cotter pin. Not quite sure how to punch it out...any help??





TedJ

Well-Known Member
Joined
December 4, 2006
Messages
882
Reaction score
18
City, State
Fair Lawn, NJ
Year, Model & Trim Level
'94 Sport
I believe the nut on the lower balljoint is 15/16 or 24mm. (they should both fit)

If both ends of the cotter pin are totally rusted off, then the center part stuck inside the shank doesn't matter. I think that there is probably some part of the pin still sticking out somewhere though, so you're just going to have to be creative in removing it. Use a pick or needlenose pliers or a small punch if you can get it in there at the right angle. Cotter pins are really soft steel so once you can grab a hold of part of it you should be able to get it out.





manousos

Well-Known Member
Joined
April 24, 2006
Messages
101
Reaction score
2
City, State
Kelowna, BC
Year, Model & Trim Level
'993, Sport
15/16 fit perfectly.

The rusted cotter pin was a pain, but eventually I was able to chip away at it with a punch, screwdriver, and hammer - removing whatever was protruding beyond the ball joint post (about 30 minutes + 1 broken punch)


Worth noting:
- My OEM pinch bolt required a thin walled 12 point-12 mm socket.

Thanks for this thread - it was a great reference!



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




TedJ

Well-Known Member
Joined
December 4, 2006
Messages
882
Reaction score
18
City, State
Fair Lawn, NJ
Year, Model & Trim Level
'94 Sport
Thanks for the compliments.

So you're saying that the pinch bolt was 12pt, 12mm? Interesting that it would be 12pt, mine were 6pt, I was able to use a regular impact socket on them to take them out. Not that I don't believe you, Ford does some strange things with randomly sized fasteners...
