Hey Explorerforum. I've been on this site for a while now and it's helped me out a lot over the years, so I'm happy that I can contribute something in return.

I've always wanted to post a "How To" thread, so here it goes. A while back I considered buying and installing aftermarket parking sensors to help with reverse parking, since I almost always park in reverse. But then I saw a second gen bumper on eBay with factory parking sensors already in it. I was excited that I could install parking sensors without having to cut or drill into my original bumper, but I was even more surprised that Ford offered such an option in 1999 :rolleyes:

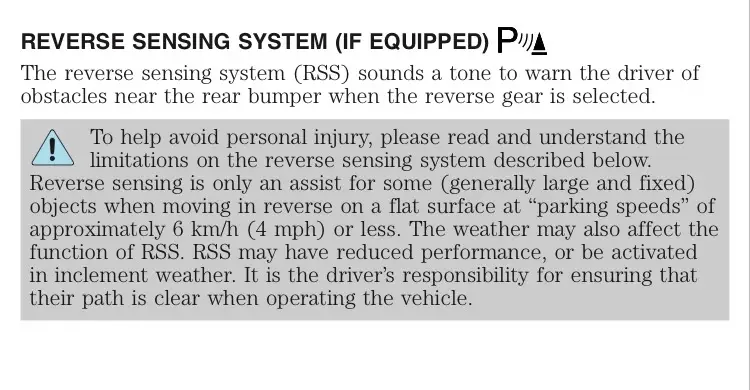

Before we get started, here's some info on Ford's Reverse Sensing System or RSS.





So basically, the system is engaged when the vehicle is set to reverse. The four sensors on the rear bumper report ultrasonic data to a module located in the jack compartment, which calculates the proximity of any objects behind the vehicle.

So now we can review the required parts and steps to install this system.

Note: Before you buy anything, make sure that your truck has the required connectors. From what I've seen, most 99-01 Explorers have these connectors.

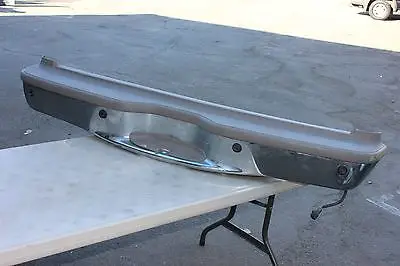

First off you'll need a bumper with the parking sensor holes in it, or you can drill your own, but this seems tricky as the four sensor brackets each have a unique opening and they must be placed at 90 degrees on the sloped bumper. I got mine at the local junkyard but I've seen them on eBay as well. Here's the bumper that you'll need:

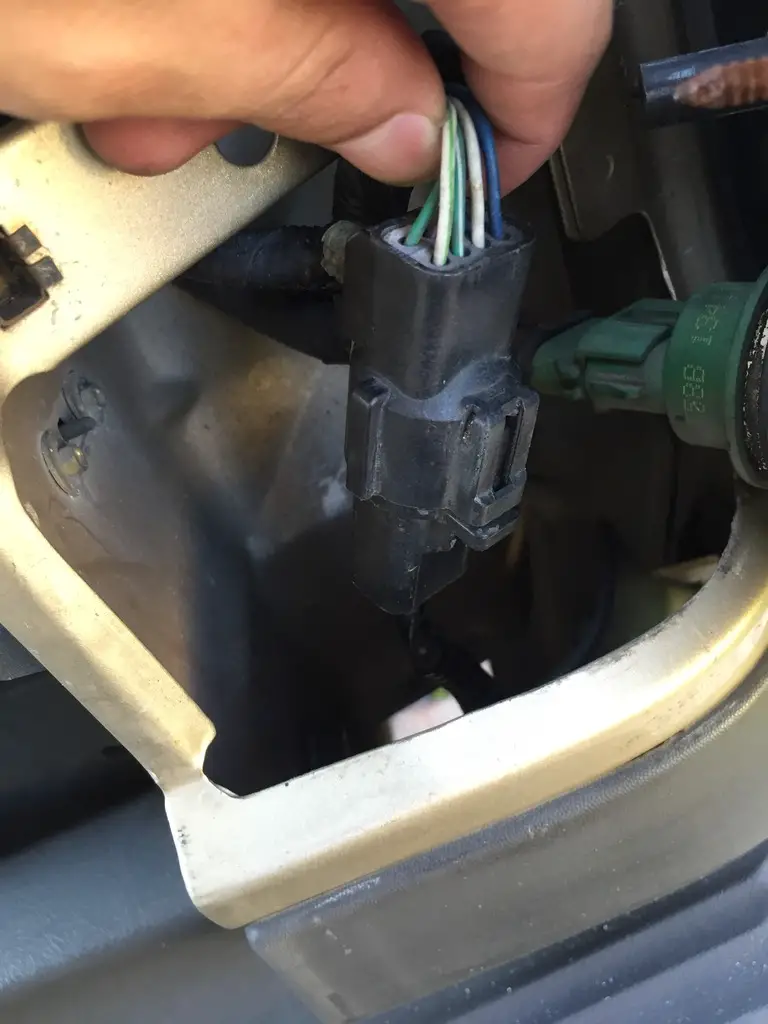

The first connector that you'll need is located behind the passenger side rear brake light, and it's often mistaken for a trailer plug. It's only held on by a retainer similar to the interior door panels, just pull it off.

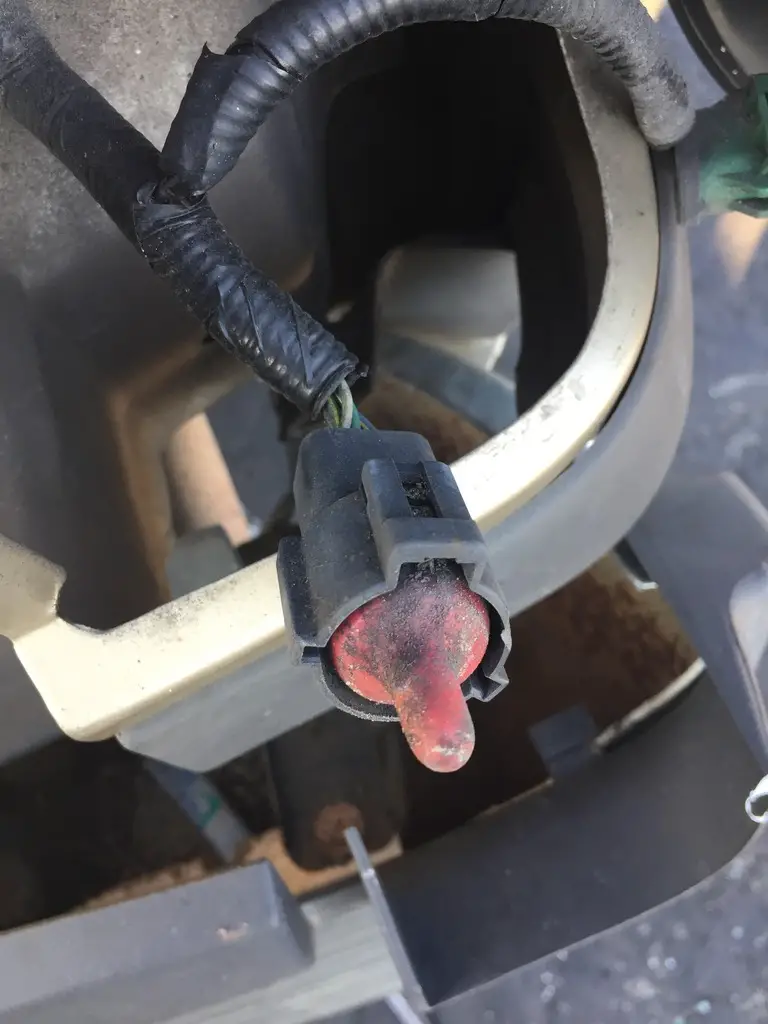

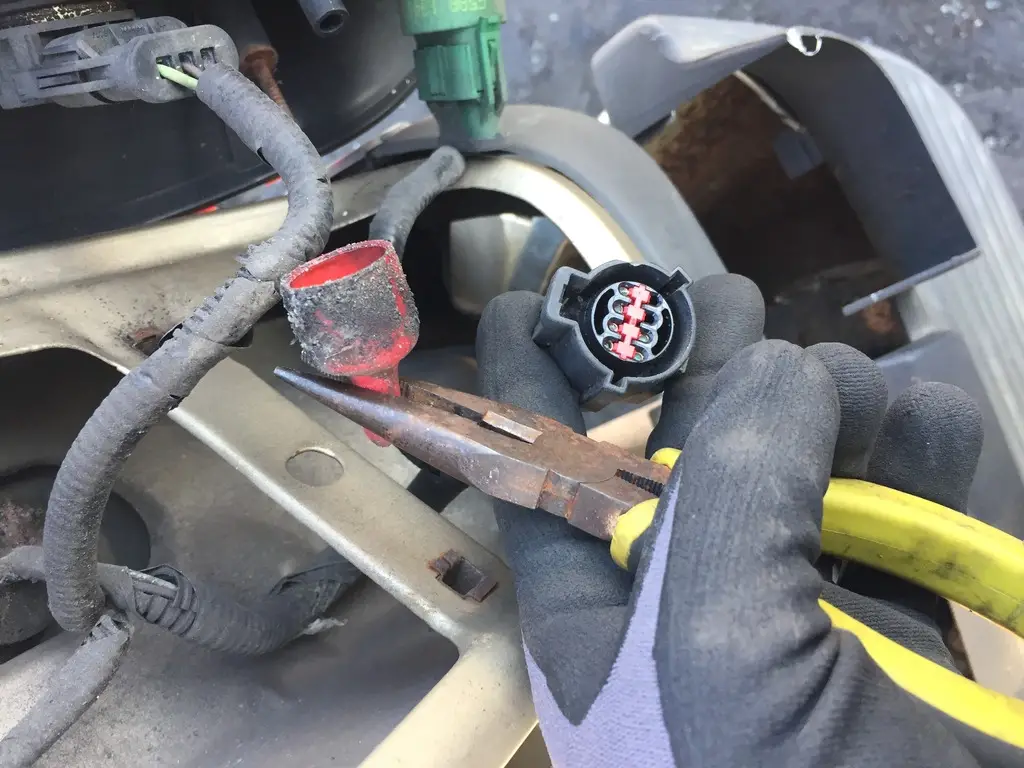

It has a plug over it to protect it from the elements, which you can pull off with pliers.

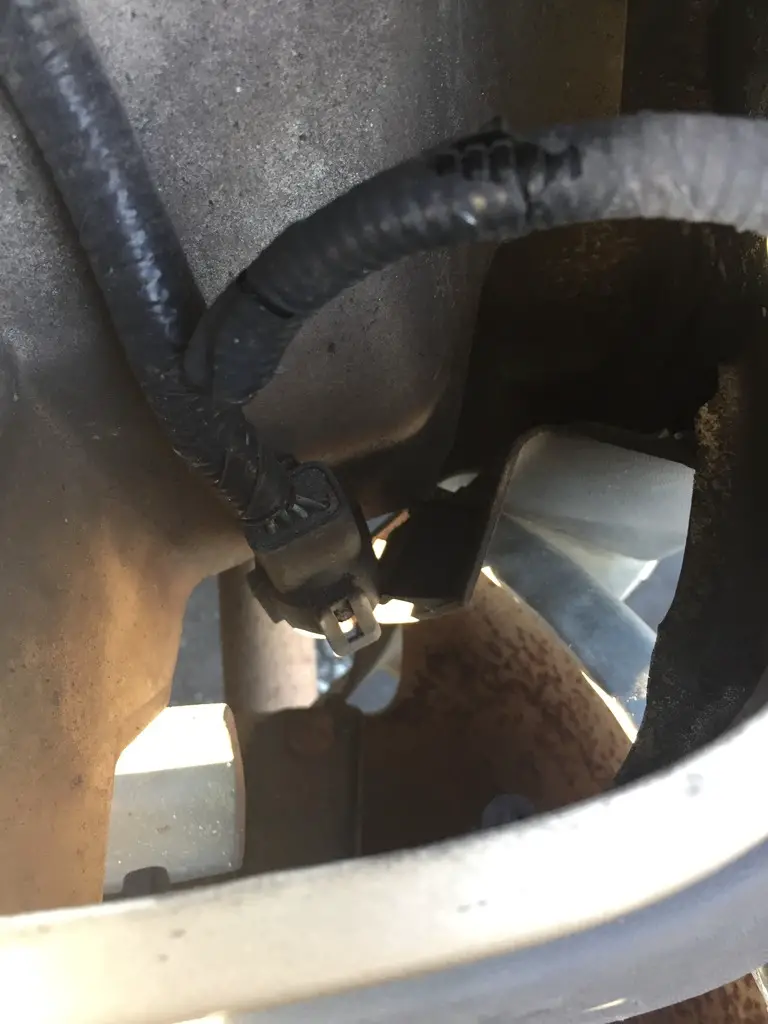

I took those pics in the junkyard ^^^, my truck isn't that dirty :D Once you have your old bumper off and the new one installed, simply plug the harness in:


You'll want to make sure that your bumper isn't sagging in order for the sensors to function correctly. I did this by pushing up on the center of the bumper while I tightened the bolts.




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.

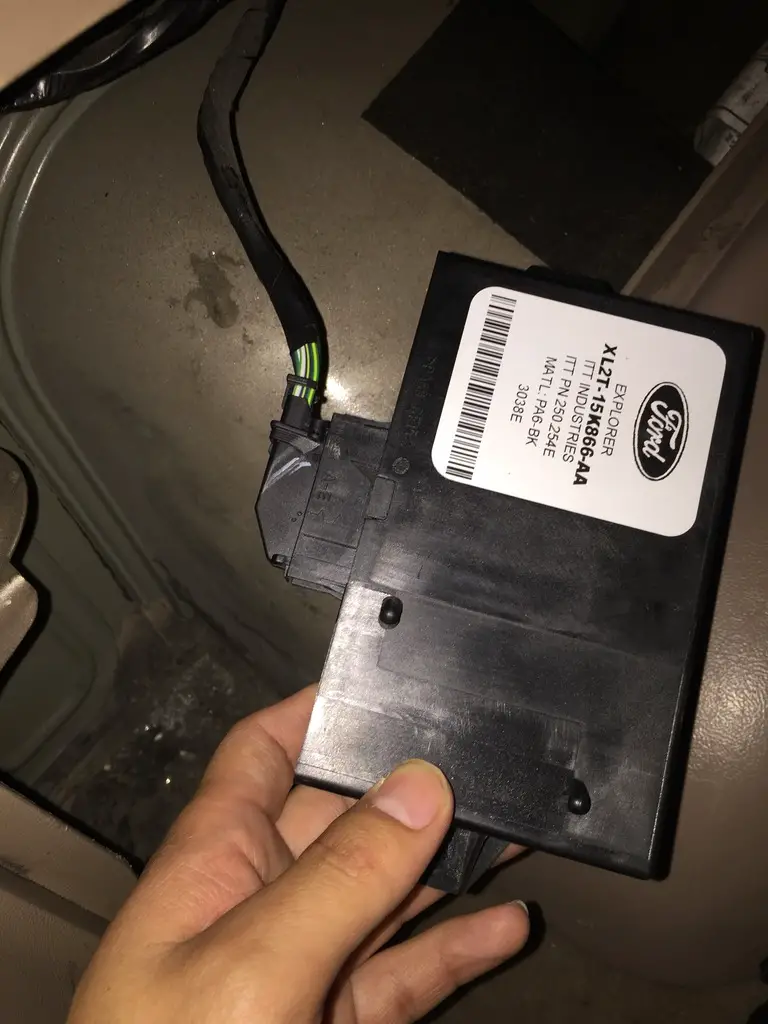

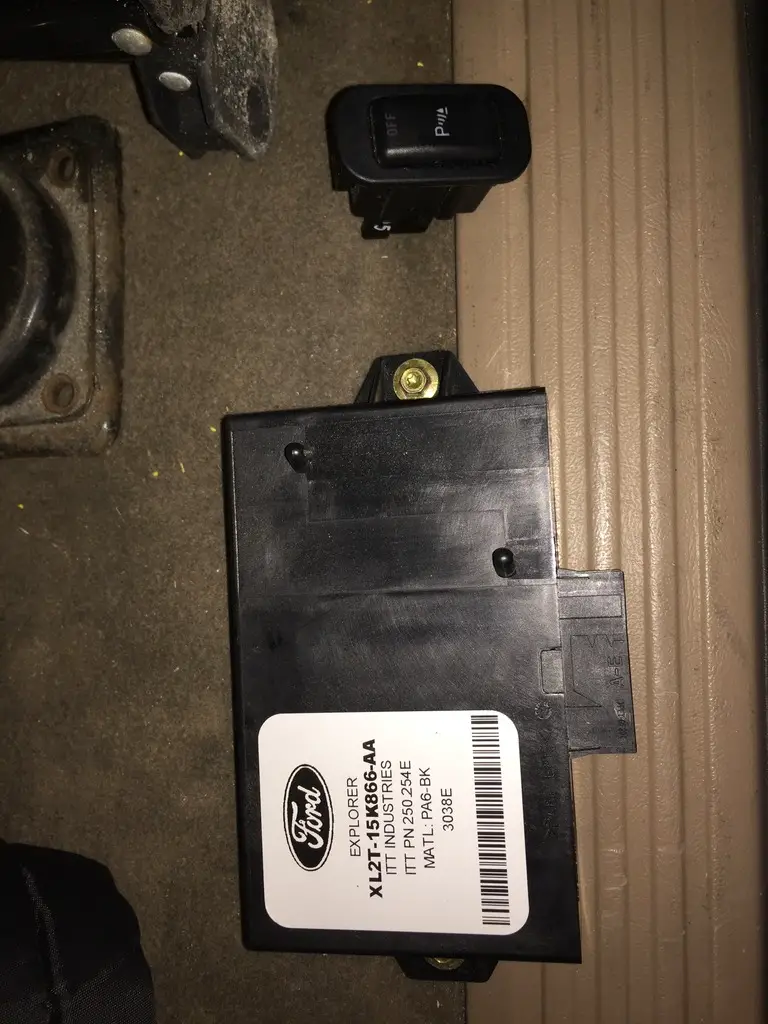

The next item you'll need is the RSS module, I got mine out of a 99 Eddie Bauer. Here it is next to the RSS switch.

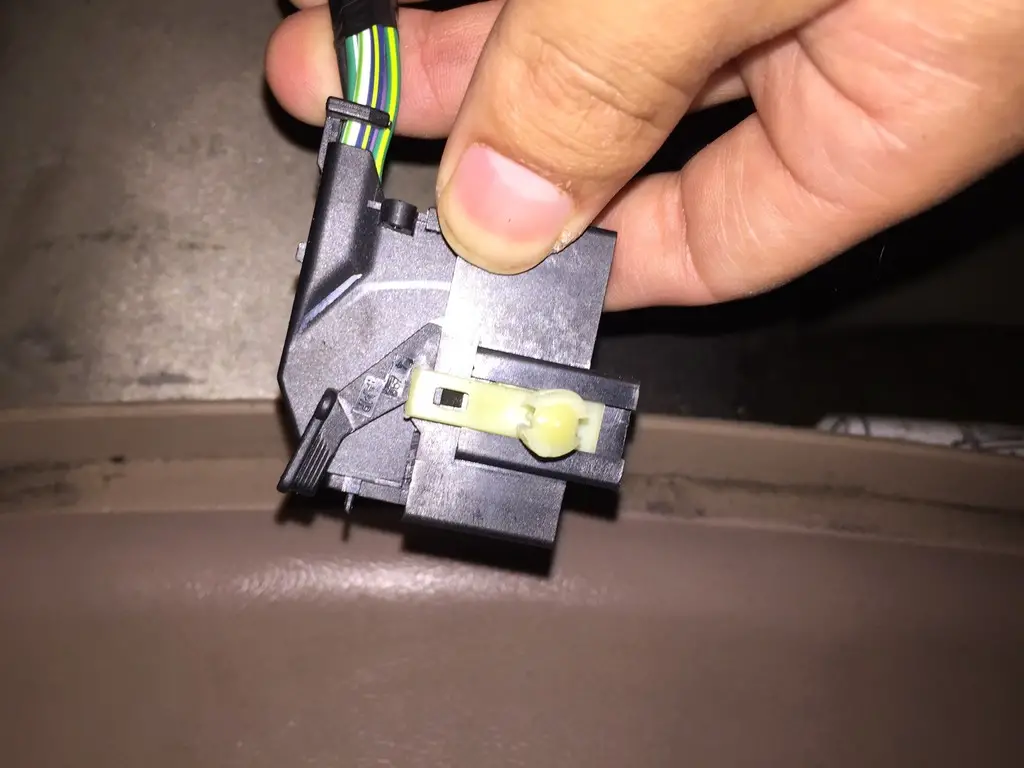

Next you'll have to locate the connector for the RSS module. It's located in the jack compartment and it's also held in by a retainer clip.


It's connected to a dummy plug, to remove it you just push down on the connector(1) and then pull the latch forward(2).

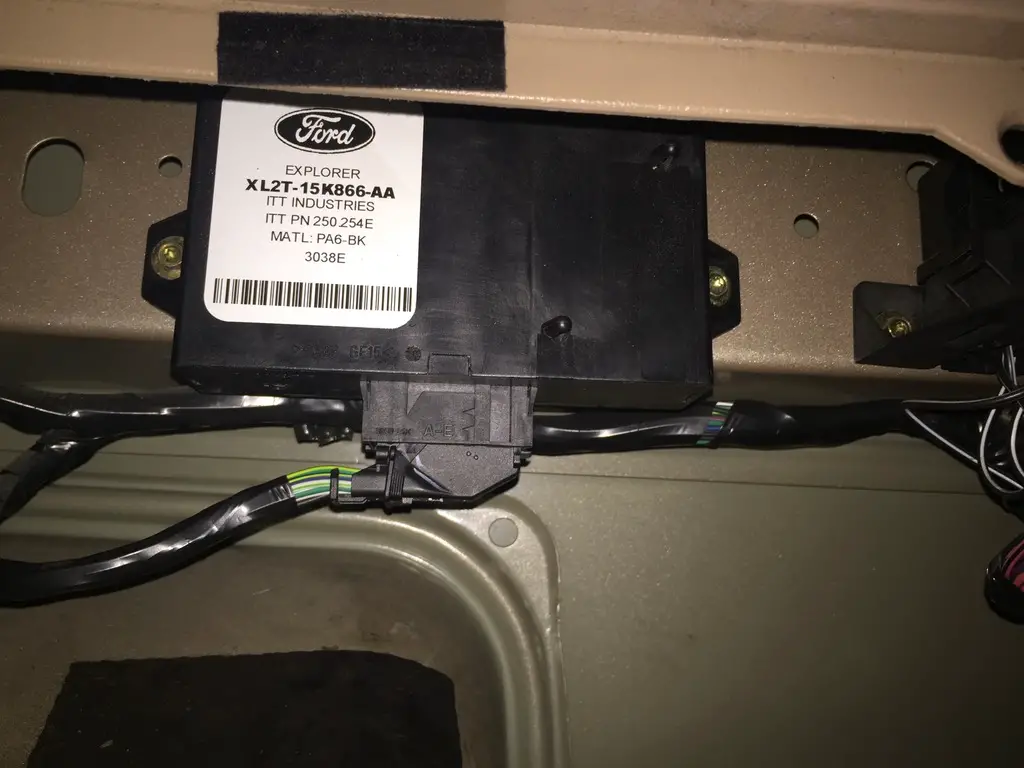

Pull the dummy plug off and connect it to the RSS module.

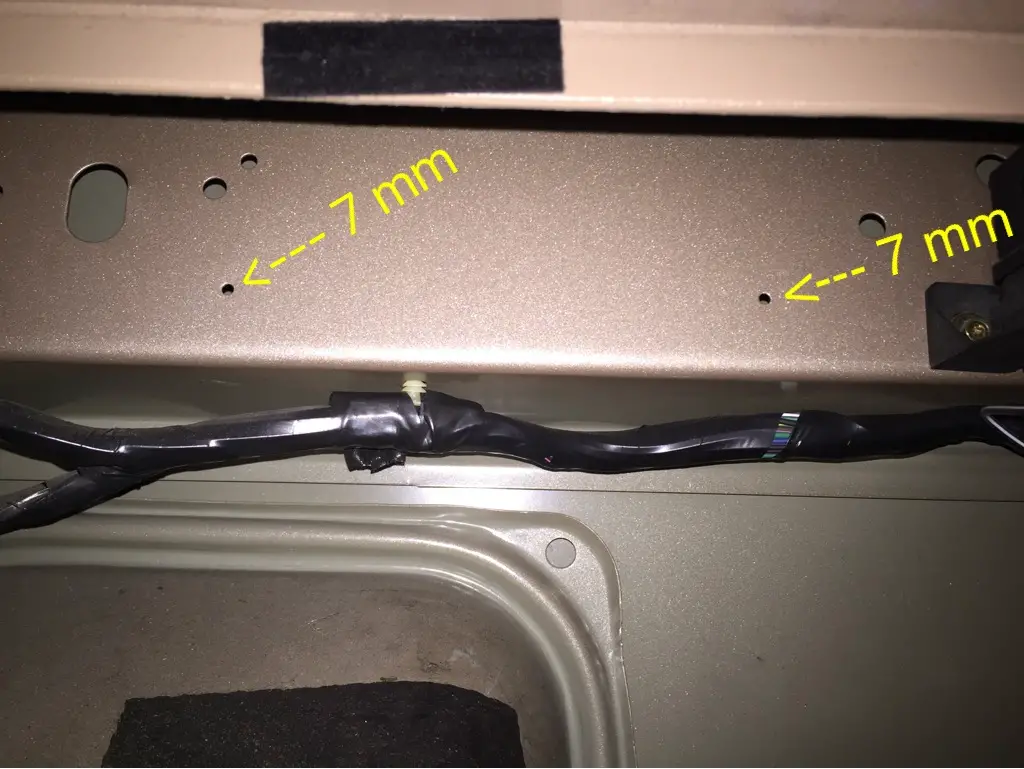

The module mounts to the vehicle body with two 7 mm bolts, identical to those in the dash. Don't be afraid if it feels like they don't turn easily, as they kind of have to thread through the metal.








Good. Now we move forward to the third connector and we also make our way to towards the front of the vehicle.

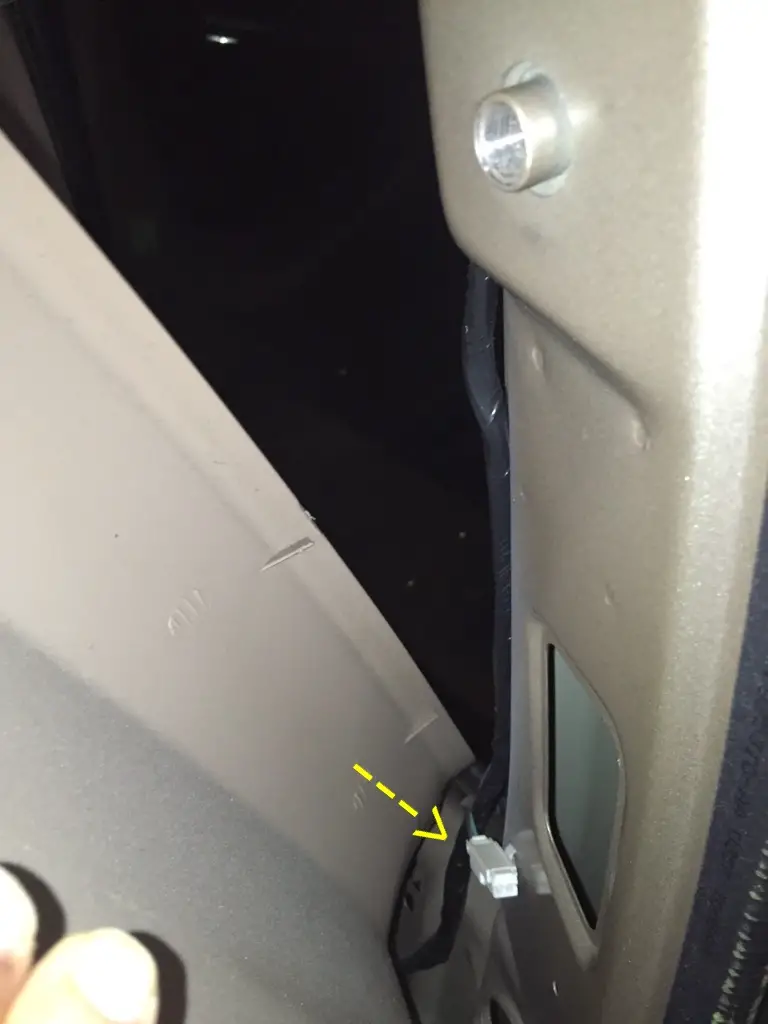

The third connector is for the RSS speaker, or parking assist buzzer as Ford likes to call it. This connector is located behind the driver's side B pillar, to reach it you must remove the seat belt bolt and remove the trim panel. It is also held onto the body by a retainer clip which you can simply pull off of the connector. Here's the connector location and a close up of what it looks like:

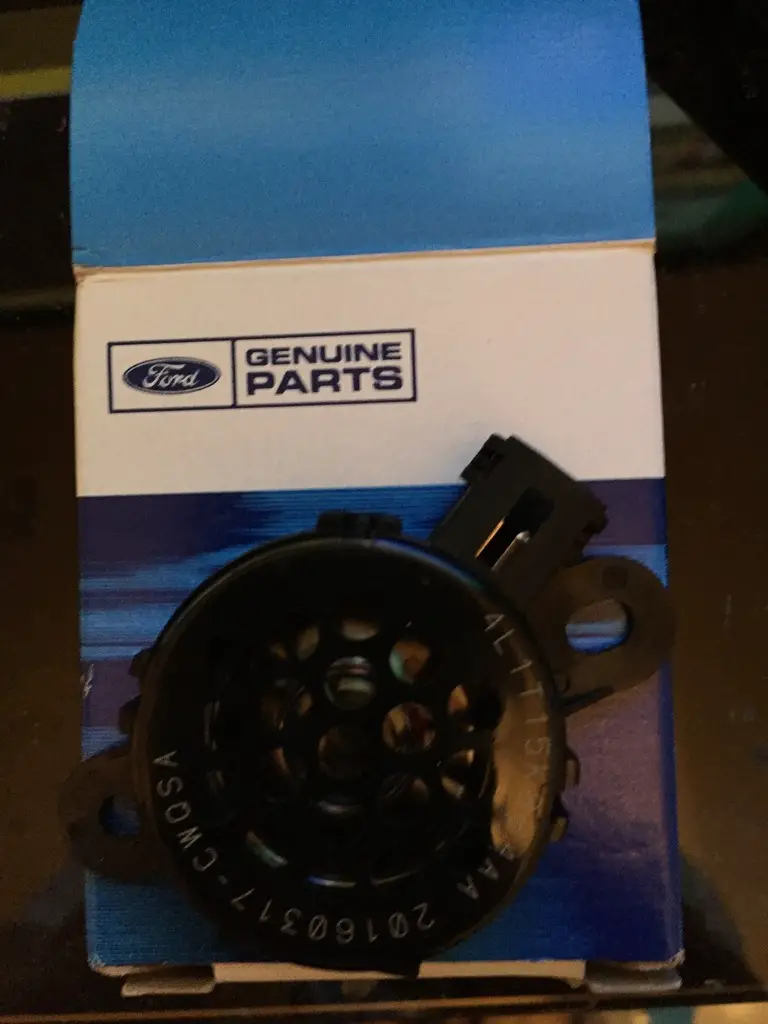

The speaker that I bought was listed as 4L1T-15K864-AA


It plugs right in and is held in by an screw which I didn't have, so I just cleaned the surface and mounted the speaker with the double sided tape included on the back. I'm not sure if this speaker is required and I don't see why you can't just splice into the wires and connect your own speaker. But again, I'm not sure so I just bought the Ford speaker on Amazon.

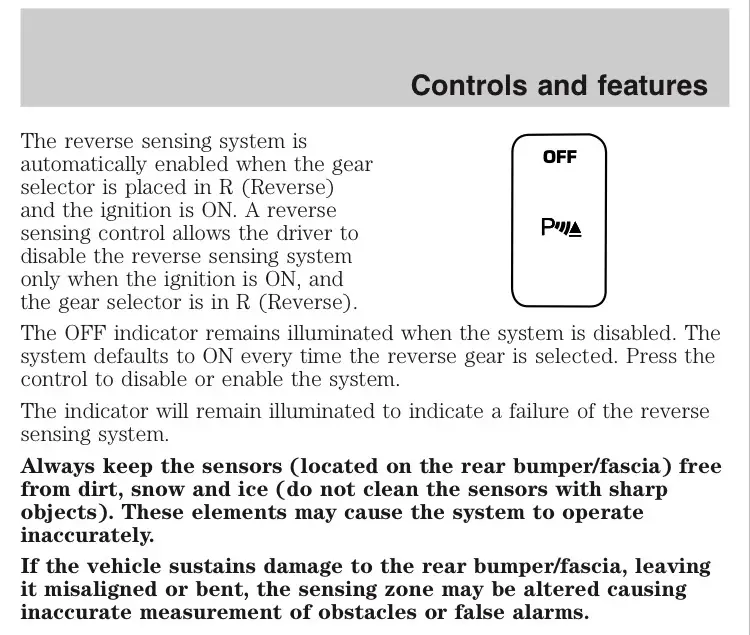

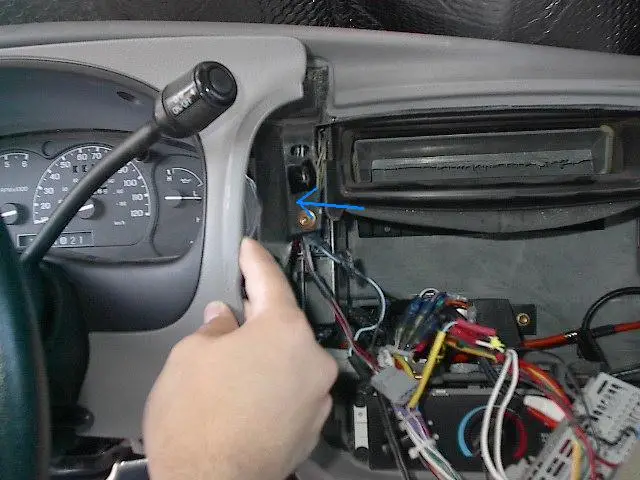

The final step is to remove the dash cluster bezel. If you've been back there before you may have noticed a mysterious connector plugged into the rear right side of the bezel. I found these pictures here on the site:



I recommend using the cluster bezel from the donor Explorer if it matches your interior. Unfortunately I couldn't use the one that I found so I had to use a hot knife to cut the hole in my bezel for the switch. The switch is the one on the top:

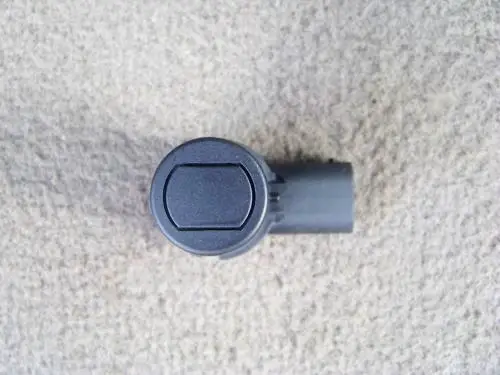

After everything is plugged in, try them out by putting the X into reverse and seeing if the sensors detect whatever object you see behind you. The sensors that came with my bumper didn't all work so I ordered 4 new ones off Amazon. They were from an Excursion, but I had to sand the sensor connectors a bit since they were too long for my bumper's harness. I plan on ordering sensors from an 02-05 Explorer to see if they fit better, but so far the Excursion sensors work fine. You can use any Ford parking sensor that looks like this:

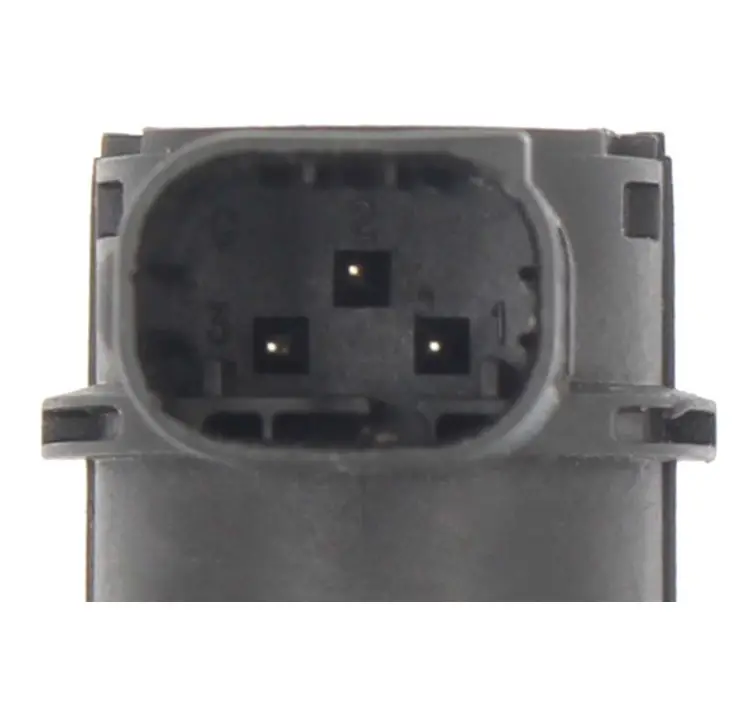

And that has this connector:


Once again, just make sure you have the necessary connectors already in your truck before beginning and good luck with your install.



Post below if you have any questions and I'll try to help. Enjoy your new parking sensors.
