How To: Fix ARB Awning on 4th Gen OEM Roof Rack

The Electrician

Well-Known Member
Joined
February 4, 2011
Messages
505
Reaction score
13
City, State
Makkah
Year, Model & Trim Level
2008 XLT 4WD V6
Hi ever one

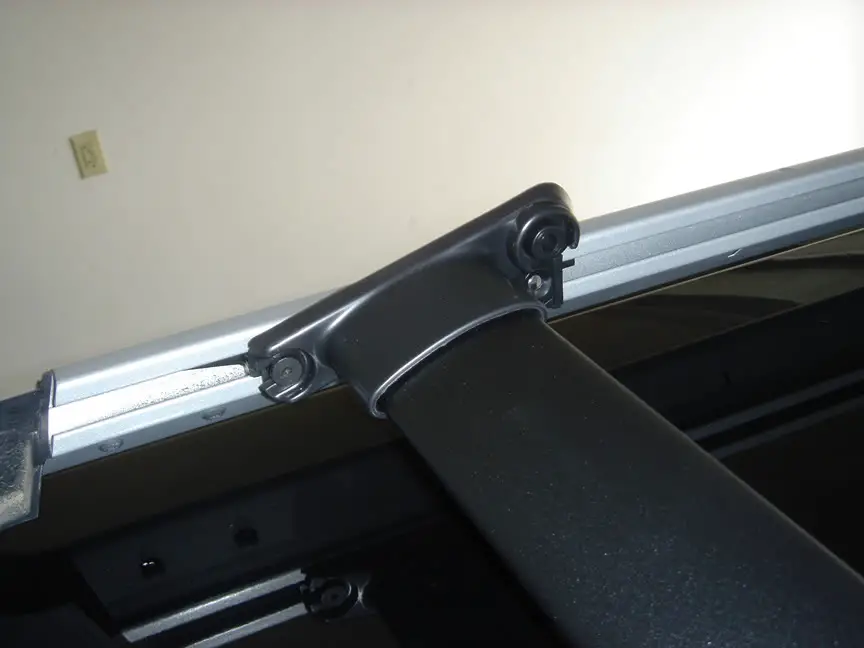

Here are the photos of the mounts that I made to fix ARB Awning on 4th gen Explorer OEM Roof Rack


I fixed the Awning using 2 mounts

each mount consists of 2 pieces

one is made of 1/8" galvanized sheet and the small one is made of 2/8" steel sheet







a thread should be made in the small piece



they are overlapping on each other



and a head of a bolt should be inserted inside the awing rails

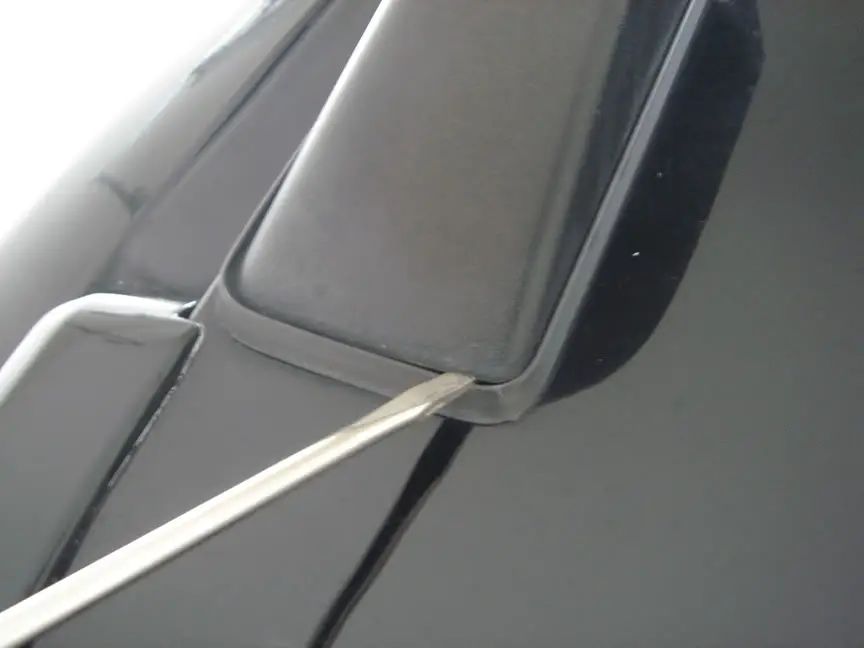

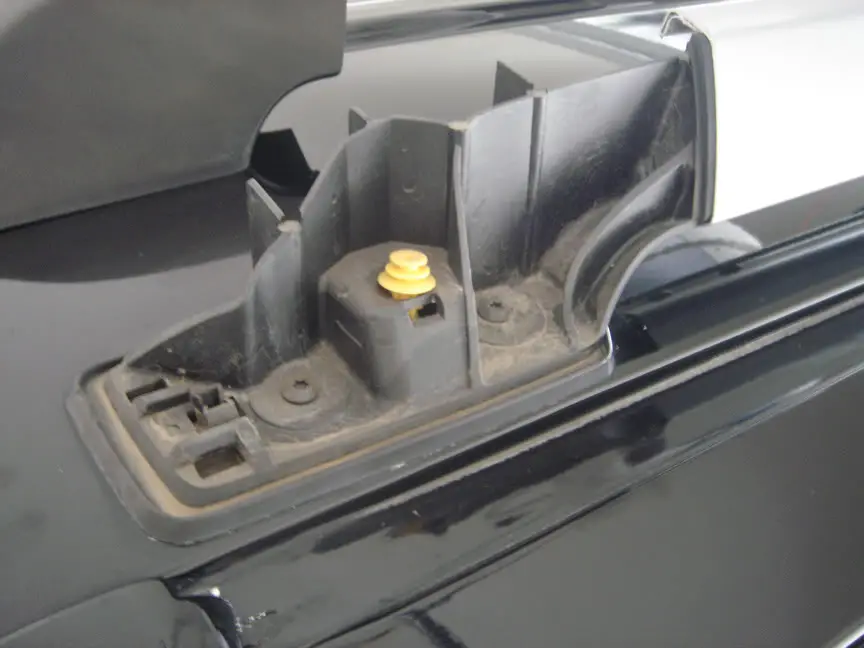

then you need to remove the back corner of the roof rack





remove the crossbar and crossbar mount








the small piece should be inserted in side the roof rack rail and then a bolt should fix the large piece to the thread within the small piece


this is the front mount



this is the rear mount




and voila



and that's all guys :D

<

Join the Elite Explorers $20 Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




storlied

Explorer Addict
Joined
June 20, 2007
Messages
4,528
Reaction score
3
City, State
Anchorage, Alaska
Year, Model & Trim Level
98 5.0L V8 AWD XLT
That is awesome.

<



<



jad2411

Explorer Addict
Joined
October 29, 2006
Messages
2,141
Reaction score
6
City, State
El Paso, TX
Year, Model & Trim Level
2007 Brown eb
Cool! this might be a stupid question, but what happens when you drive? can you easily remove it? or once retracted it just sits there?

<



The Electrician

Well-Known Member
Joined
February 4, 2011
Messages
505
Reaction score
13
City, State
Makkah
Year, Model & Trim Level
2008 XLT 4WD V6
when I drive from the shade I notice some vibrations on the awning but I don't feel it at all. I drive on high way up to 105-110 mph with out any problems.

it is very easy to remove it, just remove 4 bolt (2 for each mount) the bolts that attached the large peace with the small peace.

<



The Electrician

Well-Known Member
Joined
February 4, 2011
Messages
505
Reaction score
13
City, State
Makkah
Year, Model & Trim Level
2008 XLT 4WD V6
Other Awning Options

ARB Touring Awning 2500mm #ARB108US is hand operated roll up awning, and it can withstand mild wind if strap tied well, generally it is okay.

check the following link:

http://www.sierraexpeditions.com/index.php?l=product_list&c=129

I used to love it before FOXWING Awning was invented. and now I wish for one of FOXWING Awning

FOXWING Awning






watch these videos
http://www.rhinorack.com/ShowVideoLibrary.aspx?oType=3&linkid=358

Also there is the famous South African Eezi-Awn 2000 series (self retractable awning)





you can buy them in USA from http://www.sierraexpeditions.com


and all of them could be fixed with the same method

<
