How to: Install Aftermarket water temperature gauge in Ford Explorer.

red.EDDIE.4x4

Well-Known Member
Joined
May 26, 2009
Messages
705
Reaction score
10
City, State
Tulsa, Oklahoma
Year, Model & Trim Level
'93 Eddie Bauer 4x4
my old stock '93 temp gauge has been iffy in the past few months, so i decided to upgrade. which also gave me an excuse to get another gauge i can mount in the A pillar. :D so i went to my local harbor freight and got one of their Water Temp Gauges. it ranges from 100 to 300 degrees. Harbor Freight Water Temp Gauge



due to excitement and partial stupidity, i didnt take any pics when i was installing the unit. however, i think have enough pics of final result that anybody should be able to understand whats going on.

here is a list of tools and such of what i used.

Materials:
2 1/16th inch Water Temp gauge (the kit included the mounting hardware, instructions and such.)
Gauge pod (i went with the Auto-Meter dual pillar mount, # ATM15308)
Interior matching paint (unless you like black)
20+ feet of 16 or so gauge wire (thicker is better ;))
Simple voltage test light (best tool out there, just my opinion)


Tools:
Wire cutters/strippers/crimpers
Step drill bit (or 3/8 should do fine for a hole in the fire wall)
3/16th drill bit (gauge pod mounting tabs)
Wire crimps (or solder and heat shrink tubing)
Some bullet connectors
11/16th socket (to remove stock sending unit)
3/8 swiveling head (that sending unit is a B**** to get to)
11/16th wrench
12mm wrench (i think)
220 grit sand paper

On the water temp gauge i have, there are 5 wires.
GREEN- signal wire
RED- 12 volt power source with a 1 amp inline fuse (can be on a switch or hooked into the ignition when vehicle is turned on. i actually hooked mine into the stereo.)
BLACK- ground
WHITE- tap into dash lights or headlights
ORANGE- 12 volt + post it will keep a "memory" on the gauges for the multi-color back lit feature.

Instructions
!!!!MAKE SURE YOU HAVE PLENTY OF WIRE!!!!
1. find a good place to mount your gauge. i prefer the A pillar because its in my line of sight when driving and i dont have to go out of my way to look down at it when driving.

2. drill a 3/8th hole in the lower part of your firewall to run wires and make sure NOTHING is behind it that you may accidentally drill into!

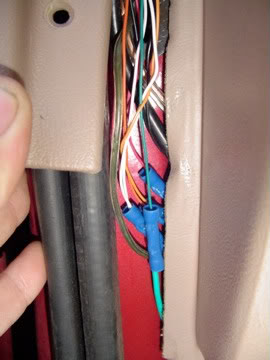

3. if you are going to put it in the A pillar, then take off the plastic A pillar cover and pop off the front of the dash (for a first gen it should just pull out, doesnt need to come all the way off)
and feed a wire down to the bottom and poke it thru the hole in the firewall you just drilled. then run it to the positive battery post. :eek:be sure NOT to route it close to anything that gets hot!:eek: this step will take some time and will be tricky trying to hide all the wires in the pillar as well as the dash.

4. repeat the previous step for the GREEN signal wire. but DO NOT take it to the battery, instead route it so it is just hanging out over the stock sensor.

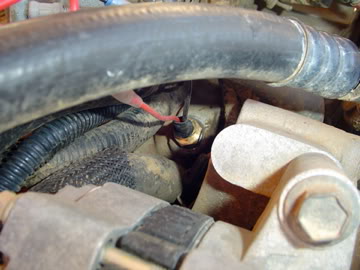

this is the after market sensor, but you get the idea. it is on the passenger side on the lower intake manifold right under some A/C lines.


5. option 1 tap into the dash light switch using a test light.

unscrew your light switch and pull it out. (the whole unit) then activate your lights then with your test light grounded, start poking into wires near the base and find one that has power. then turn off your lights and see if it still has power. if it does NOT have power with the lights off, then that wire is ok to use. but if it DOES stay on, then find a new wire.

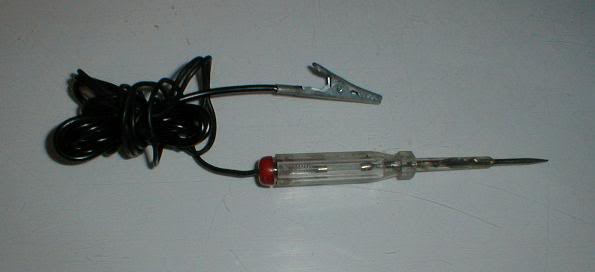

simple test light.

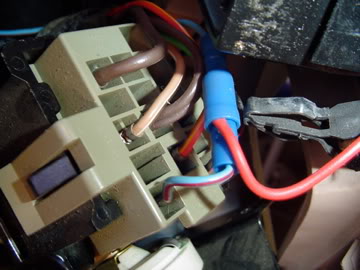

this is the wire in which you should be splicing into.


5. option 2
run a wire down thru your dash via the opening near the top and take it to a + head light wire. just snip it and use a wire crimp to reattach the headlight wires and your new wire. (WHITE- slip it as well as one of the headlight (+) wires in one end, and on the other crimp the other (+) wire int the other)


6. run yet another wire thru your dash to your stereo, you can go in the cavity above the stock gauge cluster and drop down right above your stereo. the ignition switched wire should be the Yellow one. if you have any doubts then just use the test light on it. and be sure to add a 1Amp/3AG inline fuse! (if you have an after market stereo as well then this will be easy, if not then i would put this wire directly to the battery with a switch on the gauge pod or on the dash to turn on the gauge.)


7. run your last wire (BLACK ground) to anything that is metal and is somehow connected to the body of your car.

this will sound confusing...but i will try my best to provide pics and an explanation.

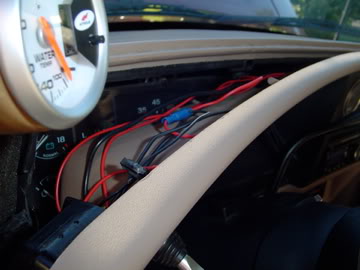

at this point you should have 5 wires poking out of the dash on the upper drivers corner near the vent. this is where it can get kinda tricky. (make sure you have plenty of wire to spare) take some electrical tape and put some around the wires to keep them all in a nice cluster. now take the cluster and feed it down between the vent and the stock gauges and then down past the light switch. there should be a little space under the stock rear wiper switch and the rear glass heater, take them and put them thru it so they are hidden in the dash. then pull them to the left and route them towards the side plastic trim paneling near the door jam (make sure your panels are off) then feed them up so when you put your pannel back on they are hidden behind it.




8. go under the hood and unscrew your stock engine temp sensor. this will be located on the passenger side of the lower intake manifold and under an A/C line. see step 4 for pic. it will be tricky getting it out, so use a swivel attachment on your socket and it should come out quicker.

9. apply some Teflon tape to your new sensor adapter and thread it in place using your swivel head and socket, this took me quite a while because its at such an odd angle. TIP: put some electrical tape on the bolt pattern of your adapter to make it fit tight in the socket so it doesnt fall out.

10. also using Teflon tape install your sensor into the adapter once your adapter is in place. i believe it is a 12mm wrench and again this may take some patients. you will have to hold your wrench upright most of the time due to a lack of space.

11. ground out your sensor to anything metal under the hood (stay away from heat!)
plug in your sensor to your green wire you ran in step 4 and call it good!


all that is left to do really is mount your gauge pod, put your gauge in, and then use wire crimps to attach all the proper colors to each other. start your truck and check for leaks around the sensor.

then turn on your headlights, the gauge should light up green. use the button to change the color to blue, red, yellow, etc... once you find a color you like, just keep it there. since you have a constant 12 volt supply on the orange wire, you will be able to turn off your lights and even your truck and still have the gauge remember what color it was on.
***orange 12 volt (+) wire it should not drain your battery overnight.***

on average my engine is running about 180 to 190 degrees in town with an outside temp of 80 degrees.
lemme know if i can add any more pics and feel free to ask questions,
Thanks!



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




BrooklynBay

Moderator & long time member.
Staff member
Moderator
Elite Explorer
Joined
November 11, 2005
Messages
54,917
Reaction score
611
City, State
Brooklyn, NY
Year, Model & Trim Level
88 89 93 95 96 Aerostars




Maniak

Moderator-Stock 91-94
Elite Explorer
Moderator Emeritus
Joined
February 9, 1999
Messages
12,095
Reaction score
116
City, State
Vail, Arizona
Year, Model & Trim Level
1992 XLT 4x4
Thanks for taking the time to make this thread! It was moved into the modified 91-94 section, and made a sticky for the time being.

Added to the useful thread forum too.





mrboyle

I Drive By Brail
Moderator Emeritus
Joined
February 18, 1999
Messages
4,153
Reaction score
26
City, State
Montrose, CO
Year, Model & Trim Level
'95 Bronco '80 Toy
Did you eliminate the stock temp sensor? The ECM requires the signal from the temp sensor to help control the fuel pramaters. Without it the engine will not run as efficiently as it should (and can possibly set a CEL).





FIND

Explorer Addict
Joined
December 27, 2009
Messages
3,870
Reaction score
10
City, State
Vermillion, SD
Year, Model & Trim Level
99 XLT V8 AWD
I thought it used separate sending units for the gauge and ECU...





Maniak

Moderator-Stock 91-94
Elite Explorer
Moderator Emeritus
Joined
February 9, 1999
Messages
12,095
Reaction score
116
City, State
Vail, Arizona
Year, Model & Trim Level
1992 XLT 4x4
I thought it used separate sending units for the gauge and ECU...

You are correct. The 1 wire sender is for the gauge only. The 2 wire sender is for the ECM.

~Mark





red.EDDIE.4x4

Well-Known Member
Joined
May 26, 2009
Messages
705
Reaction score
10
City, State
Tulsa, Oklahoma
Year, Model & Trim Level
'93 Eddie Bauer 4x4
i just took out the sensor on the top for the actual gauge. i thought about that just the other day actually. glad to know there are 2 wires and sensors.





Dannyboy

Other Make & Models Mod
Elite Explorer
Moderator Emeritus
Joined
February 16, 2001
Messages
5,438
Reaction score
11
City, State
43°48′48″N 91°13′59″W
Year, Model & Trim Level
91 4 do'
i just took out the sensor on the top for the actual gauge. i thought about that just the other day actually. glad to know there are 2 wires and sensors.

Is your truck still running good? I dont have a stock dash, but hooked up my coolant temp gauge the same way, I am trying to chase down an issue with it running really rich





red.EDDIE.4x4

Well-Known Member
Joined
May 26, 2009
Messages
705
Reaction score
10
City, State
Tulsa, Oklahoma
Year, Model & Trim Level
'93 Eddie Bauer 4x4
Is your truck still running good? I dont have a stock dash, but hooked up my coolant temp gauge the same way, I am trying to chase down an issue with it running really rich

yeah it was running just fine. but the motor is out of it at the moment....so its not running at all. my truck was running rich for a long time as well, and eventually it fried the computer because the AIC valve was adjusting itself so much. i just cleaned my AIC valve out and cleaned the upper and lower intake manifold and its no longer so rich.
it also may be less rich because i got a new computer...:rolleyes:









cloaked_chaos

Elite Explorer
Joined
October 4, 2006
Messages
509
Reaction score
3
City, State
Phoenix, Arizona
Year, Model & Trim Level
94 4x4 Limited








EMBRACETHEHATE89

Well-Known Member
Joined
October 27, 2014
Messages
120
Reaction score
1
Year, Model & Trim Level
93 Limited 4x4 Explorer
This is probably my next mod on mine, i just want a oil pressure gauge though.





mr cribb

US Army Retired
Joined
December 16, 2010
Messages
2,350
Reaction score
82
City, State
Harviell, MO
Year, Model & Trim Level
94 Chevy Z71, 93 X EB
This is probably my next mod on mine, i just want a oil pressure gauge though.

Trust me you want a real temperature gauge as well as an oil pressure gauge.

My newest water temperature gauge has already found a stuck thermostat for me, just by the numbers. The factory cold and hot thing you wouldn't necessarily know until it was too late.





mr cribb

US Army Retired
Joined
December 16, 2010
Messages
2,350
Reaction score
82
City, State
Harviell, MO
Year, Model & Trim Level
94 Chevy Z71, 93 X EB
For cost of my pod and gauges, I paid 18 for the pod (93 ranger), 86 for the oil pressure gauge and 67 for the water temperature gauge.









mr cribb

US Army Retired
Joined
December 16, 2010
Messages
2,350
Reaction score
82
City, State
Harviell, MO
Year, Model & Trim Level
94 Chevy Z71, 93 X EB
Photo by Tyler King

did you wire the - and + on the temp sensor togeter? Would't that make a short?

I know this is two years later to reply, almost 2 1/2, but to answer your question, I followed the directions per the gauge install instructions. Those particular gauges that I installed have their own sender and wires. You in turn leave yourself with a dead gauge in the factory cluster unless you come up with a way to plumb both. I went with the aftermarket gauge for better control of the temperature.

The only one I didn’t touch is the one that goes to the computer. The one I replaced was the one to the cluster, there are two senders on these, one for the computer and one for the factory gauge.





Jovnna0901

Active Member
Joined
November 10, 2013
Messages
73
Reaction score
3
Location
North Norway
Year, Model & Trim Level
Ford Explorer 1995
I know this is two years later to reply, almost 2 1/2, but to answer your question, I followed the directions per the gauge install instructions. Those particular gauges that I installed have their own sender and wires. You in turn leave yourself with a dead gauge in the factory cluster unless you come up with a way to plumb both. I went with the aftermarket gauge for better control of the temperature.

The only one I didn’t touch is the one that goes to the computer. The one I replaced was the one to the cluster, there are two senders on these, one for the computer and one for the factory gauge.

Thanks for the reply man! Better late than never! :)

I have mounted a temp sensor allready :) And used a "adapter" with a temp sensor in, that i put between the upper water hose. :)
