How To: Install an electric tailgate lock


June 14, 2008
Reaction score
As many of you know tailgates are pretty commonly stolen, and cost a lot to replace. And the fact that our truck lacks a factory lock also means that if you have a topper or bed cover chances are you can still open the tailgate. There are other solutions on the market that consist of a manual lock, but personally I don't want anymore keys on my keychain or another lock to remember to lock. The solution is this electric tailgate lock made by Pop&Lock. Here is how it is installed.


Here is what you receive in the box, everything you need to get it hooked up and working in no time.

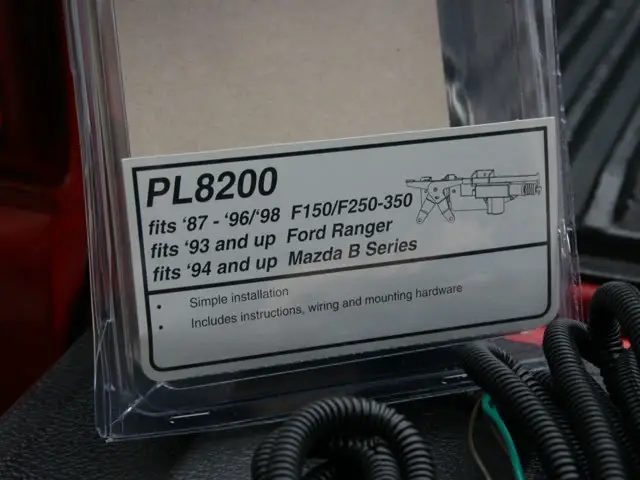

Here is the part number for future reference.

Lets begin,

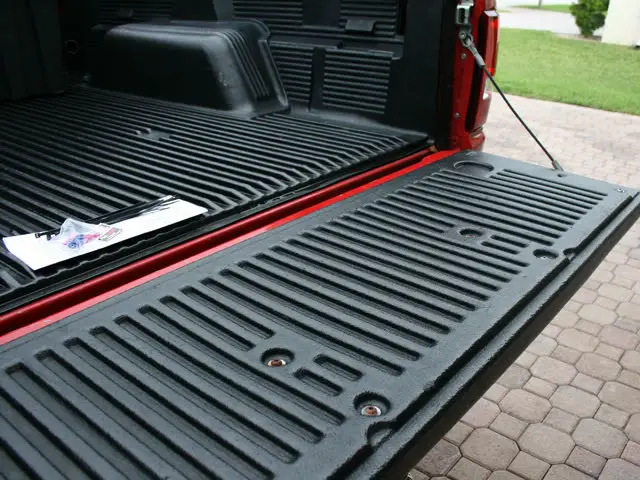

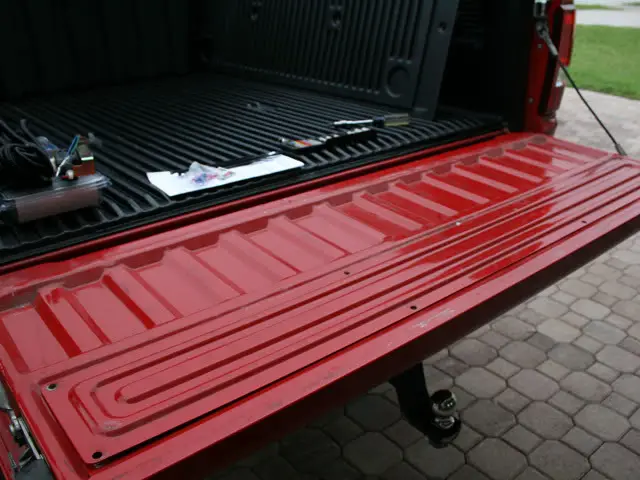

Since this truck has a plastic bedliner it will need to be removed to get to the access panel.

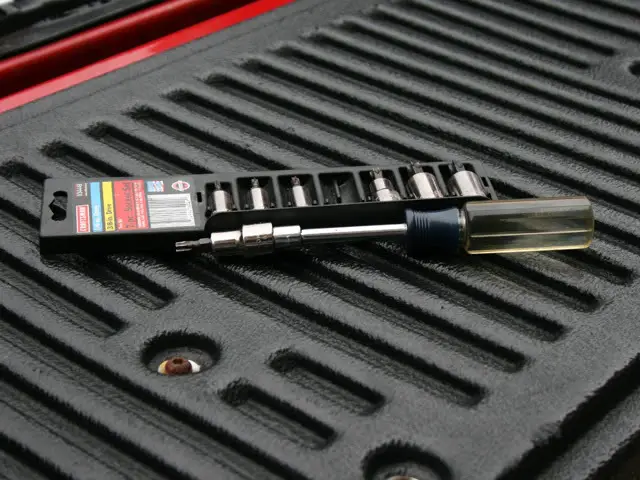

T30 Torx is required to remove the screws.

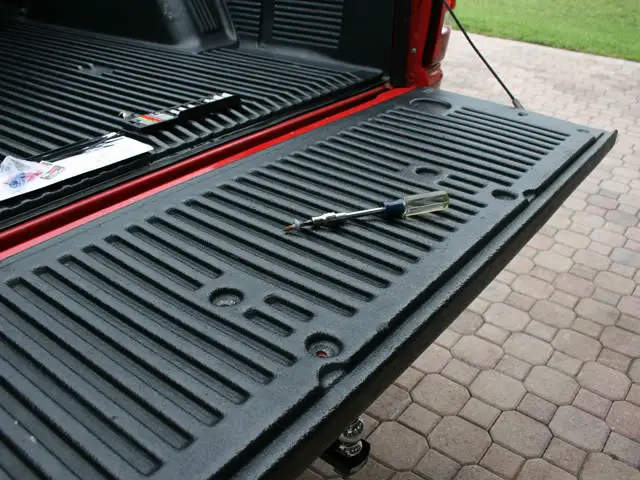

Start removing the screws.


With them removed, remove and place the bedliner piece out of the way.


Remove and place the access cover out of the way.

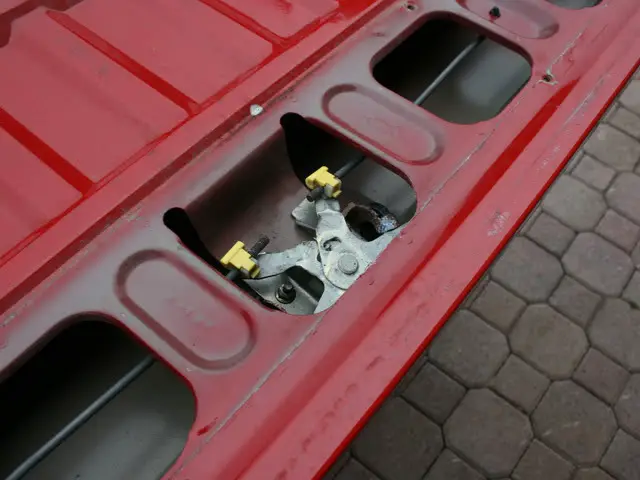

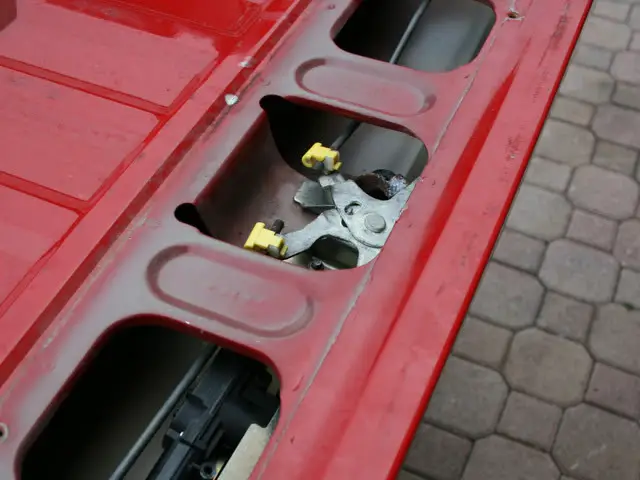

This needs to be removed.

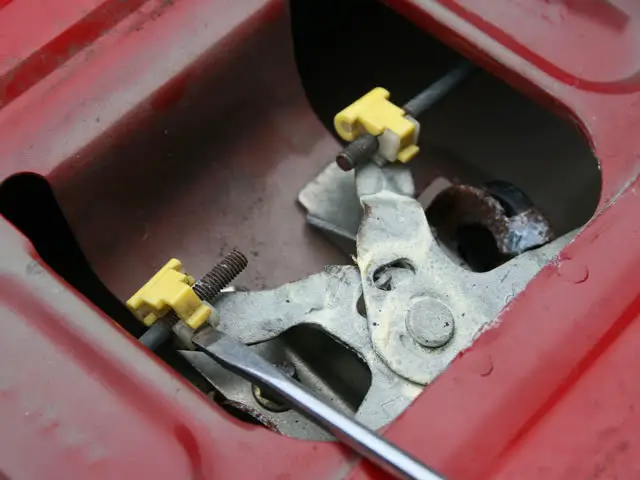

But first it needs to be disconnected, a flat head scewdriver will take care of that problem.

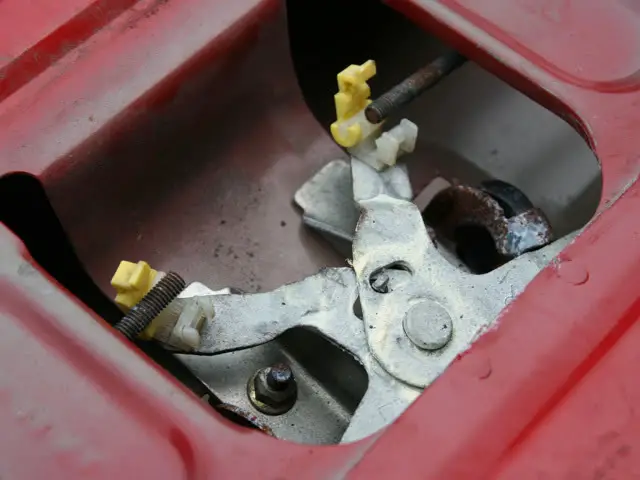

Both are now open.

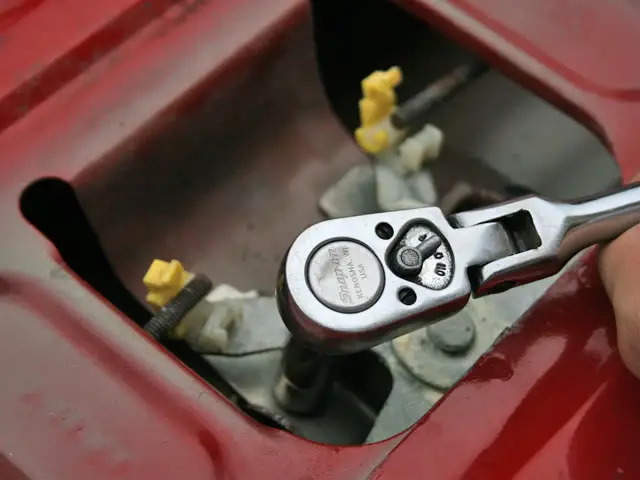

Remove the two bolts holding it on now.


Remove the handle piece and then slide the lock into place.

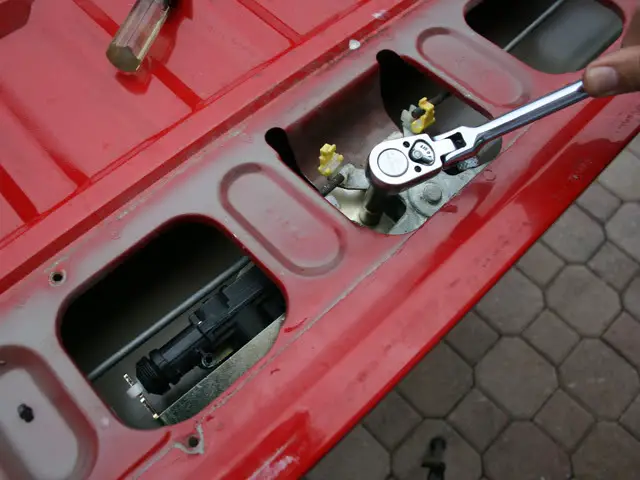

Put the handle piece back in place, then put the lock in between the bolt and nut like a washer. Now tighten it back down.

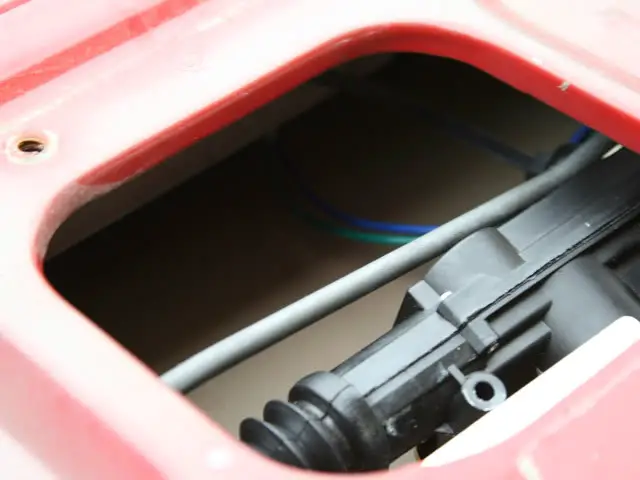

Lock and handle pieces are in place and secured. Now reattach the linkage rods, make sure to adjust them so that the tailgate can not open while the lock is in the locked position.

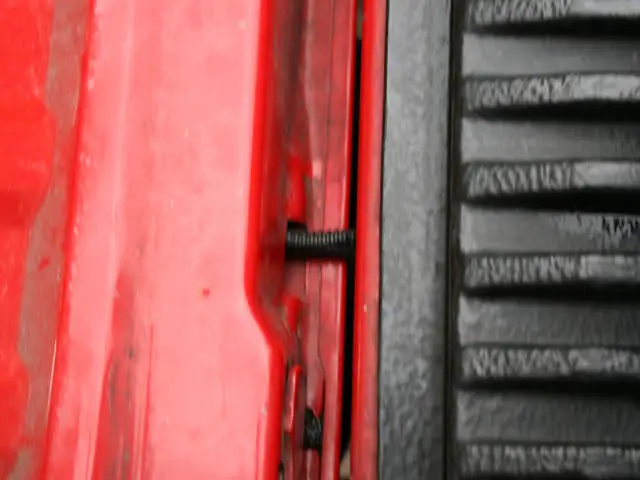

Now lets see how it works. In the first picture the bar is pulled out and in the unlocked position. The second picture it is pulled in and in the locked position. This will not allow to tailgate to open.

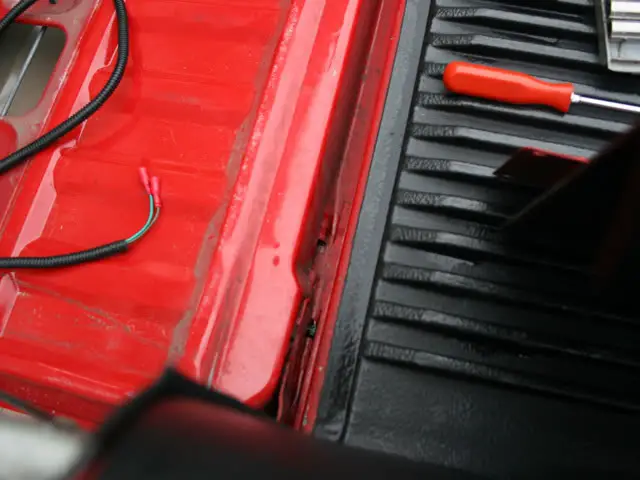

Now we need to run our wire, this drain hole will work perfect.


Wire ran through hole, the other end is dangling under the truck.

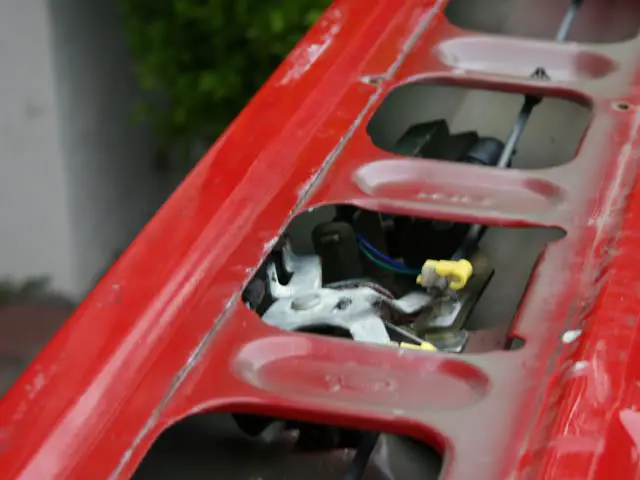

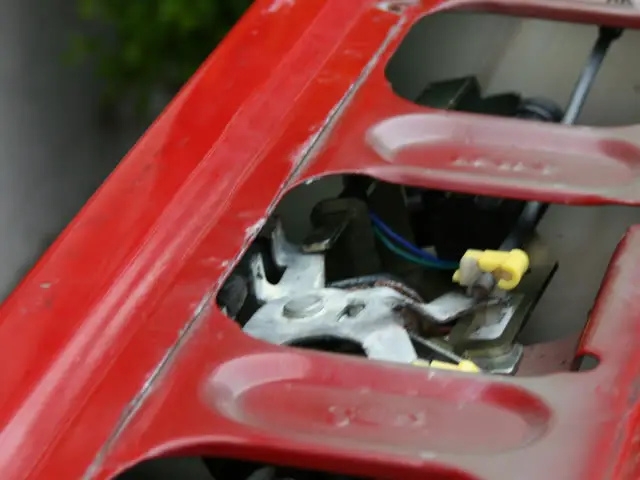

Wires are connected and secured out of the way of any moving parts.

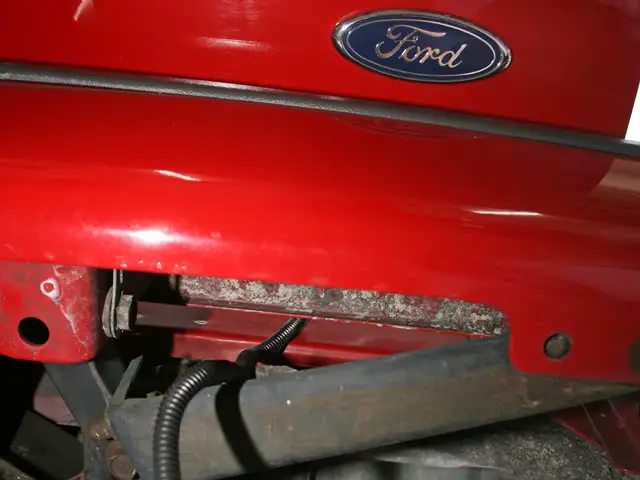

Here is the wire dangling under the truck.


Start to route it through the frame.

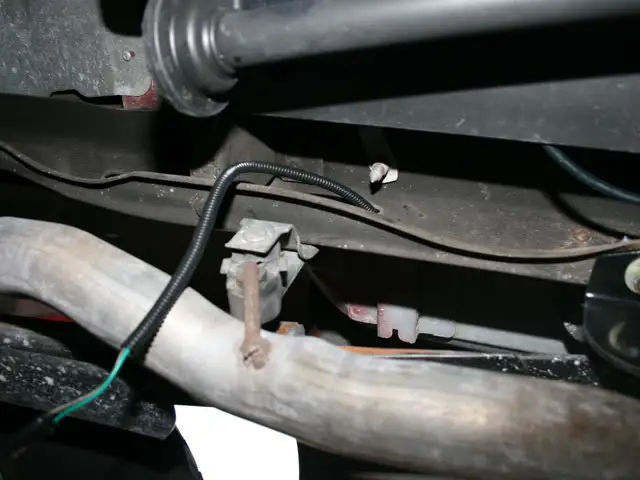

The extension has been plugged in and the wire is being routed. I was unable to run the wire entirely through the frame, the exhaust gets very close and it would get too hot. So I started to run it in the rocker panel which is far from the exhaust and is where the wire needs to end up anyway.

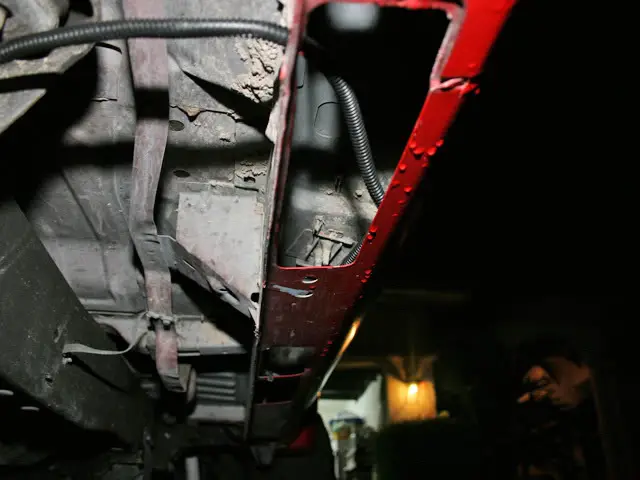

Up the rocker panel.

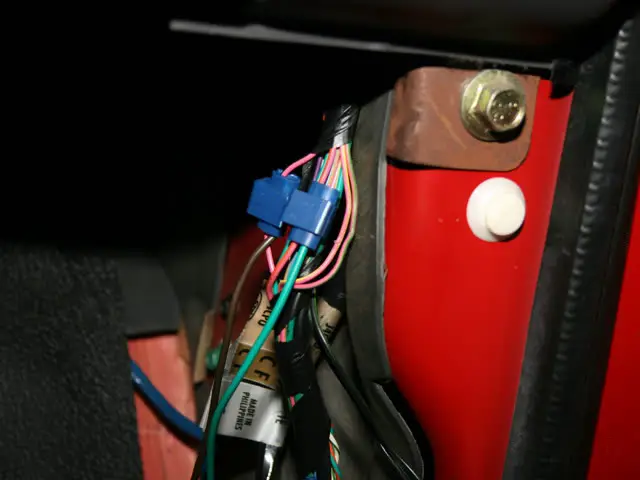

I came up through the drain plug (make sure to cut wire loom so drain plug still has a seal. The wires for the passenger lock are right in the passenger footwell, all you need to do is connect them to your new wire via a wiretap. Please note, in the picture they are hooked up backwards. If you hook it up backwards you can unplug the bullet connectors that attach the wiring harness to the lock itself and switch them.

Test it, and make sure everything works how it should. Then put the access panel cover, the bedliner piece, and the passenger footwell kickplate back and you are done. Wasn't that quick?

Here is how it works,

Here is a link to Pop&Lock's website for more information and ordering.

Great writeup!

power tail gate install

great pics and instructions where can I buy this for my 07 ranger in Canada

great pics and instructions where can I buy this for my 07 ranger in Canada

Google search netted the following results:


Good luck with the hunt. Be sure to make sure it will fit your '07 Ranger. I punched in your year and model on one site and it brought up the Model PL8100. So just make sure before ordering!!
