How to install leak proof magnetic drain plugs.


BrooklynBay

Moderator & long time member.
Staff member
Moderator
Elite Explorer
Joined
November 11, 2005
Messages
54,373
Reaction score
511
City, State
Brooklyn, NY
Year, Model & Trim Level
88 89 93 95 96 Aerostars
Most transmission pans, and metal differential covers don't come with drain plugs. There are companies that sell universal drain plugs which are good, but sometimes tend to leak if they get loose. They have multiple parts, and only have a small opening for the fluid to drain which makes it not the ideal choice if you want to drain your fluid rapidly. This article explains how to install a 1/2" X 20 magnetic drain plug into a 31/64" hole on a two wheel drive A4LD transmission pan.

To get started, there are two types of drain plugs, the regular size, and the oversize which is a little longer.

The black package on the left is the oversize type, and the red package on the right is the regular type.

These are the supplies which are needed to solder the 1/2" X 20 nut into the pan:


This is a two wheel drive A4LD transmission pan:


This is the pan lined up in a drill press before it was drilled. Take note of the mark where the bit is going to make the hole:


The bit is about to go into the pan. It's pressing against the pan:


The drill bit made the 31/64" hole in the pan:


The hole has to be cleaned with an abrasive pad:


The part of the nut which comes into contact with the pan has to be cleaned:


The inside of the pan has to primed with soldering flux paste:


The back of the 1/2" X 20 nut has to be primed with soldering flux paste:


Now it's time to solder the nut to the pan:


This is the inside of the pan with the bolt, and the nut removed. The picture has the magnetic drain plug installed:


This is the bottom of the pan with the drain plug installed:

Last edited:


Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




IZwack

Moderator Emeritus
Joined
February 5, 2003
Messages
21,772
Reaction score
15
City, State
Germantown, MD
Year, Model & Trim Level
1998 Ford Explorer
For clarification, please elaborate a little bit more on this "paste" you're using -- thanks! Like is it soldering flux?





BrooklynBay

Moderator & long time member.
Staff member
Moderator
Elite Explorer
Joined
November 11, 2005
Messages
54,373
Reaction score
511
City, State
Brooklyn, NY
Year, Model & Trim Level
88 89 93 95 96 Aerostars




Turdle

Habla tortuga
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
29,472
Reaction score
1,014
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty
Very nice Mike!!
Can I ask a stupid question?
Why didn't you pick a lower spot in the pan to mount the plug?





BrooklynBay

Moderator & long time member.
Staff member
Moderator
Elite Explorer
Joined
November 11, 2005
Messages
54,373
Reaction score
511
City, State
Brooklyn, NY
Year, Model & Trim Level
88 89 93 95 96 Aerostars
I didn't want to have the plug as the lowest spot facing the road just in case there is something on the ground as I'm driving. This area was the recessed point of the pan, and is in the rear. When you drive up on ramps, it will tilt the fluid back into that area. I guess it's a safe spot to put it, but it could be placed in the center too.









mackgoodman

New Member
Joined
October 9, 2007
Messages
20
Reaction score
0
Does the solder stick good?

I tried this on a piece of scrap metal and I had trouble getting the nut to 'weld"... Are you using any specific kind of solder and paste?
I want to do this, but I am concerned about my soldering ability..





96eb96

Well-Known Member
Joined
October 20, 2004
Messages
3,017
Reaction score
98
City, State
Albany, NY
Year, Model & Trim Level
96 EB V6 OHV 4WD




Nocturnall

Active Member
Joined
March 28, 2006
Messages
899
Reaction score
0
City, State
Tempe, AZ
Year, Model & Trim Level
1997 Sport
Since you covered my first question which JT asked, why not weld the nut on the outside of the pan? Would seem like mounted with the nut inside it wouldn't allow for draining of all the debris that might be in the fluid.





BrooklynBay

Moderator & long time member.
Staff member
Moderator
Elite Explorer
Joined
November 11, 2005
Messages
54,373
Reaction score
511
City, State
Brooklyn, NY
Year, Model & Trim Level
88 89 93 95 96 Aerostars
You have a good point about welding it to the outside. Maybe I'll try this by soldering it to the outside, and use the oversize drain plug to go a little deeper into the pan. Thanks for the tip! To answer the other question, it's the same flux which is used by plumbers or electronic service technicians.





Nocturnall

Active Member
Joined
March 28, 2006
Messages
899
Reaction score
0
City, State
Tempe, AZ
Year, Model & Trim Level
1997 Sport
I know nothing about soldering so I just didn't know if it's not something that would be really strong enough to hold the weight of the fluid and bolt, granted the bolt weighs like nothing, but on the outside. I have a drain like this on the very most bottom point on my 5r33E but it's a simple like double bolt setup with a drain plug that goes in the middle...hard to explain I'll see if I can find pictures of it. Anyways, it leaks.

http://www.jcwhitney.com/autoparts/...owse/s-10101/Ntk-AllTextSearchGroup?Ntt=Drain

It's like one of those but instead of the wing nut thing on the end the whole bolt comes out.

Last edited:




mackgoodman

New Member
Joined
October 9, 2007
Messages
20
Reaction score
0
The nut on the outside would bother me a bit. I think it would be significantly weaker and could get "knocked" off with a good hit. At least on the inside, you have the sandwich effect with the pan in the middle. The nut on inside makes sense to me, but I just can't solder good enough , I guess.





BrooklynBay

Moderator & long time member.
Staff member
Moderator
Elite Explorer
Joined
November 11, 2005
Messages
54,373
Reaction score
511
City, State
Brooklyn, NY
Year, Model & Trim Level
88 89 93 95 96 Aerostars




Lefy

Active Member
Joined
December 13, 2002
Messages
737
Reaction score
0
City, State
Westchester, NY
Year, Model & Trim Level
98 Sport 4x4 4.0 SOHC
usefull thread
Instead of soldering it you can also use JB weld or another form of epoxy thats what I used.
good stuff and cheap and easy.





Roadkill Savior

New Member
Joined
June 29, 2008
Messages
19
Reaction score
0
City, State
Eastpointe, MI
Year, Model & Trim Level
99 Explorer
wait a minute.......I'm a hvac tech and you can not solder steel to steel using regular lead free plumbing solder...you can use silver solder but that takes more heat than propane. I'd like to see that picture up close.





BrooklynBay

Moderator & long time member.
Staff member
Moderator
Elite Explorer
Joined
November 11, 2005
Messages
54,373
Reaction score
511
City, State
Brooklyn, NY
Year, Model & Trim Level
88 89 93 95 96 Aerostars




Magick_Man

New Member
Joined
August 18, 2008
Messages
10
Reaction score
0
City, State
Riverside,CA
Year, Model & Trim Level
1996 XLT
Transmission drain plug

I used my mig welder to install my drain plug! I ground the inside of my pan with a 4" grinder to smooth out the weld and remove any flux or "bugs". And I installed it on the rear of the pan and in the lowest spot so all the fluid will drain out. :)





Richard

AKA Magick_Man

Last edited:




BrooklynBay

Moderator & long time member.
Staff member
Moderator
Elite Explorer
Joined
November 11, 2005
Messages
54,373
Reaction score
511
City, State
Brooklyn, NY
Year, Model & Trim Level
88 89 93 95 96 Aerostars




Magick_Man

New Member
Joined
August 18, 2008
Messages
10
Reaction score
0
City, State
Riverside,CA
Year, Model & Trim Level
1996 XLT
post pics

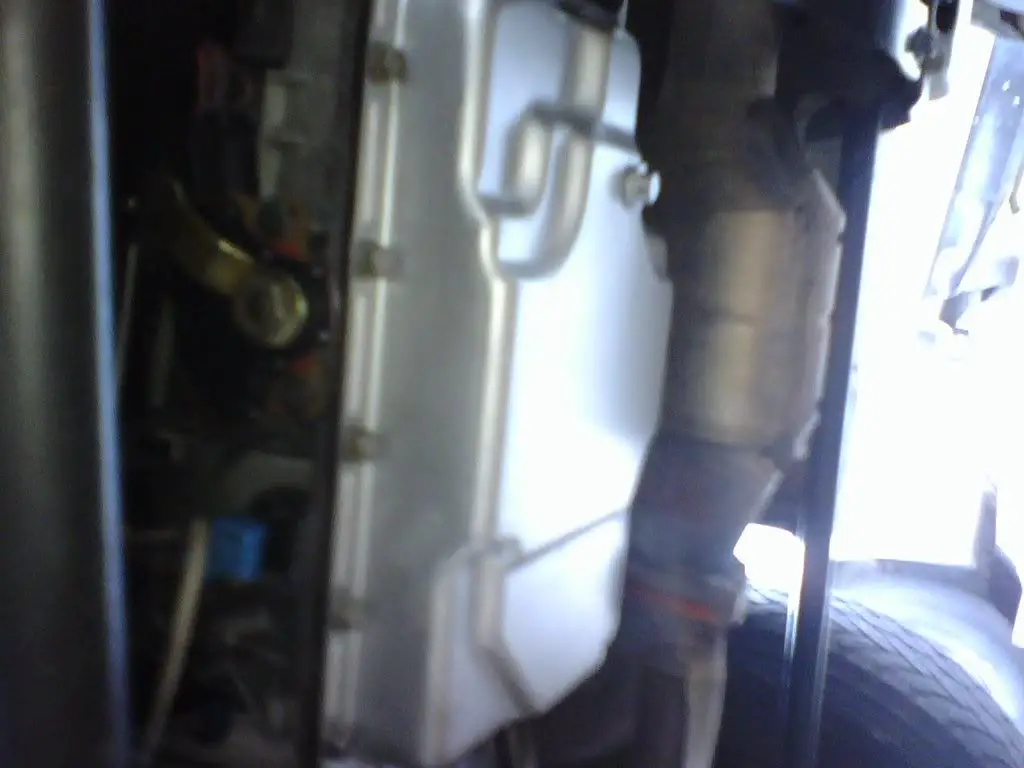

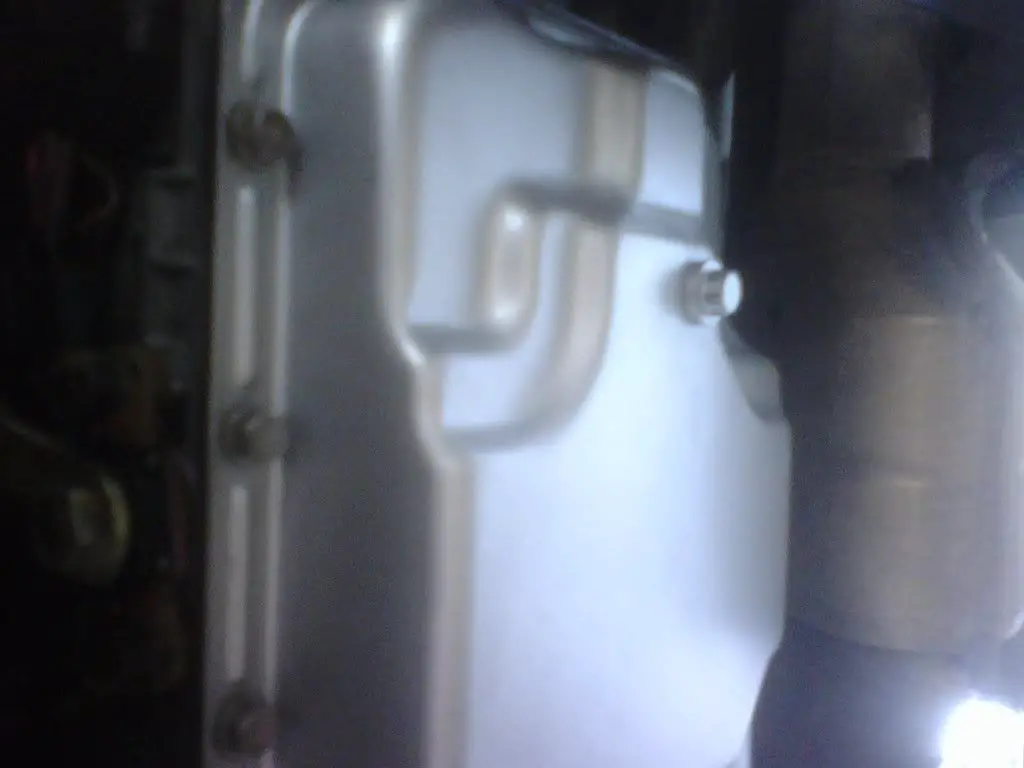

Thanks, it worked...sorry about the resolution. I used my cell phone's camera, I left my digital at work..

Richard
