How To: Replace front brake pads on an Aerostar van.

BrooklynBay

Moderator & long time member.
Staff member
Moderator
Elite Explorer
Joined
November 11, 2005
Messages
54,886
Reaction score
607
City, State
Brooklyn, NY
Year, Model & Trim Level
88 89 93 95 96 Aerostars

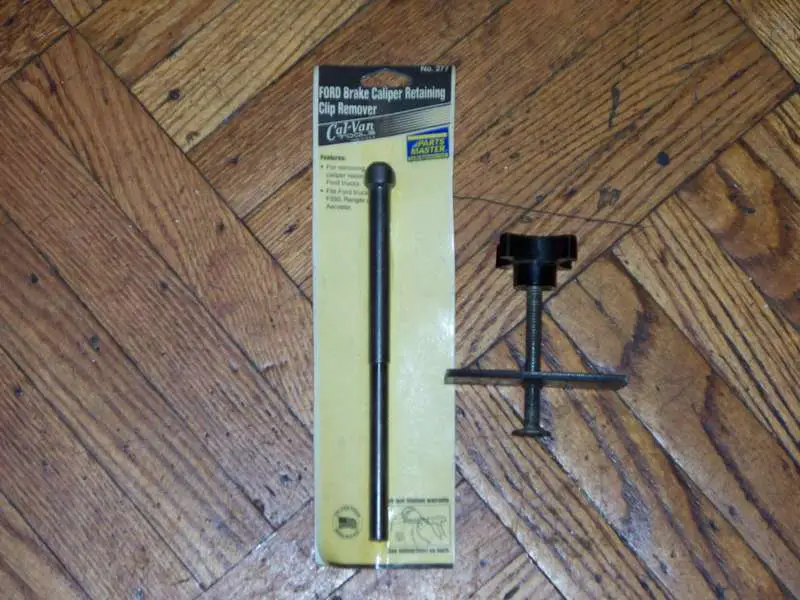

This thread will show you how to replace front brake pads on a 2WD Aerostar van. This was done on my 95, but it's pretty much the same on all of the years. You will need a few basic tools, and a couple of specialty tools to make it easier. It's still possible to do the whole thing with basic tools if specialty tools are not available. You will need a hammer, bungee cord, large C clamp (if a caliper piston tool is not available), and a punch (if the caliper bolt tool is not available). Here are the specialty tools:

You need a good set of front pads if you plan on using this as your daily driver, and do a lot of stop, and go driving. Even highway driving puts stress on pads while slowing down or stopping at hightway speeds. Friction creates heat, and depending upon the quality, and age of the pads, you will know very fast if the front pads are gone. They will smoke, smell, and at one point make the pedal feel like the master cylinder is fading as if fluid is leaking when no fluid is really leaking. Here are some examples of good quality pads:

This picture shows what my front brakes were like before they were replaced:

This was actually the side with a little less wear. The opposite side had an overheating problem, and everything was covered with light brown flaking rust. The caliper pin tool has a groove on its shaft to act as a stopper when it slides into the caliper:

The side with the taper compresses the metal tabs on the slide bolt to help it release itself as it's going into the caliper. Once the head is clear, the tool is reversed to allow the narrow part to slide into the caliper to push the pin completely out:

The caliper could be removed once the pins are completely removed:

A bungee cord is holding the caliper while the bolts are removed to prevent stress on the front brake hose:

The caliper piston has to be fully compressed before the new pads could be installed:

The new pads should have anti squeal paste on the back of them to prevent chatter:

The calipers are ready to be installed with the new pads. The pins have to be pressed back into place:

The top pin is in, and the bottom one is next:

You are finished after the bottom pin goes back into place. Sometimes it's necessary to replace the rotors, seals, and wheel bearings, but it wasn't necessary at this time on my vehicle. The setup on the E-4WD rotor is a little different, but the set up for the pads is the same.



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




Willard

Explorer Addict
Joined
March 16, 2007
Messages
3,179
Reaction score
4
City, State
Bloomington, Indiana
Year, Model & Trim Level
04 Ranger Edge
Those brakes look a lot like the brakes on a first gen explorer. Same basic setup. What kind of suspension is under the front of one of those vans? It's not the TTB is it?

And as a side note Brooklyn, you really need to grease those slide pins. Otherwise the inner pad wears way before the outer pad.

Edit: After looking closely, that is obviously a regular old A-arm IFS suspension on the front.





BrooklynBay

Moderator & long time member.
Staff member
Moderator
Elite Explorer
Joined
November 11, 2005
Messages
54,886
Reaction score
607
City, State
Brooklyn, NY
Year, Model & Trim Level
88 89 93 95 96 Aerostars




BrooklynBay

Moderator & long time member.
Staff member
Moderator
Elite Explorer
Joined
November 11, 2005
Messages
54,886
Reaction score
607
City, State
Brooklyn, NY
Year, Model & Trim Level
88 89 93 95 96 Aerostars




Aeroman59

Member
Joined
April 4, 2009
Messages
18
Reaction score
0
Year, Model & Trim Level
96, 3L Aerostar XLT sport
Brake maintanance

Nice pics & info. I lube the slide pins with synthetic brake grease . Wire brush the slide pin slots to remove any crud etc & spray with brake cleaner. Also a good idea to replace the brake fluid about every 4 years since it is hygroscopic & will pull water from the atmosphere over time. I find a brake skim necessary after 3 years & new rotors/discs after 5 years keeps your front brakes in top shape.





BrooklynBay

Moderator & long time member.
Staff member
Moderator
Elite Explorer
Joined
November 11, 2005
Messages
54,886
Reaction score
607
City, State
Brooklyn, NY
Year, Model & Trim Level
88 89 93 95 96 Aerostars




Aeroman59

Member
Joined
April 4, 2009
Messages
18
Reaction score
0
Year, Model & Trim Level
96, 3L Aerostar XLT sport
Mines in almost daily use, clocks up about 20-25,000 kms/ year at present time. Engine is 3L, 2wd, short frame, 96 XLT sport. The old girl has 310,000 kms on her & still uses no oil & only minor sensor replacements. Alternator , starter motor have been replaced. So far it's the most reliable vehicle I have owned. I'm thinking I'll get another 5 years before the rust in the rocker panels looks too bad. I think rust will be the death of the vehicle although at present she is in fairly good shape.

ATB Aeroman





BrooklynBay

Moderator & long time member.
Staff member
Moderator
Elite Explorer
Joined
November 11, 2005
Messages
54,886
Reaction score
607
City, State
Brooklyn, NY
Year, Model & Trim Level
88 89 93 95 96 Aerostars




BrooklynBay

Moderator & long time member.
Staff member
Moderator
Elite Explorer
Joined
November 11, 2005
Messages
54,886
Reaction score
607
City, State
Brooklyn, NY
Year, Model & Trim Level
88 89 93 95 96 Aerostars
I wanted to add some photos of the brake hardware kit for the front calipers. Here's the entire kit:

Here's a close up:

It's much cheaper to buy this kit than individual parts kits for the anti rattle clips or two caliper bolts. This is a complete kit for $10 in Autozone.





BrooklynBay

Moderator & long time member.
Staff member
Moderator
Elite Explorer
Joined
November 11, 2005
Messages
54,886
Reaction score
607
City, State
Brooklyn, NY
Year, Model & Trim Level
88 89 93 95 96 Aerostars
Caliper replacement.

My calipers were pretty deteriorated plus the brake fluid needed to be replaced so it was a good time to do both jobs. One bolt connects the brake line to the caliper. A copper crush washer goes between the brake line fitting, and the brake caliper. Here's a rear view of the caliper:

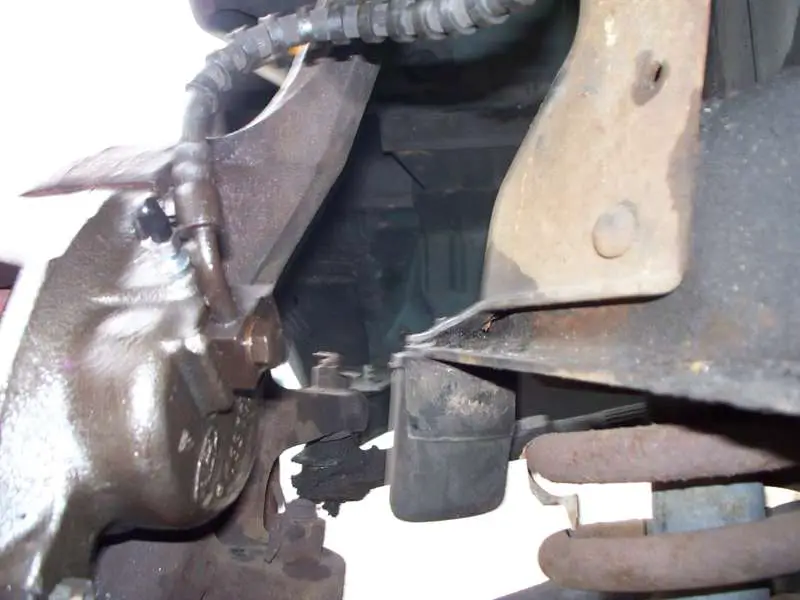

Here's a side by side comparison of the old caliper (already removed), and the new caliper (installed on the driver's side):
