How to Replace the Radiator in a 5.0L Explorer

naneville

New Member
Joined
August 25, 2008
Messages
3
Reaction score
0
City, State
Windsor
Year, Model & Trim Level
2001 5.0 L AWD
I just replaced the radiator on my 2001 Ford Explorer and wanted to pass on some information I learned from doing the job. I searched and hit upon a YouTube video which was OK but failed to mention the specifics of the clips used to hold the radiator and condenser together. There are several posts on this forum which also provided valuable information. Hopefully what I learned both from this forum and doing the job will benefit someone else considering the job. If you reached this forum through an Internet search let me say don’t be intimidated or afraid of all the horror stories you read on the Internet about replacing the radiator in a 5.0L. All they tend to do is knock your self confidence down and make you doubt your ability to do the job. Believe me you can do it and do it right. After reading some of the stories and comments on the Internet I myself was tempted to have it done by a garage, but the thought of paying $600 to $700 to replace a radiator just didn't sit well with me. So I ordered a TYC-2308 radiator from Amazon Warehouse Deals for $84 which was described as used, like new. I figured someone ordered it and couldn't complete the job and returned it because it looked brand new to me (still had the transmission line caps and cardboard covering the fins). Amazon sells a new TYC-2308 for around $132. The radiator is a perfect fit. The only thing I needed to do was remove two rubber mounting grommets from the old radiator and I used the old radiator cap, both which fit perfectly. http://www.amazon.com/TYC-2308-Alum..._1?s=automotive&ie=UTF8&qid=1318800453&sr=1-1


The entire job cost me around $200 with a new fan, belt, hoses, and antifreeze. Also, if you haven’t changed your thermostat or flushed your cooling in a while now is a good time to do so.


The job wasn't as bad as I thought it was going to be. I had some doubt going in because of everything I read on the Internet. Don't get me wrong, it still takes about 4-5 hours from start to finish and can be accomplished by anyone with decent mechanical skills. I did the job with the help of my wife who has very little.


1) Remove the plastic splash guard and the bracket holding the A/C lines to the bottom of the radiator. On my Explorer the bracket was attached to the radiator with a plastic push pin.

2) Drain the radiator. A 2 gallon bucket works nice.

3) While it is draining remove the transmission lines and secure the lines with a bungee cord so they won't interfere with the rest of the job. You will lose some transmission fluid so place a rag under the vehicle. It is a very miniscule amount that won't even register on the dipstick, even when the job is complete.

4) Remove the air intake duct, top hose, and overflow hose. Some repair guides (like Hayne's) say to just remove the fan shroud and rest it towards the back on the fan, but I recommend you completely remove the shroud and the fan (these have to come out together) because this gets them out of the way and gives you a lot more room to work. I believe the extra 5-10 minutes it takes to remove them is time and effort well spent and will save you a lot frustration later on. Never having removed the fan before I was surprised how easily it loosened. Look on the fan shroud for the thread design stamp. Most should be RH (right hand) which means you tighten clockwise and loosen counterclockwise. Don't assume this. Check the shroud. You will need a special wrench set to get the fan out. I rented a fan clutch wrench set from Advance Auto Parts (Powerbuilt Kit 34). Other users on this forum have also reported success using an inexpensive Performance Wrench Set Model # W80585 which can be purchased from Pep Boys or Amazon. (http://www.amazon.com/gp/product/B0...&pf_rd_t=101&pf_rd_p=470938631&pf_rd_i=507846) or (http://www.amazon.com/Powerbuilt-64...JXGE/ref=sr_1_5?ie=UTF8&qid=1318853200&sr=8-5)

Plus, take a good look at your fan. It's basically plastic. After 141K miles there were cracks at the base of the fan in my Explorer and I needed to replace it anyway (Motorcraft YA228 Radiator Fan - http://www.amazon.com/Motorcraft-YA...YRSQ/ref=sr_1_1?ie=UTF8&qid=1318799590&sr=8-1).


5) While optional, removing the serpentine belt does make it easier to remove the bottom hose. Plus, if you haven't changed the belt in a while this is an excellent opportunity to do so. When removing the bottom hose have a bucket ready.

6) Remove three bolts holding the radiator and condenser in (two on the passenger side and one on the driver side, ALL on top). Also, this is optional but you may want to remove the plastic shield surrounding the hood latch which will give you better access to the condenser and may help when sliding it to separate it from the radiator.

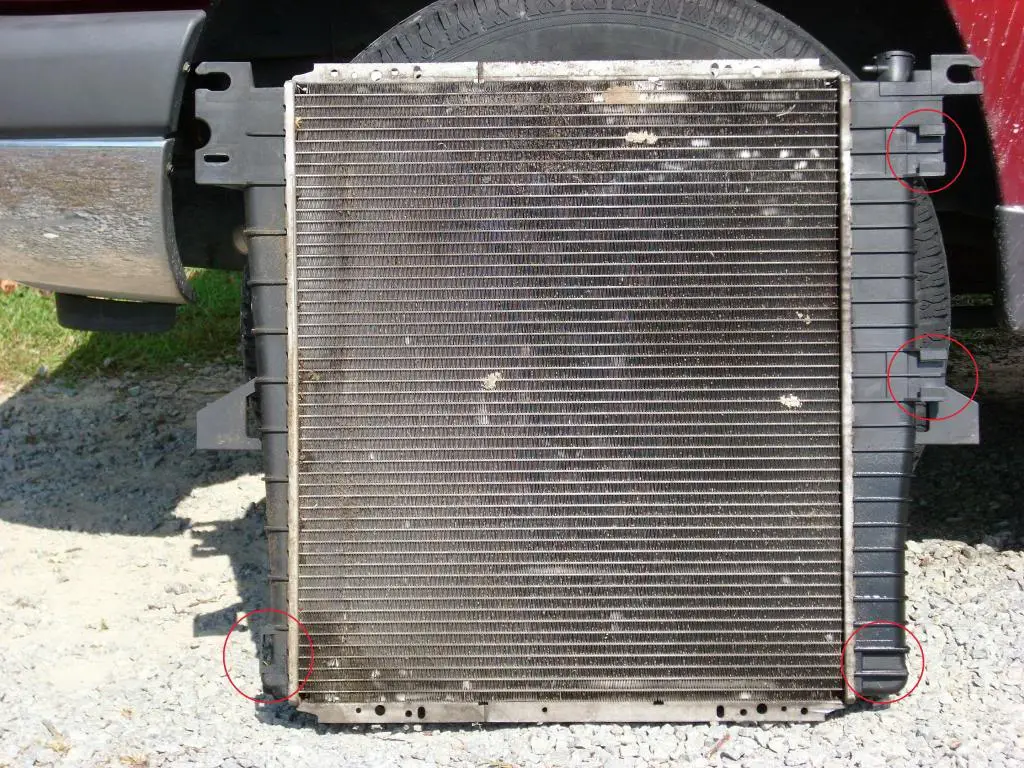

Now you are ready for the fun part. Take a good look at the photo below (this is the radiator I removed). This is the front of the radiator which you cannot see because it is attached the condenser. Also, take a good look at your new radiator. Once the three bolts are removed from the top the only thing holding the radiator in is four clips on the condenser. One clip on the bottom passenger side, one clip on the bottom driver's side, and two horizontal clips top and center both on the driver's side. Circled in the photo are the clip mounts. The clips themselves are on the condenser.







7) Start with the clip on the passenger side bottom. In the lower left bottom corner of the photo you will see a slot where the clip mates to the radiator. It’s a fanny pack clip which you should be able to squeeze with your hands (I did) and then slowly push the condenser forward while pulling the radiator gently back and then either slide the radiator a little bit to the driver's side or slide the condenser just a little to the passenger side (it won't take much) until the clip clears the radiator. Otherwise the clip has a tendency to re-insert itself back into the radiator mount. Once this clip is undone, use some bungee cords to support the condenser. I supported mine by wrapping a bungee cord under the metal lines on both sides of the vehicle and hooking those to holes in the front of the vehicle. The right length bungee cords will have some stretch which will still allow you to move the condenser and also keeps it from drooping after it is separated from the radiator. Plus, this won't hurt the lines. This may be being overly cautious but I wanted to protect the condenser and the lines at all cost. My radiator was leaking and I didn't want to compound my problem.

8) After the passenger clip is removed, there is a small anti-rattle clip on the bottom driver’s side that separates from the radiator very easily. If you look carefully at the photo all the way towards the bottom right you will see a small horizontal channel mount where this clip attaches. I separated it by simply pulling slightly on the radiator. Popped right out. Chances are it may have already come undone when I was pulling the bottom of the radiator away from the condenser on the passenger side.

9) The only thing holding the condenser to the radiator at this point is two horizontal clips on the driver's side. Look at the photo and you will see two clip slide mounts below and to the right of the neck of the radiator. Slide the condenser to the passenger side as far as it will go while sliding the radiator towards the driver’s side. Do not manhandle it because you don't want to damage the condenser lines, however, they are partly rubber and have some play which will help in separating the condenser from the radiator. It will take some moving and slight wiggling but with some patience it will separate. Finesse it out. Angling the radiator and condenser ever so slightly on the driver's side towards the firewall will help. The key here is patience, don’t get in a hurry. Once the radiator is detached lift it straight up and out and the condenser should be hanging securely by the bungee cords. You have reached a milestone in the replacement. Take a break.

10) To install your new radiator start with the two horizontal clips. With the radiator out, angle the condenser ever so slightly towards the firewall on the driver’s side. Again, not much because you don't want to stress the condenser lines. This will make it a just little easier to mate the horizontal clips. Be patient because this will take some wiggling and repositioning but, once the clips on the condenser line up to the mounts on the radiator it will slide together rather easily. With patience it isn't as hard as you think. It took me about 30 - 45 minutes (time flies when your having fun, yea right) to remove and replace the radiator which included a well deserved break in between.

11) Once joined, push the bottom clips in, gently lift and position the radiator on the mounts, remove the bungee cords from the condenser lines, and bolt everything up using the three top bolts removed previously.

12) Install the bottom hose, the A/C line bracket to the bottom of the radiator, the serpentine belt if removed, the transmission lines (use some thread tape or a small amount of pipe compound), the shroud and fan if removed (these have to go in together, bolt the shroud to the radiator with the fan resting inside the shroud, and then lift and screw the fan back on which is best accomplished by starting it from the bottom and then moving back up top to tighten it), the top radiator hose, the air duct, and the overflow hose. Don't install the plastic splash guard until you verify there are no leaks.

13) Be prepared to add as much as three gallons or more of antifreeze. The system will be almost empty. According to my Hayne's manual (1991 thru 2001) the coolant capacity is 12.8 to 15.7 quarts for a V8 which means it will seem to suck antifreeze like a bottomless pit.

14) With the radiator cap off, start the the engine, and let it run until the radiator burps. There likely will be pockets of air trapped in the system. You should see the coolant level drop and may even see an air bubble or two come to the top as the system burps. Be sure to keep an eye on the temperature gauge. Refill the radiator and the coolant reservoir as needed and put the radiator cap back on. I initially added well over two gallons and noticed a slight hose collapse (an indicator that air is in the system) after replacing the cap which made me nervous, but everything was OK after adding another half a gallon or so of antifreeze. Don’t forget to run your heater to make sure you get the system full. If the engine runs hot there may have been another pocket of air that burped in which case you need to add more coolant. After the system is full and heated up check the overflow for signs of small bubbling which means your cap is good and your system is full or very close to full. Hopefully at this point you won't have any leaks (after spending a good part of my day outside working on this I consider myself fortunate in that regard). If not, install the plastic splash guard. Drive the vehicle and the next day when the vehicle is cold check the radiator overflow and add more coolant as necessary.

Congratulate yourself on a job well done and the money you saved.



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




Turdle

Lowrider
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
29,586
Reaction score
1,117
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty




cwylie

New Member
Joined
February 22, 2010
Messages
7
Reaction score
0
City, State
Orange County
Year, Model & Trim Level
98 Mountaineer
Thank you!

I jumped into this project a little hastily and only found out about the clips once I tried to pull the radiator out and realized the condenser was attached! Your guide is very helpful! Thank you!:thumbsup::exp:





byron9999

New Member
Joined
March 13, 2013
Messages
3
Reaction score
0
City, State
Bristol PA
Year, Model & Trim Level
2001 Mercury Mountaineer
thank you naneville

thank you _naneville_ for the detailed instruction on 5.0 Explorer/Mountaineer radiator replacement. I have to do mine this morning. 2001 Mountaineer 5.0 v8. ---- My leak was where aluminum core joins to the plastic tank on the passenger side (when pressurized) -it has been ok running around town for a week with cap unscrewed to the first retainer stop to prevent pressurization. Have to replace fan too as it has the cracks.





sman83

Active Member
Joined
November 6, 2006
Messages
66
Reaction score
0
City, State
Reno,NV
Year, Model & Trim Level
1999 Mountaineer
Not So Bad

Just did the radiator and lower/upper radiator hoses, looks like my radiator had been removed once, new clamps and the radiator wasnt set in the lower bottom clip on the driver side.

A lot of people had problems with the clips, when removing I just broke off the clips, I wasn't keeping the old radiator. Made it a quick process taking out. Inserting the radiator back into the clips took some patients, ended up taking 4.5 hours from setup to cleanup, with no issues. I think I got lucky when radiator slide right into the clips, only took 10 minutes or so.
