I ended up using the stock AC compressor on my first gen into an onboard air setup. It pumps really well and i'm happy with whatI came up with. Here is the link to the other tread I started that helped me out a bit http://www.explorerforum.com/forums/showthread.php?t=190436

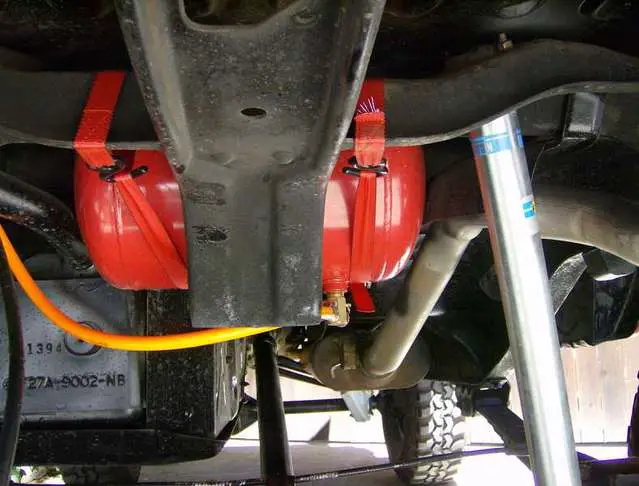

I started out by finding a holding tank. I got mine at Ace hardware and it holds 5 gallons. 5 gallons is kinda big, but I figured bigger is better. I mounted it above my rear axle. Fit perfect and is out of the way of everything.
Next I went back and forth to the hardware store until I could find all the fittings and hardware. Heres a list of things I used.
-one way check valve
-brass T
-small filter
-tool oiler
-pressure switch (85-125psi)
-water/air seperator
-o to three manifold
-150psi pop off valve
-50ft 3/8" air hose
-a ton of hose clamps
-pressure gage
-wire, relay, switch
-and many other little fittings to hook it all together
Once I had all the parts I assembled the manifold so i could figure out were to mount it. By manifold I mean all these parts put together. I did it like this, on the intake side of the compressor it went filter, tool oiler, compressor. On the output side it went check valve, water/air seperator, pressure switch, 1 to 3 manifold, pop off valve, gage, then it goes back to the tank. On a side note the intake is the side that ges to the firewall and the output is the side that goes to the grill.
here are some pics
Once I had the manifold all put together I mounted it with some zip ties behind the drivers side headlight. Then I ran the hoses. One goes to the front bumper and one to the rear.
You can run the hoses however you want. Once I make some bumpers I will mount the disconnects a little different.
Now that everything is all plumed up you must wire in a switch and pressure switch. Starting at the switch on the dash I grounded it, ran a wire to the relay, and one to the power. The relay has a ground also, wire to compressor, wire to power. Ground the other wire on compressor. Put the pressure switch in line with the wire that goes from the compressor to the relay.
Its the switch on the left.
Now test it and go wheelin
any questsions, please ask
