How to Wire Auxiliary Reverse lights that come on in reverse


dogfish246

Member
Joined
November 6, 2013
Messages
76
Reaction score
2
City, State
New Jersey
Year, Model & Trim Level
2002 Ford Ranger V6 4x4
Hey guys,

This video shows you how to wire auxiliary reverse lights so that they come on when you put the truck into reverse. I know wiring scares some people but it really isnt that bad.

Let me know what you think of my setup!




Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




chefduane

Texas Elite Explorer
Elite Explorer
Joined
January 22, 2013
Messages
1,346
Reaction score
74
Location
TEXAS!
City, State
Plano, TX.
Year, Model & Trim Level
None: SOLD 9/16
Nice write-up. My problem is a location to put the lights. I have a tow bar and trying to find someplace to mount lights is a pain.





dogfish246

Member
Joined
November 6, 2013
Messages
76
Reaction score
2
City, State
New Jersey
Year, Model & Trim Level
2002 Ford Ranger V6 4x4
Nice write-up. My problem is a location to put the lights. I have a tow bar and trying to find someplace to mount lights is a pain.
Even with a tow bar, these lights fit where I put them. I am planning on getting a tow bar so that is why I put them where I did.





bnizzel2000

New Member
Joined
August 28, 2014
Messages
29
Reaction score
0
Year, Model & Trim Level
1998 ford explorer
thanks for the great write up i just did mine today and they work great so far ill post ome pics as soon as it gets dark





istroo

Member
Joined
June 18, 2014
Messages
52
Reaction score
0
City, State
Brighton MI
Year, Model & Trim Level
2000 Ford explorer
Great video!

Been thinking about doing the same thing and your video shows how easy it is.
:thumbsup:





bnizzel2000

New Member
Joined
August 28, 2014
Messages
29
Reaction score
0
Year, Model & Trim Level
1998 ford explorer

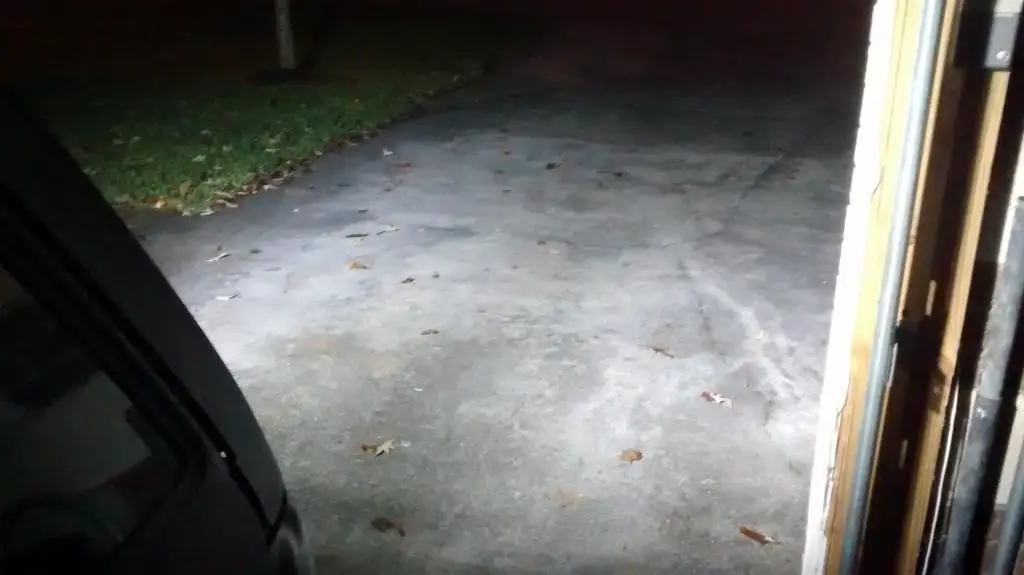

here are a few pics of mine all set up and working these are 5 inch masionte lights










dogfish246

Member
Joined
November 6, 2013
Messages
76
Reaction score
2
City, State
New Jersey
Year, Model & Trim Level
2002 Ford Ranger V6 4x4
Been thinking about doing the same thing and your video shows how easy it is.
:thumbsup:
It really is not bad at all. It was a lot of fun to do and the results are the best part!

here are a few pics of mine all set up and working these are 5 inch masionte lights
Those look awesome! Nice work!





Flash

Well-Known Member
Joined
July 5, 2004
Messages
1,799
Reaction score
3
City, State
Brisbane Australia
Year, Model & Trim Level
1997 Limited
I don't like the mounting position of those lights, wouldn't they hit if you drag your arse out of a ditch?

I've thought of mounting reversing lights on the bolts that go through the hatch glass. I haven't looked too closely at it though.

You could tap the reverse wire on the factory tow loom.

When tapping a wire, I prefer the cut the wire and slip a piece of heat shrink tube on then solder all 3 wire ends together then shrink the tube over the join.
