Rule #1

Do not take apart the cylinder with the balls in it. It will take you several hours to get those backs where they belong.


I did figure out the easy way of putting those ball back in a FJ60 box however.. :rolleyes:


Attachments

  • fj60-box-tapped.jpg
    52.3 KB · Views: 633
  • hydro-axle.jpg
    57.4 KB · Views: 647
  • hydro-box.jpg
    41.6 KB · Views: 617



Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





SVO

Moderator Emeritus/Doctor
Moderator Emeritus
Joined
May 3, 2003
Messages
9,390
Reaction score
46
City, State
Bastrop/Austin, Tx
Year, Model & Trim Level
Turbocharged Navajo LX
More good stuff Tom!! :)











Jeff - :navajo:







james t

Elite Explorer
Moderator Emeritus
Joined
January 27, 2002
Messages
10,666
Reaction score
11
City, State
Texarkana AR/TX
Year, Model & Trim Level
94 SAS sport
Tractor Supply is your friend. :p







tdavis

Linux Guru, Jack of All Trades
Staff member
Admin
Elite Explorer
Joined
January 17, 2000
Messages
6,699
Reaction score
149
City, State
Pinole, CA
Year, Model & Trim Level
2001 F250/XLT Superduty
Callsign
KG6MAX






tdavis

Linux Guru, Jack of All Trades
Staff member
Admin
Elite Explorer
Joined
January 17, 2000
Messages
6,699
Reaction score
149
City, State
Pinole, CA
Year, Model & Trim Level
2001 F250/XLT Superduty
Callsign
KG6MAX

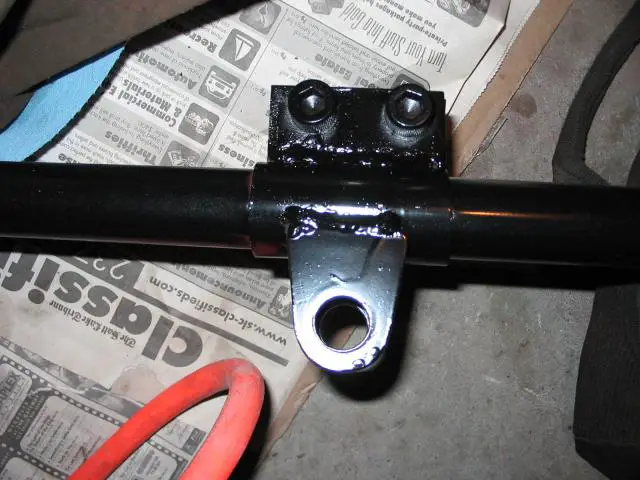

Home made tie rod clamp. tie rod is 1.25" tube, used a chunk of 1.5/.120 wall, sliced it, add bolts.. presto, something to get mad at. :)


Attachments

  • hydro-housing-top.jpg
    37.6 KB · Views: 627
  • hydro-tierod-clamp.jpg
    51.6 KB · Views: 1,533






Positive Vibes

Elite Explorer
Joined
June 18, 2001
Messages
3,950
Reaction score
2
City, State
Santa Cruz, Ca
Year, Model & Trim Level
'94 XLT
I kinda thought that might have something to do with steering.







section525

sextion525
Elite Explorer
Moderator Emeritus
Joined
February 11, 2001
Messages
14,763
Reaction score
29
City, State
Red Bluff, Ca
Year, Model & Trim Level
1975 Ford Bronco 4x4

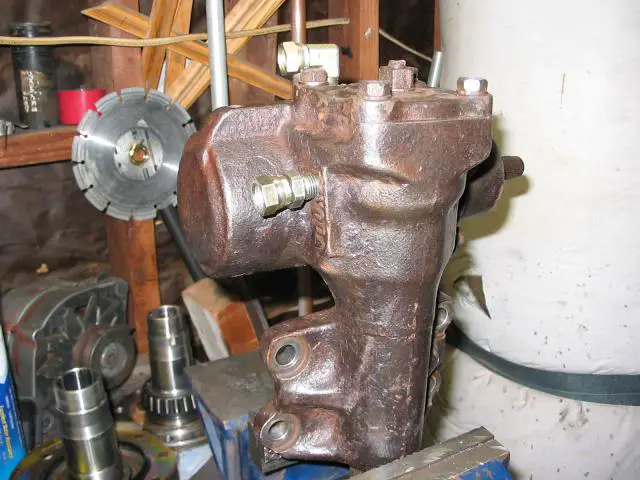

Tom, any tips for tapping the FJ-60 box? Just follow the IFS instructions?

Would a 6" stroke 1.5" bore ram be the best for my app?







tdavis

Linux Guru, Jack of All Trades
Staff member
Admin
Elite Explorer
Joined
January 17, 2000
Messages
6,699
Reaction score
149
City, State
Pinole, CA
Year, Model & Trim Level
2001 F250/XLT Superduty
Callsign
KG6MAX
Tom, any tips for tapping the FJ-60 box? Just follow the IFS instructions?

Would a 6" stroke 1.5" bore ram be the best for my app?

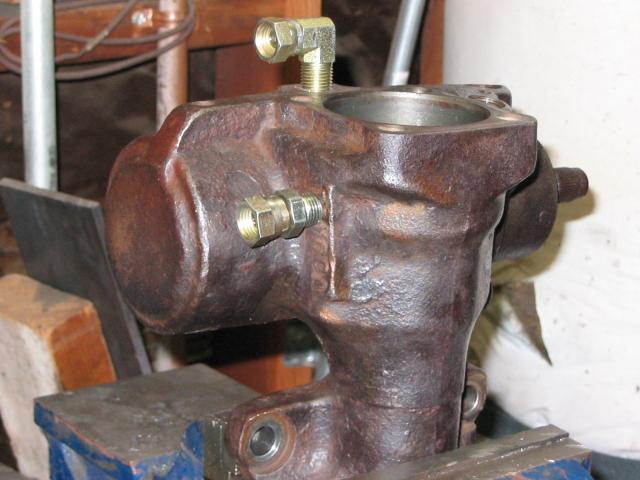

Tapping the FJ60 box is the same as the IFS pickup box. The difference comes in when you connect the lines - they are reversed.

As for ram stroke length, on a d30/d44 knuckle, they have more travel than a toy axle, so 6" may not be enough.

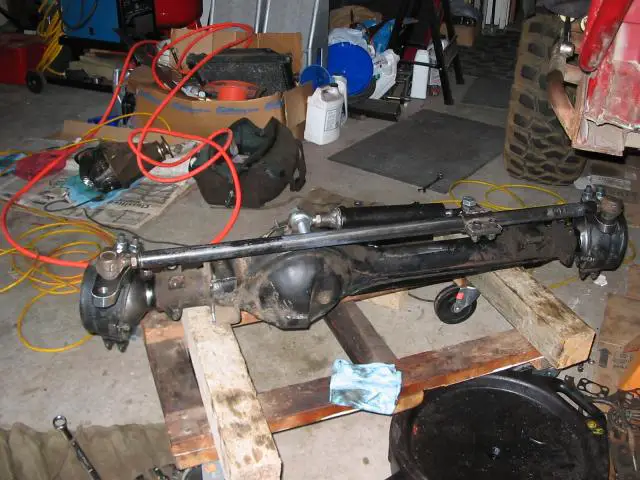

You should measure the amount of stroke needed - jack up the front, turn the wheels all the way to the left, mark the tie rod and housing - move all the way to the right, measure where the mark moved to, and that's your ram stroke length.
