How to: Idle adjustment procedure

2000StreetRod

Staff member
Moderator
Joined
May 26, 2009
Messages
10,600
Reaction score
294
City, State
Greenville, SC
Year, Model & Trim Level
00 Sport FI, 03 Ltd V8
There are several threads on the forum describing the idle adjustment process and the following one is very helpful: Idle Air Control Adjustment

There is also the Ford suggested method that is detailed on the LaSota Racing website. Common Idle Issues/Fixes

Below are the stock idle speeds (RPM) for my 2000 SOHC V6 with strategy CDE4.

Idle speed in Neutral (Park) = 656
Idle speed adder with A/C on in Neutral = 0
Idle speed in Drive = 624
Idle speed adder with A/C on in Drive = 0
MPH for idle control = 0 to 2

Idle speed adder for ECT
ECT +RPM
254 . 544
230 . 544
220 . 120
206 .... 0
142 .... 0
100 . 248
<100 248

Idle speed adder for IAT
IAT +RPM
254 .. 48
200 .. 48
190 .... 0
44 ...... 0
34 .... 32
0 .... 232
<0 .. 232

The IAC valve is an electro-mechanical device that is prone to degradation and failure with age. Performing the procedure described below will allow the engine to continue to idle at a reduced engine speed when the IAC valve is no longer functioning correctly. I suggest that you perform the TPS Test Procedure before performing the procedure below.

Your engine should be in reasonably good tune with no vacuum leaks or other problems that would prevent a steady idle.

It is always a good idea to insure the throttle plate does not stick open or closed.

There is no hexagon or slot on the end of the screw that contacts a stop on the throttle body when the throttle plate is closed. Turning the screw opens or closes the throttle plate slightly and acts as a mechanical idle adjustment. The red arrow in the photo below identifies the idle adjustment screw.

Thread lock is applied to the screw to prevent movement due to vibration. I decided to replace the screw with a socket (Allen) head cap screw M5-.80 x 20 that I purchased from Lowe's. I lubricated the original screw with WD-40 and proceeded to remove the screw by grasping one end with ViseGrips and rotating the screw. This was a very tedious and time consuming process because the very restricted work space limited each turn to about 30 degrees. When the task was finally completed I installed the replacement cap screw using an Allen wrench. I applied WD-40 to the new cap screw instead of thread lock because it was a tight fit and I did not want it to break!

The vehicle tachometer is not very accurate so I used my X3 Power Flash in the monitor mode to read rpm, desired_idle_rpm, and coolant_temp (engine coolant temperature). I observed that as the coolant_temp increased the desired_idle_rpm decreased gradually to 736 rpm and rpm decreased to 750 rpm with the transmission in Park and the air conditioner compressor not engaged. I experimented with the idle adjustment and the IAC valve connector and learned that the IAC valve controlled idle speed was approximately 200 rpm greater than the idle speed with the IAC valve electrical connector disconnected. I also noticed that actual rpm was approximately 20 rpm greater than desired_idle_rpm. I believe that Ford suggests for a stock engine to adjust the idle speed to 500 rpm with the IAC valve disconnected. Many engine performance modifications detract from a low speed smooth idle. In my case, 550 rpm was much smoother than 500 rpm and resulted in a 750 rpm IAC valve controlled idle. I do not recommend an IAC valve controlled idle speed greater than 850 rpm for vehicles with an automatic transmission. More than that will increase brake wear and transmission fluid temperature and decrease fuel economy. When I selected Drive from Park, the desired_idle_rpm slowly decreased from 736 rpm to 688 rpm. When I switched on the air conditioner the desired_idle_rpm increased.

My revised version of the Ford procedure is as follows:

1) If you have a stock tune use the information above to determine the PCM desired idle speed. If you have a custom tune get the information from your tuner. If you have a custom tune and don't know the value you can read the parameter with a scanner or data logger. This will be your target idle rpm. You do not want the throttle stop adjustment to conflict with the PCM controlled IAC valve.

2) Start the engine and wait for the engine coolant temperature to reach normal operating temperature as indicated on the instrument panel or by OBD monitor. This will take several minutes or longer if a cold start.

3) Disconnect the IAC valve electrical connector. If the engine stops, turn the throttle-stop screw in one full turn, reconnect the IAC valve electrical connector and restart the engine.

4) Repeat step 3 above until the engine continues to run when the IAC valve electrical connector is disconnected.

5) Turn the throttle stop screw to adjust the idle speed to the target rpm minus 200 rpm.

6) Reconnect the IAC valve electrical connector. The engine speed will briefly flare and then settle. Compare the idle rpm to the target rpm. If satisfactory proceed to step 7. Otherwise, disconnect the IAC valve electrical connector, adjust screw accordingly, then reconnect connector and recompare.

7) Turn the ignition Off.

8) Disconnect the negative terminal of the battery cable from the battery. Turn the headlight switch On for 3 minutes then Off and reconnect the battery. This clears stored idle settings and fuel trims.

9) Start the engine and observe the idle speed in Park and in Drive. If satisfactory be comfortable knowing that in the future should the IAC valve fail, the engine will continue to idle but at a lower rpm. If unsatisfactory, disconnect the IAC valve electrical connector, adjust the throttle stop screw as desired and return to step 6.

Notes:

The PCM determines when the engine is at idle by measuring the TPS value when the ignition is switched on and storing it in non-volatile memory. The PCM assumes that the accelerator will not be depressed when switching on the ignition. The PCM periodically checks for a lower TPS value and if one is observed stores that as an updated idle value.

When vehicle speed exceeds 2 MPH (stock tune) and throttle plate is closed PCM will be in dashpot mode instead of idle speed control.

If the brake pedal position switch (BPPS) is not functional the PCM will not unlock the torque converter when the vehicle is stopped and the engine will likely stall.





Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





explorerguy89

Well-Known Member
Joined
November 12, 2009
Messages
976
Reaction score
4
City, State
West Berlin, NJ
Year, Model & Trim Level
1994 sas sport
nice guide =] very helpful







Nataliator

Member
Joined
February 8, 2010
Messages
12
Reaction score
0
City, State
Philly, PA
Year, Model & Trim Level
'97 Sport
Did this, worked like a charm, thanks alot!







dragon6970

New Member
Joined
November 18, 2010
Messages
1
Reaction score
0
City, State
sanfrancisco
Year, Model & Trim Level
1986 eddie bower
hey can some one help me i have 1986 bronco 11 when i step on the gas my rpms go away then come back any tips







silv86

Member
Joined
December 10, 2011
Messages
12
Reaction score
0
City, State
Pittsburg, KS
Year, Model & Trim Level
01 Mountaineer 5.0 AWD
I have a 01 mounty 5.0 that when the IAC valve is unplugged does nothing. Any suggestions? I am experiencing the high idle problems...







barbaroja

Active Member
Joined
August 26, 2011
Messages
64
Reaction score
9
Year, Model & Trim Level
1998 Ford Explorer Sport
I thought the IAC was supposed to be fully closed when coolant temp reached operating temperature.
If you suspect of a bad IAC, I would phisycally remove the valve and close the holes to avoid the vacumm leak. Then adjust the screw till it runs stable 700RPMs.

Am I wrong in the IAC operation issue? If the rpms rise as the IAC is connected, that would mean the IAC is not fully closed when in operating temp.

Pleas someone give light. Thanks.







2000StreetRod

Staff member
Moderator
Joined
May 26, 2009
Messages
10,600
Reaction score
294
City, State
Greenville, SC
Year, Model & Trim Level
00 Sport FI, 03 Ltd V8
commanded idle speed

I'm not sure about this but I think the PCM reads the idle speed as reported by the crankshaft position sensor and compares that to a desired idle speed table indexed by engine temperature, inlet air temperature, transmission engaged or not and A/C compressor on or off. It then adjusts the commanded idle speed up or down to achieve the desired speed. If the IAC valve was fully closed then the PCM would not be able to lower the engine speed as needed. However, it probably approaches being closed on a very hot day with the engine hot, the transmission in Neutral/Park, and the A/C compressor off.







barbaroja

Active Member
Joined
August 26, 2011
Messages
64
Reaction score
9
Year, Model & Trim Level
1998 Ford Explorer Sport
Ok that makes sense. Upon further research, the recommended 500 rpm with the iac disconnected makes sense. Those 200 rpms are whats left for the PCM to control it. Yesterday I checked my IAC. I am almost sure its bad. However I thought it was a stepper motor, and the steppers I know have 2the coils; this IAC in my 98 sport has only two connectors. I measured it under operation and got qwvokts when I first turned the car switch on. So I am gessing a regular solenoid there.







Bookie

New Member
Joined
December 24, 2011
Messages
1
Reaction score
0
City, State
Magee, Ms.
Year, Model & Trim Level
2005 Ford Explorer RSC
Hello not sure if this is the correct place to post but in need of some serious help. I have been reading for days on here. I have an 05 explorer xlt 4.0l sohc. I was driving it and it started acting like it was getting no gas. All the way to floor would only go about 5 MPH. Codes where 2104 and 2112. Changes Tps. Changed. Plugs and wires. Idle is best ever till you touch. Gas or it sits running for a minute. Now there are 8 codes. P0122, p0223, p2100, p2104,, p2110,, p2111,, p2195. Any help would be such a blessing. Do not have money to take back to Ford again. Sorry if some of the text is crazy trying to post with phone. Thanks in advance and all have a blessed day. Love this site.







2000StreetRod

Staff member
Moderator
Joined
May 26, 2009
Messages
10,600
Reaction score
294
City, State
Greenville, SC
Year, Model & Trim Level
00 Sport FI, 03 Ltd V8
throttle actuator control

P0122 Ford TP Sensor Circuit Low Input
P2100 Ford Throttle Actuator Control Motor Circuit/Open
P2104 Ford Throttle Actuator Control System - Forced Idle
P2110 Ford Throttle Actuator Control Motor Processor
P2111 Ford Throttle Actuator Control System - Stuck Open
P2112 Ford Throttle Actuator Control System - Stuck Closed
P2195 Ford Lack of HO2S-11 Switching, Sensor Indicates Lean

I'm not familiar with the 3rd generation but I think it uses electronic throttle control. From the codes you probably have a problem with the wiring to the actuator motor or the motor itself.







Flash

Explorer Addict
Joined
July 5, 2004
Messages
1,799
Reaction score
5
City, State
Brisbane Australia
Year, Model & Trim Level
1997 Limited
hey can some one help me i have 1986 bronco 11 when i step on the gas my rpms go away then come back any tips

Are you still looking for answer to this problem?

It could be an air leak in a vacuum hose somewhere causing a lean condition when you apply the throttle or it could be too much base timing causing a huge misfire.
The 2nd problem often doesn't cause a backfire but the power will come back with a rush.







Timmcnamee

New Member
Joined
June 2, 2013
Messages
9
Reaction score
0
City, State
St. Charles,MO
Year, Model & Trim Level
1999 explorer
I wanted to get my SOHC idle adjusted correctly prior to James Henson making any idle related corrections to my custom tune. There are several threads on the forum describing the process and the following one is very helpful:Idle Air Control Adjustment

There is also the Ford suggested method that is detailed on the LaSota Racing website. Common Idle Issues/Fixes


Background

The IAC valve is an electro-mechanical device that is prone to degradation and failure with age. Performing the procedure described below will allow the engine to continue to idle at a reduced engine speed when the IAC valve is no longer functioning correctly. I suggest that you perform the TPS Test Procedure before performing the procedure below.

Your engine should be in reasonably good tune with no vacuum leaks or other problems that would prevent a steady idle.

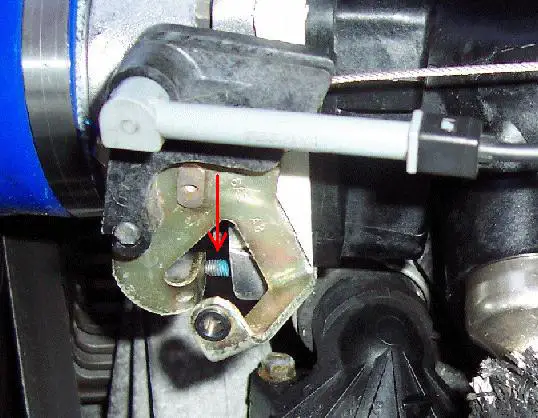

There is no hexagon or slot on the end of the screw that contacts a stop on the throttle body when the throttle plate is closed. Turning the screw opens or closes the throttle plate slightly and acts as a mechanical idle adjustment. The red arrow in the photo below identifies the idle adjustment screw.
View attachment 57300
Thread lock is applied to the screw to prevent movement due to vibration. I decided to replace the screw with a socket (Allen) head cap screw M5-.80 x 20 that I purchased from Lowe's. I lubricated the original screw with WD-40 and proceeded to remove the screw by grasping one end with ViseGrips and rotating the screw. This was a very tedious and time consuming process because the very restricted work space limited each turn to about 30 degrees. When the task was finally completed I installed the replacement cap screw using an Allen wrench. I applied WD-40 to the new cap screw instead of thread lock because it was a tight fit and I did not want it to break!

The vehicle tachometer is not very accurate so I used my X3 Power Flash in the monitor mode to read rpm, desired_idle_rpm, and coolant_temp (engine coolant temperature). I observed that as the coolant_temp increased the desired_idle_rpm decreased gradually to 736 rpm and rpm decreased to 750 rpm with the transmission in Park and the air conditioner compressor not engaged. I experimented with the idle adjustment and the IAC valve connector and learned that the IAC valve controlled idle speed was approximately 200 rpm greater than the idle speed with the IAC valve electrical connector disconnected. I also noticed that actual rpm was approximately 20 rpm greater than desired_idle_rpm. I believe that Ford suggests for a stock engine to adjust the idle speed to 500 rpm with the IAC valve disconnected. Many engine performance modifications detract from a low speed smooth idle. In my case, 550 rpm was much smoother than 500 rpm and resulted in a 750 rpm IAC valve controlled idle. I do not recommend an IAC valve controlled idle speed greater than 850 rpm for vehicles with an automatic transmission. More than that will increase brake wear and transmission fluid temperature and decrease fuel economy. When I selected Drive from Park, the desired_idle_rpm slowly decreased from 736 rpm to 688 rpm. When I switched on the air conditioner the desired_idle_rpm increased.

My revised version of the Ford procedure is as follows:

1) Determine the PCM desired idle speed. Often your tuner will know. If it's not tuned and you don’t have a scanner or data logger to read the parameter then assume 700 rpm. This will be your target idle rpm. You do not want the throttle stop adjustment to conflict with the PCM controlled IAC valve.

2) Start the engine and wait for the engine coolant temperature to reach normal operating temperature as indicated on the instrument panel or by OBD monitor. This will take several minutes or longer if a cold start.

3) Disconnect the IAC valve electrical connector. If the engine stops, turn the throttle-stop screw in one full turn, reconnect the IAC valve electrical connector and restart the engine.

4) Repeat step 3 above until the engine continues to run when the IAC valve electrical connector is disconnected.

5) Turn the throttle stop screw to adjust the idle speed to the target rpm minus 200 rpm.

6) Reconnect the IAC valve electrical connector. The engine speed will briefly flare and then settle. Compare the idle rpm to the target rpm. If satisfactory proceed to step 7. Otherwise, disconnect the IAC valve electrical connector, adjust screw accordingly, then reconnect connector and recompare.

7) Turn the ignition Off.

8) Disconnect the negative terminal of the battery cable from the battery. Turn the headlight switch On for 3 minutes then Off and reconnect the battery. This clears stored idle settings and fuel trims.

9) Start the engine and observe the idle speed in Park and in Drive. If satisfactory be comfortable knowing that in the future should the IAC valve fail, the engine will continue to idle but at a lower rpm. If unsatisfactory, disconnect the IAC valve electrical connector, adjust the throttle stop screw as desired and return to step 6.

Great write-up. Will this procedure make permanent adjustments to the idle? I got my idle just right using the adjustment screw and then shut it off, turned it back on and it just dropped to the low idle again....







TestPoint

Well-Known Member
Joined
August 21, 2009
Messages
395
Reaction score
5
City, State
Ellijay
Year, Model & Trim Level
'00 5.0 in an '82 Volvo
'00 302 Explorer 4R70W in an old Volvo. Engine/trans only have abour 11k miles so while old they are not worn out. The only thing that has needed replacing after its 12 year nap in storage has been the injectors. After that everything has run great.

My idle is too high in drive stopped to the point of vibrating. Disconnecting the IAC drops the rpm's about 200 to about 650 - 700 on the tach. Idles perfectly at that. My OBD II reader displays 816 rpm's with or without the IAC so that is an entirely different issue. I have another one and will check with that shortly.

Took the IAC off and cleaned with brake cleaner but it wasn't dirty. No obvious air leaks, no lean codes, LTFT 0.00% with new O2 sensors and about a hundred miles since reset. STFT bouncing around +9% at idle which would seem reasonable.

Is software idle adjustment the next thing?







2000StreetRod

Staff member
Moderator
Joined
May 26, 2009
Messages
10,600
Reaction score
294
City, State
Greenville, SC
Year, Model & Trim Level
00 Sport FI, 03 Ltd V8
commanded idle speed?

My X3 had a default program loaded in it for some type of Ford (I can't remember which one). One of the monitor parameters was commanded idle speed and another was engine speed. You may want to see what's being commanded. As I recall there are different idle speeds for Park/Neutral, other transmission selections, and A/C compressor on/off. The PCM computes a delta between commanded and actual and then factors the delta into the new commanded. It saves the delta in keep alive memory. Since your idle speed drops when you disconnect the IAC valve connector I assume that the engine is being commanded to the higher speed. If the PCM is reading the correct engine speed then your only option is a software modification of the commanded values.







TestPoint

Well-Known Member
Joined
August 21, 2009
Messages
395
Reaction score
5
City, State
Ellijay
Year, Model & Trim Level
'00 5.0 in an '82 Volvo
Since you mention A/C I am trying to stretch my little brain around the fact that the PCM is not going to know the status of the A/C as it will be controlled by the 32 year old Volvo controls. The PCM will know rpm, calculate engine load and transmission status and set the IAC accordingly. I think I would make the assumption that those inputs would cause the PCM to attempt to maintain its commanded rpm level without A/C input.

I am going to visit James in Hueytown shortly to address several issues and we will add idle rpm to the list.







2000StreetRod

Staff member
Moderator
Joined
May 26, 2009
Messages
10,600
Reaction score
294
City, State
Greenville, SC
Year, Model & Trim Level
00 Sport FI, 03 Ltd V8
HVAC function selector switch

The PCM monitors the status of the A/C clutch cycling pressure switch which is in series with the A/C pressure cutoff switch. If the pressure is less than 260 psi the cutoff switch is closed enabling a path to ground. The A/C clutch cycling pressure switch is closed when the pressure is greater than 43.5 psi and open when the pressure is less than 24.5 psi. The PCM reads the switch to adjust the transmission EPC pressure. The PCM also reads via Pin 41 the HVAC function selector switch. If battery voltage is present the PCM assumes the selector is in the MAX A/C, NORM A/C, DEFROST, or DEF/FLR position and activates the A/C compressor via the A/C relay except during WOT. If pin 41 is floating then the A/C compressor is not engaged. What do you have connected to pin 41?







TestPoint

Well-Known Member
Joined
August 21, 2009
Messages
395
Reaction score
5
City, State
Ellijay
Year, Model & Trim Level
'00 5.0 in an '82 Volvo
Nothing.

The Volvo system manages the compressor based on a temp sensitive contact closure located in the evaporator enclosure. I spliced the Volvo system into the the Ford compressor connector just like the the original operation. Saw no reason to involve the PCM.

Great info that can be applied to other cars.







albeegood

Member
Joined
August 27, 2014
Messages
38
Reaction score
0
City, State
New Jersey
Year, Model & Trim Level
98 Explorer Sport 4x4
im gonna try it now ill lat yall know what happens in a few. thx for this info







Ck111484

Member
Joined
March 15, 2015
Messages
31
Reaction score
0
Year, Model & Trim Level
2002 Explorer
So does my 2002 Explorer V6 SOHC have an IAC, or no?
