How to: Interior Dome Light LED Conversion (PICs)

Here Is how to convert your dome lights from light bulbs to LEDs.

Starting with the Driver and Front Pax

What you will need

20 LEDs 55,000mcd
20 Resistors to bring the voltage down from 12volts to what your LEDs are rated at. Mine were 3.6v
Radio Shack Project board

First cut 2 pieces of the project board to 1.35" X1.35"


Then arrange your LEDs on the board the way you want them. I used 10 on each board, 6 as spot lights and 4 on the corners as floods (grind the tips flat on the 4). Solder a resistor to each + lead of each LED and wire all the - leads together. Use Hot glue to attach each LED.


Use clear nail polish to refinish the 4 ground down LEDs.


Test


Now disassemble the over head console and remove the 2 bulb holders


Remove the metal shrouds from each of the bulb holders.


Attach each board to the bulb holders using a Zip Tie, then use hot glue of silicone on the back to bond the board to the bulb holder


Wire the 2 boards to the corresponding light switch on the console and snap on the cover.



2nd row seats

I used 8 LEDs for this

Cut 2 pieces of project board .84"x.84"


Arrange your LEDs and solder away.


I used the - leads on the LEDs to hold the 2 boards together since the dome light reflector is in a pyramid shape and has to be bent in the center.


Hot glue the board in.


Done



Cargo Area

I used 12 LEDs here

After removing the Unit from the headliner you need to gut out the metal contacts that were used for holding the bulb. Then Cut a piece of project board to fit inside the housing. Arrange you the LEDs and solder away.


Here is what the back looks like on the boards with the - leads soldered together.


Use hot glue to glue the board into the housing, and coat back of the board with glue or silicone to insulate.


Done


Will get pics when it gets dark out

Good Luck



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




patman

Well-Known Member
Joined
March 26, 2008
Messages
315
Reaction score
0
City, State
lincoln NE
Year, Model & Trim Level
'96 sport
p51.....i think you have an led obsession...do we need to arrange an intervention??? ha ha





MustangP51

Explorer Addict
Joined
January 16, 2005
Messages
1,385
Reaction score
2
City, State
Connecticut
Year, Model & Trim Level
2009 Limited V8
p51.....i think you have an led obsession...do we need to arrange an intervention??? ha ha

Haha, I believe you are right my friend. :help:





patman

Well-Known Member
Joined
March 26, 2008
Messages
315
Reaction score
0
City, State
lincoln NE
Year, Model & Trim Level
'96 sport
is the farthest back "cargo light" only a xlt thing or is it only a certain year model thing? because my 96 sport doesn't have the cargo light it's got the rear light and the front one but not the third "cargo light" that yours does





Uafan

Well-Known Member
Joined
January 22, 2008
Messages
524
Reaction score
0
City, State
Whippany, New Jersey
Year, Model & Trim Level
2004 XLS
This is such a perfect write-up. Great job.









vroomzoomboom

Elite Canuck STOCK SUCKS!
Elite Explorer
Joined
January 22, 2007
Messages
9,796
Reaction score
1,066
City, State
selkirk, manitoba
Year, Model & Trim Level
98 supercharged 347 sport
is the farthest back "cargo light" only a xlt thing or is it only a certain year model thing? because my 96 sport doesn't have the cargo light it's got the rear light and the front one but not the third "cargo light" that yours does

it should, my 98 sport has it. i think i may have to do this once i am done painting my truck..... even if i told everyone no more mods after i paint it :nono:









MustangP51

Explorer Addict
Joined
January 16, 2005
Messages
1,385
Reaction score
2
City, State
Connecticut
Year, Model & Trim Level
2009 Limited V8
How's the light output compared to the regular bulbs?

The front seats are almost too bright, 10 LEDs on each board was overkill, I say you really only need to use 6 on each board. Its at least 5x as bright as the stock bulbs. The 2nd row is 2x as bright, its perfect, and the cargo light is also id say 3x as bright. I tried to get a pic last night but I need to get my tripod when I go home.













Sandy

Explorer Addict
Joined
March 4, 1999
Messages
1,411
Reaction score
0
City, State
Boston Area
Year, Model & Trim Level
2003 Ranger Edge
P51,

Nice !

Good write up, material list and all, nice work.

I've worked electronics most of my life and always hated ppicking out LEDs, you solved that.

Thanks for the effort.





MustangP51

Explorer Addict
Joined
January 16, 2005
Messages
1,385
Reaction score
2
City, State
Connecticut
Year, Model & Trim Level
2009 Limited V8

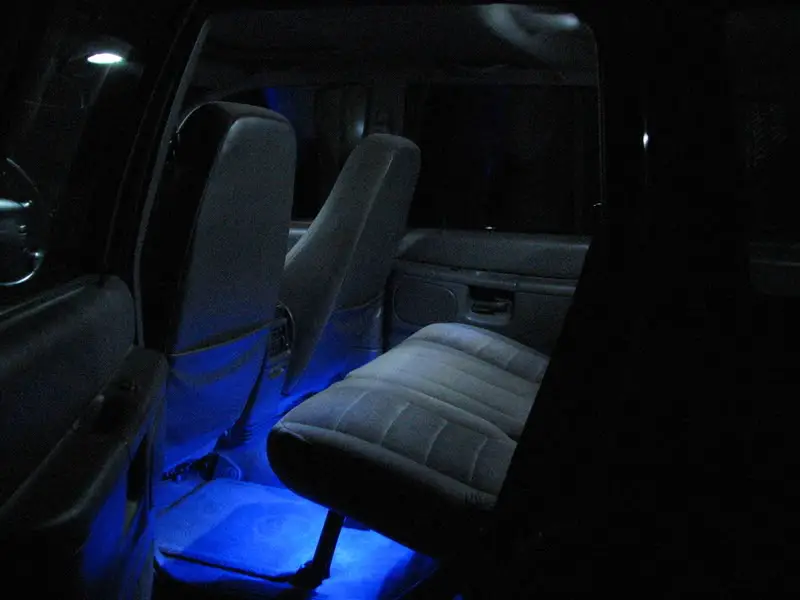

Night Pictures

Here is what they look like at night.

Like I said the front lights are a little too bright


2nd row


cargo





Sandy

Explorer Addict
Joined
March 4, 1999
Messages
1,411
Reaction score
0
City, State
Boston Area
Year, Model & Trim Level
2003 Ranger Edge
Again NICE !

You must have read my mind I was going to ask you for night time pics.

Thanks,





corkey

Moderator Emeritus
Moderator Emeritus
Joined
January 3, 2008
Messages
6,007
Reaction score
48
Location
Sioux Narrows Canada
City, State
Elite Canuck,multiple ifs offender,, and musky maniac,, i wheel and i fish,,
Year, Model & Trim Level
99 xls,96 xl,91,08 Ranger
they look great ,what a great job, , i agree the fronts appear a bit bright, but that can be okay too, unless you need the night vision afterwards,,,,,,,,,,,,





MustangP51

Explorer Addict
Joined
January 16, 2005
Messages
1,385
Reaction score
2
City, State
Connecticut
Year, Model & Trim Level
2009 Limited V8
Was searching for some LEDs to put in my overhead console and came across these...

Those look like they will fit you might have to hard wire them in though because the board has to be mounted to the bulb holder, which will not allow the connector to plug into the 194 socket.





Blue_Oval_Ford

Well-Known Member
Joined
July 11, 2004
Messages
149
Reaction score
0
City, State
California
Year, Model & Trim Level
1997 Explorer Sport 4X4
Those look like they will fit you might have to hard wire them in though because the board has to be mounted to the bulb holder, which will not allow the connector to plug into the 194 socket.


That sould not be a problem since I melted the black plastic holder when I replaced it with what was suppose to be the correct bulb. It ended up getting to hot and melted the holder so know the connector fits to loose causing connection problems. Ford caries the holder, but they want $70 for it.





Blacksheep Josh

Slinky+Escalator=Fun
Joined
July 31, 2006
Messages
3,676
Reaction score
12
City, State
Statesboro, GA
Year, Model & Trim Level
'01 Ford Ranger, RIP 93 X
Wow, those things are BRIGHT. I'm guessing that if you were to say grind the tip flat on all of them, you'd have a wider dispersal of light isntead of the bright spot on the seats?







Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




MustangP51

Explorer Addict
Joined
January 16, 2005
Messages
1,385
Reaction score
2
City, State
Connecticut
Year, Model & Trim Level
2009 Limited V8
Wow, those things are BRIGHT. I'm guessing that if you were to say grind the tip flat on all of them, you'd have a wider dispersal of light isntead of the bright spot on the seats?

I really don't know if it would change much, I think the best method would be to use less LEDs, like shortstack said the defuser does spread the light out, it just cant do it as well as it did with the bulbs with the onslaught of light coming from the LEDs.
