How to: Interior Dome Light LED Conversion (PICs)

Here Is how to convert your dome lights from light bulbs to LEDs.

Starting with the Driver and Front Pax

What you will need

20 LEDs 55,000mcd
20 Resistors to bring the voltage down from 12volts to what your LEDs are rated at. Mine were 3.6v
Radio Shack Project board

First cut 2 pieces of the project board to 1.35" X1.35"


Then arrange your LEDs on the board the way you want them. I used 10 on each board, 6 as spot lights and 4 on the corners as floods (grind the tips flat on the 4). Solder a resistor to each + lead of each LED and wire all the - leads together. Use Hot glue to attach each LED.


Use clear nail polish to refinish the 4 ground down LEDs.


Test


Now disassemble the over head console and remove the 2 bulb holders


Remove the metal shrouds from each of the bulb holders.


Attach each board to the bulb holders using a Zip Tie, then use hot glue of silicone on the back to bond the board to the bulb holder


Wire the 2 boards to the corresponding light switch on the console and snap on the cover.



2nd row seats

I used 8 LEDs for this

Cut 2 pieces of project board .84"x.84"


Arrange your LEDs and solder away.


I used the - leads on the LEDs to hold the 2 boards together since the dome light reflector is in a pyramid shape and has to be bent in the center.


Hot glue the board in.


Done



Cargo Area

I used 12 LEDs here

After removing the Unit from the headliner you need to gut out the metal contacts that were used for holding the bulb. Then Cut a piece of project board to fit inside the housing. Arrange you the LEDs and solder away.


Here is what the back looks like on the boards with the - leads soldered together.


Use hot glue to glue the board into the housing, and coat back of the board with glue or silicone to insulate.


Done


Will get pics when it gets dark out

Good Luck



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




FL.Cracker

Active Member
Joined
November 19, 2010
Messages
66
Reaction score
0
City, State
Orlando, Florida
Year, Model & Trim Level
'94 Sport 4x4
You guys should use a driver to power the led's to avoid over driving them and it will allow you to adjust the intensity. All you need is an LM317T from radioshack wired like this http://www.rog8811.com/laserdriver.htm Never mind the voltage figures they are specific for the application of particular laser diodes. The LM317t is capable of 30v+ and can easily handle regulating led's from a 12v+ input.

You do not need the capacitor and 1N4001 diode (reverse polarity protection) for this application. Simply take your 12v+ connect it to the IN on the chip. Then solder either a resistor, potentiometer or combo of the two between the out and adj. pins to set the amount of current that will be delivered to the led's. Then solder (or wire) the adj. pin to the led's + IN. Finally solder you - (ground) connection to the - IN of your led's.

You will need to wire the led's in parallel (+ to + and - to-) so that your current requirements increase but your forward voltage stays the same. you can use just about as many led's as you want the LM317T is capable of delivering up to 1.5amps and at most the average led only requires 15-25ma.

If your not going to use a potentiometer (25ohm pot should work fine) to adjust the output and your using a fixed resistor to save space or whatever you can calculate the output as follows:
LM317T ref. voltage=1.25v
Formula- ref. v. divided by the resistance = current output

So for one average led (say 20ma) do, 1.25v/60ohms=20.8ma
to drive 1 led @ 20ma use about a 60 ohm resistor.

So to drive say 10 led's @ 20.8ma each you would use a 6 ohm resistor for a total of 208ma.


If you are using a pot then just make sure to have it set to full resistance prior to powering. Then apply power, the output of led's should be very dim, slowly increase current by turning the pot and lowering the resistance until the desired output is achieved.

This really is the proper way to power an led, they are NOT like conventional bulbs and WILL die (or show signs of degrading ie. dimming) if they are over driven. I use these chips to power my very expensive (upward of $200 ea.) laser diodes and I can say that they are VERY reliable.

Give it a try! Let me know what you think.



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




OneLever

Well-Known Member
Joined
June 26, 2010
Messages
776
Reaction score
3
Year, Model & Trim Level
97 Mt. 5.0L AWD
Thanks for the tip FL.Cracker. I've been using this +5 VDC from Radio Shack to drive my led arrays. I brought up this point in post #10 of this thread as well.

The point was made that this type of regulator was inefficient because all the excess voltage is shunted off as waste heat. However, I never got an explanation as to why waste heat from a voltage regulator should be considered worse than waste heat from a resistor.

Given the 2 V variance (12.4-14.4 V) of the electrical system on our vehicles I decided it was necessary to have a regulator in place. In addition, I use 0.25 A fast acting fuses, and high peak inverse voltage diodes in series with every led array. To catch any shorts that may occur, and to protect from the back EMF of the stock relay coils respectively. Any more wisdom you could share on these matters would be appreciated.

I would also like to thank MustangP51 for giving such a good walk through on this modification so long ago.





FL.Cracker

Active Member
Joined
November 19, 2010
Messages
66
Reaction score
0
City, State
Orlando, Florida
Year, Model & Trim Level
'94 Sport 4x4
Its much better to have an IC getting hot versus a resistor, resistors don't have thermal shut down protection like the LM317t does. It may get quite hot but a resistor will catch fire while the ic will shut off.

It is important to note that you want to control current NOT voltage. I know that on the package the LM317t comes in it says "voltage regulator" but the chip can also be used as a current regulator in the previously mentioned configuration.

The waste heat is generated by the voltage difference between what the LM317t (or whatever ic you choose) sees and the forward voltage of the led's. For example if the forward v. (requred voltage to operate) of the led's is 3.5v and your ic is getting 12-14v minus the 3v drop of the ic itself leaves you with 5.5-7.5v that will be "sinked" (converted to heat) by the ic.

So your left with a few options.
1. Put a small aluminum or copper heat sink on the back of the chip.
2. Run the led's in series-parallel, meaning create a lower voltage difference by running two in series, connected parallel to another set of two in series like this:
this brings the voltage difference down to about 2-4v producing much less heat.
3. Use one LM317t in voltage regulation mode to bring the voltage down, then a second LM317T to control current.

I will try to do a short video soon showing the simplicity of this setup as well as temperature readings @ 12.5v and 14.5v in.





AJizzle

New Member
Joined
April 3, 2011
Messages
3
Reaction score
0
City, State
Orlando, Fl
Year, Model & Trim Level
99 XLT
I know that I'm a little late to the party, but I'm starting this project this week. I just have one question to all that have done this so far, How in the world do you actually connect the cargo light?? I have a 99 exp that used a 211-2 bulb and now a positive and negative wire?! What now??





blankskater1

Member
Joined
August 16, 2009
Messages
43
Reaction score
0
City, State
269
Year, Model & Trim Level
2010 Sportback Ralliart
I dont know if anyone has said or done this yet, but the SMD 194 bulb fits in the middle dome light on the left and right sides. (The sides run by the switches). And the look great in there. Just a heads up so you can have a full LED dome light system.

And thanks for posting this, it turned out great. No problems at all!





FIND

Explorer Addict
Joined
December 27, 2009
Messages
3,863
Reaction score
11
City, State
Vermillion, SD
Year, Model & Trim Level
99 XLT V8 AWD
Yeah, we all know about the plug and play LEDs. The point of doing it this way is that plug and play LEDs are junk.





blankskater1

Member
Joined
August 16, 2009
Messages
43
Reaction score
0
City, State
269
Year, Model & Trim Level
2010 Sportback Ralliart
Yeah, we all know about the plug and play LEDs. The point of doing it this way is that plug and play LEDs are junk.

I agree, I made my own for both fronts (left and right), the middle and the rear dome lights.

But this doesnt show how to do the middle left and right, so I used some extra SMD 194s from the cluster to fit in those spots and they look great.

Was just letting people know they fit because I wanted all my lights to be LED.





MustangP51

Explorer Addict
Joined
January 16, 2005
Messages
1,385
Reaction score
2
City, State
Connecticut
Year, Model & Trim Level
2009 Limited V8
I agree, I made my own for both fronts (left and right), the middle and the rear dome lights.

But this doesnt show how to do the middle left and right, so I used some extra SMD 194s from the cluster to fit in those spots and they look great.

Was just letting people know they fit because I wanted all my lights to be LED.

I agree it looks great when they are all LEDs, but I got tired of the b**ching about the light being bad for putting on makeup in the car...:help:... so the visor mirror lights and spot lights were changed back to incandescent bulbs. Dome lights reamin LEDs.

Just something you may want to know, that never in a million years dawned on me when originally did the project.





blankskater1

Member
Joined
August 16, 2009
Messages
43
Reaction score
0
City, State
269
Year, Model & Trim Level
2010 Sportback Ralliart
I agree it looks great when they are all LEDs, but I got tired of the b**ching about the light being bad for putting on makeup in the car...:help:... so the visor mirror lights and spot lights were changed back to incandescent bulbs. Dome lights reamin LEDs.

Just something you may want to know, that never in a million years dawned on me when originally did the project.

I think the spot lights are brighter as LED...I didnt even think about the visor lights.

But these are great write ups man. Thanks again!









MustangP51

Explorer Addict
Joined
January 16, 2005
Messages
1,385
Reaction score
2
City, State
Connecticut
Year, Model & Trim Level
2009 Limited V8
I think the spot lights are brighter as LED...I didnt even think about the visor lights.

But these are great write ups man. Thanks again!

The LEDs were brighter, but apparently it just wasn't the right color, somehow the difference between 4100k and 4300k is too drastic of a difference to her. :crazy:





combatmedic10

New Member
Joined
August 2, 2012
Messages
5
Reaction score
0
City, State
Roseburg, OR
Year, Model & Trim Level
2003 Sport Trac
Not sure if the poster is still part of the group but how do you wire these in, you dont show a great pic of them actually wired in, would like to know how it is done.





MustangP51

Explorer Addict
Joined
January 16, 2005
Messages
1,385
Reaction score
2
City, State
Connecticut
Year, Model & Trim Level
2009 Limited V8
Not sure if the poster is still part of the group but how do you wire these in, you dont show a great pic of them actually wired in, would like to know how it is done.

Front: Soldered into wiring harness

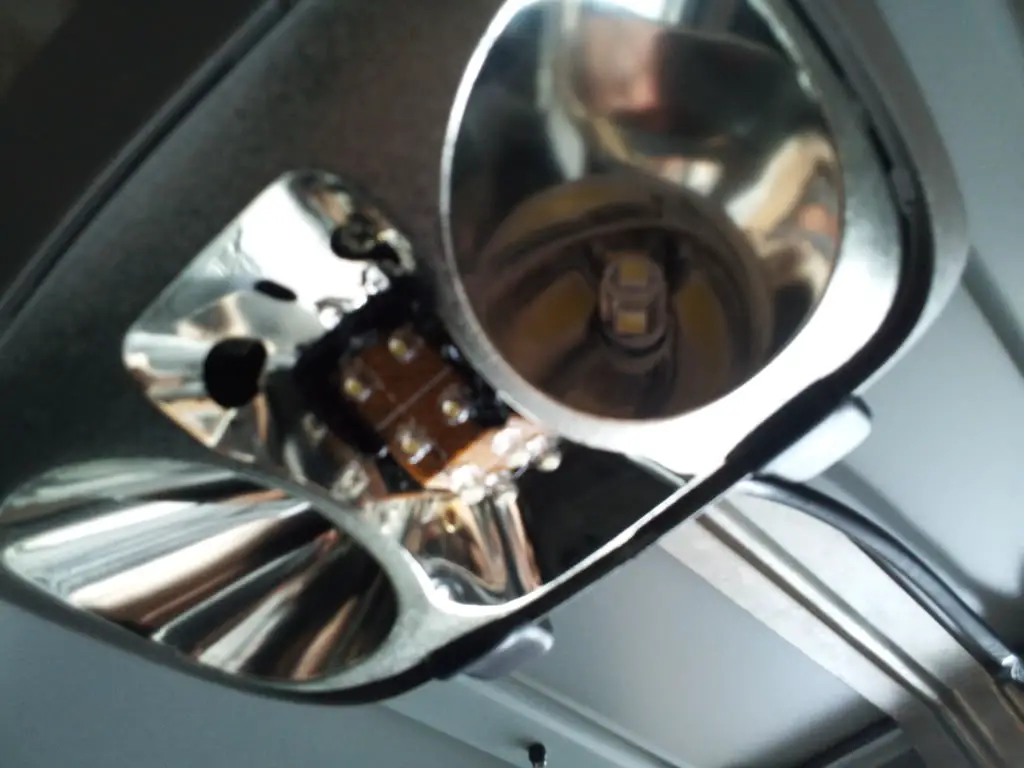

Mid: I made a connector that replicates the 194 bulb base to slide into the bulb socket in the overhead console

forgive the crudeness

the cargo area also just plugs into the socket in the back with the Male crimp connectors.





EXPLODRR

Member
Joined
January 18, 2013
Messages
12
Reaction score
0
City, State
OREGON STATE
Year, Model & Trim Level
1999 FORD EXPLORER

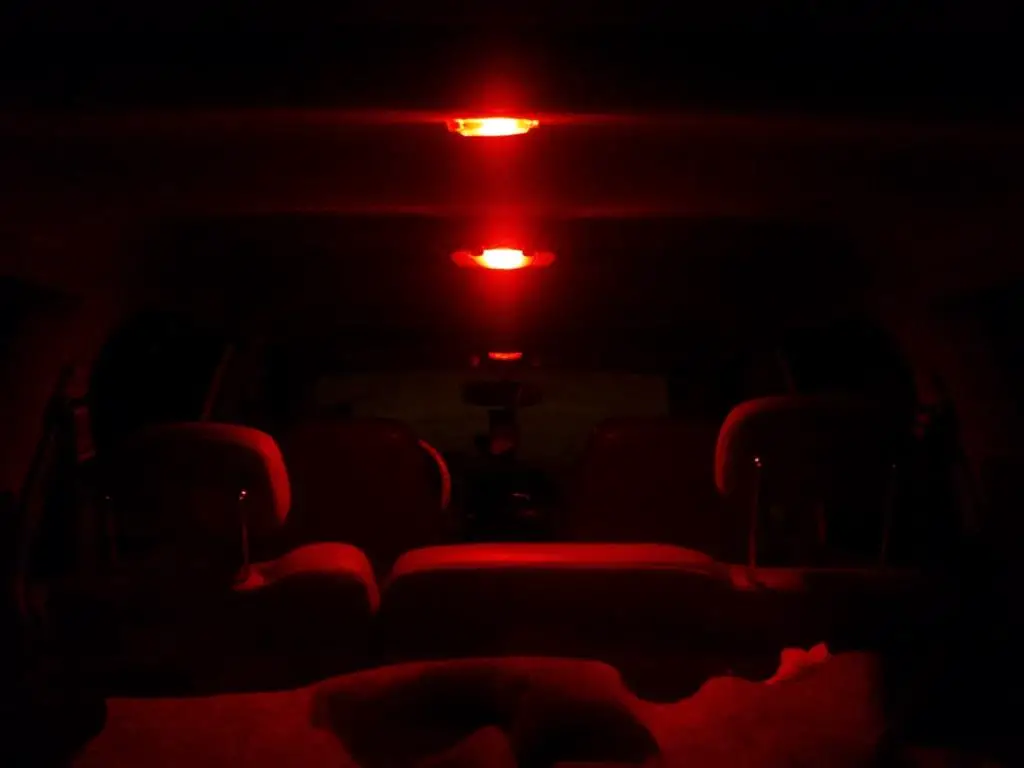

red led 194s


from superbrightled.com
and more micro dot led reds to put in various locations inside.





willzilla

Elite Explorer
Joined
July 14, 2010
Messages
1,140
Reaction score
88
City, State
San Antonio, TX
Year, Model & Trim Level
2000 XLT AWD

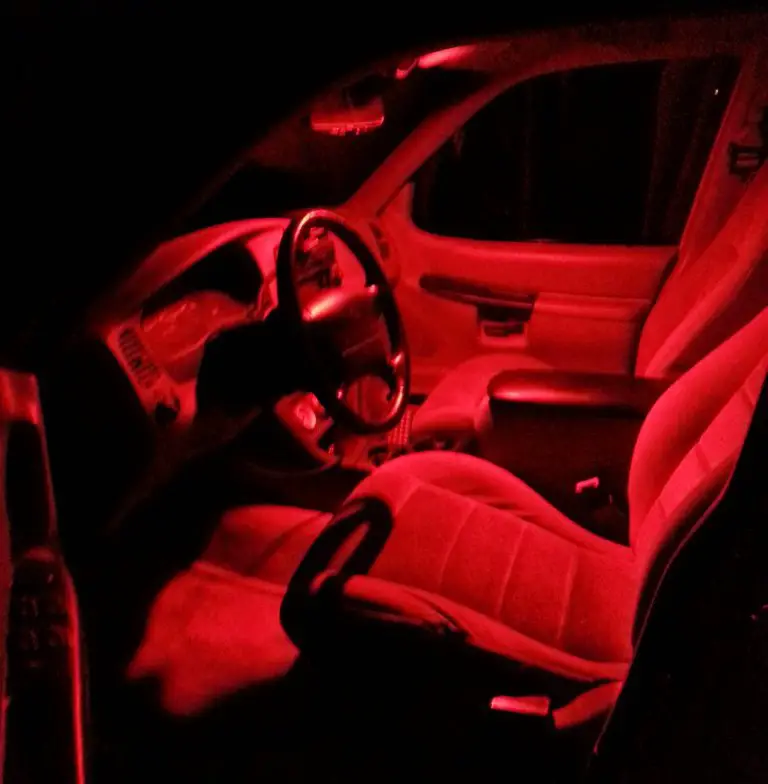

^ Thanks for the write-up... I just did my front map light/overhead console with red LED's... Though I was lazy and just bought 2 10 LED discs already with everything in place and installed those and soldered them up. Little less work but cost about $8 each 10 LED disc :D



Did a partial write-up in my build thread.

Going to do the mid console and hatch next using your guide as a basis! Thanks!





littlebro294

Active Member
Joined
January 28, 2014
Messages
95
Reaction score
0
City, State
California
Year, Model & Trim Level
1994 Ford Explorer
If possible, I'm not sure if someone has already done a thread doing step by step, but i have tried to stay away from wiring. I like this idea a lot better than my direct plug in LED's and would like to give this a shot but I'm not sure exactly on how to solder, what bulbs to look for and how these actually plug in. If there is a thread, can anyone direct me to it so i can learn a little bit about this before I try this project?





MustangP51

Explorer Addict
Joined
January 16, 2005
Messages
1,385
Reaction score
2
City, State
Connecticut
Year, Model & Trim Level
2009 Limited V8
If possible, I'm not sure if someone has already done a thread doing step by step, but i have tried to stay away from wiring. I like this idea a lot better than my direct plug in LED's and would like to give this a shot but I'm not sure exactly on how to solder, what bulbs to look for and how these actually plug in. If there is a thread, can anyone direct me to it so i can learn a little bit about this before I try this project?

Best thing to do is go by a cheap 20 to 40 watt soldering iron, a spool of solder, and practice soldering some scrap wire together. I'm sure there are dozens of tutorials on soldering on google/youtube.
