... or SAS pt.II, or SAS redeux, or axle remix thread. :p:

As some of you know, ive recently got a 94 sport that is the typical fullwidth HP44 with coils/arms, fullwidth 9" type swap. Its currently on radial 36" Iroks.

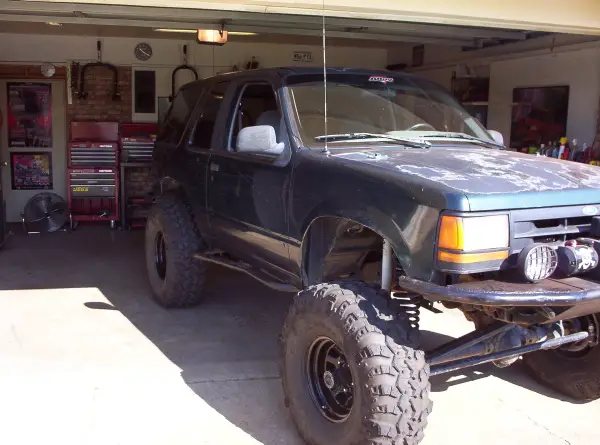

Right now im lowering it down 4" and extending the wheelbase a couple of inches. It wheels great but its just too tall for what i want to do. Ive got some Bilstein 7100's in the mail and my general idea is to make this more of a dual sport type rig that can get it on the rocks and also be able to blast some fire roads and play on the sandbars here in the summer.

Currently the truck has 4" blocks under the back and a "W" shaped set of hybrid 4 door packs. Im going to take the blocks out, throw on a freshened set of low mile 4door leaves with the overload removed, run anti-wrap pertches with the holes redrilled to move the rear back on the springs 2".

Pic below is why you DONT run shock boots. This was an Arizona rig and never really saw any mud after sureshot40sw bought it-


Attachments



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




james t

Elite Explorer
Moderator Emeritus
Joined
January 27, 2002
Messages
10,689
Reaction score
7
City, State
Texarkana AR/TX
Year, Model & Trim Level
94 SAS sport
Pic 1- I tore the junkyard leaves down, hit them with the wire cup and then 80grit flap disc and painted them. Gathered up the good teflon pads from both sets of leaves to have enough for my new set. Standard 4 door pack with no overload. The stock strap that goes around the leaves limits flex as it bands the leaves together, so i grabbed some .25" plate i had laying around and bent these up. There is a chopped piece of a bolt welded through them that fits through the stock hole. I slid them in place and tacked them. NOTICE- its really stupid to weld to a leaf spring but im thinking (hoping) a little tack isnt going to hurt anything. :p:

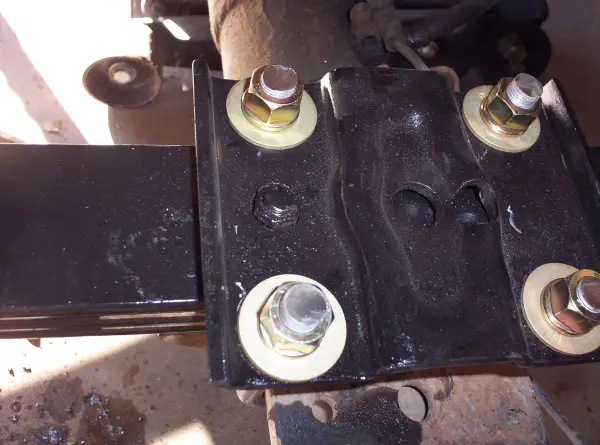

Pic 2- Here you can see the leaf pin bolt going through the new hole in the ubolt plate. This lines everything up for moving the rear back. Original hole in the middle, some other random hole... well i have no idea what that was for.

Pic 3- Done and on the ground, now i just need to fab up some shock mounts. Holy crap i forgot how there is no room for long shocks under the back of these things. :( Anyhoo, here it is prerunnered with the front still sky high.


Attachments





FROADER

Moderator
Staff member
Moderator
Elite Explorer
Joined
January 28, 2000
Messages
19,955
Reaction score
142
City, State
Huntington Beach, CA
Year, Model & Trim Level
1997 XLT
Right now im lowering it down 4" and extending the wheelbase a couple of inches.
Nice James. That's going to look soooo much better.

4" blocks... :eek:





james t

Elite Explorer
Moderator Emeritus
Joined
January 27, 2002
Messages
10,689
Reaction score
7
City, State
Texarkana AR/TX
Year, Model & Trim Level
94 SAS sport
[singing]

Mr. Crazy FedEx driver bouncing off the revlimiter guy

You come down the street sideways, in a cloud of smoke, amongst hundreds of barking dogs to deliver your packages. Your main objective is to get from the hub center to our homes in less than 30 seconds. Your truck, overweighted with our goodies, leans through each turn like a one legged man doing powercleans. With a childs bookbag and an owl pinned in your front grill, you put out a vibe that says to all GET THE HELL OUT OF MY WAY.

Id like to raise a toast to you, bringer of the smashed box, because i can now say that ive seen an 86 year old woman jump OVER a mailbox. And thats just cool.

Mr. Crazy FedEx driver bouncing off the revlimiter guy

Sierra Nevada, Chico California


Attachments





CodePoet

Well-Known Member
Joined
July 11, 2002
Messages
2,426
Reaction score
1
City, State
Indianapolis, Indiana
Year, Model & Trim Level
1993 XLT
How much total lift did you have before? Just wondering, i'm comming in at less than 5-6 inches running the same combo you have.





SVO

Moderator Emeritus/Doctor
Moderator Emeritus
Joined
May 3, 2003
Messages
9,411
Reaction score
14
City, State
Bastrop/Austin, Tx
Year, Model & Trim Level
Turbocharged Navajo LX
WTF?!!! you gots an Exploder???






Jeff - :navajo:





james t

Elite Explorer
Moderator Emeritus
Joined
January 27, 2002
Messages
10,689
Reaction score
7
City, State
Texarkana AR/TX
Year, Model & Trim Level
94 SAS sport
How much total lift did you have before? Just wondering, i'm comming in at less than 5-6 inches running the same combo you have.
No idea... it was sagging 4door pack missing the 3rd leaf with 4" blocks... id guess 9" before and will be 5-6" after.

WTF?!!! you gots an Exploder???
Ayup, ive had it a while, traded the bronco for it. :)


Im afraid im going to have to re-do the rear inner fenderwells now. Not really what i wanted but... no biggie.

Back to the garage!





section525

sextion525
Elite Explorer
Moderator Emeritus
Joined
February 11, 2001
Messages
14,804
Reaction score
25
City, State
Red Bluff, Ca
Year, Model & Trim Level
1975 Ford Bronco 4x4
Bad ass!





james t

Elite Explorer
Moderator Emeritus
Joined
January 27, 2002
Messages
10,689
Reaction score
7
City, State
Texarkana AR/TX
Year, Model & Trim Level
94 SAS sport
Noob moment... i know better. :rolleyes:

objects that arent bolted down + sitting on bumper + great-grandpa's railroad BFH of doom

MAN DOWN!! MAN DOWN!!1! :mad:


Attachments





james t

Elite Explorer
Moderator Emeritus
Joined
January 27, 2002
Messages
10,689
Reaction score
7
City, State
Texarkana AR/TX
Year, Model & Trim Level
94 SAS sport

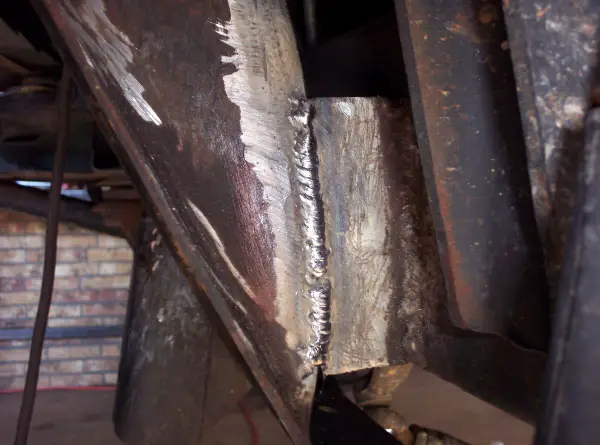

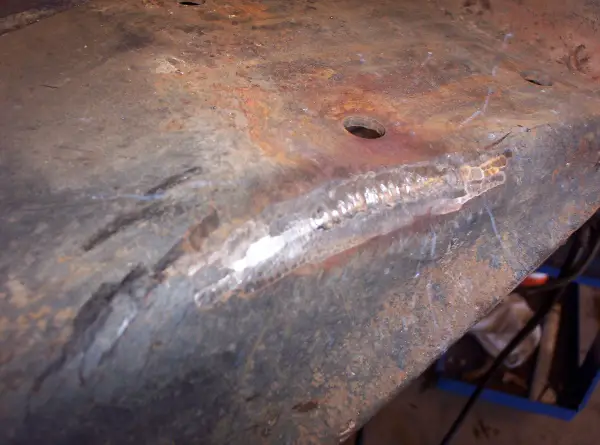

The coil towers were just as difficult as i imagined to get off the frame. Cant get to half the weld with any kind of cutting wheel... if only i had a plasma. Got 'em off anyway... cut one side out with the wheel and then bang it back and forth with the hammer until it tears off.

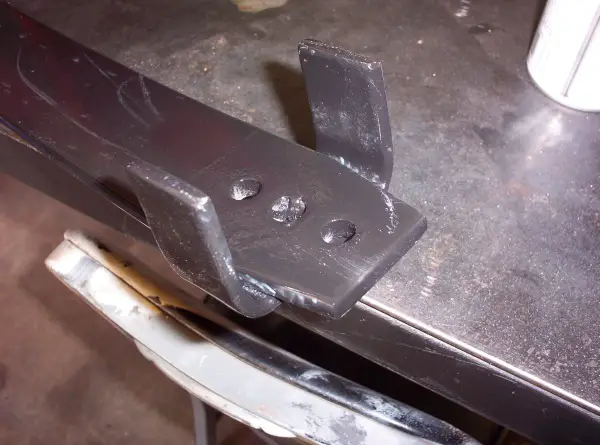

First pic is the stupid spacer thingy on the driver's side dip in the frame, second pic is me repairing coil tower that i got into with the cutoff wheel. Pardon the crappy flux core welds... maybe Santa will bring me a bottle.


Attachments





james t

Elite Explorer
Moderator Emeritus
Joined
January 27, 2002
Messages
10,689
Reaction score
7
City, State
Texarkana AR/TX
Year, Model & Trim Level
94 SAS sport
Rear shocks-

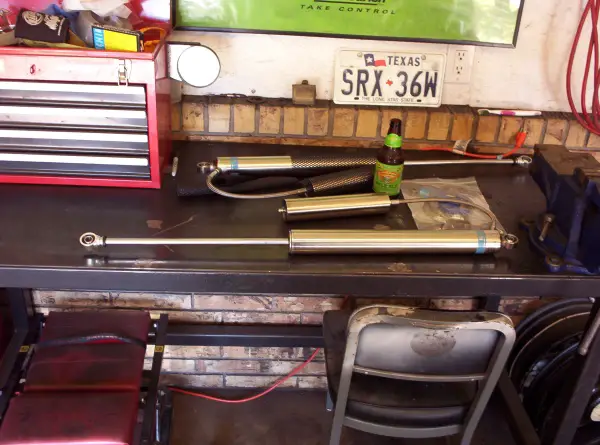

Okay, its going to be new years before i can get some 7100's on the rear to match the front. Right now i have the 9" travel ProCraps that came on it. I really want to run some 14" travel 7100's mounted vertical... ive got to re-do the inner fenderwells anyway. I can either mount up the 9" PC's temp, in a 45 degree angle straight back off the rear, or use the 14" PC's off the front and go ahead and build interior shock hoops.
