Joining the bandwagon, my 4L OHV build

im far enough in this to not turn back, so ill start this thread now.

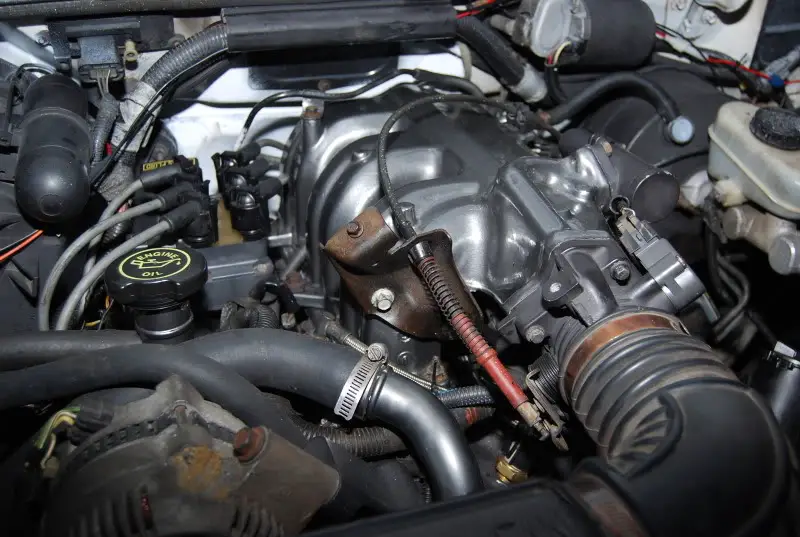

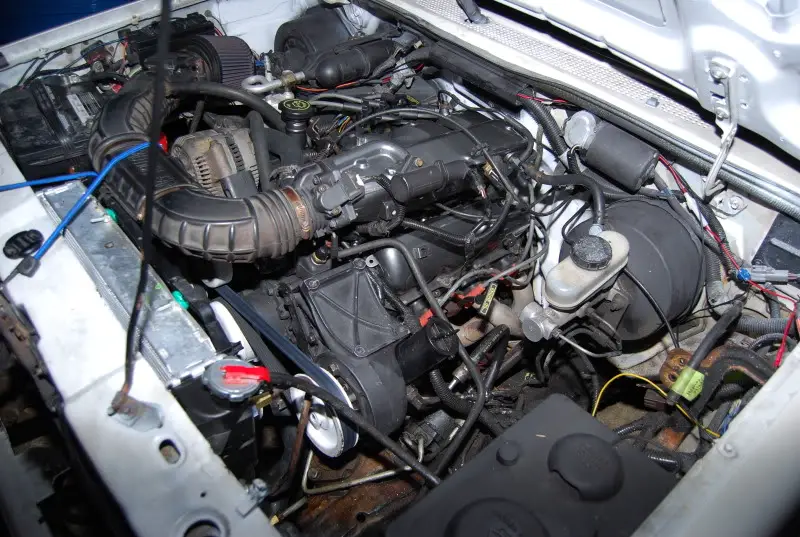

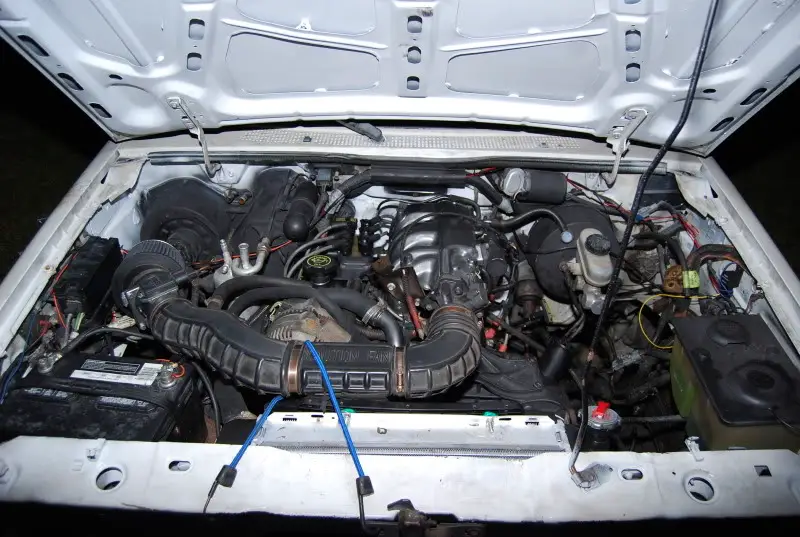

starting with a truck that hasent been driven in 2 years before i got it. so its really dirty, ticks, needs some help.
im going for a mild top end rebuild. just a nice cleaning and new parts, upgraded performance parts. with a nice coat of paint to finish it up.
update: turned into full rebuild

parts list:
  • 2643 ANCHOR - drivers motor mount (rockauto)
  • 2641 ANCHOR - passenger motor mount (rockauto)
  • SP432 MOTORCRAFT - spark plugs (autozone)
  • WR4062 MOTORCRAFT - plug wire set (rockauto)
  • KS2358 FELPRO - full gasket set (autozone)
  • PR422 DNJ/ROCK ENGINE - pistion ring set (rockauto)
  • m328 MELLING - high flow oil pump (summitracing)
  • 432217 VISTA-PRO - ready rad radiator (summitracing)
  • E71531 DAYCO - upper radiator hose (autozone)
  • B71532 DAYCO - lower radiator hose (autozone)
  • 200-87684 DAYCO - heater-to-thermostat hose (autozone)
  • 200-87715 DAYCO - heater-to-water pump hose (autozone)
  • 58390 A-1 CARDONE - reman waterpump, they sent a 97tm (rockauto)
  • 300-942 DORMAN - water pump pulley (rockauto)
  • 300-004 DORMAN - power steering pulley (autozone)
  • 49237 GOODYEAR - belt tensioner (rockauto)
  • 5968 HAYDEN AUTOMOTIVE - idler pulley (rockauto)
  • 49-410-8 COMP CAMS - camshaft (summitracing)
  • R1092 SEALED POWER - rocker arms (rockauto)
  • VS1630 SEALED POWER - valve springs (rockauto)
  • sev-2027 SI VALVES - exhaust valves (
  • sev-2028 SI VALVES - intake valves (
  • UP94172S ULTRAPOWER - timing chain kit (rockauto)
  • 25053 CRANKSHAFT SUPPLY - reman crankshaft with bearings (rockauto)
  • 70mm 94/95 Mustang GT Cobra 19/24lb MAF (ebay)
  • ebay link - 90tm/93tm cylinder heads
  • ebay link - matched set of injectors
  • EF link - modded stock throttle body
  • GM3115200 chevrolet HHR electric fan from EF member
  • FAN-PWN-V3 SPAL fan controller from EF member
  • 1633S-1 JBA - headers and y-pipe used from EF member

later upgrades: 200amp alternator, underdrive/overdrive pulleys. maybe other stuff as i get ideas
