JP goes LED, Interior and Rock Lights


Stic-o

Elite Movie Star
Elite Explorer
Joined
September 1, 2002
Messages
13,791
Reaction score
475
City, State
Lake View Terrace, CA
Year, Model & Trim Level
'91 Navajo '99 XL '16 XLT

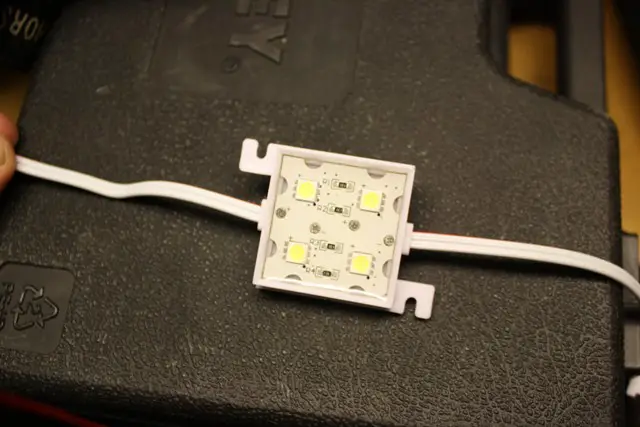

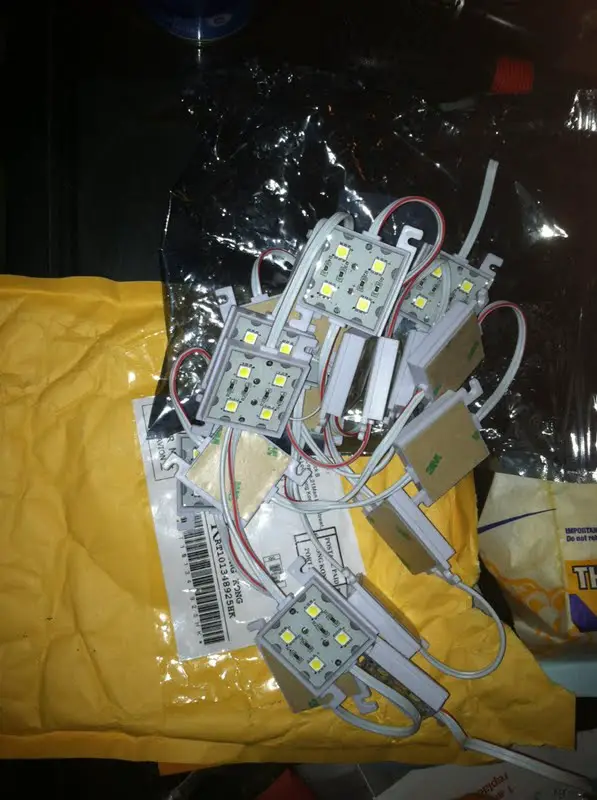

So I've been wanting to convert as much of JP to LED as possible for a long time, however LED's aren't cheap and most of the time not very bright. So while goofing around over on Pirate, I came across these super cheap and bright LED's out of China. You get 20 pucks on a string for $26. Only the take 3-4 weeks to get here :rolleyes: They are worth the wait!


So I started off replacing my rock lights. This is the 3rd stage of these. I originally started with 5) 55 watt fog lights, they we're really bright, but when you get the roof lights and two lights up front going it was starting to be a bit much on the electrical system.:(

Stage 2 was some accent LED lights I picked up from the auto parts store. They worked but not as bright as I wanted, and they still cost me $50+ in the end:rolleyes:

So now stage 3. I installed the new rock lights, and they are much brighter.

I liked them so much....I did the interior of JP too:D


Attachments



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




Maniak

Moderator-Stock 91-94
Staff member
Moderator
Elite Explorer
Joined
February 9, 1999
Messages
12,117
Reaction score
94
City, State
Vail, Arizona
Year, Model & Trim Level
1992 XLT 4x4
I"m glad to see those work well. I'm still waiting for my LEDs to get here (same ones you got). I at least got a shipping notice, so hopefully, and week now :)

~Mark

















IZwack

Moderator Emeritus
Joined
February 5, 2003
Messages
21,772
Reaction score
15
City, State
Germantown, MD
Year, Model & Trim Level
1998 Ford Explorer
But.. won't this scare away the dinosaurs? :p:





Jason c

The Dark Knight
Joined
February 14, 2010
Messages
563
Reaction score
0
City, State
Portland, OR
Year, Model & Trim Level
2000 Limited 5.0L
Wow, that's bright. Can the sections be separated or do they have to be kept in a string?









Stic-o

Elite Movie Star
Elite Explorer
Joined
September 1, 2002
Messages
13,791
Reaction score
475
City, State
Lake View Terrace, CA
Year, Model & Trim Level
'91 Navajo '99 XL '16 XLT

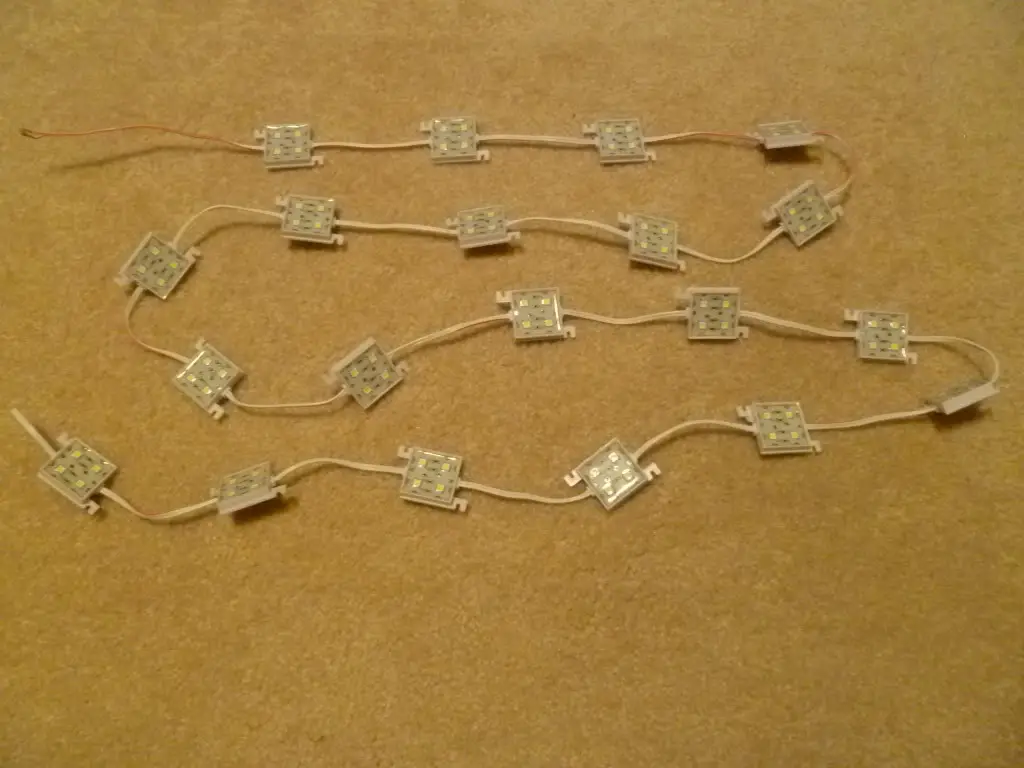

There is only 4" in between each light. I have been cutting each one as close as possible to the next light. I have been wiring them 1 by 1, no need to keep them in a string.

for rock lights I have 5 lights, there are 2 under the front bumper, 2 under the frame, at the front doors, and 1 in the factory spare tire location.

for interior I have 4. 2 in the front overhead cluster with the compass and temp thing. 1 in the factory over head unit (did not do the map lights) and 1 in the cargo area. For this one I needed to replace the actual unit, because the factory light was just to small.





sport97

Elite Procrastinator
Joined
September 25, 2008
Messages
2,358
Reaction score
1
City, State
connellsville pa
Year, Model & Trim Level
1997 sport SOHC 4.0
There is only 4" in between each light. I have been cutting each one as close as possible to the next light. I have been wiring them 1 by 1, no need to keep them in a string.

for rock lights I have 5 lights, there are 2 under the front bumper, 2 under the frame, at the front doors, and 1 in the factory spare tire location.

for interior I have 4. 2 in the front overhead cluster with the compass and temp thing. 1 in the factory over head unit (did not do the map lights) and 1 in the cargo area. For this one I needed to replace the actual unit, because the factory light was just to small.
Wow, those a really bright. I like them. Only 4 lights or 5 lights makes all that light. With one strand you have 20 to play with too. I may have to buy one of these for interior lighting, and maybe some sort of rock or puddle lights.





TarHeel085

And den
Joined
August 22, 2001
Messages
4,104
Reaction score
1
City, State
Raleigh, NC
Year, Model & Trim Level
'99 Sport 4wd
There is only 4" in between each light. I have been cutting each one as close as possible to the next light. I have been wiring them 1 by 1, no need to keep them in a string.

for rock lights I have 5 lights, there are 2 under the front bumper, 2 under the frame, at the front doors, and 1 in the factory spare tire location.

for interior I have 4. 2 in the front overhead cluster with the compass and temp thing. 1 in the factory over head unit (did not do the map lights) and 1 in the cargo area. For this one I needed to replace the actual unit, because the factory light was just to small.
how exactly are you wiring them? I guess im a little confused as to how they come. i need to check out pirate more often :hammer:













Benfrench

New Member
Joined
February 12, 2012
Messages
18
Reaction score
0
City, State
Bedford, MA
Year, Model & Trim Level
2006 Ford Explorer XLT
These obviously run off of 12v. How hard was it to wire them up?









FIND

Well-Known Member
Joined
December 27, 2009
Messages
3,870
Reaction score
9
City, State
Vermillion, SD
Year, Model & Trim Level
99 XLT V8 AWD
How warm do they get? 28 watts for the bundle, that means each puck is dissipating around 1.4 watts and drawing 116 mA, so yeah 1.4 watts, that is a lot to dissipate over that small area. Still, 43 lumens per watt is pretty nice. 60 lumens a puck... You get 25 lumens from a 194 bulb, so it is like having a couple bulbs in everywhere you put one....

I might order some strings...









FIND

Well-Known Member
Joined
December 27, 2009
Messages
3,870
Reaction score
9
City, State
Vermillion, SD
Year, Model & Trim Level
99 XLT V8 AWD
Oh hey, btw dreddog.

If you want to make a project like this easier to wire up, you can always go onto some of the plug and play LED maker sites like superbrightleds, or maybe even on ebay and find bulb bases. Then you just put your power and ground leads into that like a normal bulb would have. Then they are plug and play, though you do have to keep the correct polarity. Though, given the long life of LEDs, I would just connect them directly to the wiring for the light and remove the socket for the bulb. Underneath, it would be just like wiring any other aux light. Add a switch, run wire, ground to frame or body, or run ground all the way into engine compartment.

Hope this helps if you are looking at something like that.





Tbars4

Moderator Emeritus
Elite In Memoriam
Joined
March 4, 2007
Messages
26,511
Reaction score
59
City, State
anaheim hills,california
Year, Model & Trim Level
95 ranger 4x4/ 91 X 4x4
..Are these dimmable?

..It sounds like they can take a beating..:scratch:



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




tdavis

Linux Guru, Jack of All Trades
Staff member
Admin
Elite Explorer
Joined
January 17, 2000
Messages
6,365
Reaction score
40
City, State
Pinole, CA
Year, Model & Trim Level
2001 F250/XLT Superduty
Callsign
KG6MAX
I've got a set of those LEDs also, waiting patiently for me to put them on the zuk..

someday soon.
