Jrgaylor's 1 Ton BroncoII


jrgaylor

Elite Explorer
Joined
April 15, 2002
Messages
2,773
Reaction score
8
City, State
Washington
Year, Model & Trim Level
1985 BroncoII
While looking for a possible transfer case for my early bronco project I came across this Bronco II on craigslist. I had meet the owner of it back 12 years or so ago from a diffrent forum and had been on a couple of runs with him.
I am sure a few of you will know this BroncoII when you see a picture of it.

The first part of this post will how the BroncoII was when I got it and how the PO did a great job on so many things.

Then I will go into what I have done since purchase to have it fit my needs.



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




MidnightRebel07

Elite Explorer
Joined
March 6, 2010
Messages
5,541
Reaction score
7
City, State
Pittsburgh, Pa.
Year, Model & Trim Level
2003 Explorer Sport Trac
:popcorn:





jrgaylor

Elite Explorer
Joined
April 15, 2002
Messages
2,773
Reaction score
8
City, State
Washington
Year, Model & Trim Level
1985 BroncoII

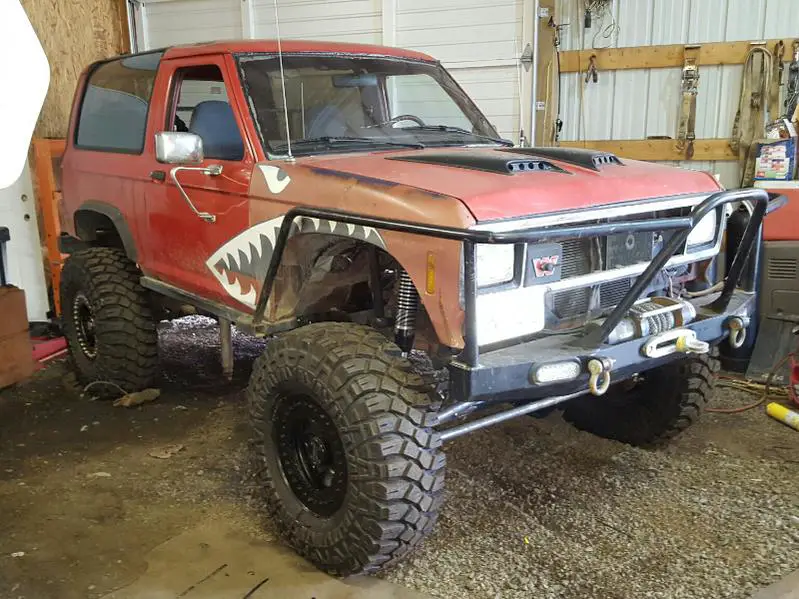

5.0 out of a 88 Lincoln
3G 130 amp alternator
AGR power steering pump
Hydro boost brakes
James Duff radiator
AOD transmission built by Broader performance
Upgraded 7 clutch direct drum, wide Carbon overdrive band, large A type overdrive servo assembly, hardened inner input shaft, 4 clutch intermediate clutch, reinforced sun gear assembly and custom valve body reprogramming. Full lock up is retained with lock up style converter. This unit is equipped with the wide ratio gearing.
B&M Megashifter
NW Fab black box underdrive 2.72
NP205 transfer case twin sticked rebuilt with 32 spline outputs
Triple cable shifters
L & R parking brakes
New front and rear driveshafts
Dana 44 front axles from a early bronco
5.13 gears
Chevy knuckles
Avalanchle heim joint tie rod/draglink
Builtproof heim joint trackbar
Chromo alxe shafts and upgraded u joints
power trax locker
James Duff diff protector
mile marker hubs

Ford 9" in the rear built by Dutchman axles
5.13 gears
Arb air locker
31 spline axles
nodular iron case
disc brakes
James Duff skid plate pinion protector

Deaver rear leafs
wild horse 5 1/2" spring in front
Rancho 9XXX series shocks

3" body lift
custom front and rear bumpers
Warn 8K winch with synthetic rope

False floor and sides in the back with stereo amp and speakers built into it. Apline head unit and speakers with MTS subs
Full autometer gauges in the dash
Warn VTC air compressor with extra external 3 gal tank 8 SCFM a min @ 90 PSI


Attachments





MidnightRebel07

Elite Explorer
Joined
March 6, 2010
Messages
5,541
Reaction score
7
City, State
Pittsburgh, Pa.
Year, Model & Trim Level
2003 Explorer Sport Trac
Nice rig man.









jrgaylor

Elite Explorer
Joined
April 15, 2002
Messages
2,773
Reaction score
8
City, State
Washington
Year, Model & Trim Level
1985 BroncoII
What I have done so far.
Installed a non flex mechanical cooling fan.
Installed new silver fox valve body in the AOD. I can now lock out overdrive and have 1,2,3 shifting or 1,2,3/4 pattern.
I have a Yukon zip locker waiting to go in the front.
New heater core
Rebuilt the alternator (the warn air compressor can draw 120 amps)
I had to remove the stereo stuff and put seats back in the back again.
I am time poor working 50+ hours a week and 2 little ones running around the house





2013_Exploder

New Member
Joined
January 19, 2013
Messages
35
Reaction score
0
City, State
Loveland, Colorado
Year, Model & Trim Level
2013 Explorer Base 4x4
Impressive! :)





RangerX

Elite Ranger
Staff member
Moderator
Elite Explorer
Joined
July 14, 1999
Messages
9,886
Reaction score
272
City, State
Omao, Kauai
Year, Model & Trim Level
'93 Ranger XLT 4X4
More pics would be good. :D









jrgaylor

Elite Explorer
Joined
April 15, 2002
Messages
2,773
Reaction score
8
City, State
Washington
Year, Model & Trim Level
1985 BroncoII
Well it was not broke but some upgrades are currently in the works

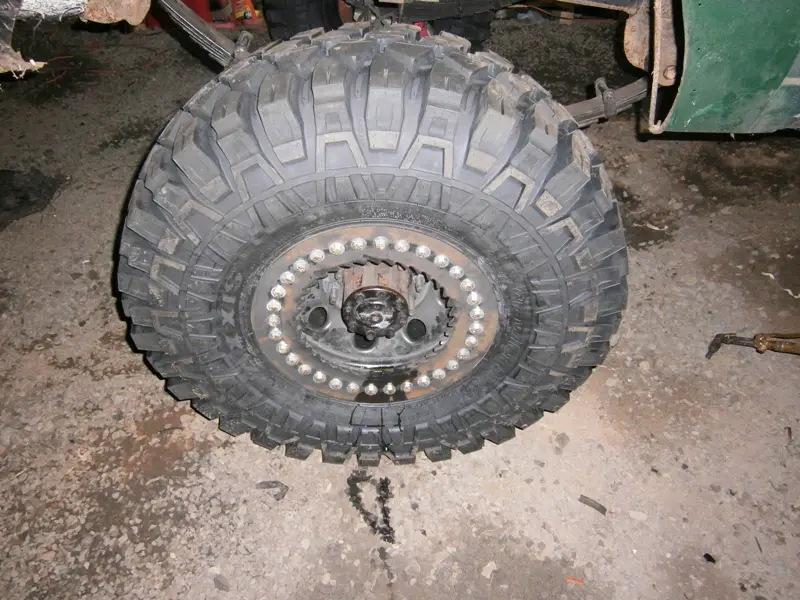

37 X12.5-16 bias crawlies on 32 bolt bead locks

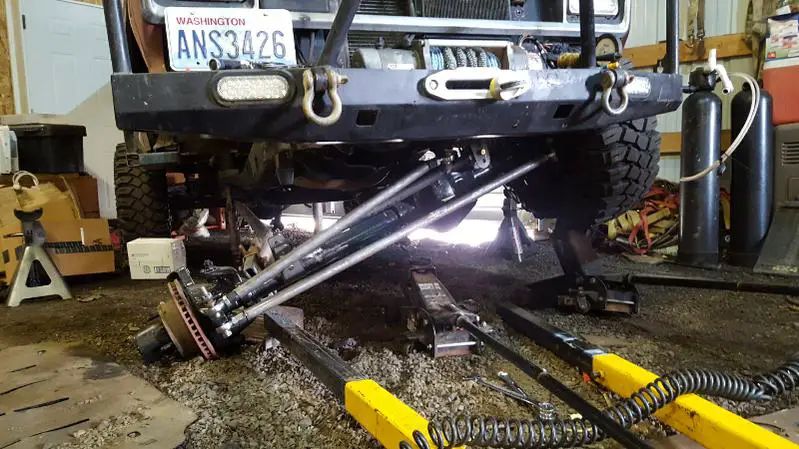

HP D60 front with thick 5.13 yukon gears
HD D60 rear with thick 5.13 Yukon gears disc brakes
Yukon 35 spline axles front and rear
ARB airlockers front and rear
Cage radius arms

The 5.0 is getting replaced by a HO 5.0
Exterior paint is getting refreshed

I will stretch the wheelbase a little in the process.
I need to fabricate a interior cage that allows access to the rear seating area from the front and the fabrication of plattform for 3 car seats to be strapped in.





jrgaylor

Elite Explorer
Joined
April 15, 2002
Messages
2,773
Reaction score
8
City, State
Washington
Year, Model & Trim Level
1985 BroncoII

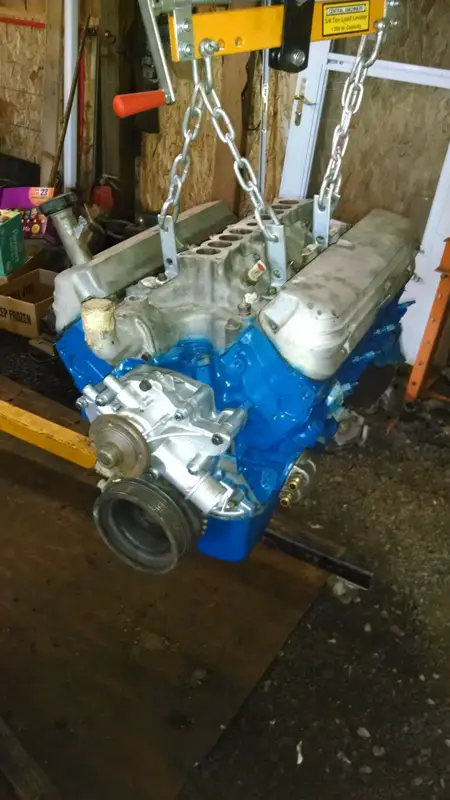

The engine and shoes that are going in


Attachments





jrgaylor

Elite Explorer
Joined
April 15, 2002
Messages
2,773
Reaction score
8
City, State
Washington
Year, Model & Trim Level
1985 BroncoII
I got the rear 60 regeared and ARB installed need to cut down the new 35 spline shafts for length. The ORI struts for the front I ordered are 5-7 weeks out so I am going to put the this bronco project on hold untill later to work on other projects.









jrgaylor

Elite Explorer
Joined
April 15, 2002
Messages
2,773
Reaction score
8
City, State
Washington
Year, Model & Trim Level
1985 BroncoII
Yes, Moab 2016 unless I somehow find a lot of spare time then it will turn into a 72 Bronco





jrgaylor

Elite Explorer
Joined
April 15, 2002
Messages
2,773
Reaction score
8
City, State
Washington
Year, Model & Trim Level
1985 BroncoII

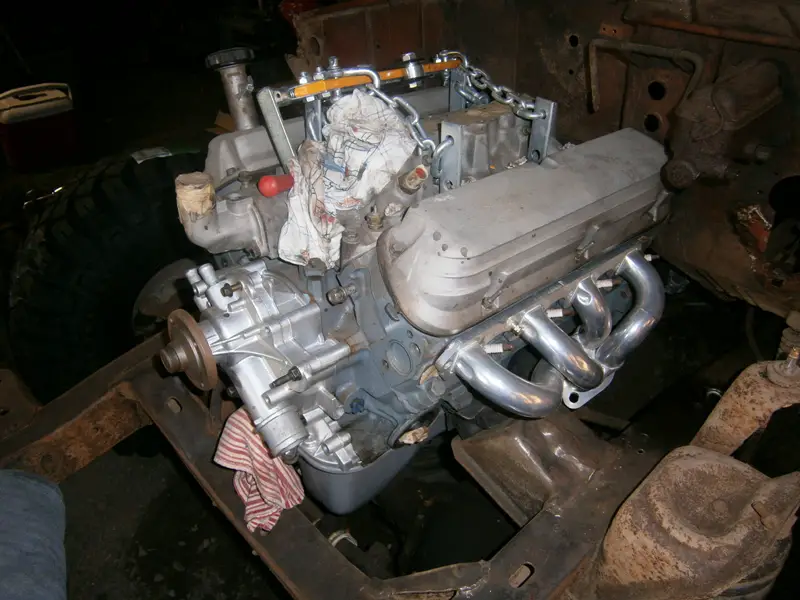

The 5.0 is ready to go in, has the explorer v-8 front dress on. the explorer front dress is about 3/4" shorter than the mustang front dress and helps with fan to radiator clearance and allows you to use the explorer fan and fan clutch which the OEM stuff to use to keep things cool.

I also got my struts for the front, the rear dana 60 has been regeared and ARB installed awaiting to be installed in the vehicle.


Attachments









jrgaylor

Elite Explorer
Joined
April 15, 2002
Messages
2,773
Reaction score
8
City, State
Washington
Year, Model & Trim Level
1985 BroncoII
Finally got this thing fired up! Need to make a new fan shroud as the explorer 5.0 has a larger fan than what I was running. As you can see in the picture I have plenty of space (2.5") between the fan and radiator. After the shroud is in I will bundle the wires and tiddy up the engine compartment.
I retained the Saginaw power steering pump and deleted the AC pump.


Attachments





jrgaylor

Elite Explorer
Joined
April 15, 2002
Messages
2,773
Reaction score
8
City, State
Washington
Year, Model & Trim Level
1985 BroncoII
Engine is squared away and trail tested.

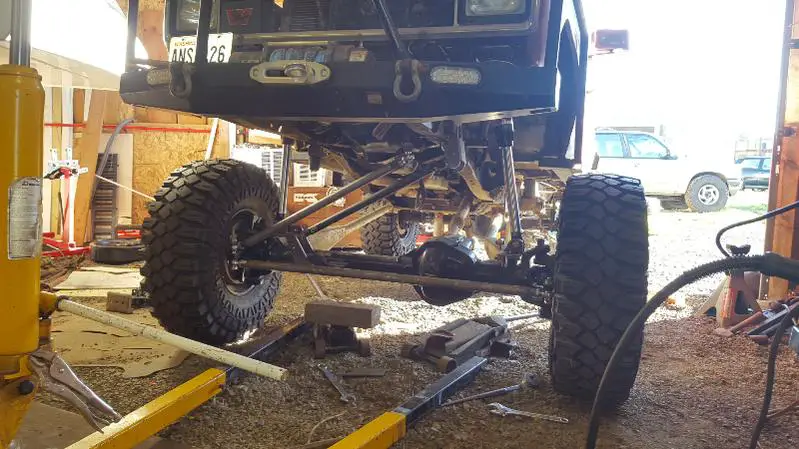

Dana 60 Rear axle has been regeared and ARB installed 35 spline cromo alxes installed and new brake calipers, needs new rotors and leaf spring pads mocked into place.
