LED bulbs made

Hi,

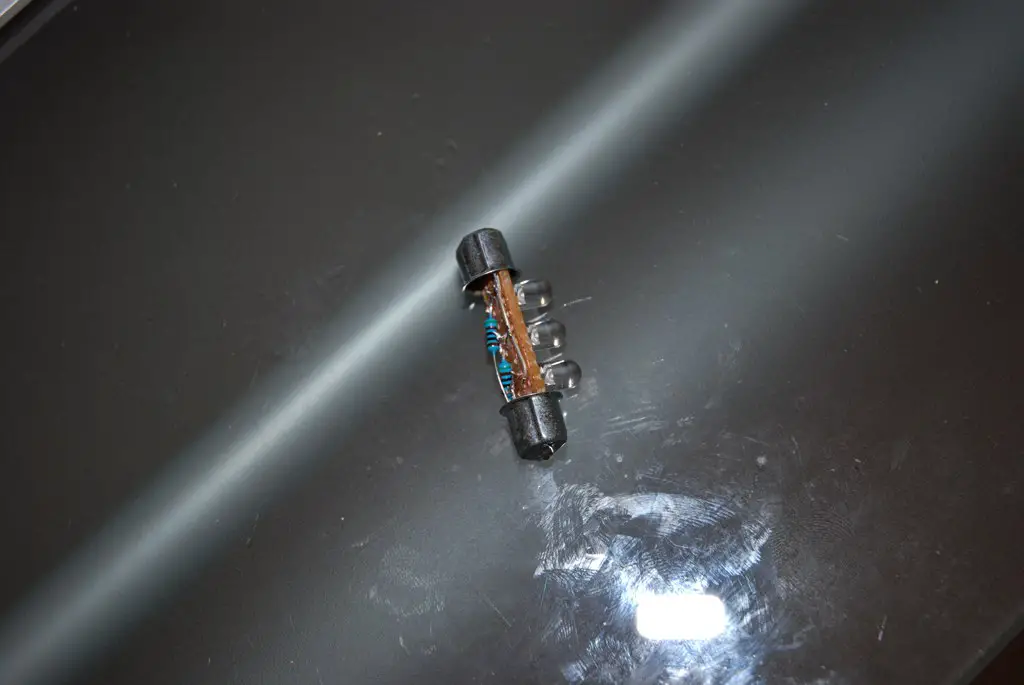

I'm usually not good with this stuff and im sure its been done better than me but i bought a pack of LED's and was doing my explorer and thought 'hey, why not do my mustang too' so i popped the covers off and it had one of those 578 bulbs with the two connectors on each side, so i decided to make these:





What i did first was cut out a piece of project board. i just measured the old bulb on top and i didnt get the exact measurements but it ended up being 3 holes tall.



then i hot glued in 3 led's facing horizontally leaving 3 holes on each side of the end led's and one hole space inbetween each one, it just cleared the plastic bezel with these 'measurements'.





i took the old bulbs and cut off the two wire ends, and then just pryed the end caps off with a knife to use on the project board



then i arranged the negatives and the positives all to one side of the board, soldered in the resistors to the positive and lead it to one side then the negative to the other, i curled it around back to the project board just like the stock bulbs look like. i then put the end caps on until i could see the wire touching the end caps, i soldered the wires to the end cap and hot glued the sides of the end caps to the board to make sure. here is a picture of all of them



and the end results are posted below. hope this helped.

<

Join the Elite Explorers $20 Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




BrianDye

I'll have another...
Joined
March 1, 2009
Messages
6,189
Reaction score
11
City, State
Monroe, MI
Year, Model & Trim Level
2006 XLT
DANG you made that? Nice work....hows the output on those though?

<



energie

Well-Known Member
Joined
August 5, 2004
Messages
289
Reaction score
0
City, State
Edmonton, AB, CA
Year, Model & Trim Level
2000 Explorer XLT
I'll upload some pictures when its all done. i tried putting one bulb in to show you and the holder was hanging there so i went to put a screw in while the bulb was on and it blew the fuse lol so im just going to wait until its all done :)

<



energie

Well-Known Member
Joined
August 5, 2004
Messages
289
Reaction score
0
City, State
Edmonton, AB, CA
Year, Model & Trim Level
2000 Explorer XLT

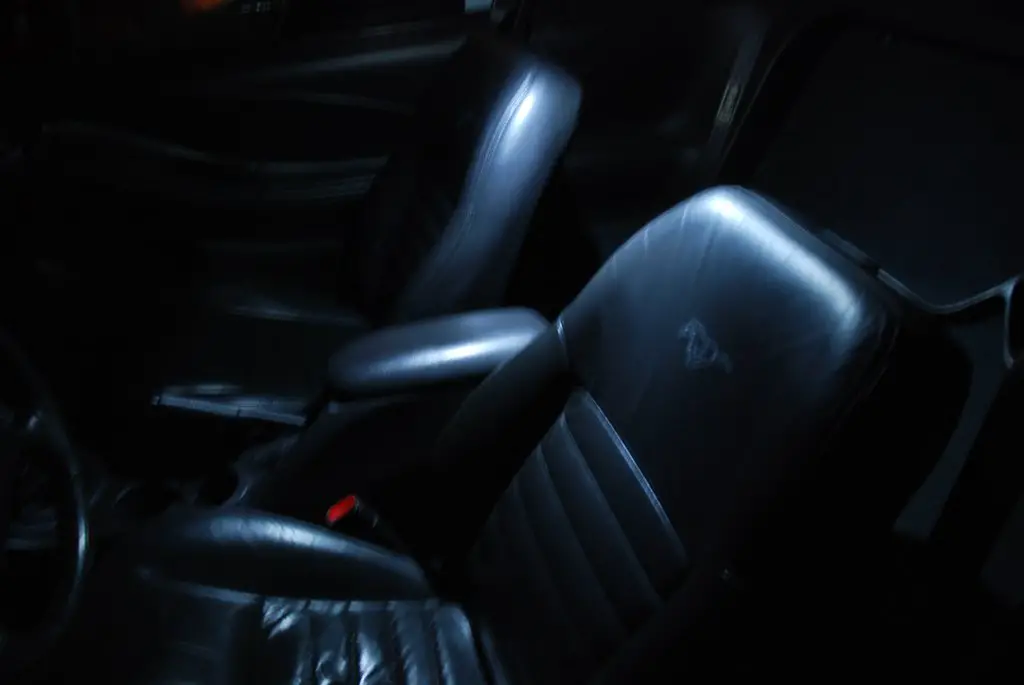

here they are. I also edited the main post about how i did it



<



storlied

Explorer Addict
Joined
June 20, 2007
Messages
4,528
Reaction score
3
City, State
Anchorage, Alaska
Year, Model & Trim Level
98 5.0L V8 AWD XLT
Looks about the same as mine, good job. You gotta love the lighting in there now, way better than the yellowish lights..

<



energie

Well-Known Member
Joined
August 5, 2004
Messages
289
Reaction score
0
City, State
Edmonton, AB, CA
Year, Model & Trim Level
2000 Explorer XLT
so much better. definitely a good hobby and time waster lol

<



storlied

Explorer Addict
Joined
June 20, 2007
Messages
4,528
Reaction score
3
City, State
Anchorage, Alaska
Year, Model & Trim Level
98 5.0L V8 AWD XLT
It's an extremely cheap, and effective way to change the interior appearance noticeably. Good mod in my book.

<



energie

Well-Known Member
Joined
August 5, 2004
Messages
289
Reaction score
0
City, State
Edmonton, AB, CA
Year, Model & Trim Level
2000 Explorer XLT
i agree. better than spending like $10-$20 a bulb from some places.

<



storlied

Explorer Addict
Joined
June 20, 2007
Messages
4,528
Reaction score
3
City, State
Anchorage, Alaska
Year, Model & Trim Level
98 5.0L V8 AWD XLT
....Are you sitting around the control panel pressing refresh?.. this is the fastest response I've gotten in awhile in a thread. lol.. I used 5 SMD LEDs for all my interior lights... the rear bulb is the one you pictured... I could use the one you made... the one I have is a 5 SMD LED 194 bulb with the metal hooks bent out, and the metal braket for the bulb bent in and shoved back in the roof... it's pretty ghetto but it works.

<



energie

Well-Known Member
Joined
August 5, 2004
Messages
289
Reaction score
0
City, State
Edmonton, AB, CA
Year, Model & Trim Level
2000 Explorer XLT
haha i could always make you one and ship it over.

<



vroomzoomboom

Elite Canuck STOCK SUCKS!
Elite Explorer
Joined
January 22, 2007
Messages
9,802
Reaction score
1,073
City, State
selkirk, manitoba
Year, Model & Trim Level
98 supercharged 347 sport
nice job. pictures do not do it justice on how small those are, or how much light they put out. do you have enough room in the dome light to fill it all with the leds? the light output would give you a suntan, but it too would be worth it. can i suggest something? shave the domes off the outward leds. it will scatter the light, and make it act more like a regular bulb, but shouldn't effect the light brightness.

<



energie

Well-Known Member
Joined
August 5, 2004
Messages
289
Reaction score
0
City, State
Edmonton, AB, CA
Year, Model & Trim Level
2000 Explorer XLT
sounds good. i did that with my explorer ones in the front for a few of them but didnt think to do it for these ones. good idea :p
pictures definitely dont do justice, i was looking at MustangP51's write up and im like those look pretty big, i got around to doing all of it and its not that big at all.

<
