LED Mirror/Courtesy Puddle Lamps & License Plate Lights

ExplorerDMB

Moderator/Technician
Moderator Emeritus
Joined
January 26, 2004
Messages
6,162
Reaction score
8
City, State
Mechanicsville, Virginia
Year, Model & Trim Level
2004 Acura TL
Before:


After:



The camera doesn't seem to take pictures of LEDs too well (except the night shots, looks below).

Justin146 sold me some LED panels already fabbed up with 8 - 10mm 10000 mcd hyper white LEDs that he imported in on each board (2). He did a very nice job on the work. Good quality stuff.

Anyway here is a picture of them

attachment.php

picture by justin146

Main thing for this set up is that LEDs are polarity set. LED (Light Emitting Diode); it is still a diode (which allows current to only flow in one way). So basically if you hook them up backwards you will think you got screwed over cause they won't light up. What I did was take my test light and found out which post was positive. After I figured that out I marked the side that was ground with a dot of white out. For these boards, the white wires were ground.

To get started you need to get the housings out. The screws are Torx bits so make sure you have a size 15 to get the screws out. After you have the housings out, basically "break" the clear cover off the black housing. This will give you access to where you can lay the LEDs in. They are just "jammed" in there, but that's the way it has to be so that they'll re-seal correctly.













I used clear silicone to reseal the housing. It looks nasty/messy (atleast for my likings - I'm a clean freak) -- but it gets the job done and it allows light to pass through it and hey, I had some left over from my rear differential cover install.

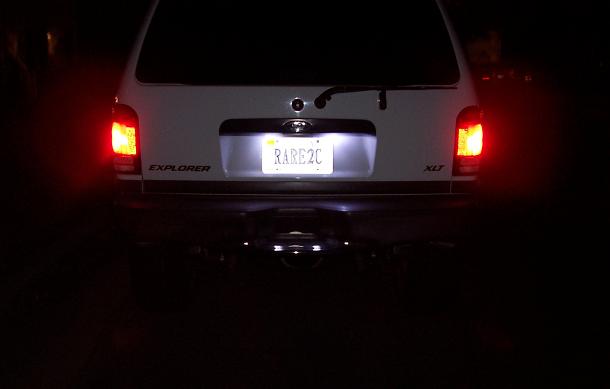

I am very happy with outcome of the project. But, the night time shots are the best. Take a look:





They are very nice. Very bright (like everyone always says, pictures can't do it justice). Thanks for the great stuff Justin!

Notes:

LED Puddle Light Project - by Justin146


-Drew



UPDATE 2-19-2006

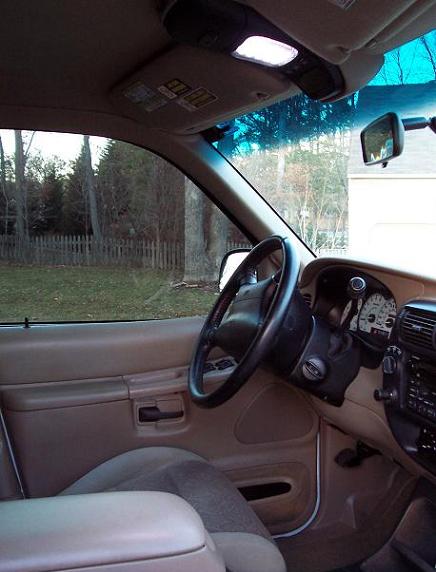

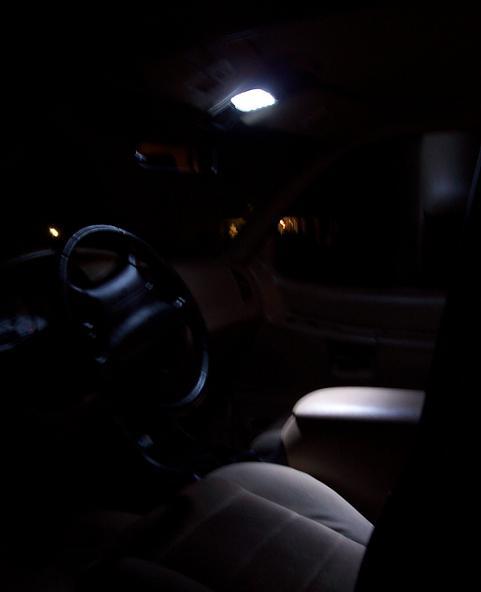

Justin and I got together again and he shared with me some license plate and a map light LED board. I don't have any before shots, but you get the idea (the night pictures don't do it justice, they are BRIGHT!)

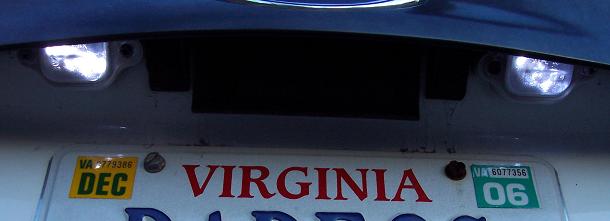

The Licesense Plate Board:

attachment.php


Justin's LED License Plate Project

they are very cool and bright!


Attachments

  • 000_0727.JPG
    23.1 KB · Views: 3,081
  • 000_0730.JPG
    17.2 KB · Views: 2,214
  • 000_0725.JPG
    43.5 KB · Views: 1,863
  • 000_0728.JPG
    15.9 KB · Views: 2,789


Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




newc5188

Well-Known Member
Joined
July 8, 2004
Messages
293
Reaction score
0
City, State
St Pete, FL
Year, Model & Trim Level
'98 Sport
Those look so good, I am realllly hoping he starts making them and selling them... I would definitely buy some.





03ExplorerSPT

Explorer Addict
Joined
November 28, 2001
Messages
1,209
Reaction score
0
City, State
Quincy, IL
Year, Model & Trim Level
2003 Sport XLT Premium
newc5188 said:
Those look so good, I am realllly hoping he starts making them and selling them... I would definitely buy some.

Same here. Looks great ExplorerDMB!!!





ExplorerDMB

Moderator/Technician
Moderator Emeritus
Joined
January 26, 2004
Messages
6,162
Reaction score
8
City, State
Mechanicsville, Virginia
Year, Model & Trim Level
2004 Acura TL
Well, I've spent a few days with them now - and they are defilently cool. The look a whole lot nicer than the "yellow".

-Drew





justin146

Explorer Addict
Joined
April 8, 2001
Messages
2,213
Reaction score
0
City, State
Oxford, MS-- home of the Ole Miss Rebels
Year, Model & Trim Level
2000 XLT Sport 5.0 Turbo




newc5188

Well-Known Member
Joined
July 8, 2004
Messages
293
Reaction score
0
City, State
St Pete, FL
Year, Model & Trim Level
'98 Sport
how much would it cost for a pair roughly?





justin146

Explorer Addict
Joined
April 8, 2001
Messages
2,213
Reaction score
0
City, State
Oxford, MS-- home of the Ole Miss Rebels
Year, Model & Trim Level
2000 XLT Sport 5.0 Turbo
They are $45 shipped. Since I am not an "ExplorerForum Vendor", I can't talk about sales of them on here. Email me if you are interested. Thanks.





IAmTodd

4x Explorer Veteran
Joined
April 8, 2002
Messages
8,887
Reaction score
7
City, State
Johnstown, PA
Year, Model & Trim Level
2015 Jeep
They are awesome and worth every penny. I have the same ones and I love the look and how much more useful they are. Very easy to install as well.





newc5188

Well-Known Member
Joined
July 8, 2004
Messages
293
Reaction score
0
City, State
St Pete, FL
Year, Model & Trim Level
'98 Sport
Thanks for giving me a price anyways! I will be contacting you later this year about them. :)





ExplorerDMB

Moderator/Technician
Moderator Emeritus
Joined
January 26, 2004
Messages
6,162
Reaction score
8
City, State
Mechanicsville, Virginia
Year, Model & Trim Level
2004 Acura TL
Who else has done this mod? I know some people have done interior.

-Drew





DirtyDog

I will not!
Joined
May 26, 2002
Messages
1,253
Reaction score
1
City, State
Lethbridge,Alberta,Canada
Year, Model & Trim Level
04 Aviator
I did it on my '99 Limited. Now I gotta figure out a way to put some on my '03 Supercrew.





justin146

Explorer Addict
Joined
April 8, 2001
Messages
2,213
Reaction score
0
City, State
Oxford, MS-- home of the Ole Miss Rebels
Year, Model & Trim Level
2000 XLT Sport 5.0 Turbo

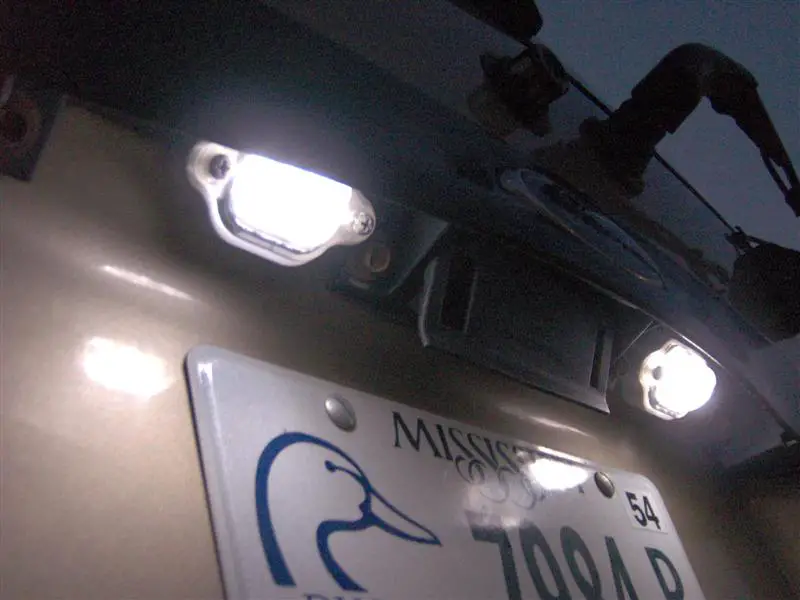

I guess I can show off my license light a little more:).....
