LED Rear Under Seat Lighting (PICs)

MustangP51

Explorer Addict
Joined
January 16, 2005
Messages
1,385
Reaction score
2
City, State
Connecticut
Year, Model & Trim Level
2009 Limited V8
This is part 2 to the Under Dash lighting mod I did several months ago. It took some thinking but I figured out how to do and LED setup under the rear seats and still have the seats fold up and down.

What you will need:
1/16 3/4x48 piece of aluminum angle ( Home Depot )
6 5mm Blue 13000mcd LEDs (grind the tips flat)
6 Resistors 470 ohm (the actual resistance was 463ohm)
Double sided tape
light gauge wire

The Stock


First cut a piece for the single seat to 12" and a piece for the double seat to 25.5"


For the single seat I drilled 2 5mm holes about .5" from each side of seat supports. And put an LED in each hole.


For the double seat I also drilled 2 holes roughly .5" from each support, then found center, and then found half of each side from center and drilled the holes ( if that gibberish doesn't make sense drill a hole roughly every 6")


Unbolt the seat supports and poke a hole thought the carpet and fish the wire to the plastic door trim under the carpet.


Wire them to a switch, I used the same switch as the under dash lighting.

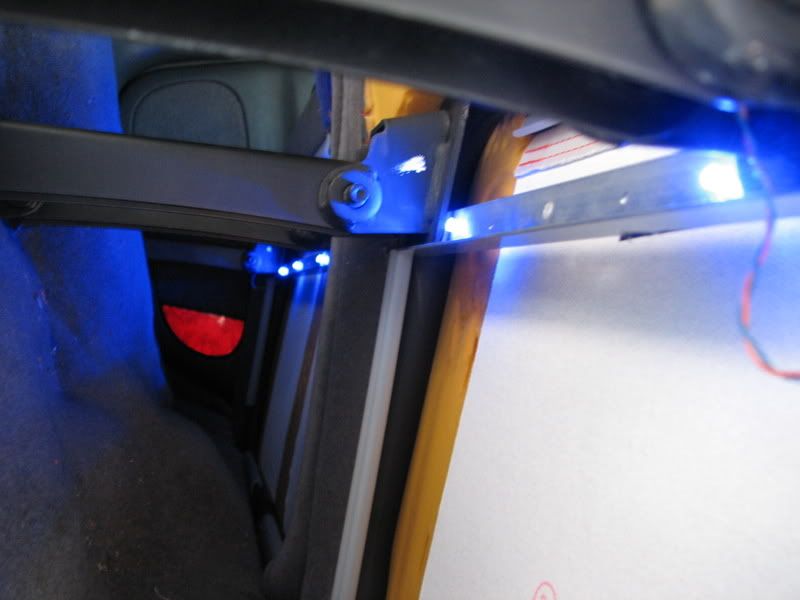

and turn them on


Will get some pictures tonight of them on

Good Luck!



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.








bp1506

Well-Known Member
Joined
October 9, 2005
Messages
349
Reaction score
0
City, State
Calgary,AB
Year, Model & Trim Level
98 Sport
Looks good, i like it.





Blacksheep Josh

Slinky+Escalator=Fun
Joined
July 31, 2006
Messages
3,678
Reaction score
12
City, State
Statesboro, GA
Year, Model & Trim Level
'01 Ford Ranger, RIP 93 X
Look pretty friggin sweet man! I have a question though, and maybe you could answer it.

The question is about how you wired it, did you wire them in series (as in one right after another) or in parallel (so if one goes out the rest will work)

Second question, I assume you put a resistor between the power and l.e.d.

power -> resistor -> l.e.d. ?

Thanks





MustangP51

Explorer Addict
Joined
January 16, 2005
Messages
1,385
Reaction score
2
City, State
Connecticut
Year, Model & Trim Level
2009 Limited V8
Yes I never wire LEDs in series, they are always in parallel, If one goes out the rest will work.





Blacksheep Josh

Slinky+Escalator=Fun
Joined
July 31, 2006
Messages
3,678
Reaction score
12
City, State
Statesboro, GA
Year, Model & Trim Level
'01 Ford Ranger, RIP 93 X
Yes I never wire LEDs in series, they are always in parallel, If one goes out the rest will work.

sweet deal, so i guess the assumption about the resistors was accurate as well? between the power source and l.e.d.? that's what i woudl think









Blacksheep Josh

Slinky+Escalator=Fun
Joined
July 31, 2006
Messages
3,678
Reaction score
12
City, State
Statesboro, GA
Year, Model & Trim Level
'01 Ford Ranger, RIP 93 X
yes that is correct

well i think i know what i'm doing this weekend. i would think that use this, you coudl possible make your own undercar kit for a LOT cheaper then what is normally advertised. just a thought.









Blacksheep Josh

Slinky+Escalator=Fun
Joined
July 31, 2006
Messages
3,678
Reaction score
12
City, State
Statesboro, GA
Year, Model & Trim Level
'01 Ford Ranger, RIP 93 X
It is in the works ;)

After I paint my frame

Nice. I'm just trying to get my interior done, and this thread is helping a lot. Cheap, easy, and looks like it only takes about an hour of steady work to install.

I have just ONE more question, did you solder the wires, resistors, adn all, or did you just crimp it?









MustangP51

Explorer Addict
Joined
January 16, 2005
Messages
1,385
Reaction score
2
City, State
Connecticut
Year, Model & Trim Level
2009 Limited V8
Nice. I'm just trying to get my interior done, and this thread is helping a lot. Cheap, easy, and looks like it only takes about an hour of steady work to install.

I have just ONE more question, did you solder the wires, resistors, adn all, or did you just crimp it?

I soldered all the connections. I would not recommend using crimps with light gauge wire in vehicles because they can loosen up with vibration. Use Hot Glue to secure and insulate all the wires and LEDs.

looks great MustangP51 I might have to copy you AGAIN :).
the wires are too thin to crimp, yes he soldered them (the actual led and resistor)

Thank you
Go right ahead, that's why I take the time to do these write-ups.





redneck21

Well-Known Member
Joined
May 11, 2008
Messages
488
Reaction score
0
City, State
Georgia
Year, Model & Trim Level
1999 sport
The LED master strikes again nice work man. All ur wright ups have kinda inspired me to do my own led mod. Bad thing is idk how:( but o well that 1/2 then fun to me.





bigapple

Explorer Addict
Joined
September 11, 2006
Messages
1,119
Reaction score
0
City, State
Baton Rouge LA
Year, Model & Trim Level
'02 XLS Touring
looks great... very nice touch and gives a great dim glow in the interior... two thumbs up :thumbsup: :thumbsup:





boboz1

Member
Joined
April 4, 2008
Messages
41
Reaction score
0
Year, Model & Trim Level
2000 Explorer XLT
Awesome work dude.





Buffalosports

Well-Known Member
Joined
March 9, 2008
Messages
507
Reaction score
0
City, State
Buffalo, New York
Year, Model & Trim Level
1998 Sport - 4WD
What stores can you buy these LEDs at? Radioshack? The more I see that people do these things by themselves, the more I think that it may be right for me. I have some tight areas to get around.





MustangP51

Explorer Addict
Joined
January 16, 2005
Messages
1,385
Reaction score
2
City, State
Connecticut
Year, Model & Trim Level
2009 Limited V8
What stores can you buy these LEDs at? Radioshack? The more I see that people do these things by themselves, the more I think that it may be right for me. I have some tight areas to get around.

Don't buy from radio shack. Get them on eBay, much much cheaper for better LEDs. I buy all my LEDs through BestHongKong (eBay Seller) he gives you free resistors with your LEDs for 12v systems.





Buffalosports

Well-Known Member
Joined
March 9, 2008
Messages
507
Reaction score
0
City, State
Buffalo, New York
Year, Model & Trim Level
1998 Sport - 4WD
Don't buy from radio shack. Get them on eBay, much much cheaper for better LEDs. I buy all my LEDs through BestHongKong (eBay Seller) he gives you free resistors with your LEDs for 12v systems.

Thanks.





greyphox

Well-Known Member
Joined
November 4, 2007
Messages
108
Reaction score
0
City, State
Richmond VA
Year, Model & Trim Level
2000 XLT 4.0 SOHC
X2 for Ebay. You can get 100 LEDs WITH resistors for the price you could get 5 at radioshack.....

Ebay is the route I went/am going for LEDs and most other electronic parts I need for my projects.

Nice job on the angle aluminum. I never thought of that when I did mine. That makes for a lot cleaner of an install.

Keep up the good work :thumbsup:



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




bigapple

Explorer Addict
Joined
September 11, 2006
Messages
1,119
Reaction score
0
City, State
Baton Rouge LA
Year, Model & Trim Level
'02 XLS Touring
my vote is with ebay as well... i buy the 10mm bulk packs of 30 or 50 and it is such a better investment... it has about 15 times the light output (mcd) of the regular 5mm LEDs they sell at radioshack for 3 or 4 bucks a piece... ebay is the way to go cuz they get shipped in and u dont get ripped off
