Lets talk weld in beadlocks

kert0307

Well-Known Member
Joined
September 6, 2005
Messages
2,458
Reaction score
3
City, State
Pella, Iowa
Year, Model & Trim Level
'00 Sport and '89 B2
I'm planning on designing my own weld in beadlocks for my B2. I've seen a couple of different weld on styles, some with the inner and outer ring the same, others where the inner ring is slightly smaller so it fits inside the outer rolled lip of the rim. I see advantages of both styles, for example, when the rings are the same size I think it would seal the bead better, but the weldjoint (butt joint) isn't as good, where the smaller inner rings have a good weld joint (j groove) but if your weld isn't smooth it may not seal as good. Also it some what simplifies it if both rings are the same. Any one have experience with either type?

Also for bolting the rings down, some use the threaded inserts, others use plain bolts with nylock nuts. I'm thinking a deformed top lock weld nut on the back of the inner ring would save a lot of time...



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




IZwack

Moderator Emeritus
Joined
February 5, 2003
Messages
21,771
Reaction score
24
City, State
Germantown, MD
Year, Model & Trim Level
1998 Ford Explorer
Most of the weld in locks these days have the inner lock that fits inside the "lip" of the wheel. So I say just go for one of those and call it good. If your weld isnt "smooth", then grind it down so it is flat.





kert0307

Well-Known Member
Joined
September 6, 2005
Messages
2,458
Reaction score
3
City, State
Pella, Iowa
Year, Model & Trim Level
'00 Sport and '89 B2
Ok, I'll draw up some and send them to my laser cutter and see how they price out. I'm pretty sure I'm going with weld nuts. I'll be making a set of 16's and 16.5's. I'll be running 16'n on the B2, but I have a set of 16.5 wheels that came with the axles I plan on welding up and selling.





IZwack

Moderator Emeritus
Joined
February 5, 2003
Messages
21,771
Reaction score
24
City, State
Germantown, MD
Year, Model & Trim Level
1998 Ford Explorer
I'd almost skip the 16.5s because that's becoming a more and more rare size. Also tires for that size is a lot more expensive than a 16 or 17.
Posted via Mobile Device





kert0307

Well-Known Member
Joined
September 6, 2005
Messages
2,458
Reaction score
3
City, State
Pella, Iowa
Year, Model & Trim Level
'00 Sport and '89 B2
Ya, but I figured it would be easier to sell the wheels after sandblasting them, installing bead locks and painting them. Plus my boss will more than likely not charge me much for any of the laser cut because he likes to encourage "home projects"





Joined
October 14, 2007
Messages
96
Reaction score
0
City, State
vernon nj
Year, Model & Trim Level
87 ranger stx
id go to a local plasma table shop they can do customize them





kert0307

Well-Known Member
Joined
September 6, 2005
Messages
2,458
Reaction score
3
City, State
Pella, Iowa
Year, Model & Trim Level
'00 Sport and '89 B2
id go to a local plasma table shop they can do customize them

Ya, but why would I go to a plasma table shop when I can get them lasered to any size/shape I design? (keep in mind I sit at a computer designing construction/mining equiptment all day anyway...) laser has a much better edge than plasma as long as it is under .5" thick.









FireZapper

Active Member
Joined
January 17, 2005
Messages
548
Reaction score
1
City, State
Columbia Pa.
Year, Model & Trim Level
93 Sport

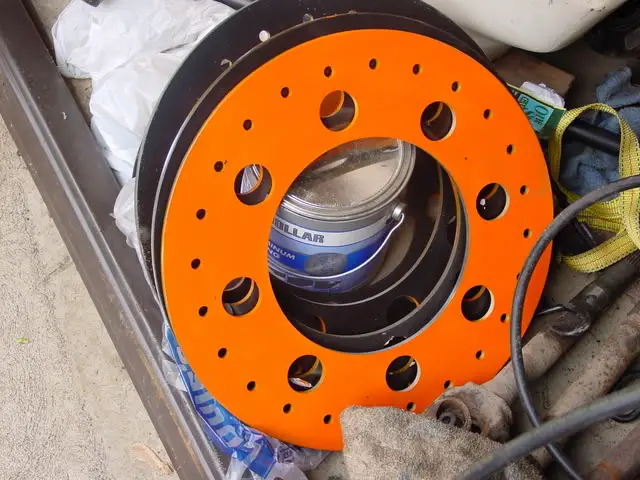

Here's mine. I got them from offroad overstock for $239.00 a set.



If you look closely you can see the inner ring.

The inner ring sits in the rolled edge of the rim and is only 1" wide. The rim was 8" wide, now it is 8.5 wide. If you weld the inner ring to the outer edge of the rim, it will make the rim 9-9.25 wide.

I don't know about the weld on nuts. If you ever strip a bolt or snap a head off your going to hate it. Just go with the stand nylock nuts set-up.

As for the 16.5. I would make another set of 16" to sell. More demand for them currently.













kert0307

Well-Known Member
Joined
September 6, 2005
Messages
2,458
Reaction score
3
City, State
Pella, Iowa
Year, Model & Trim Level
'00 Sport and '89 B2
I got the prices back from my laser cutter. Looks like I can do them for about $45 per wheel. I decided to do the type that weld to the outside of the wheel because I will more than likely be using "stock" steel wheels, so I can get more rim width. If anyone wants some let me know. If you want to calculate your own shipping, its about 15lbs per wheel.
