Liftgate Trim Removal - Help?

SprintGT

Member
Joined
March 30, 2013
Messages
14
Reaction score
0
City, State
Kent, WA
Year, Model & Trim Level
2013 Explorer Sport
Wondering if anyone has removed the liftgate trim piece spanning the tail lights (I think Ford calls it the "license lamp shield"; part 13B482), and could offer a bit of advice on the process.

I'm replacing the black version of this part on my '13 Sport with the chrome version (gladly discuss the motivation behind this in a separate thread:)). I have the new part, so ideally I should be able to figure out how to remove the old one from looking at the new one.

There are a total of twelve mounting points. Moving from the center of the trim piece to either outer edge, there are two bolts, followed by two clips. Those are all easy to deal with. The last two "fasteners", though, consist of a a post (for alignment, perhaps?) and something that looks like a bolt with two heads.

It's these last two I'm struggling with. It looks like the bolt is fastened to the vehicle and the trim piece slides downward (window to bumper direction) between the two heads of the bolt. To accomplish that, however, it would seem necessary to bend the trim piece way out so that the post clears whatever hole it's sitting in.

Any advice is greatly appreciated!


Attachments

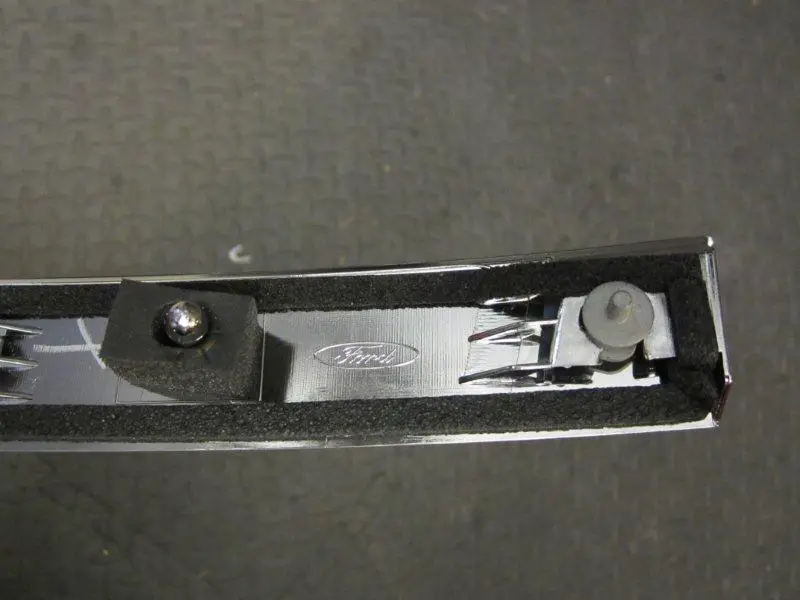

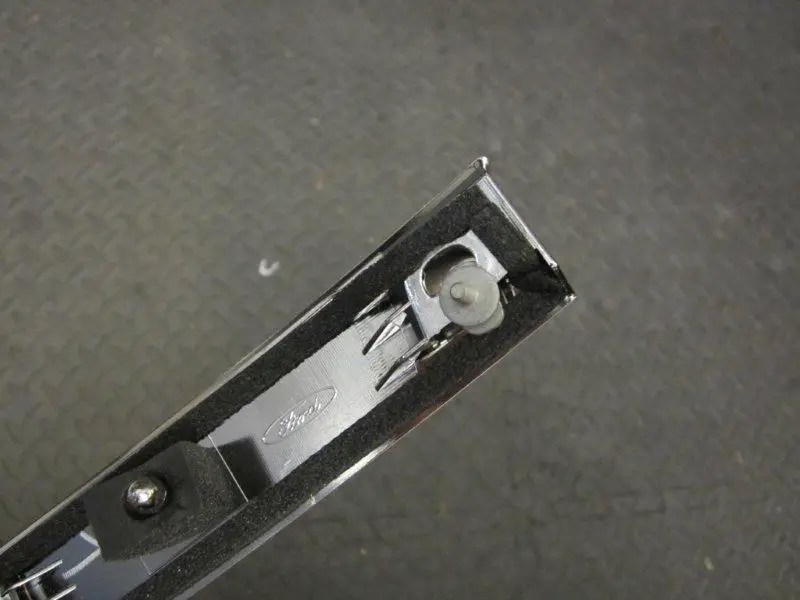

  • LicenseLampShield13B482_5.jpg
    49.3 KB · Views: 3,112
  • LicenseLampShield13B482_2.jpg
    46.3 KB · Views: 3,166
  • LicenseLampShield13B482_3.jpg
    52.5 KB · Views: 3,058
<

Join the Elite Explorers $20 Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
32,455
Reaction score
2,650
City, State
Russell, Ontario (Ottawa area)
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3
Wondering if anyone has removed the liftgate trim piece spanning the tail lights (I think Ford calls it the "license lamp shield"; part 13B482), and could offer a bit of advice on the process.

I'm replacing the black version of this part on my '13 Sport with the chrome version (gladly discuss the motivation behind this in a separate thread:)). I have the new part, so ideally I should be able to figure out how to remove the old one from looking at the new one.

There are a total of twelve mounting points. Moving from the center of the trim piece to either outer edge, there are two bolts, followed by two clips. Those are all easy to deal with. The last two "fasteners", though, consist of a a post (for alignment, perhaps?) and something that looks like a bolt with two heads.

It's these last two I'm struggling with. It looks like the bolt is fastened to the vehicle and the trim piece slides downward (window to bumper direction) between the two heads of the bolt. To accomplish that, however, it would seem necessary to bend the trim piece way out so that the post clears whatever hole it's sitting in.

Any advice is greatly appreciated!
Welcome to the Forum SprintGT.:wavey:
Congratulations on your new Sport. I don't recall seeing any kind of post on this over the 2+ years I've been on here. Perhaps you could also post this in the Modified 2011 + Explorer Discussion thread;
http://www.explorerforum.com/forums/forumdisplay.php?f=175

I tried searching through the fordparts.com site and could not find anything helpful. Perhaps if your dealer has a local bodyshop you could drop by there and see if they can advise.

Good luck.

Peter

<



cnsheets

Well-Known Member
Joined
September 7, 2011
Messages
949
Reaction score
0
Year, Model & Trim Level
2011 Explemoner
You'll obviously need to remove the inner plastic trim moulding of the liftgate. I believe the handle has a couple bolts, then the rest are just clips. Once that is off, you'll be able to see the interior of the liftgate and see exactly how that trim piece is removed and re-installed. Its done from the inside.

<



SprintGT

Member
Joined
March 30, 2013
Messages
14
Reaction score
0
City, State
Kent, WA
Year, Model & Trim Level
2013 Explorer Sport
Thanks to both of you for your thoughts. I also searched through the modified section of the forum, hoping one of the plastidippers had documented removal of the trim piece as an alternative to masking the surrounding body (and therein, identified some magic that avoids interior panel removal). Closest thing I found was a simplified diagram showing where the piece mounts to the vehicle - a nugget of information I've pretty much conquered.

I suspect you're right, cnsheets, that I'll need to spend some quality time prying clips on the inner trim panel. There's likely a nut holding the threaded end of that double-headed bolt on each end of the exterior trim to the door frame. It's the only thing that makes sense to me. Both the post on the trim piece itself and the channel in the door which the entire piece fits into preclude any upward motion that could otherwise separate the trim from the bolt.

If I go through the exercise, I'll do my best to document it.

<



cnsheets

Well-Known Member
Joined
September 7, 2011
Messages
949
Reaction score
0
Year, Model & Trim Level
2011 Explemoner
The top smaller piece of the interior trim is just held by clips. Pull that first. The larger interior piece you must first pull the cover off the handle, there will be two bolts. I circled that area in red. Remove the bolts, then everything else is clips. Just pull. Here are some pics so you know where the clips are and bolts. From there, you should be able to look within the interior of the liftgate and see the nuts holding the edge of the outer trim you want to remove.

I dont have a wider shot of the liftgate, sorry.





<



txaggie

Well-Known Member
Joined
July 11, 2012
Messages
219
Reaction score
0
City, State
Plano, Texas
Year, Model & Trim Level
2013 Ford Explorer
Perhaps they have changed the trim strip? On my 2013 Limited I took the strip off to see how hard it would be to replace. The nuts that screwed onto the end of the strip were actually outside the interior trim pieces, very close to the ends of the pistons that hold up the lift gate. Removing the 4 screws and then the 2 nuts meant all I had to do was "pop" it off where the clips held it on (maybe 4 or 5 points along the length of the trim strip).

I didn't completely take it off as there were a lot of electrical connections with the camera and license plate lights. What are you doing with your old black strip?

<



SprintGT

Member
Joined
March 30, 2013
Messages
14
Reaction score
0
City, State
Kent, WA
Year, Model & Trim Level
2013 Explorer Sport
Thanks much for all the excellent pics, cnsheets. That's enormously helpful.

txaggie - I'll take another look for access outside the interior trim panel. Assuming I'm successful by either means, I'll probably be putting the original black trim in the classified section of the forum. One step at a time, though.

<



cnsheets

Well-Known Member
Joined
September 7, 2011
Messages
949
Reaction score
0
Year, Model & Trim Level
2011 Explemoner
Perhaps they have changed the trim strip? On my 2013 Limited I took the strip off to see how hard it would be to replace. The nuts that screwed onto the end of the strip were actually outside the interior trim pieces, very close to the ends of the pistons that hold up the lift gate. Removing the 4 screws and then the 2 nuts meant all I had to do was "pop" it off where the clips held it on (maybe 4 or 5 points along the length of the trim strip).

I didn't completely take it off as there were a lot of electrical connections with the camera and license plate lights. What are you doing with your old black strip?

I think that tx is right on this one.....

<



SprintGT

Member
Joined
March 30, 2013
Messages
14
Reaction score
0
City, State
Kent, WA
Year, Model & Trim Level
2013 Explorer Sport
The eye exam I have scheduled for next week is turning out to be rather timely. Txaggie, you're entirely correct. There were two plain-as-day 11mm acorn nuts next to the mounting point of the liftgate strut.

I'm adding photos here that run through the steps I took. Hopefully I'll get these in order. Looks like I'll need to split this into a couple of posts to get all 8 photos in the mix.

The OEM chrome trim I ordered comes with license plate lights terminating in a connector that mates with a harness inside the liftgate frame (photo 1).

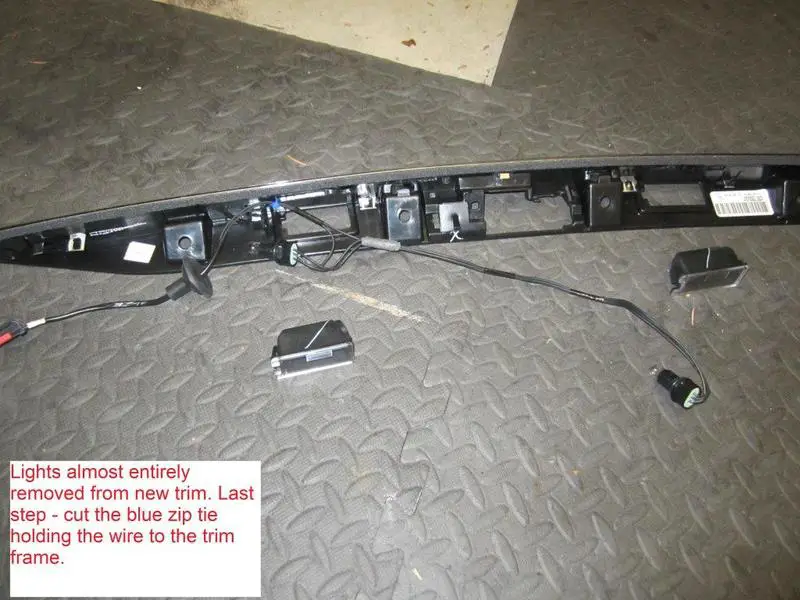

- Pop the license plate light cases through the exterior of the liftgate trim. There's a tab on one side of the light case.
- A 1/4 turn of the bulb housing will allow the light case to be completely removed

The light wires are simply tucked behind tabs and easily pulled out (photo 2), except for one small zip tie (mine was blue). Cut the tie, and all wires (with bulbs connected) can be completely removed from the liftgate trim.

My pictures don't show the plate covering the camera hole, as I had already removed it. Just a couple of tabs; one on either side of the plate.

Next I pulled off the original black lifgate trim.

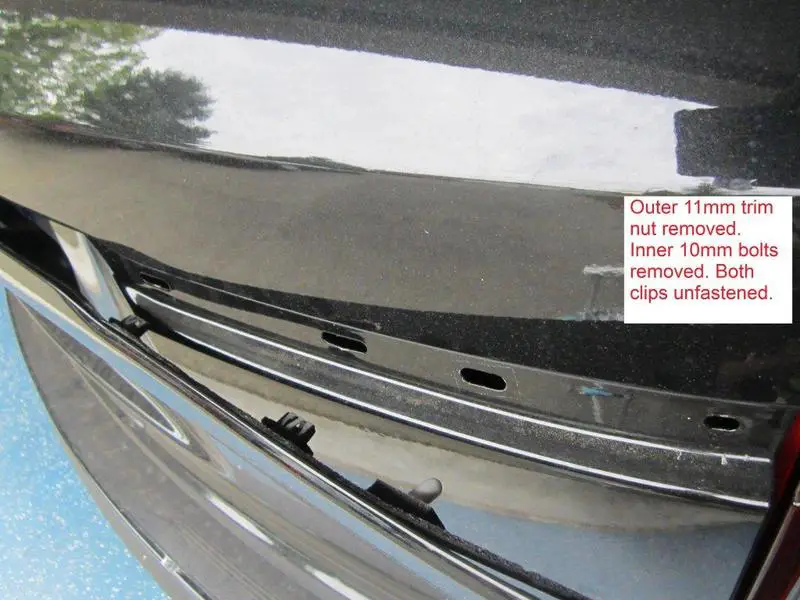

- Open the liftgate and remove the 11mm acorn nuts near the liftgate strut mounting point (photos 3 and 4).
