TheRookie said:
I fit a set of 33's on a 98 sport with only a 3 inch bl and tt. Trimming was needed but not terrible. little metal and fair plastic. but you couldnt tell anything was cut from the outside

Well, a sport has bigger front fenders and yours had 5" of lift. It probably wasn't too hard fitting 33s in your case.

-Drew




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





TheRookie

Traveling SAS guru
Joined
October 19, 2002
Messages
2,393
Reaction score
1
City, State
West Chester PA
Year, Model & Trim Level
91 explorer xlt
Only did the TT to 1 inch. making 4 inches. The fender difference is true







JDraper

Somewhat Functional
Moderator Emeritus
Joined
January 11, 2001
Messages
15,269
Reaction score
43
City, State
McVeytown, PA
Year, Model & Trim Level
'18 XLT






davidmmm69

Elite Explorer
Joined
September 1, 2003
Messages
2,657
Reaction score
23
Location
Fall river ma
City, State
2010 Ford Explorer V6 Fall River Ma...
Year, Model & Trim Level
2002 Mercury Mountaineer
ExplorerDMB said:
I do not think it is possible. I have 7" of lift (via 4" suspension, 3" body) and I can only clear 33s without rubbing!

-Drew

7 INCHES OF LIFT YOU SHOULD BE ABLE TO DO AT LEAST 35'S


I HAVE JUST TORSIAN BARS CRANKED AND I CAN PUT 33'S ON AND THEY JUST RUB A VERY LITTLE AT FULL TURN...







ExplorerDMB

Moderator/Technician
Moderator Emeritus
Joined
January 26, 2004
Messages
6,129
Reaction score
17
City, State
Mechanicsville, Virginia
Year, Model & Trim Level
2004 Acura TL
Like everyone has said - every truck is different. I do not rub, and I had 34s at one time. But people do not realize what size my 33s are. Most 33s are 32.6 while mine are about 33.4 -- so really mine are still 34s! I didn't not want to put 35s due to the stress on the front Dana35. I'm glad I didn't put 35s on or I would rub like mad at full lock. I also did not want to trim. I think the the truck is fine with 33s with 7" of lift.

-Drew







ExplorerDMB

Moderator/Technician
Moderator Emeritus
Joined
January 26, 2004
Messages
6,129
Reaction score
17
City, State
Mechanicsville, Virginia
Year, Model & Trim Level
2004 Acura TL
Trailmaster Vs. Superlift : Info On Both

Many people don't really know the difference between the two kits. To be honest, they have small differences, but they both reach the same goal. The biggest draw back of the Trailmaster kit is that it does not use a full-blown spindle, it uses only a spacer. Superlift, on the other hand, uses a full spindle, which both kits achieve the upper control arm at the same angle (close to stock). I've taken pictures of my Trailmaster kit on my truck to show some differences between the Superlift and Trailmaster kits!


Superlift Front Side Suspension:



Trailmaster Front Side Suspension:



Trailmaster Front Crossmember:



You can see how the Trailmaster kit maintains the origional spindle, and uses drop down brackets for the rack and pinion. Some say the drop down brackets are cheesy and somewhat pitiful, but I have expierenced no problems. If you look at the actual rack and pinion, on the Superlift kit you can see the horrible angle that the kit puts on the rack. The Trailmaster kit doesn't put the strain on the rack and pinion! I think Trailmaster did a great job on that part. The crossmembers are different, but they serve the same purpose and get the same job done!


Trailmaster Upper Control Arm/Spindle Spacer:




This is Trailmasters flaw. This is used on the Explorer and Ranger kits that they put out for these years vehicles, and they haven't had any problems with them, but people find them to be not as reliable as a full spindle like Superlifts. I couldn't find a picture of the Superlift spindle, but it's basically just a full spindle to connect the lower control arm to the upper control arm (like factory).


Superlift Rear Suspension:




I have the Superlift rear suspension on my truck (except shocks), because I modded the Trailmaster Ranger kit to fit on mine. Anyway, the Superlift and Trailmater rears are the same: Huge drop down brackets for the sway bar, 4" leaf springs, and all the bushings.


Trailmaster Drop Down Brackets:

Crossmember and DANA 35-IFS Brackets:


Torsion Bar Brackets, and Tranmission Brackets:






The Superlift and Trailmaster setups are very similar. Besides the spindle and the rack and pinion, the kits are pretty much the same. In my opinion, the Superlift kit is the better of the two. The Trailmaster kit came out first, which in turn, gives Superlift the advantage to fix Trailmasters flaw (i.e. spindle setup). I give both companies thumbs up!


-Drew







r37ribution

Well-Known Member
Joined
October 7, 2004
Messages
705
Reaction score
2
City, State
Ypsi/MI Y town! whoot whooot!!!
Year, Model & Trim Level
1996 "Sport" XLT 4.0L OHV
I'm very interrested, but what of the shock fitting issues that JDraper had?







ExplorerDMB

Moderator/Technician
Moderator Emeritus
Joined
January 26, 2004
Messages
6,129
Reaction score
17
City, State
Mechanicsville, Virginia
Year, Model & Trim Level
2004 Acura TL
I'm glad you brought that up. If you look in the front suspension pictures of the Superlift kit, you can see they are the same shocks that JDraper had. Now, I do not know if those (the ones pictured in my thread) caused any problems, but that is a big issue. If you do buy the Superlift kit and run into a problem with the shocks and the half shaft hitting - contact Superlift immediately and get it figured out!

-Drew







JDraper

Somewhat Functional
Moderator Emeritus
Joined
January 11, 2001
Messages
15,269
Reaction score
43
City, State
McVeytown, PA
Year, Model & Trim Level
'18 XLT
Superlift did correct the problem I had and shipped me new shocks that fit properly.







1996explorer4x4

Active Member
Joined
September 29, 2004
Messages
92
Reaction score
0
City, State
Virginia Beach, Virginia
Year, Model & Trim Level
'96 XLT 4WD






seafarer76

Well-Known Member
Joined
March 16, 2005
Messages
150
Reaction score
0
City, State
Laramie, WY
Year, Model & Trim Level
96 XLT
I can't see that the superlift has a bad angle to the rack (tie rod). The lifted spindles change the tie point for the steering as well. I think superlift did a better job by including a complete spindle, rather than cutting corners with drop brackets and ball joint adapters. Just my $.02.







ExplorerDMB

Moderator/Technician
Moderator Emeritus
Joined
January 26, 2004
Messages
6,129
Reaction score
17
City, State
Mechanicsville, Virginia
Year, Model & Trim Level
2004 Acura TL
seafarer76 said:
I can't see that the superlift has a bad angle to the rack (tie rod). The lifted spindles change the tie point for the steering as well. I think superlift did a better job by including a complete spindle, rather than cutting corners with drop brackets and ball joint adapters. Just my $.02.

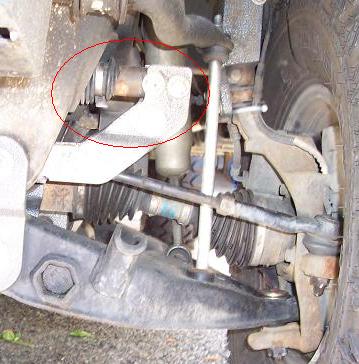

Both superlift and Trailmaster use drop brackets. You have to on a suspension lift. The spindle DOES NOT change the tie rod point for the steering. The place for the tie rod is moved up on the spindle, but if you look at the rack itself, the angle on it is bad! I don't think you are looking at the right stuff. Look at how the boot is off of the rack -- it is angled down. I included two pictures to show: but yes, the tie rod joints have the same similar angel, but the Superlift one seems to put more stress on the rack!


-Drew


Attachments

  • 000_0501_small2.JPG
    30.4 KB · Views: 4,676
  • superlift.bmp
    87.3 KB · Views: 4,629






r37ribution

Well-Known Member
Joined
October 7, 2004
Messages
705
Reaction score
2
City, State
Ypsi/MI Y town! whoot whooot!!!
Year, Model & Trim Level
1996 "Sport" XLT 4.0L OHV
Yeah that angle from the tie rod to the rack does look kinda large. It does seem that when turning the rack would have a lot of upward force put on it? I guess that just means don't turn the steering wheel while your parked, which I try to avoid doing anyways...







ExplorerDMB

Moderator/Technician
Moderator Emeritus
Joined
January 26, 2004
Messages
6,129
Reaction score
17
City, State
Mechanicsville, Virginia
Year, Model & Trim Level
2004 Acura TL
r37ribution said:
I guess that just means don't turn the steering wheel while your parked, which I try to avoid doing anyways...

That is a good habit to get into. But I haven't heard any problems from people with the Superlift kit about the steering. So, I guess it's okay.

-Drew







Premier

Explorer Addict
Joined
June 10, 2003
Messages
5,136
Reaction score
5
City, State
Utah
Year, Model & Trim Level
96 sport
I run the Superlift, and I dont have any problems with the steering. I really like the lift, no complains other than the drop down brackets kinda block my access to the tortion bolts. I will post a picture of it later.

DMB you dont wheel your truck?







ExplorerDMB

Moderator/Technician
Moderator Emeritus
Joined
January 26, 2004
Messages
6,129
Reaction score
17
City, State
Mechanicsville, Virginia
Year, Model & Trim Level
2004 Acura TL
There's no where to "wheel" in VA! All people do is mud boggs. And if I was going to build something for wheeling, I would of picked something else. All my build was for was expierence, and yeah looks. But I'm trying to specialize in 4wd/drivetrain and get my engineering degree from UVA. I can tell you the first thing I do once I graduate, move to somewhere where there is more call for 4wd stuff!

-Drew

EDIT: If I was to really wheel my truck, like Rick for example, I would have to do an enormous amount of things. I wouldn't mind going through trails that are pretty easy with my truck, but I'd rather do the "rock climbing" type stuff. In my opinion, an Explorer is the last place for a trail rig. Atleast not one of my year model (2000) -- and with the expense of parts, it's just not feasable for someone like me. I'd much rather build a rig from nothing or work on a customers vehicle and get paid for it. Also, all of this is my opinion!







wdgross06

Member
Joined
August 13, 2004
Messages
10
Reaction score
0
City, State
Chesaning, Michigan
Year, Model & Trim Level
'96 Sport
would this kit work on my 2 door '96? If not, is there one that would?







ExplorerDMB

Moderator/Technician
Moderator Emeritus
Joined
January 26, 2004
Messages
6,129
Reaction score
17
City, State
Mechanicsville, Virginia
Year, Model & Trim Level
2004 Acura TL
You may want to contact Superlift or Trailmaster - but I wouldn't see a problem with it. I don't think anyone on here has a 2dr with an actual suspension lift.

-Drew







Premier

Explorer Addict
Joined
June 10, 2003
Messages
5,136
Reaction score
5
City, State
Utah
Year, Model & Trim Level
96 sport
wdgross06 said:
would this kit work on my 2 door '96? If not, is there one that would?

I have a 96 sport with the lift... it will work. sheesh..





Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





r37ribution

Well-Known Member
Joined
October 7, 2004
Messages
705
Reaction score
2
City, State
Ypsi/MI Y town! whoot whooot!!!
Year, Model & Trim Level
1996 "Sport" XLT 4.0L OHV
daaaaamn dude how'd ya do dat?
