Making a tube bumper...

96SportWheelin

Active Member
Joined
October 24, 2004
Messages
93
Reaction score
0
City, State
Paoli, IN
Year, Model & Trim Level
'96 Sport
howdy y'all,

I'm wanting to make me some tube bumpers. I'm looking for something simple, kinda like the smittybuilt src like boominX put on his mounty. Lets just say i'll prob stick with the front for now. How much tubing would I need to build a front bumper? I was thinking possibly around 25 ft, hoping that it'll allow enough room for screwups. A guy in my offroad club has some tubing for sale for $2.50 a ft, so I figure I might try to buy some from him before he runs out.

Any help would be greatly appreciated!

-Cody




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





Mud Bug 94

Explorer Addict
Joined
January 16, 2007
Messages
1,202
Reaction score
2
City, State
Bloomingdale, N J
Year, Model & Trim Level
94 XLT-367k miles

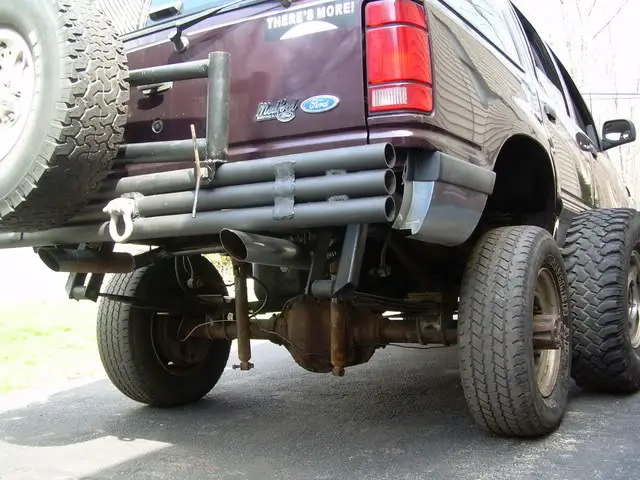

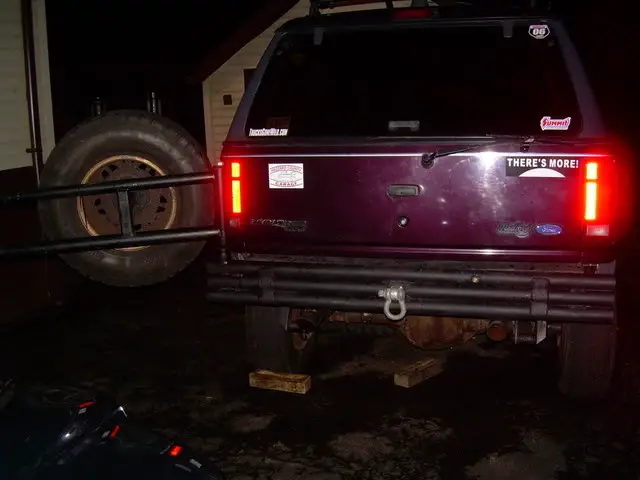

I used like 40 with the f-ups for my rear...thats with the tire carrier tho...
