Figured this would be just as good as anywhere to document my Jeep build thread.

For as long as I could remember I have always wanted to own a Jeep (dont worry, the explorer still has some plans ahead of it and will not be going anywhere.) So after some searching I located a deal on a Jeep and purchased it. I had all best intention of leaving the orginal engine with carberator and transmission, well on the hour long drive home this thought change very quickly and 2 days later I purchased an XJ donor vehicle for the complete engine, wireharness and computer. As further plans went, I ran some compression test on the XJ jeep and it wasnt looking so good; so the next best thing was to test the YJ engine and voila, it came back with excellent results. It was concluded that I was going to purchase a rebuilt cylinder head (4.0 Cast #7120) and with some modifications mount it on the pre-existing 4.2 YJ block.

Stock Specs:
  • Engine - 4.2L I6, 2-B Carb (160,000+ miles)
  • Transmission - TF999
  • Trasfer Case - NP231
  • Front Axle - Dana 30
  • Rear Axle - Dana 35
  • Axel Gear Ratio - 3.54:1
  • Suspension - Stock
  • Tires - 31'





Engine Swap
- Purchased a donor 95' XJ 4.0 Sport

- Parts List:
  • Remanufactured Head Cast#7120 (RockAuto.com)
  • Motor Oil (Local Auto Store)
  • Spark Plugs (Local Auto Store)
  • Spark Plugs Wires (Local Auto Store)
  • Distributor Cap (Local Auto Store)
  • Rotary Button (Local Auto Store)
  • Water Pump - FlowKooler (Quadratec.com)
  • Thermostat (Local Auto Store)
  • Oil Filter (Local Auto Store)
  • Serpentine Belt (Local Auto Store)
  • Upper Gasket Set
  • Crankshaft Seals (Local Auto Store)
  • Electric Fan
  • Exhaust Studs
  • Electric fan Control Unit (DCControl.com)
  • Fuel Pump (RockAuto.com)





Transmission Swap
- AW-4 Transmission from an 88' XJ

- Parts List:
  • Novak Shifter Assembly for New Process - 231 Transfer Case
  • Front & Rear Main Seals
  • Filter & Gasket
  • Transmission Fluid - 8 Quarts




Misc & Replacement Parts (Other then engine/transmission related)
  • Soft Top & hardware - Bestop 54599-15 Supertop Black Denim Soft Top with Tinted Windows (Amazon)
  • Cleaner - Bestop Protectant & Vinyl Window Cleaner (JC Whitney)
  • Front Floor Mats - PLASTICOLOR (JC Whitney)
  • Rear Cargo Mat - PLASTICOLOR (JC Whitney)
  • Black Lower Door Hinge Brackets - Smittybilt 7607 (Amazon)
  • Black Windshield Hinge Brackets - Smittybilt 7603 (Amazon)
  • Black Complete Hood Kit - Smittybilt 7699 (Amazon)
  • Extreme Black Sport Handle - Smittybilt 769310 (Amazon)
  • FAIRCHILD INDUSTRIES 13 Piece Weatherstrip Kit (JC Whitney)
  • XJ Hayes Manual (Local Auto Store)
  • YJ Hayes Manual (Local Auto Store)

Soon to be here after mods:
  • BDS Suspension - 3-1/2" Lift Kit w/Shocks
  • M.O.R.E. Front & Rear Boomerang Shackle (5/8" lift)

Related Information:

Engine Specific

Transmission Specific



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




mcpherson

Active Member
Joined
May 26, 2007
Messages
253
Reaction score
0
City, State
Cumming, GA
Year, Model & Trim Level
'98 XLT, '88 YJ
Wire harness from the donor XJ:


Yes, it really is that bad:


The rear of the wrangler full of the XJ 4.0 engine parts





mcpherson

Active Member
Joined
May 26, 2007
Messages
253
Reaction score
0
City, State
Cumming, GA
Year, Model & Trim Level
'98 XLT, '88 YJ
Well, being that it was Easter weekend I only achieved a few hours to work on this. Some parts came in last weekend, one being the fuel pump so below is a picture of it. The other photos are of just of progress and misc.

E2000 - Fuel Pump:


Progress Pictures:




4.0 sidepiece of block and bolt holes





BradR

Active Member
Joined
May 28, 2009
Messages
906
Reaction score
0
City, State
Novi, MI
Year, Model & Trim Level
'99 EX 4.0 OHV
So you're keeping and fixing both Jeeps and the Explorer?
I'm so lost. lol.

I love Jeeps and would own and drive one all the time, but I would be WAY to cold in the winter and would then hate it. :p





mcpherson

Active Member
Joined
May 26, 2007
Messages
253
Reaction score
0
City, State
Cumming, GA
Year, Model & Trim Level
'98 XLT, '88 YJ
So you're keeping and fixing both Jeeps and the Explorer?
I'm so lost. lol.

I love Jeeps and would own and drive one all the time, but I would be WAY to cold in the winter and would then hate it. :p

I went back and forth on the thought of to keep or not to keep the Explorer, but I enjoy driving it so much. Plus I have some thoughts of what I would like to do with it down the road. As for you being lost I think the term "It's a jeep thing" covers it, but hey not to worry I am lost also with this also, I suppose keeping the Explorer is keeping me lost. I don't like the cold myself, so it does have the hardtop for the winters and worse case the Explorer is there unless its receiving the a new axle or 2... and the jeep may need that rear 8.8 axle, opps did I just write that. ;)





BradR

Active Member
Joined
May 28, 2009
Messages
906
Reaction score
0
City, State
Novi, MI
Year, Model & Trim Level
'99 EX 4.0 OHV
Haha, you're my kind of guy.
My buddy has a Jeep, I kind of understand the Jeep thing, he just doesn't do it right. lol.

I'm having a similar problem trying to decide what to keep or sell with my Mountaineer or Explorer, as I can't afford 2, and don't have a need for 2 at the moment... while I can get my hands on a supercharged302 for the Mounty, I don't really want to do it, and I'm tired of the Explorer, I've owned that a year and a half and I have nothing left to do with, and I want a street truck, my mind is just full of ####. lol. There's a lot more going on than what I just said. But I don't wanna clog up your thread here.. lol...

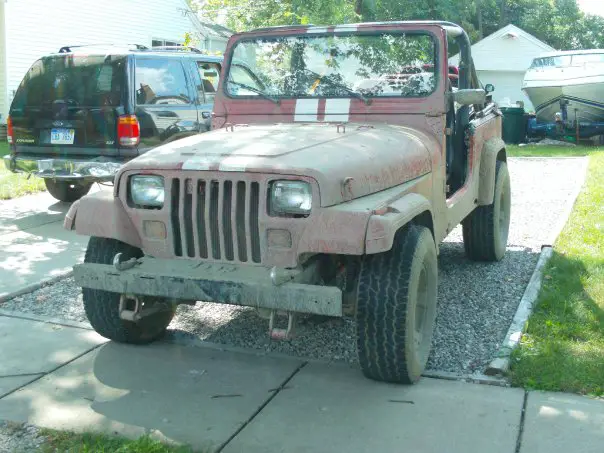

This is his 87 YJ? I think, IDK! :p 4cyl 5 speed that goes tick tick tick.
