Moonroof Drain hoses c/w diagram


Drako99

New Member
Joined
August 5, 2014
Messages
27
Reaction score
3
City, State
Edmonton, AB
Year, Model & Trim Level
2013 Explorer XLT
Does anyone know where they drain?

I can trace from the roof, via headliner down the A pillars.... then Not sure where they go from there.

Can I see them from under the Explorer?



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




LukerDooker

Active Member
Joined
March 25, 2013
Messages
886
Reaction score
8
City, State
N.E.
Year, Model & Trim Level
2013Limited 301A TuxBlack
Likely not, they prob drain to the A/B pillars behind the trim facia, and that runs
down towards the area between the doors or quarter panels.

The door channels outside the seals, the rear hatch outside the seals, all are drain paths when the doors are closed.
Look on fordparts and prob you can view some diagrams of parts including the tubing, which is likely short.

Lots of water ends up channeled to the doors to drain out.
Not likely any manufacturer runs tubes that far, they all will exit fairly close by.

Thats a lot of skinny tubing that could clog with gunk, ice, pollen and dust, all the gunk in rain water etc...doubt that.





Sgt1411

Elite Explorer
Joined
February 22, 2011
Messages
4,312
Reaction score
339
City, State
VanBC/GoodyearAZ
Year, Model & Trim Level
2017 Explorer SPORT
I actually had one of the Explorer engineers show me the sunroof drain. If you open the rear liftgate on the top right up where the wiring comes out of the body into the liftgate you will see an open tube facing you. Thats it.





jmr061

Well-Known Member
Joined
August 24, 2014
Messages
1,868
Reaction score
131
City, State
Wisconsin
Year, Model & Trim Level
16 Edge
Pr-16 Exp Sport
There are FOUR drain locations. The rear gate as described, the two front inner fender wells and down along the driver side rear door.

Ill attached a pic to this post shortly.

Jason

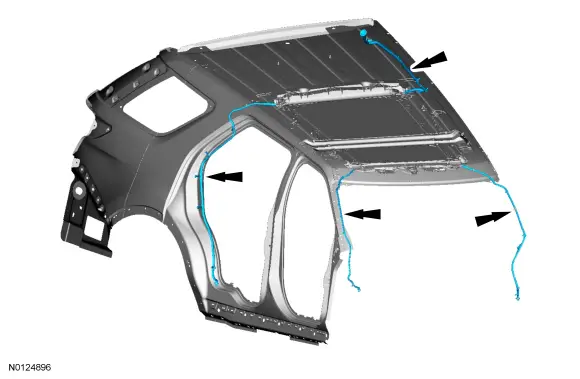

Here is the pic
