Moving again; camshaft synchronizer chirping in cold: Monitoring failure?


Terkins

Active Member
Joined
November 14, 2017
Messages
125
Reaction score
12
Location
Virginia
City, State
Harrisonburg
Year, Model & Trim Level
2000 Ex XLS; 4x4; OHV-6
Happy 2020 All'y'all!

Sudden circumstances & I'm moving (solo) again: To the 'big city'; 1-load-at-a-time ('tired bones'/weak heart/failing kidneys/'lost' 2nd-wind.)

I can hear my camshaft synchronizer chirping more-and-more (2000 XLS, 6-OHV, 145k); especially at-idle. I have a Scan Gauge II: 'no codes' (yet...) Is there some 'factor' I can watch/monitor that may tell me when the camshaft synchronizer is about to crap-out on me (besides if it won't start/won't run)?

I'd like to not have to get towed with the XLS stuffed to the gills with moving effects. (Besides: Fund$ are tight between rental$ right now!)



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




donalds

Elite Explorer
Joined
July 12, 2015
Messages
2,773
Reaction score
745
Location
Stem
City, State
Nc
Year, Model & Trim Level
1999 ford explorer sohc
Little trans fluid on the bushing in there will buy you some time
Perhaps @koda2000 can tell you more I think he just was talking about it I think





Mbrooks420

High Voltage.
Elite Explorer
EF Vendor
Joined
February 2, 2002
Messages
9,832
Reaction score
1,346
Year, Model & Trim Level
1998 Mountaineer AWD
I think it’s a bear to change on the OhV. It should run without the sensor at all.





Runnin'OnEmpty

Well-Known Member
Joined
July 20, 2002
Messages
2,024
Reaction score
36
City, State
Southeast USA
Year, Model & Trim Level
2000 Sport
Previous posters were correct; it is a sunny beach to change.
Best short term solution is to spray the synchro shaft with WD-40
and add a few drops of ATF. It's difficult to even remove the sensor
itself on a 2000. The two capscrews require a 5.5mm socket with
1/4 inch ratchet and extension. A small mirror and flashlight will
help you to see it.





FijiBill

Member
Joined
November 28, 2012
Messages
51
Reaction score
14
Year, Model & Trim Level
1999 Ford Explorer
The problem is that the cam sync drives the oil pump. So, while the engine will run without the cam sync, it won't run without an oil pump. If the cam sync fails and freezes up, your engine is toast.

A bit of oil in the top will buy you time and lets you get familiar with the 5.5 mm cover bolts and overall neighborhood. If the old cam sync is still correct, it isn't a big deal to replace it. Just take a photo of the old flag/sync position with your cell phone and put the new one in exactly the same spot. No need for TDC or the alignment tool. The computer only cares about where the flag is in reference to the sensor.

The hardest part is getting access. On my 99 I could get to it just by removing the coil pack. One hold down bolt for the sync and the rest is pretty easy.

I think it’s a bear to change on the OhV. It should run without the sensor at all.





Mbrooks420

High Voltage.
Elite Explorer
EF Vendor
Joined
February 2, 2002
Messages
9,832
Reaction score
1,346
Year, Model & Trim Level
1998 Mountaineer AWD
I’ve never heard of ones seizing, though I’ve heard of roll pin failures on cheap replacements. This is best left to a Motorcraft part.





C420sailor

Active Member
Joined
July 29, 2008
Messages
356
Reaction score
47
City, State
Long Island, NY
Year, Model & Trim Level
98 XLT SOHC, 99 EB 5.0L
The hardest part is getting access. On my 99 I could get to it just by removing the coil pack. One hold down bolt for the sync and the rest is pretty easy.
Is this in a V8 or V6?





Mbrooks420

High Voltage.
Elite Explorer
EF Vendor
Joined
February 2, 2002
Messages
9,832
Reaction score
1,346
Year, Model & Trim Level
1998 Mountaineer AWD
It couldn't be easier to change on a V8. They are right out front. The v6 it’s tucked in the side/back.





FijiBill

Member
Joined
November 28, 2012
Messages
51
Reaction score
14
Year, Model & Trim Level
1999 Ford Explorer
OP has the V6 OHV

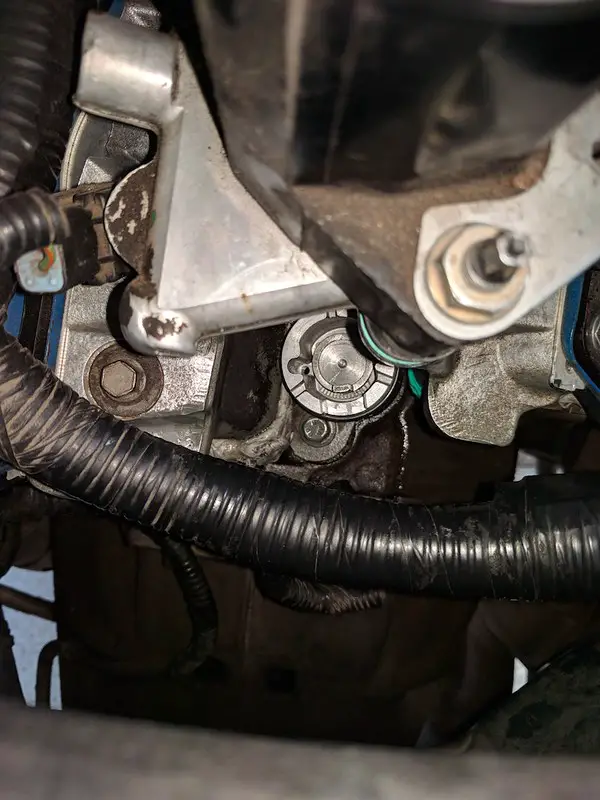

With the sensor top off, here's what you'll see looking down from the back of where the coil pack would be. Note that the flag and cam sync orientation are exactly the same, old versus new.

I use the hold down bolt for reference. It is worth noting that tightening the hold down bolt will pull the cam sync down and rotate the flag further.

Old



New


Last edited:
  • Like
Reactions: 239
